Product Introduction

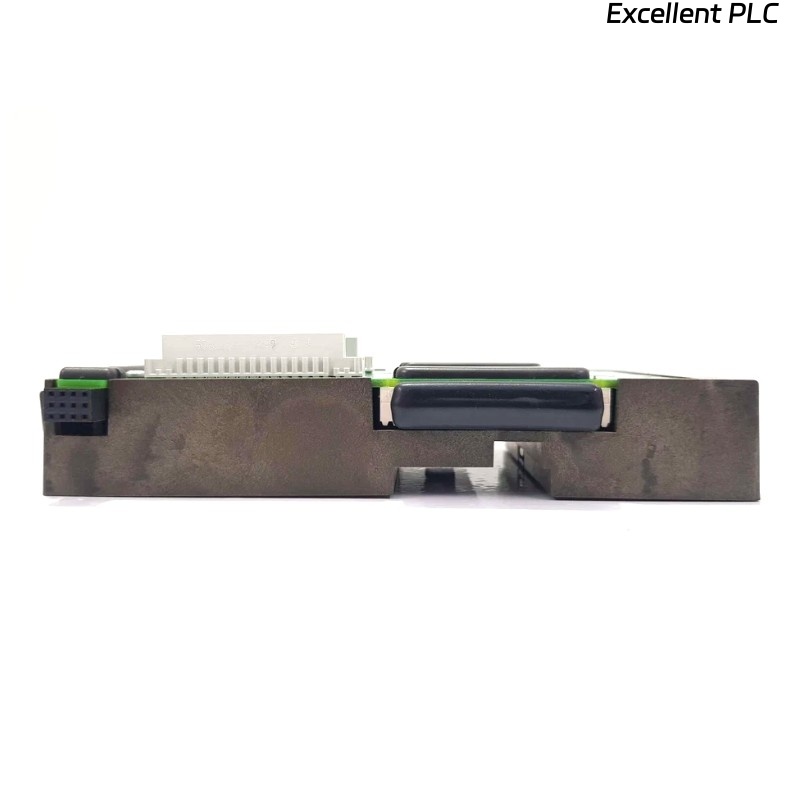

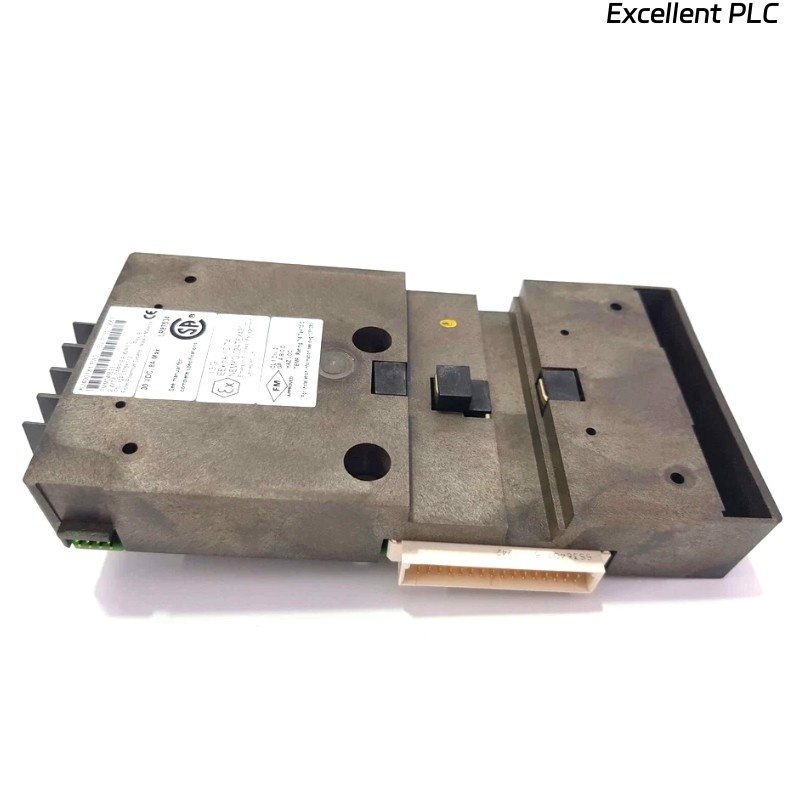

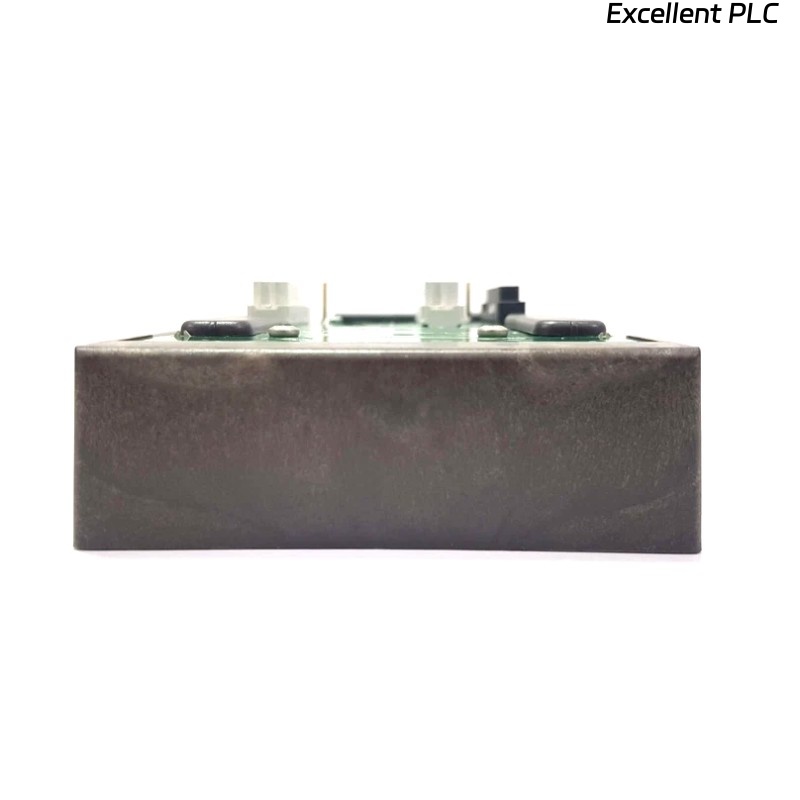

The Emerson VE3051C2 Power/Controller Carrier is a robust module designed for Emerson’s Distributed Control System (DCS) applications. It functions as a central interface for power delivery and controller management, enabling seamless integration with process control networks. This module ensures reliable communication and power distribution for controllers, I/O modules, and field devices in industrial automation systems. Its design emphasizes durability, reliability, and efficient operation under continuous industrial workloads.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | VE3051C2 |
| Function | Power/Controller Carrier |
| Input Voltage | 24 VDC / 48 VDC selectable |
| Output Voltage | 5 VDC, 12 VDC, 24 VDC regulated |
| Current Rating | 10 A (max) |
| Communication Interface | Backplane connector (DCS system bus) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5%–95% non-condensing |
| Mounting Type | Rack-mounted |
| Dimensions | 125 x 330 x 220 mm |
| Weight | 0.38 kg |
| Certifications | CE, UL |
| Protection | Overcurrent, overvoltage, short-circuit |
Product Applications
-
Power supply and control interface for DCS controllers in process industries.
-
Integration in chemical, petrochemical, and pharmaceutical plants for centralized automation.
-
Power management for field I/O modules and control cabinets.
-
Redundant system configurations to maintain continuous process operations.
-
Facilitates communication between controllers and higher-level supervisory systems.
Product Advantages
-
Reliable Power Delivery: Provides stable and regulated power to controllers and I/O modules.
-
Robust Communication: Ensures high-speed, error-free backplane communication for process control.
-
Redundancy Ready: Supports redundant configurations for critical applications.
-
Ease of Integration: Compatible with Emerson DCS controllers and related modules, simplifying installation.
-
Compact Design: Rack-mounted form factor reduces footprint while maintaining performance.
-
Protection Features: Overcurrent, overvoltage, and short-circuit protections enhance operational safety.
FAQ
Q1: What type of controllers can the VE3051C2 support?
A1: It supports Emerson DeltaV and Ovation controller modules compatible with the backplane connection.
Q2: Can this module operate in a redundant configuration?
A2: Yes, it is designed to support N+1 and 1+1 redundant system configurations.
Q3: What happens if the input voltage fluctuates?
A3: The VE3051C2 includes internal voltage regulation and protection circuits to maintain stable output.
Q4: How does the module handle overcurrent situations?
A4: It has built-in overcurrent protection that limits current to safe levels and prevents damage to connected devices.
Q5: Is the module hot-swappable?
A5: No, proper shutdown of the controller rack is required before installation or replacement.
Q6: Can multiple VE3051C2 modules be used in the same rack?
A6: Yes, multiple modules can be installed to provide additional power redundancy and load sharing.
Q7: Does it provide status indication for power and faults?
A7: Yes, LED indicators show operational status, input voltage presence, and fault conditions.
Q8: What is the maximum load current supported per output?
A8: The module can deliver up to 10 A in total across all outputs, with each output regulated individually.
Q9: Can it operate in high-humidity environments?
A9: Yes, it is rated for 5%–95% non-condensing humidity, suitable for most industrial environments.
Q10: Are firmware updates required for the VE3051C2?
A10: Firmware updates are not typical for this power/carrier module; it functions primarily as a hardware interface.
