Product Overview

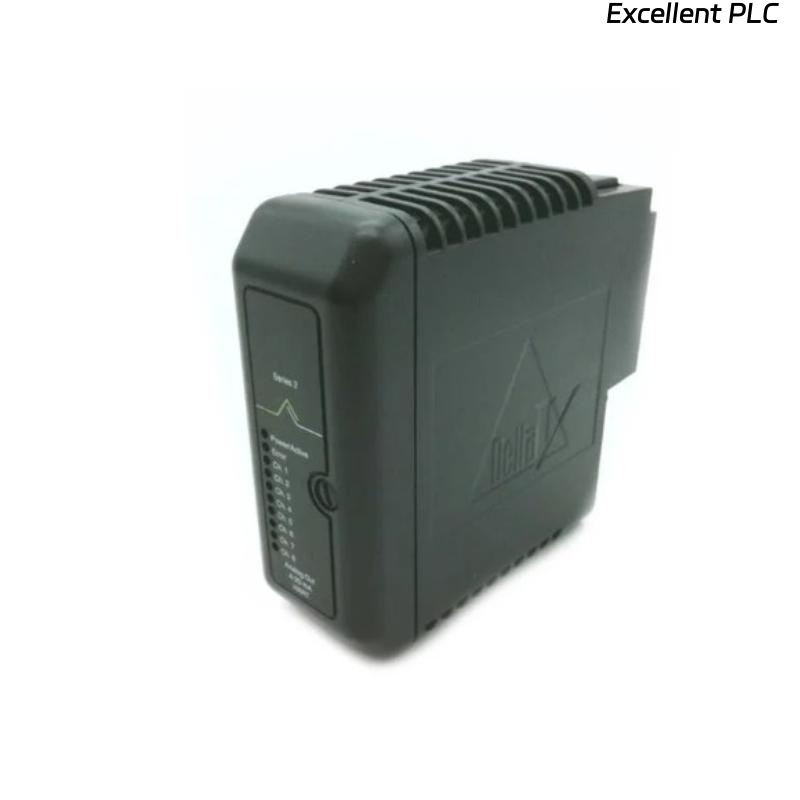

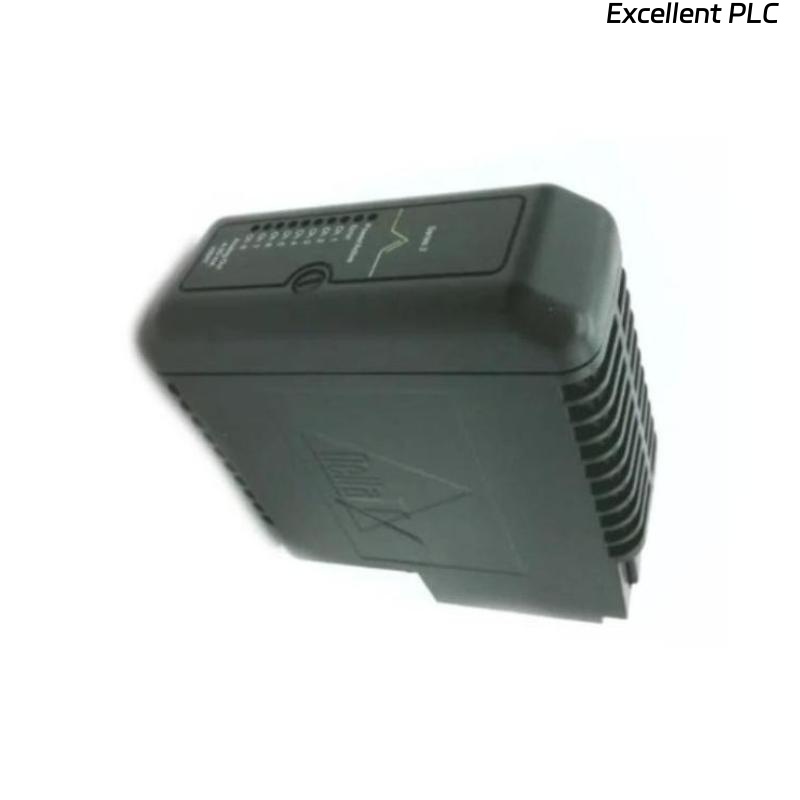

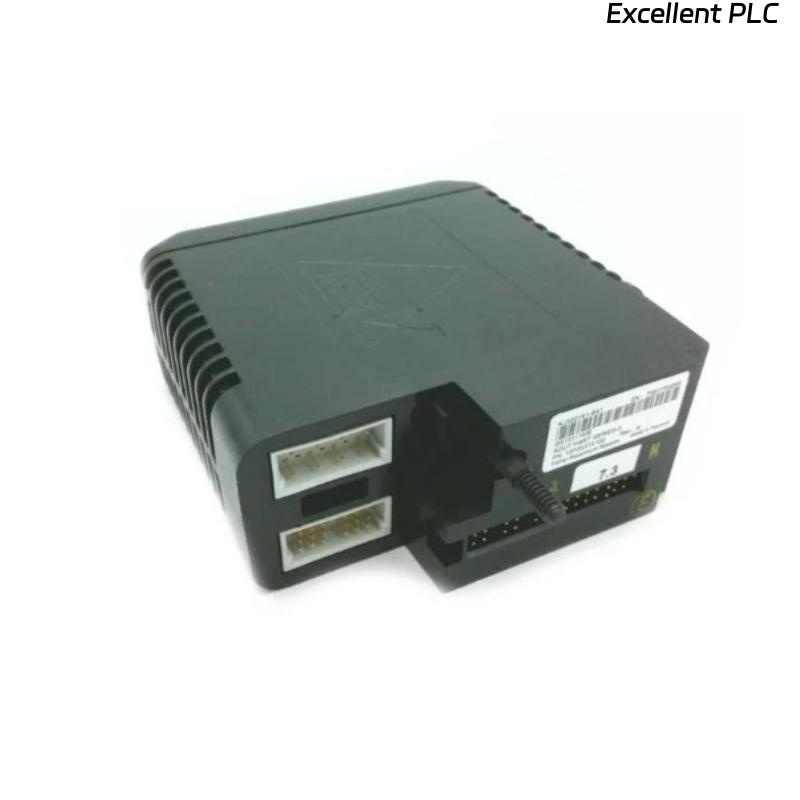

The Emerson VE4001S2B1 KJ3222X1-BA1 Analog Input Card is a high-performance module designed for precise data acquisition in Emerson DeltaV control systems. It provides reliable analog input signal processing, allowing continuous monitoring of process variables such as temperature, pressure, flow, and level. Engineered for industrial environments, the card ensures accurate, stable, and repeatable measurements, supporting high system reliability and operational efficiency.
Key Features
-
High-precision analog input measurement for DeltaV systems
-
Supports multiple signal types including 4–20 mA and voltage signals
-
Compatible with Emerson VE4000 series input/output modules
-
Hot-swappable design for maintenance without system downtime
-
Compact, DIN-rail compatible form factor for efficient panel integration
-
Built-in diagnostics for fault detection and troubleshooting
-
Designed for continuous operation in industrial environments
Technical Specifications
Item | Specification |
---|---|
Manufacturer | Emerson |
Model | VE4001S2B1 KJ3222X1-BA1 |
Product Type | Analog Input Card |
Input Type | Voltage and Current (4–20 mA) |
Number of Channels | 8 channels |
Accuracy | ±0.1% of full scale |
Response Time | < 10 ms |
Isolation | Channel-to-channel and channel-to-system |
Supply Voltage | 24 VDC |
Operating Temperature | 0 °C to +60 °C |
Storage Temperature | -40 °C to +85 °C |
Humidity | 5–95% RH (non-condensing) |
Dimensions | 107 x 41 x 105 mm |
Weight | 0.36 kg |
Applications | Process variable monitoring and control in industrial automation systems |
Industry Applications
-
Oil & Gas automation systems
-
Power generation plants
-
Chemical and petrochemical processing
-
Pharmaceutical manufacturing
-
Water and wastewater treatment systems
-
Pulp and paper process control
-
General industrial automation
Frequently Asked Questions (FAQ)
Q1: What is the function of the VE4001S2B1 Analog Input Card?
It provides precise analog input measurement for process variables like temperature, pressure, flow, and level.
Q2: How many channels does this card support?
It supports 8 input channels.
Q3: Which signal types are compatible?
It supports voltage and 4–20 mA current signals.
Q4: Is it hot-swappable?
Yes, it can be replaced without shutting down the system.
Q5: What is the operating temperature range?
It operates between 0 °C and +60 °C.
Q6: Can it be used in harsh industrial environments?
Yes, it is built for continuous industrial operation.
Q7: Is the card compatible with Emerson DeltaV systems?
Yes, it is designed for use with VE4000 series DeltaV I/O modules.
Q8: What are its dimensions?
Dimensions are 107 x 41 x 105 mm.
