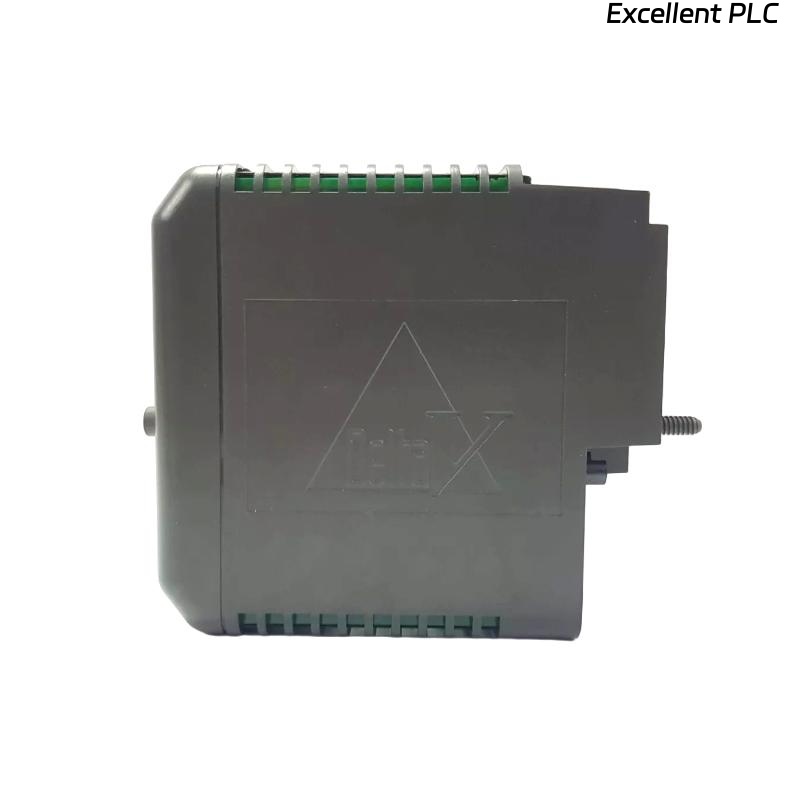

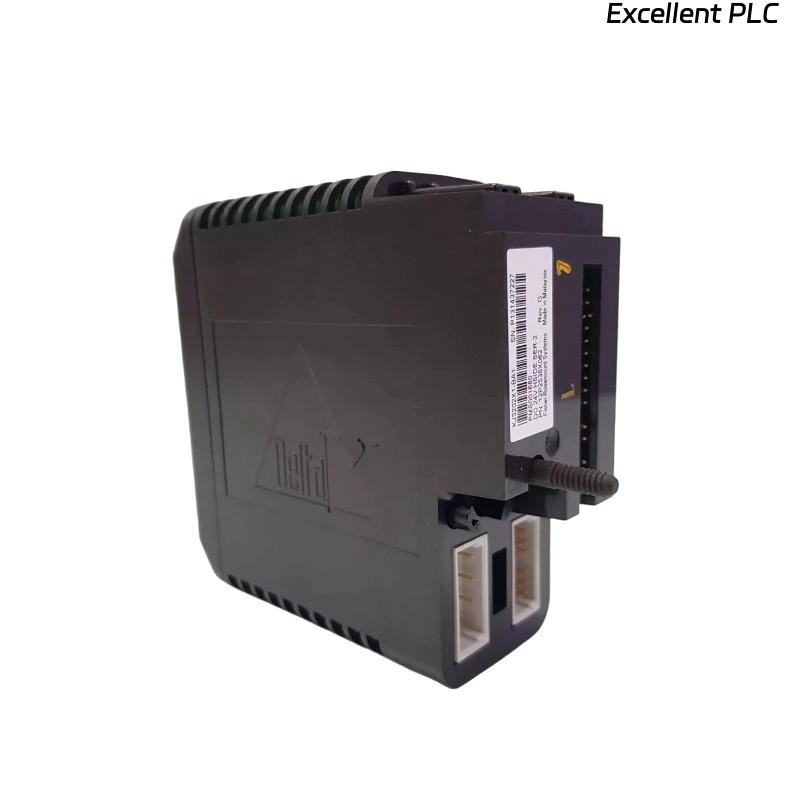

The Emerson VE4001S2T2B2 Module DI Card 8 CH is a high-reliability discrete input (DI) module designed for Emerson DeltaV™ and Ovation™ distributed control systems. Engineered to capture on/off signals from field devices with speed and precision, it offers eight isolated input channels that ensure dependable data acquisition in demanding industrial environments. Its compact design, robust isolation, and hot-swappable architecture simplify maintenance and maximize system uptime, making it ideal for mission-critical process control applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | VE4001S2T2B2 |
| Product Type | Discrete Input Module |
| Input Channels | 8 isolated digital inputs |
| Input Voltage Range | 18–32 VDC |
| Signal Types | Dry contact or DC voltage |
| Channel-to-Bus Isolation | 1500 V RMS |
| Input Response Time | <5 ms typical |
| Power Consumption | 4 W maximum |
| Communication Interface | Redundant DeltaV™ I/O bus |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95 % non-condensing |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.249 kg |
| Certifications | CE, UL, CSA, ATEX Zone 2 |
Applications
-
Process Control – Captures real-time status from pumps, valves, and motors in chemical, pharmaceutical, and food processing plants.
-
Power Generation – Monitors boiler trips, turbine alarms, and auxiliary equipment inputs for precise plant supervision.
-
Oil & Gas – Interfaces with emergency shutdown devices, pipeline sensors, and offshore platform safety systems.
-
Water and Wastewater – Records pump station alarms, filter operations, and plant automation signals.
-
Manufacturing Automation – Detects machine state changes and conveyor belt signals for efficient production line management.
-
Building Management – Integrates HVAC and fire protection alarms for centralized monitoring.
Advantages
-
Compact Eight-Channel Design – Optimized for applications needing fewer channels without sacrificing performance.
-
High Isolation – 1500 V RMS isolation protects control electronics from noise and ground faults.
-
Fast Response – Sub-5 ms detection ensures accurate real-time control.
-
Redundant Communication – Dual DeltaV™ I/O bus maintains reliable data transfer.
-
Hot-Swappable – Allows safe module replacement without shutting down the system.
-
Low Power Consumption – Efficient 4 W maximum power usage reduces energy and cooling costs.
-
Wide Environmental Range – Operates in harsh industrial temperatures and high humidity conditions.
-
Robust Build – Certified for hazardous environments, ensuring safe operation in critical facilities.
FAQ
-
How many discrete input channels does the VE4001S2T2B2 support?
It supports eight individually isolated digital input channels for flexible integration of field signals. -
What is the accepted input voltage range?
Each input channel operates between 18 and 32 VDC and can also accept dry-contact signals. -
What is the typical input response time?
The module captures signal transitions in under 5 milliseconds to support rapid control loops. -
Is the module hot-swappable during operation?
Yes, it can be inserted or removed while the system remains powered, avoiding downtime. -
What level of electrical isolation is provided?
The card provides 1500 V RMS isolation between input channels and the system bus to protect against noise. -
Which communication protocol is used?
It communicates through a redundant DeltaV™ I/O bus, ensuring reliable and secure data transfer. -
Does the module require external power for inputs?
No separate power source is needed beyond the field signal voltage in the specified range. -
Is the module certified for hazardous environments?
Yes, it carries CE, UL, CSA, and ATEX Zone 2 certifications suitable for industrial and hazardous locations. -
How is field wiring managed for this module?
It connects via a standard DeltaV™ carrier and terminal block assembly for quick and secure wiring. -
What systems is the VE4001S2T2B2 compatible with?
It integrates seamlessly with Emerson DeltaV™ and Ovation™ control systems for a wide range of process industries.
