Product Overview

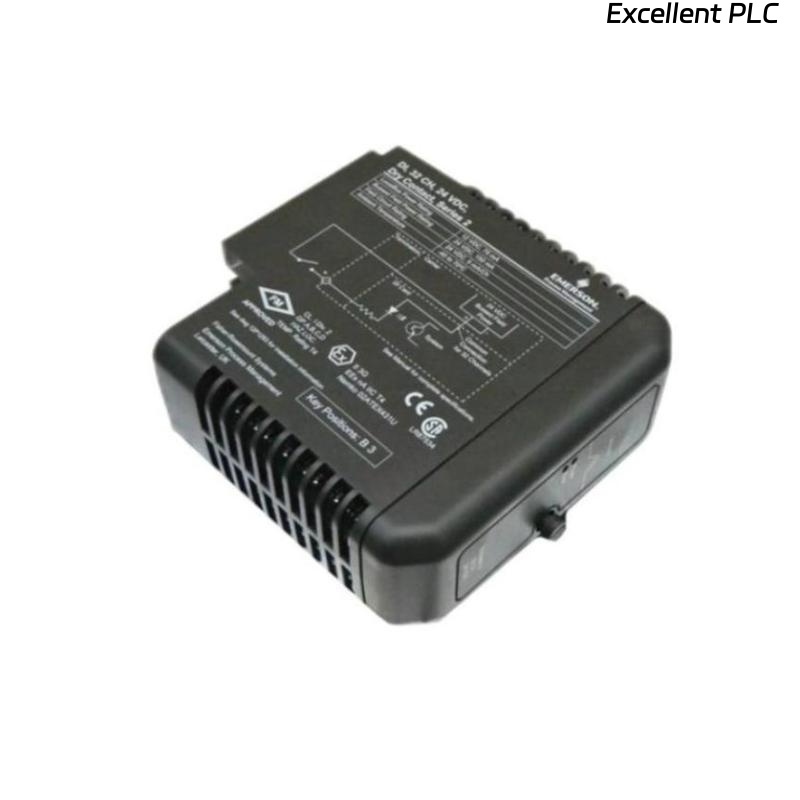

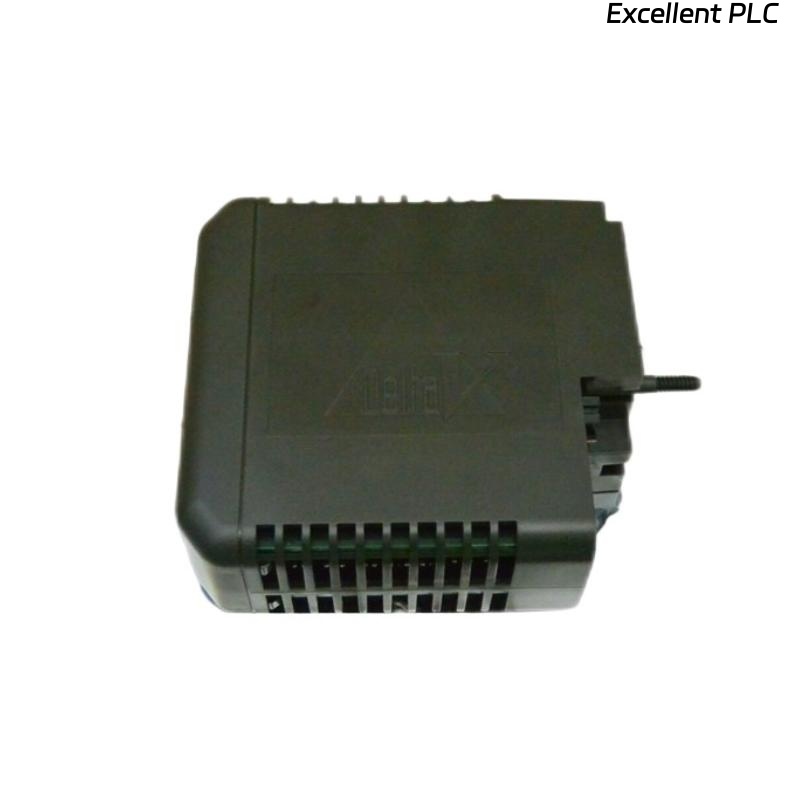

The Emerson VE4001S2T2B4 KJ3203X1-BA1 Discrete Input Card is a high-performance digital input module designed for Emerson DeltaV control systems. It provides reliable monitoring of discrete process signals, allowing accurate detection of ON/OFF events in industrial automation systems. Engineered for industrial environments, this card ensures high-speed signal acquisition, stability, and long-term reliability, supporting continuous operation and optimal system performance.
Key Features
-
High-speed, accurate monitoring of discrete signals
-
Compatible with Emerson VE4000 series input/output modules
-
Hot-swappable design for maintenance without system downtime
-
Compact, DIN-rail compatible form factor for efficient panel integration
-
Built-in diagnostics for fault detection and troubleshooting
-
Designed for continuous operation in industrial environments
-
Easy integration with Emerson DeltaV automation systems
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4001S2T2B4 KJ3203X1-BA1 |
| Product Type | Discrete Input Card |
| Number of Channels | 16 channels |
| Input Type | Digital (24 VDC) |
| Response Time | < 5 ms |
| Isolation | Channel-to-channel and channel-to-system |
| Supply Voltage | 24 VDC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 120 x 45 x 130 mm |
| Weight | 0.132 kg |
| Applications | Monitoring of discrete ON/OFF signals in industrial automation systems |
Industry Applications
-
Oil & Gas automation systems
-
Power generation plants
-
Chemical and petrochemical processing
-
Pharmaceutical manufacturing
-
Water and wastewater treatment systems
-
Pulp and paper industrial control
-
General industrial automation
Frequently Asked Questions (FAQ)
Q1: What is the function of the VE4001S2T2B4 Discrete Input Card?
It monitors discrete ON/OFF signals from industrial sensors and switches.
Q2: How many channels does this card support?
It supports 16 digital input channels.
Q3: What input voltage is required?
It operates with 24 VDC digital signals.
Q4: Is the module hot-swappable?
Yes, it can be replaced without shutting down the system.
Q5: What is the operating temperature range?
It operates between 0 °C and +60 °C.
Q6: Can it be used in harsh industrial environments?
Yes, it is designed for continuous operation under demanding conditions.
Q7: Is it compatible with DeltaV systems?
Yes, it works with VE4000 series DeltaV I/O modules.
Q8: What are the module dimensions and weight?
Dimensions: 120 x 45 x 130 mm, Weight: 0.132 kg.
