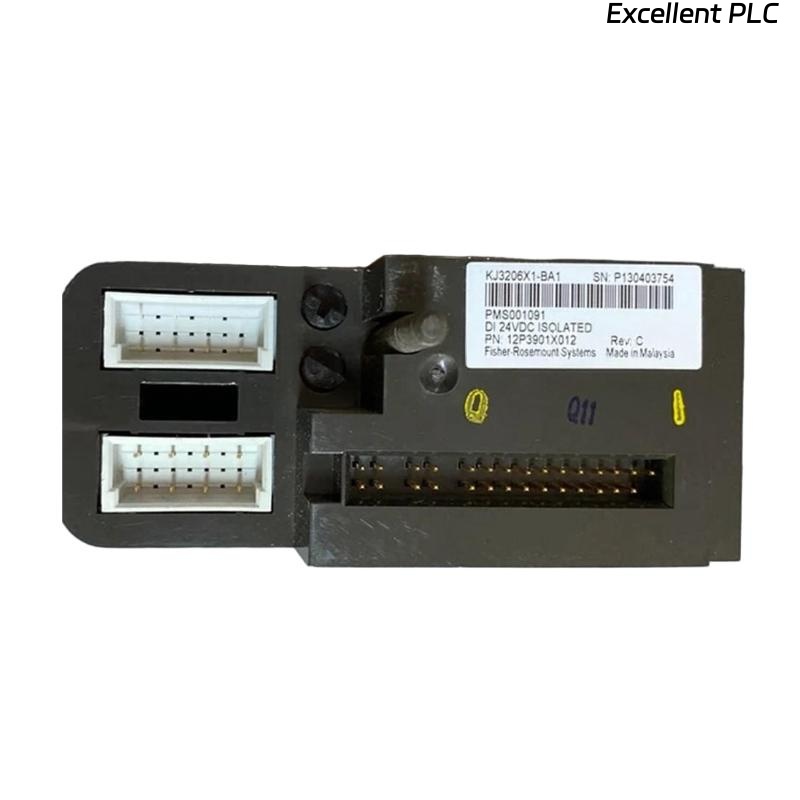

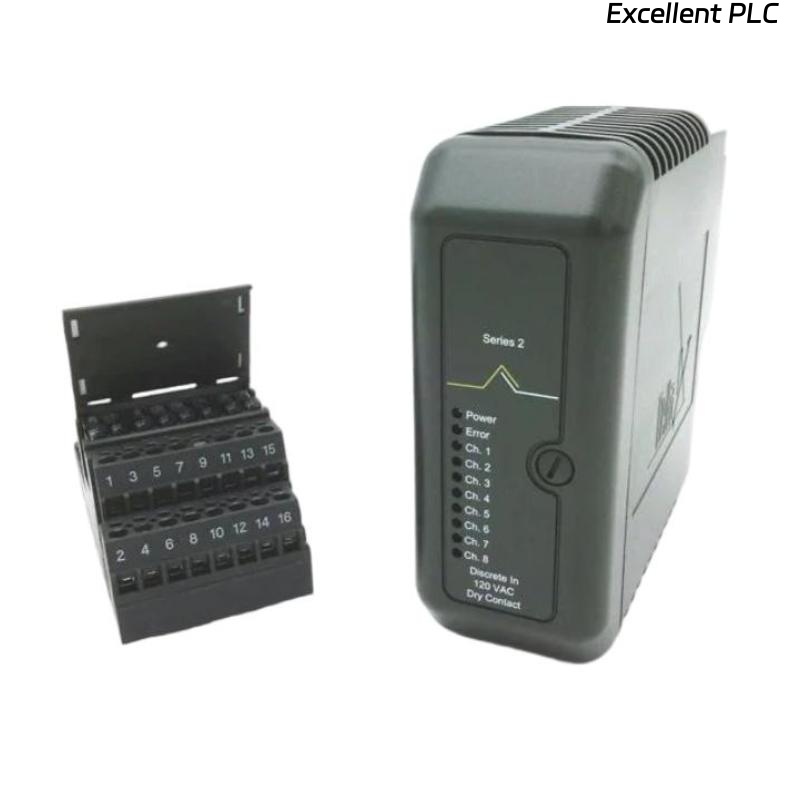

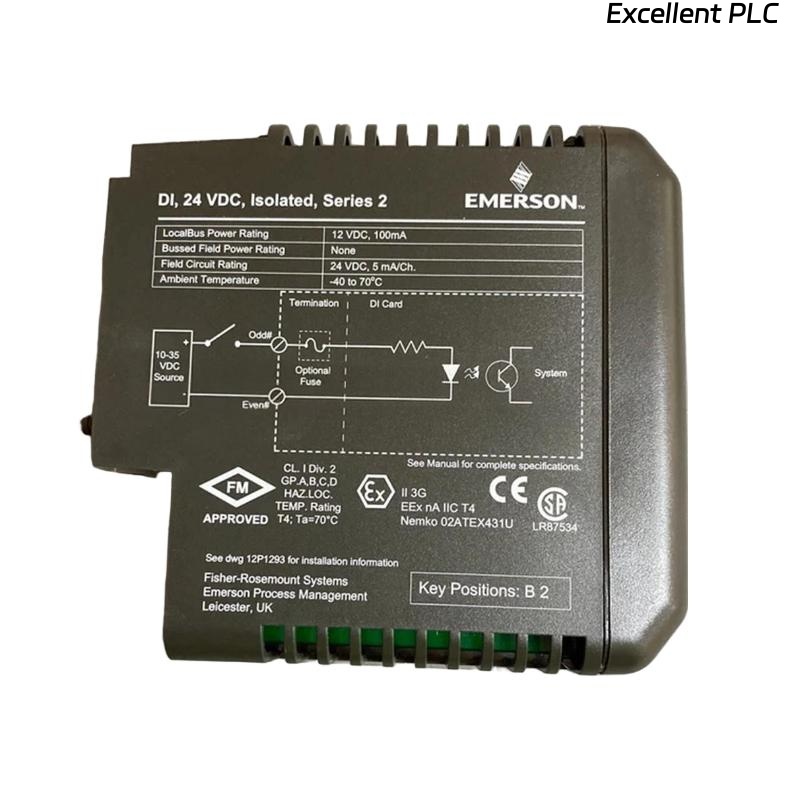

Emerson VE4001S3T1B2 Fused I/O Termination Block

Product Introduction

The Emerson VE4001S3T1B2 Fused I/O Termination Block is a specialized termination unit designed for use within Emerson’s DeltaV™ control system architecture. It provides a secure, fused connection point between the field wiring and the I/O interface cards, ensuring both signal integrity and overcurrent protection. This model is widely used in process automation environments where reliability and safety are critical.

---

Technical Specifications

---

Product Applications

• Distributed Control Systems (DCS) for continuous process industries

• I/O termination for critical safety systems

• Power plants for monitoring and control circuits

• Oil and gas process automation

• Chemical and refining plants requiring secure fused connections

• Pharmaceutical facilities with strict process control requirements

---

Product Advantages

• Enhanced Protection: Integrated fuses safeguard the I/O cards and connected field devices from overcurrent damage.

• Ease of Maintenance: Quick fuse replacement reduces downtime and ensures fast recovery.

• High Compatibility: Fully compatible with DeltaV systems, enabling seamless integration.

• Reliable Connections: Secure screw terminal design ensures stable and vibration-resistant connections.

• Compact Design: Small footprint allows high-density installation in limited panel space.

• Industrial Durability: Built to withstand harsh operating conditions with wide temperature tolerance.

---

FAQ

Q1: What type of fuse does the VE4001S3T1B2 use?
A1: It uses a replaceable miniature fuse rated at 2 A, providing overcurrent protection for connected channels.

Q2: Can the termination block handle both AC and DC signals?
A2: Yes, it supports both AC and DC voltages up to 250 V.

Q3: How does the fused protection improve system reliability?
A3: The fuse isolates faulty channels, preventing damage to the I/O card and maintaining the rest of the system in operation.

Q4: Is the VE4001S3T1B2 hot-swappable?
A4: No, the termination block itself is not hot-swappable; however, fuse replacement can be performed without removing the block from the panel.

Q5: Does the block support analog and digital signals?
A5: Yes, it can be used for both analog and digital I/O terminations, depending on the DeltaV card it connects to.

Q6: How is grounding managed in this module?
A6: It provides dedicated grounding terminals to ensure signal integrity and minimize noise interference.

Q7: What is the maximum current load supported by each channel?
A7: Each channel is protected for up to 2 A, limited by the fuse rating.

Q8: Can this block be used in redundant DeltaV systems?
A8: Yes, it is compatible with redundant I/O configurations in DeltaV architecture.

Q9: How is the block mounted in a control cabinet?
A9: It can be installed either on a DIN rail or directly panel-mounted, depending on the design requirement.

Q10: Is there visual indication for fuse status?
A10: Yes, most versions include fuse status indication, helping operators quickly identify blown fuses.

---
