Product Introduction

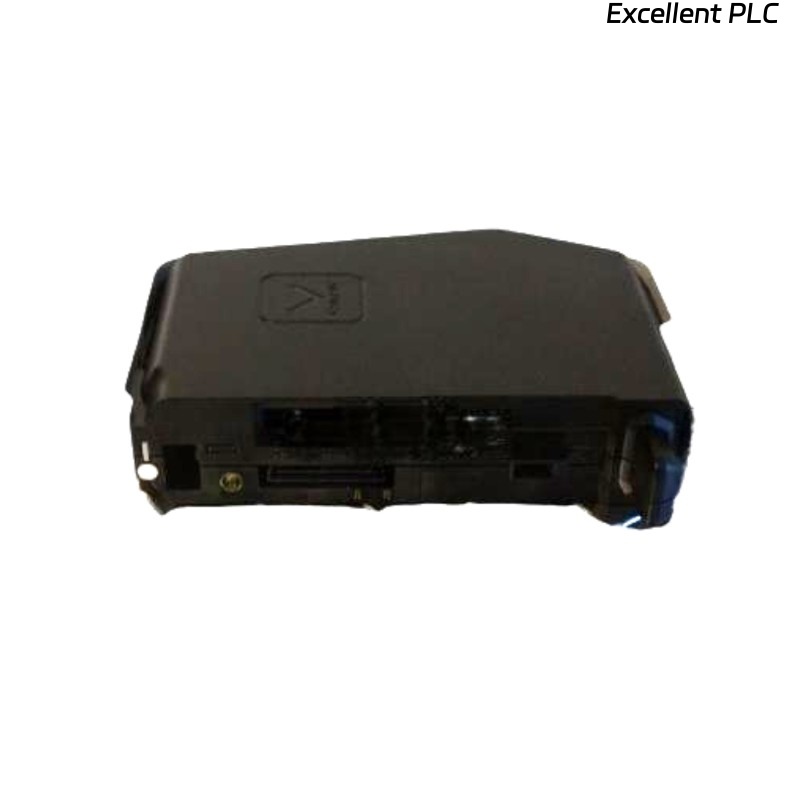

The Emerson VE4001S5T2B5 is a DeltaV Discrete Input Card designed for seamless integration into DeltaV distributed control systems. It provides reliable monitoring of discrete field signals, enabling precise control and automation for various industrial applications. Built for high performance, the card ensures accurate detection and fast response to digital inputs while maintaining compatibility with the DeltaV architecture.
Product Advantages
-
High Reliability: Engineered for industrial environments, ensuring minimal downtime.
-
Fast Response Time: Optimized for real-time process control applications.
-
Scalable Integration: Compatible with DeltaV systems for easy expansion of control networks.
-
Robust Design: Resistant to electrical noise and environmental disturbances.
-
Easy Installation: Plug-and-play module simplifies maintenance and replacement.
-
Versatile Application: Suitable for monitoring a wide range of discrete signals, including switches, sensors, and contact closures.
Technical Specifications
| Parameter | Value |
|---|---|
| Card Type | Discrete Input Card |
| Model Number | VE4001S5T2B5 |
| Input Channels | 16 Digital Inputs |
| Input Voltage | 24 VDC |
| Input Type | Sinking/Sourcing |
| Response Time | < 5 ms |
| Isolation | Channel-to-channel and field-to-backplane isolation |
| Power Consumption | 2 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.25 kg |
| Compliance | CE, UL, RoHS |
Product Applications
-
Monitoring of discrete input devices such as limit switches, push buttons, and sensors.
-
Alarm detection and status monitoring in process automation systems.
-
Integration into DeltaV control systems for batch, continuous, or hybrid process control.
-
Industrial automation in sectors like oil & gas, chemical, power generation, and water treatment.
-
Supervisory control and data acquisition (SCADA) systems.
-
Redundant system setups where high reliability is required.
FAQ
Q1: What is the maximum input voltage that VE4001S5T2B5 can safely handle?
A1: The card is rated for 24 VDC nominal, with a maximum safe input of 30 VDC.
Q2: Can the VE4001S5T2B5 support both sinking and sourcing input devices?
A2: Yes, the card is designed to handle both sinking and sourcing digital inputs.
Q3: What is the typical response time for a single input channel?
A3: The response time is less than 5 milliseconds per channel.
Q4: Is channel-to-channel isolation provided on this card?
A4: Yes, each input channel is isolated from other channels and from the backplane.
Q5: Can this card operate in high-humidity environments?
A5: Yes, it can operate safely in 5% to 95% non-condensing humidity conditions.
Q6: How is the card powered within the DeltaV system?
A6: Power is supplied via the backplane, with a typical consumption of 2 W.
Q7: Is the VE4001S5T2B5 compatible with redundant DeltaV I/O systems?
A7: Yes, it can be integrated into redundant I/O modules for failover capability.
Q8: Does the card provide diagnostic information for input failures?
A8: Yes, it supports standard DeltaV diagnostics, including short/open detection.
Q9: What is the operating temperature range for the card?
A9: The card operates reliably from 0°C to 60°C.
Q10: Can the card be hot-swapped without shutting down the system?
A10: The card supports hot-swap in DeltaV systems designed for module replacement.
