Product Overview

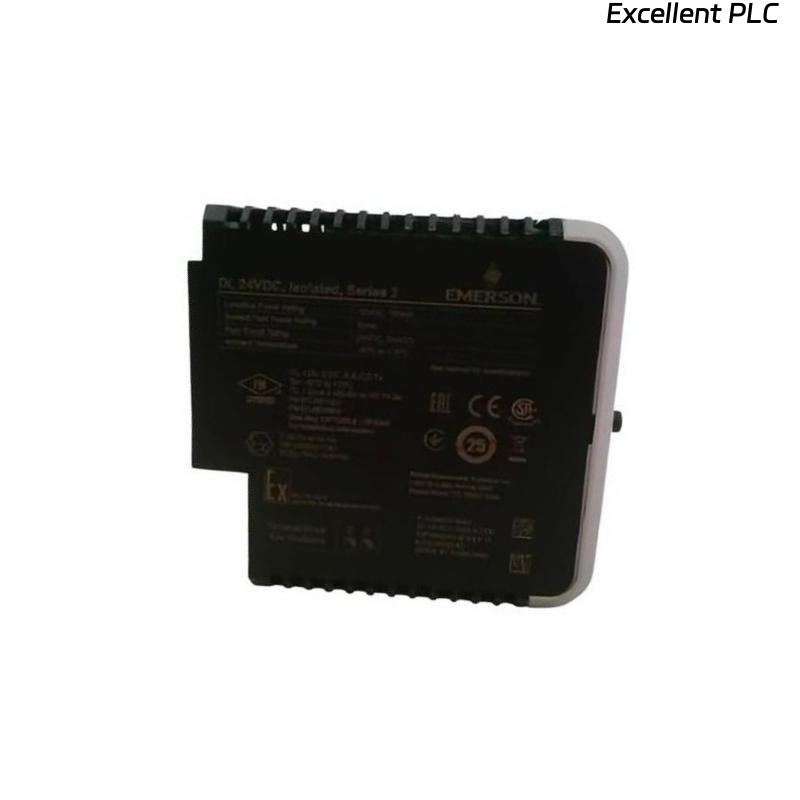

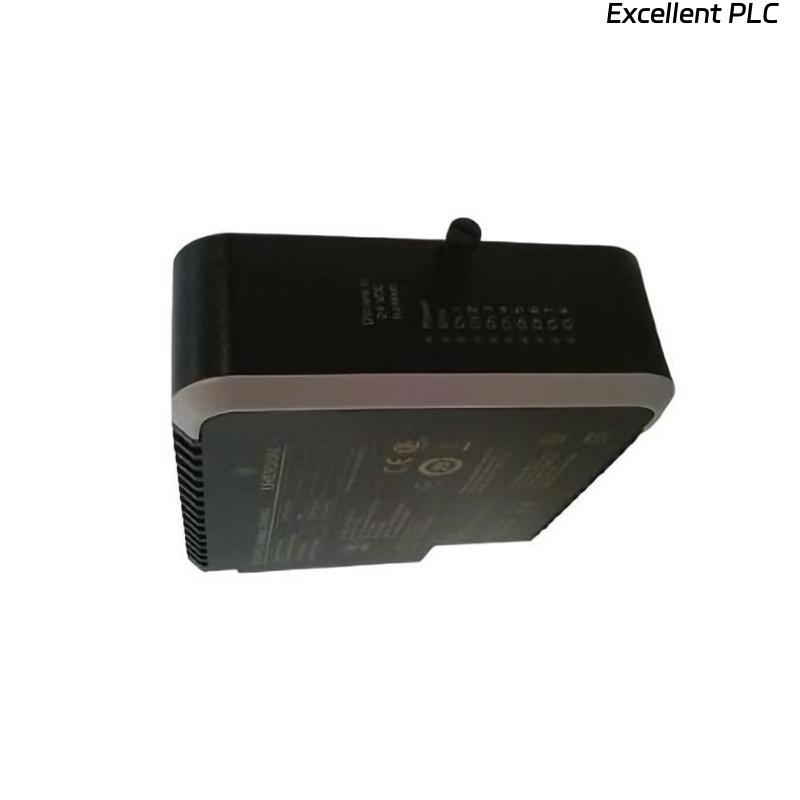

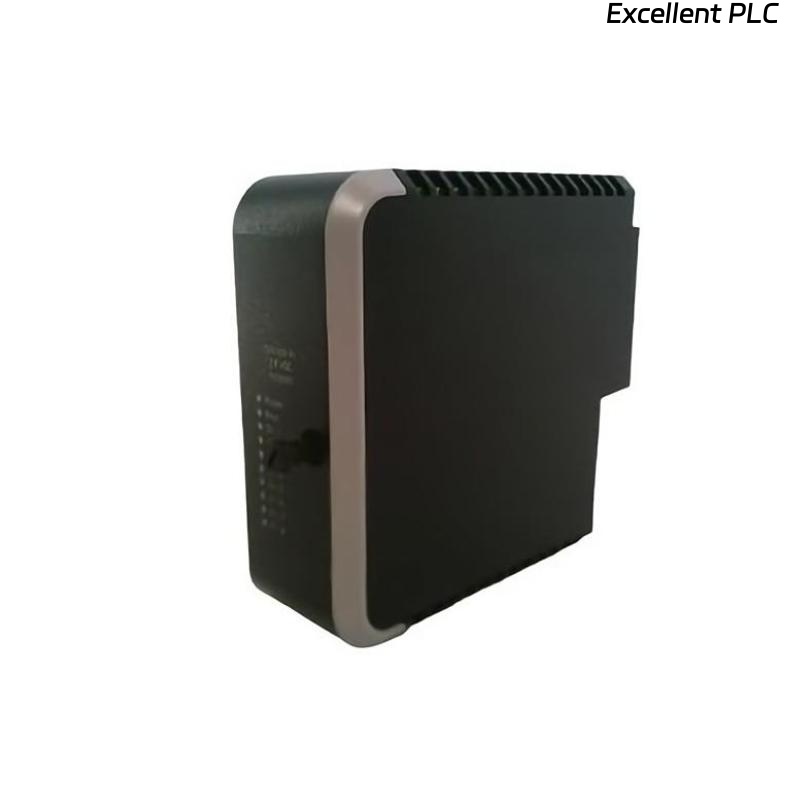

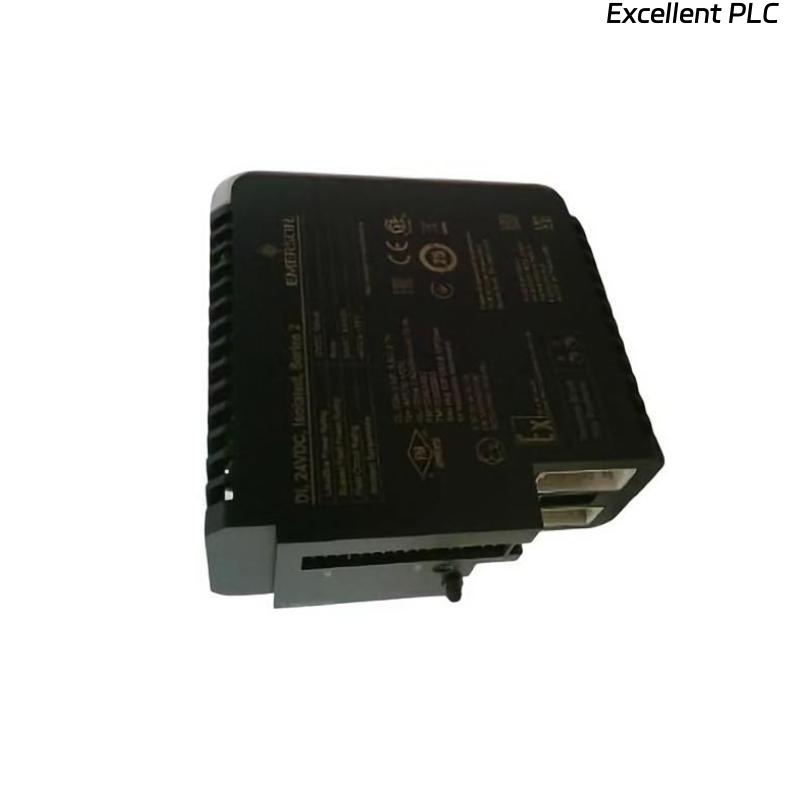

The Emerson VE4002S1T1B1 Discrete Output Card is a reliable output module designed for use in Emerson DeltaV control systems. It provides high-performance switching capabilities for digital (ON/OFF) signals, enabling precise control of actuators, relays, solenoids, and other discrete devices in industrial automation processes. With its robust design, hot-swappable capability, and diagnostic features, this module ensures continuous and efficient operation in demanding industrial environments.
Key Features
-
High-performance discrete output control for DeltaV systems
-
Supports reliable switching of actuators, relays, and solenoids
-
8-channel discrete output configuration for efficient integration
-
Hot-swappable design for uninterrupted system operation
-
Compact DIN-rail compatible form factor
-
Built-in diagnostics for fault detection and system reliability
-
Designed for continuous operation in harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4002S1T1B1 |
| Product Type | Discrete Output Card |
| Number of Channels | 8 |
| Output Type | Digital (24 VDC) |
| Output Current | Up to 0.5 A per channel |
| Isolation | Channel-to-channel and channel-to-system |
| Supply Voltage | 24 VDC |
| Response Time | < 5 ms |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.19 kg |
| Applications | Switching of discrete devices in industrial control systems |
Industry Applications
-
Oil & Gas automation systems
-
Power generation plants
-
Chemical and petrochemical processing
-
Pharmaceutical manufacturing
-
Water and wastewater treatment systems
-
Pulp and paper process control
-
General industrial automation
Frequently Asked Questions (FAQ)
Q1: What is the function of the VE4002S1T1B1 Discrete Output Card?
It provides reliable ON/OFF switching for actuators, relays, solenoids, and other discrete devices.
Q2: How many channels does this card support?
It supports 8 discrete output channels.
Q3: What is the output voltage rating?
It operates at 24 VDC.
Q4: What is the maximum output current per channel?
Each channel can handle up to 0.5 A.
Q5: Is the module hot-swappable?
Yes, it can be replaced without system shutdown.
Q6: What is the operating temperature range?
It operates between 0 °C and +60 °C.
Q7: Is it compatible with DeltaV systems?
Yes, it is designed for use in Emerson DeltaV automation systems.
Q8: What are the dimensions and weight of the module?
Dimensions: 107 x 41 x 105 mm, Weight: 0.19 kg.
