Product Overview

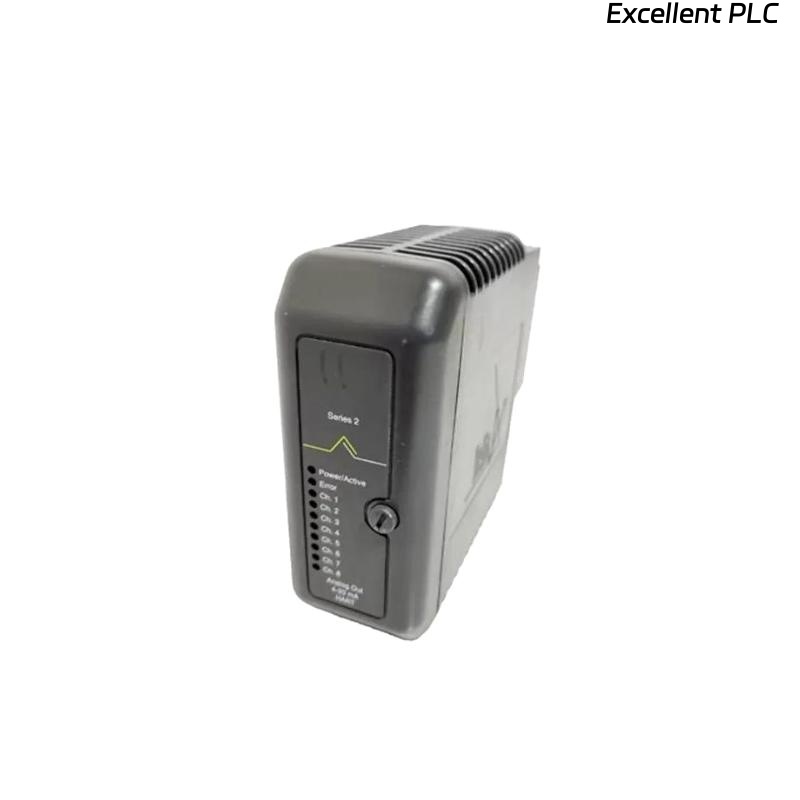

The Emerson VE4002S1T2B2 Analog Input Terminal Block is a precision-engineered I/O module designed for the DeltaV distributed control system. This module provides secure, accurate, and noise-resistant analog signal processing, making it an integral component in advanced process automation networks.
Built to meet the demanding requirements of industrial-grade control systems, it delivers consistent signal integrity, superior isolation, and long-term operational reliability. The VE4002S1T2B2 supports a wide range of input types, including 4–20 mA and voltage-based signals, making it suitable for sensors, transmitters, and critical field instrumentation in power, chemical, and refining industries.
Detailed Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Product Type | Analog Input Terminal Block | For DeltaV I/O systems |
| Model Number | VE4002S1T2B2 | High-performance analog input unit |
| Supported Channels | 16 analog input channels | Configurable per channel |
| Input Signal Range | 0–10 VDC / 4–20 mA | Supports voltage and current signals |
| Input Impedance | > 250 Ω | Optimized for low signal loss |
| Resolution | 16-bit | High-precision signal processing |
| Isolation | 2500 V RMS | Channel-to-system isolation for protection |
| Sampling Rate | 10 ms typical | Real-time monitoring for process control |
| Communication Interface | DeltaV redundant I/O bus | High-reliability industrial communication |
| Operating Voltage | 24 VDC nominal | Supplied via system backplane |
| Power Consumption | 4.5 W typical | Low energy consumption design |
| Diagnostic Features | Channel diagnostics, open-circuit detection | Built-in intelligent self-check |
| Operating Temperature | 0°C to +60°C | Industrial-grade thermal range |
| Storage Temperature | -40°C to +85°C | Long-term stable storage capability |
| Humidity Range | 5–95% non-condensing | Suitable for humid industrial sites |
| Mounting Type | Plug-in backplane connection | Tool-free installation and removal |
| Dimensions (H × W × D) | 130 mm × 25 mm × 120 mm (5.12″ × 0.98″ × 4.72″) | Compact form for dense control racks |
| Weight | 0.32 kg (0.70 lb) | Lightweight and durable structure |
| Certifications | CE, UL, ATEX compliant | Suitable for global deployment |
Operational Applications
-
Petrochemical Plants: Accurate analog input for temperature, flow, and pressure transmitters.
-
Power Generation Units: Real-time monitoring of turbine sensors and control valves.
-
Water and Wastewater Systems: Precise signal acquisition from pH, conductivity, and level transmitters.
-
Pharmaceutical Manufacturing: Stable analog signal capture for dosing and purity control.
-
Oil & Gas Pipelines: Continuous monitoring of pressure and flow across field networks.
-
Food & Beverage Automation: Integration with process lines for batch consistency control.
Performance Highlights
-
High Channel Density: Supports up to 16 analog inputs within a single compact module.
-
Noise Immunity: Enhanced shielding and isolation ensure clean signal acquisition.
-
Self-Diagnostics: Built-in diagnostics detect open loops and channel faults automatically.
-
Flexible Configuration: Supports both voltage and current input standards.
-
Reliable System Integration: Seamlessly connects to DeltaV I/O carriers.
-
Industrial Durability: Designed to withstand mechanical vibration and electrical surges.
-
Low Power Operation: Optimized energy consumption without performance loss.
-
Easy Maintenance: Hot-swappable design reduces system downtime.
-
Accurate Signal Resolution: 16-bit processing ensures detailed measurement accuracy.
-
Extended Operating Life: Designed for 24/7 industrial operation under demanding conditions.
