Product Introduction

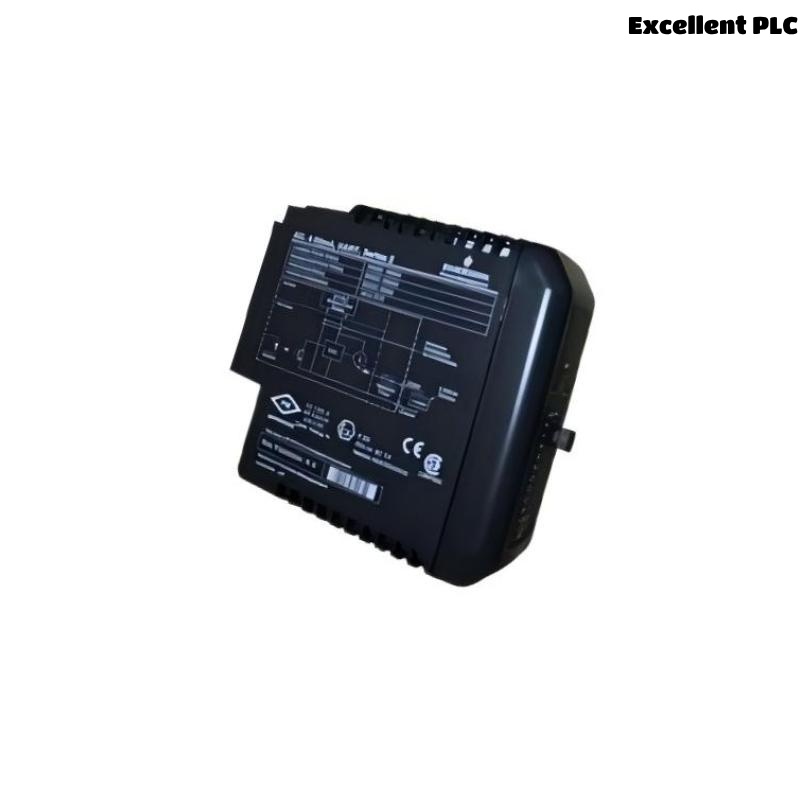

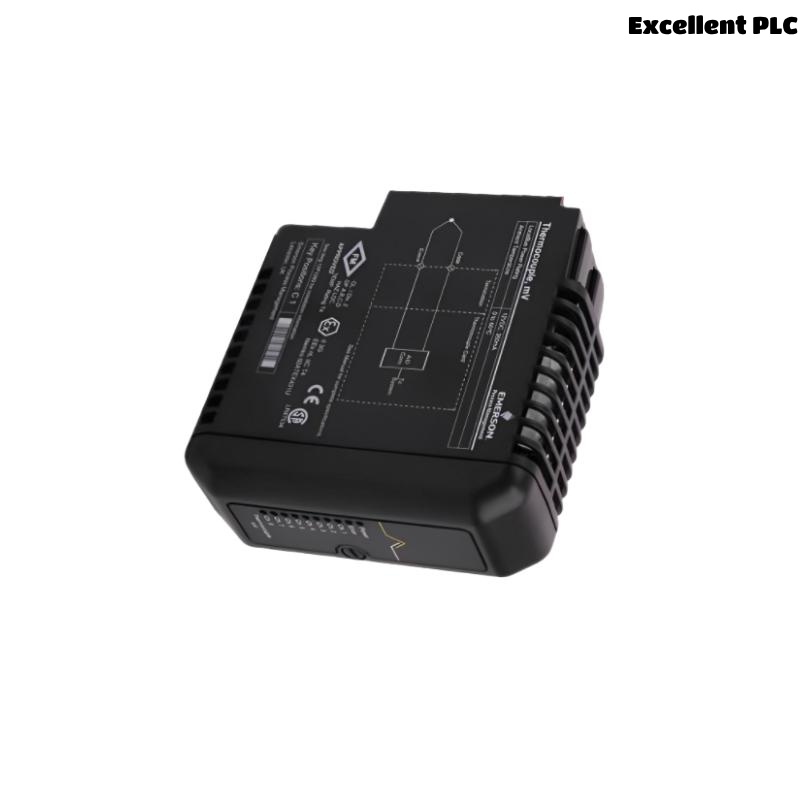

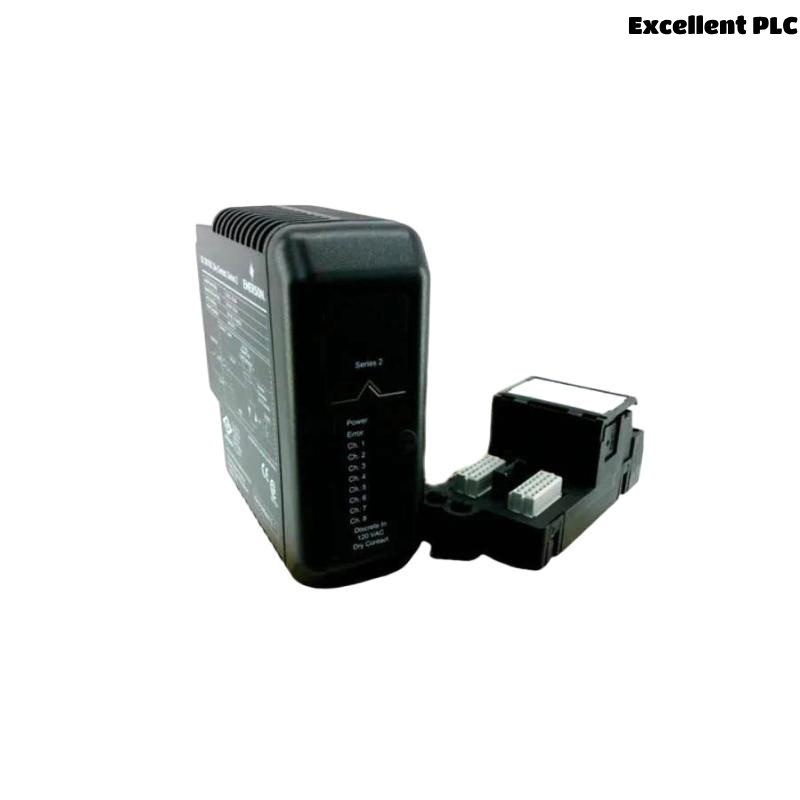

The Emerson VE4002S2T2B2 12P0556X152 is a high-performance input module designed for industrial control systems. Engineered for precise data acquisition and signal processing, it is part of Emerson’s DeltaV™ series of automation components. This module offers exceptional accuracy, reliability, and efficiency in capturing and transmitting data from external sensors and equipment to control systems.
With dimensions of 127 × 52 × 130 mm and a weight of 0.725 kg, the module is compact and lightweight, making it easy to integrate into control cabinets or panels. Its robust design ensures stable performance under harsh industrial conditions, providing real-time data to optimize processes, improve safety, and reduce downtime in critical operations.
The Emerson VE4002S2T2B2 input module is ideal for use in a wide range of applications where accurate and efficient data acquisition is required. It supports multiple input types, ensuring versatility in connecting various sensors and devices in process control, automation, and industrial monitoring systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model | VE4002S2T2B2 12P0556X152 |
| Module Type | Input Module |
| Dimensions (L x W x H) | 127 × 52 × 130 mm |
| Weight | 0.725 kg |
| Input Type | Digital and Analog Inputs |
| Channel Configuration | 2 Inputs |
| Power Supply | 24V DC |
| Communication Protocol | DeltaV Protocol (Fieldbus) |
| Operating Temperature | -40°C to +70°C |
| Environmental Rating | IP20 (Protected from solid objects >12mm) |
| Mounting Type | Panel Mount, DIN Rail Compatible |
| Signal Processing | Signal Conditioning |
| Input Impedance | 250Ω for Analog Inputs |
| Current Input Range | 4–20 mA |
Applications
The Emerson VE4002S2T2B2 12P0556X152 Input Module is designed for use in industrial automation and control systems. Some of the primary applications include:
-
Process Control: In chemical plants, oil refineries, and power generation, the module is used for data acquisition from sensors monitoring various parameters such as pressure, temperature, flow, and level.
-
Industrial Automation: It integrates seamlessly into automation systems, providing real-time data for controlling machinery, optimizing performance, and improving efficiency.
-
Factory Automation: The input module is ideal for smart factory environments, where sensor networks are used to monitor and control production lines and machinery.
-
Building Automation: It is used in HVAC systems and energy management, where sensors feed real-time information about temperature, humidity, and airflow to control systems.
-
Energy Facilities: In energy plants, it monitors various parameters to ensure the safe and efficient operation of critical systems like generators, turbines, and transformers.
-
Safety Systems: Used in emergency shutdown systems and fire safety monitoring, ensuring that inputs from safety sensors are accurately processed and relayed to the system for prompt action.
Product Advantages
-
High Accuracy and Reliability: The Emerson VE4002S2T2B2 module offers precise signal processing and data acquisition, ensuring that the system receives accurate information for decision-making.
-
Wide Temperature Range: It operates effectively in a wide temperature range of -40°C to +70°C, making it suitable for extreme industrial environments.
-
Compact Design: With dimensions of 127 × 52 × 130 mm and a weight of 0.725 kg, it offers easy integration into control panels or cabinets without taking up excessive space.
-
Easy Installation: The panel mount and DIN rail compatibility ensure that the module can be installed quickly and securely in various types of systems.
-
Versatile Input Types: The module supports both digital and analog inputs, offering flexibility in connecting different types of sensors and devices.
-
Signal Conditioning: It features signal conditioning capabilities, ensuring that the input signals are optimized for accurate data processing and transmission.
-
Robust Environmental Protection: With an IP20 rating, the module is designed to withstand dust and other solid contaminants, making it ideal for factory and field applications.
-
Energy-Efficient: The module operates on 24V DC, ensuring that it uses minimal power while delivering high-performance results.
-
Seamless Integration with DeltaV Systems: Designed for DeltaV™ fieldbus systems, the module easily integrates into Emerson’s control architecture.
-
Long-Term Durability: The module’s durable construction ensures long-term, trouble-free operation in demanding industrial environments.
Frequently Asked Questions (FAQs)
Q1: What is the operating voltage for the Emerson VE4002S2T2B2 input module?
A1: The Emerson VE4002S2T2B2 input module operates on a 24V DC power supply.
Q2: What is the maximum operating temperature for the input module?
A2: The module operates effectively in a temperature range of -40°C to +70°C, making it suitable for most industrial environments.
Q3: How many input channels does the Emerson VE4002S2T2B2 have?
A3: The module has 2 input channels, which can handle both digital and analog inputs.
Q4: What are the input signal types supported by the module?
A4: The module supports digital and analog inputs, providing flexibility for various sensors and devices.
Q5: How does the Emerson VE4002S2T2B2 input module communicate with control systems?
A5: The module uses the DeltaV fieldbus protocol for seamless communication with DeltaV™ control systems.
Q6: What is the module’s environmental rating?
A6: The module has an IP20 rating, meaning it is protected from solid objects larger than 12mm but not fully protected against water ingress.
Q7: Can the Emerson VE4002S2T2B2 input module be mounted on a DIN rail?
A7: Yes, the module is DIN rail compatible, making it easy to install in industrial control panels.
Q8: What is the impedance for the module’s analog inputs?
A8: The analog input impedance is 250Ω, ensuring accurate signal measurement and transmission.
Q9: How much does the Emerson VE4002S2T2B2 input module weigh?
A9: The module weighs 0.725 kg, making it lightweight for easy handling and installation.
Q10: Is the module suitable for process control applications?
A10: Yes, the Emerson VE4002S2T2B2 input module is designed for use in process control systems, where it can monitor sensors for parameters like pressure, temperature, and flow.
Related Models
| Model | Description | Channels | Input Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| VE4003S2T2B2 | 3-Channel Input Module | 3 Inputs | Digital/Analog | 140 × 60 × 130 | 0.8 |
| VE4004S2T2B2 | 4-Channel Input Module | 4 Inputs | Digital/Analog | 150 × 70 × 140 | 1.0 |
| VE4005S2T2B2 | 5-Channel Input Module | 5 Inputs | Digital/Analog | 160 × 80 × 150 | 1.2 |
| VE4006S2T2B2 | 6-Channel Input Module | 6 Inputs | Digital/Analog | 170 × 90 × 160 | 1.4 |
| VE4007S2T2B2 | 7-Channel Input Module | 7 Inputs | Digital/Analog | 180 × 100 × 170 | 1.6 |
| VE4008S2T2B2 | 8-Channel Input Module | 8 Inputs | Digital/Analog | 190 × 110 × 180 | 1.8 |
