Product Introduction

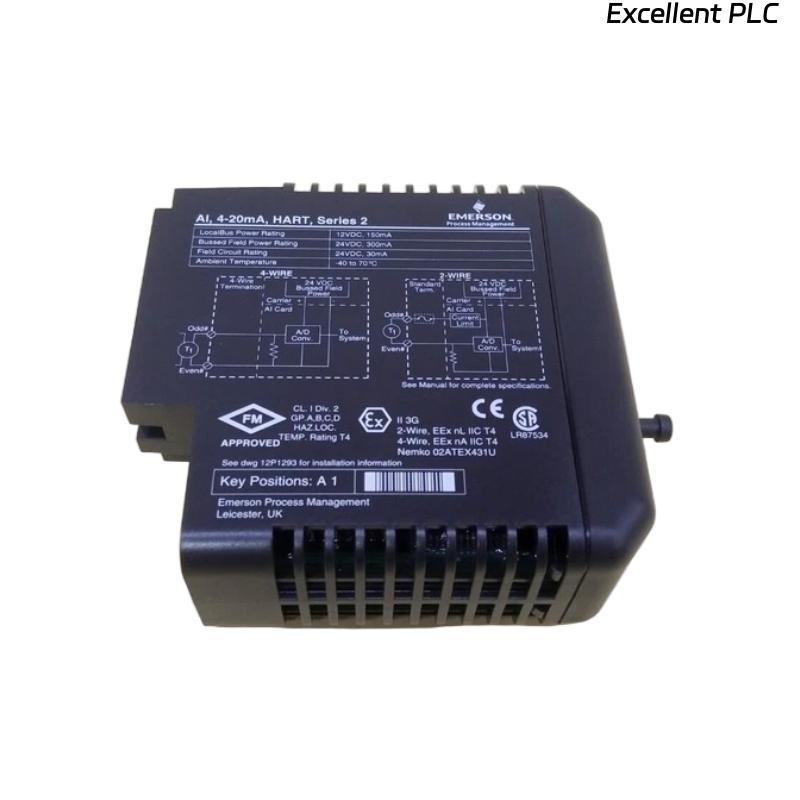

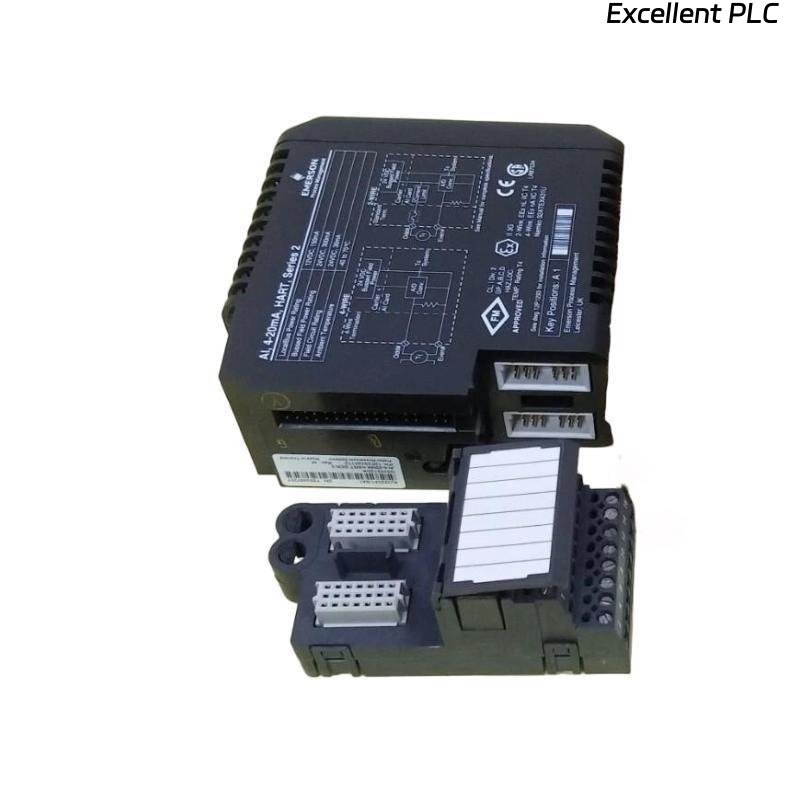

The Emerson VE4003S2B1 KJ3222X1-BA1 Analog Input Card is an essential module designed for DeltaV distributed control systems, providing reliable analog signal acquisition for industrial automation. It enables precise measurement and monitoring of process variables such as temperature, pressure, flow, and level, which are critical for maintaining stable and efficient operations.
This module is engineered to handle multiple analog input channels with high accuracy and is widely adopted in sectors such as oil and gas, chemical, power generation, and manufacturing. Its design ensures compatibility with DeltaV I/O subsystems and allows for flexible integration in both new installations and existing plant upgrades.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | VE4003S2B1 KJ3222X1-BA1 |
| Product Type | Analog Input Card |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
| Input Type | 2-wire analog input |
| Input Channels | Multiple (typically 8 channels) |
| Supported Signals | 4–20 mA, 0–10 V, RTD, thermocouples |
| Resolution | 16-bit or higher |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Power Supply | From system backplane |
| Operating Temperature Range | -20 °C to +55 °C |
| Communication | DeltaV system bus |
Product Applications
-
Process Control: Acquisition of temperature, pressure, flow, and level data in continuous and batch processes.
-
Power Generation: Monitoring critical parameters in turbines, boilers, and auxiliary systems.
-
Oil & Gas: Control and monitoring of upstream, midstream, and downstream processes.
-
Chemical & Petrochemical: Tracking precise chemical reaction conditions for quality and safety.
-
Water Treatment: Monitoring pH, turbidity, and flow sensors for reliable plant operation.
-
Manufacturing: Integration into automated systems for production quality monitoring.
Product Advantages
-
High Accuracy and Resolution: Ensures reliable process measurement with minimal signal distortion.
-
Robust Isolation: Protects system integrity by preventing interference and electrical faults between channels.
-
Wide Signal Compatibility: Supports multiple sensor types, offering flexibility across different process applications.
-
Seamless DeltaV Integration: Designed for plug-and-play compatibility with Emerson DeltaV DCS systems.
-
Compact and Lightweight: Small footprint for space-saving installation in control cabinets.
-
Enhanced Reliability: Built to withstand harsh environments and continuous operation.
FAQ
Q1: What types of analog signals can the VE4003S2B1 KJ3222X1-BA1 handle?
A1: It supports a wide range including 4–20 mA, 0–10 V, RTD, and thermocouple inputs.
Q2: Does the module provide channel-to-channel isolation?
A2: Yes, it offers both channel-to-channel and channel-to-bus isolation for safety and reliability.
Q3: How many input channels are available on this card?
A3: Typically 8 input channels are supported, depending on the specific DeltaV configuration.
Q4: Is this module compatible with older DeltaV system versions?
A4: Yes, it is designed for backward compatibility within DeltaV architectures.
Q5: What is the resolution of the analog input conversion?
A5: The card provides 16-bit or higher resolution, ensuring precise measurement.
Q6: Can the card detect open or short circuits in input wiring?
A6: Yes, diagnostic features allow detection of wiring faults such as opens or shorts.
Q7: What is the typical signal update rate for the module?
A7: The update rate is fast enough for real-time control, typically within milliseconds per channel.
Q8: How does the card handle sensor calibration?
A8: Calibration is supported through DeltaV configuration tools for different sensor types.
Q9: Is redundancy supported for analog input cards in the DeltaV system?
A9: Yes, redundant configurations can be implemented for increased system reliability.
Q10: What protection features are built into the module?
A10: It includes over-voltage, over-current, and fault detection mechanisms to safeguard both the card and connected sensors.
