Product Introduction

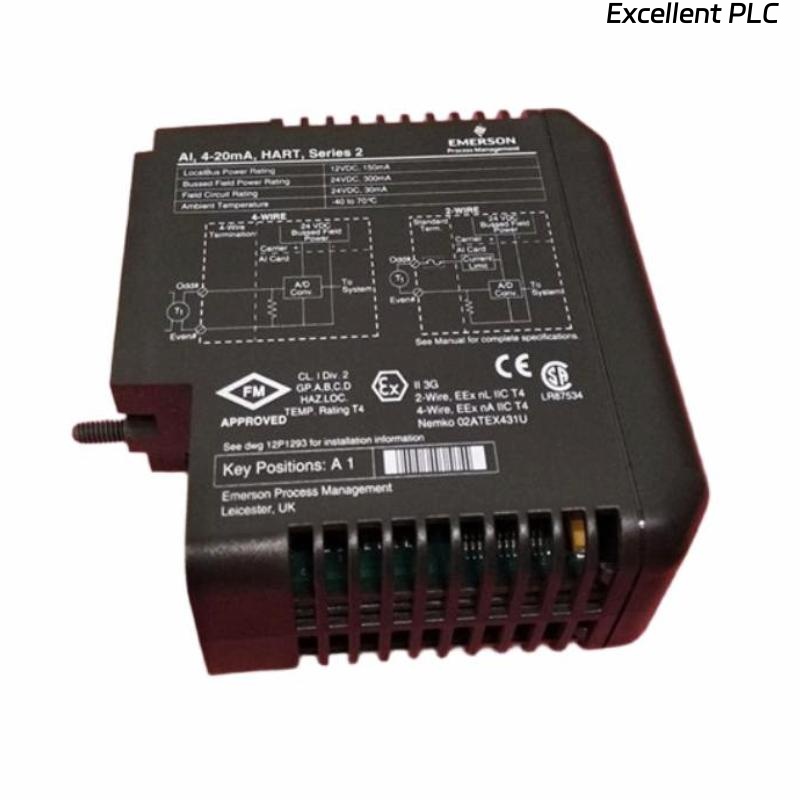

The Emerson VE4003S2B5 Analog Input Card is a high-performance module designed for DeltaV™ distributed control systems. It provides accurate and reliable analog input signal acquisition, supporting various sensor types, including voltage, current, and temperature signals. This module enables precise monitoring and control of process variables, enhancing overall system efficiency.
Product Advantages
-
High-precision signal acquisition with minimal noise interference.
-
Wide input range compatibility, accommodating both voltage and current signals.
-
Hot-swappable design allows replacement without shutting down the system.
-
Seamless integration with DeltaV™ control architecture for real-time process monitoring.
-
Robust diagnostic capabilities to detect signal anomalies, sensor failures, or wiring issues.
-
Compact design optimizing space in control racks while maintaining high functionality.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | VE4003S2B5 |
| Function | Analog Input Card |
| Input Type | Voltage, Current, Temperature |
| Channels | 16 analog inputs |
| Accuracy | ±0.05% of full scale |
| Resolution | 16-bit |
| Signal Range | 0–10 V, 0–20 mA, 4–20 mA |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Communication | DeltaV™ backplane interface |
| Power Supply | 24 VDC nominal |
| Power Consumption | 2 W typical |
| Operating Temperature | 0–60°C (32–140°F) |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.36 kg |
| Certification | CE, UL |
Product Applications
-
Industrial process automation systems requiring analog signal acquisition.
-
Continuous process monitoring in chemical, oil & gas, and power plants.
-
Integration with DeltaV™ systems for precise temperature, pressure, and flow measurement.
-
Supervisory control and data acquisition (SCADA) systems.
-
High-reliability applications needing real-time diagnostics and signal integrity.
FAQ
Q1: What types of sensors are compatible with VE4003S2B5?
A1: The card supports voltage, current, and temperature sensors including RTDs and thermocouples.
Q2: Can this card be hot-swapped in a live DeltaV system?
A2: Yes, VE4003S2B5 supports hot-swapping without disrupting the overall system operation.
Q3: What is the maximum sampling rate per channel?
A3: The maximum sampling rate is 100 samples per second per channel.
Q4: How does the card handle signal isolation?
A4: Each channel is isolated from others and from the backplane to prevent cross-talk and ground loops.
Q5: Is there onboard diagnostics available?
A5: Yes, the card provides diagnostic alerts for sensor failure, wiring errors, and signal anomalies.
Q6: What is the input voltage and current range?
A6: Voltage input: 0–10 V; Current input: 0–20 mA or 4–20 mA.
Q7: How precise is the signal measurement?
A7: The card offers ±0.05% full-scale accuracy with 16-bit resolution.
Q8: Can this module operate in high-temperature environments?
A8: The operating temperature range is 0–60°C (32–140°F), suitable for most industrial settings.
Q9: How is the card powered?
A9: It operates on 24 VDC nominal supply and consumes 2 W.
Q10: How does it integrate with DeltaV control systems?
A10: The card interfaces directly with the DeltaV™ backplane for seamless data acquisition and control.
