Product Overview

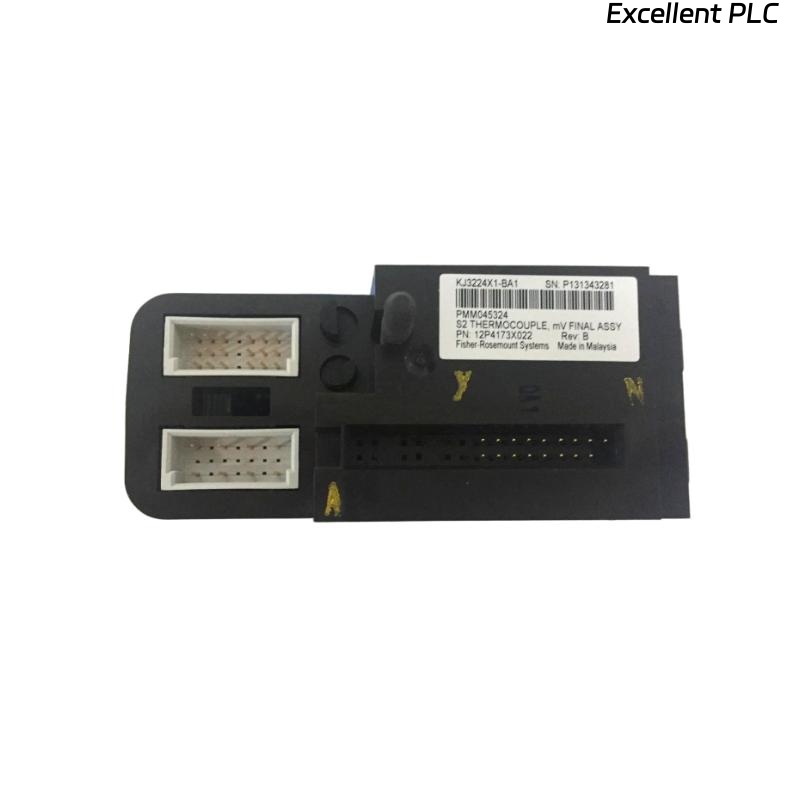

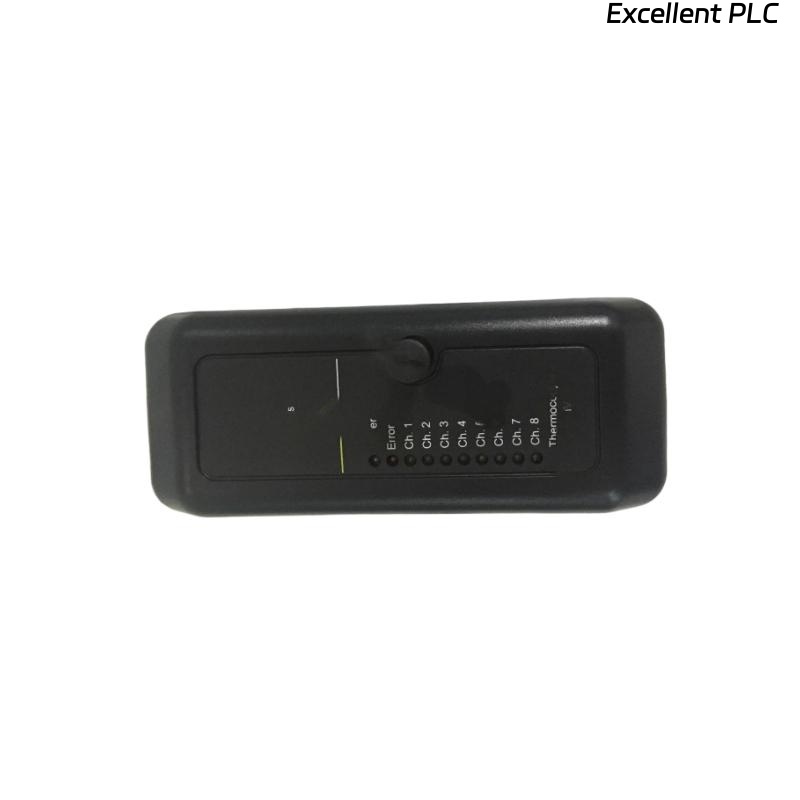

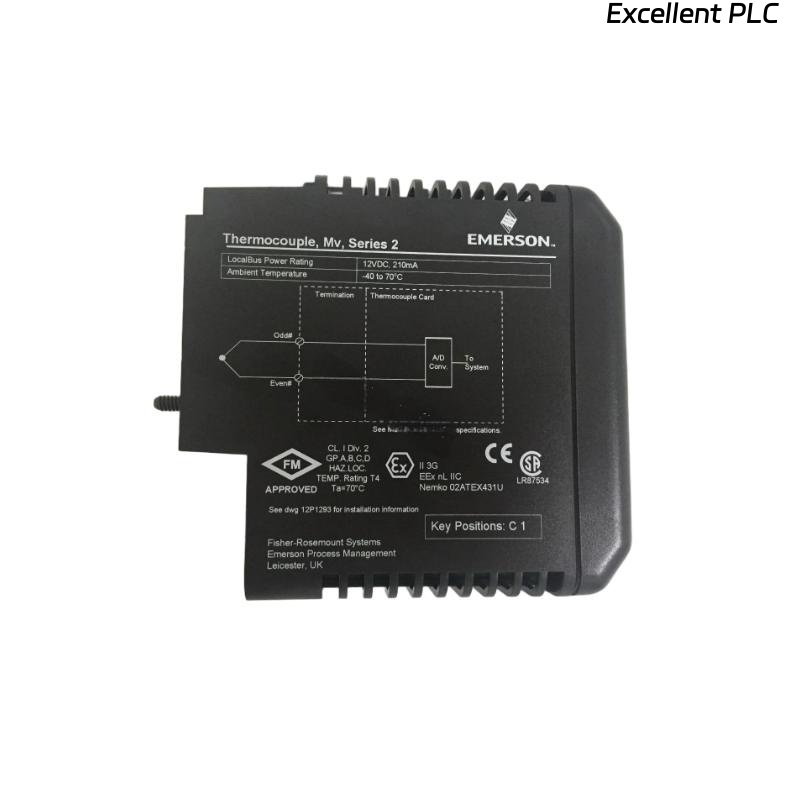

The Emerson VE4003S5B1 is a high-performance thermocouple input module designed to provide precise and reliable measurement of temperature in industrial applications. It is part of Emerson’s VE series of input/output (I/O) modules, which offer flexible and scalable solutions for process control systems. This module is engineered to work with a wide variety of thermocouple types, delivering accurate readings for temperature control and monitoring in demanding environments. The VE4003S5B1 thermocouple input module is particularly well-suited for industries such as manufacturing, energy, and HVAC, providing real-time temperature data to control systems for improved operational efficiency and process stability.
Product Parameters
The following table outlines the key technical parameters of the Emerson VE4003S5B1 Thermocouple Input Module:
| Parameter | Specification |
|---|---|
| Model | VE4003S5B1 |
| Type | Thermocouple Input Module |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.281 kg |
| Input Channels | 3 thermocouple inputs |
| Supported Thermocouple Types | Type J, K, T, E, R, S, B, N |
| Accuracy | ±0.5°C (typical) |
| Communication | Modbus RTU over RS485 |
| Power Supply | 24V DC |
| Operating Temperature | -20°C to +60°C |
| Mounting | DIN Rail |
| Power Consumption | 2 W (typical) |
Product Applications
The Emerson VE4003S5B1 thermocouple input module is ideal for a range of industrial applications that require precise temperature measurement and monitoring. Some key applications include:
-
Manufacturing Processes: Used in various production processes where accurate temperature readings are crucial for product quality control.
-
Energy and Power Generation: Monitors temperature in critical areas of power plants, ensuring efficient energy production and system safety.
-
HVAC Systems: Integrated into HVAC systems for temperature control in large buildings and industrial facilities.
-
Chemical and Pharmaceutical Industries: Measures temperature in chemical reactors and pharmaceutical production systems where precise temperature control is vital.
-
Food and Beverage Industry: Ensures accurate temperature monitoring in cooking, storage, and processing systems for safety and quality compliance.
Product Advantages
-
High Accuracy: The VE4003S5B1 offers high accuracy (±0.5°C typical), ensuring precise temperature measurements for critical applications.
-
Multi-Thermocouple Support: Supports a wide variety of thermocouple types (J, K, T, E, R, S, B, N), providing flexibility for different temperature sensing needs.
-
Reliable Communication: The module communicates via Modbus RTU over RS485, enabling seamless integration with Emerson’s control systems and other devices in an industrial network.
-
Energy Efficient: Consumes only 2 W (typical), making it an energy-efficient choice for industrial environments.
-
Compact Design: With a small form factor, it is easy to integrate into systems with limited space, and it can be mounted on a DIN rail for secure installation.
-
Wide Temperature Range: Operates within a temperature range of -20°C to +60°C, suitable for a wide range of industrial environments.
FAQ
1. What types of thermocouples are supported by the VE4003S5B1?
The VE4003S5B1 supports thermocouple types J, K, T, E, R, S, B, and N, providing compatibility with a wide range of temperature sensors.
2. How many input channels does the VE4003S5B1 have?
The VE4003S5B1 has 3 thermocouple input channels, allowing for simultaneous temperature monitoring of multiple devices or areas.
3. How accurate is the temperature measurement with the VE4003S5B1?
The typical accuracy of the VE4003S5B1 is ±0.5°C, ensuring reliable and precise temperature measurements in industrial applications.
4. What is the communication protocol used by the VE4003S5B1?
The VE4003S5B1 uses Modbus RTU over RS485 for communication, allowing for easy integration with Emerson control systems and other compatible devices.
5. What is the power supply requirement for the VE4003S5B1?
The module requires a 24V DC power supply, which is typical for most industrial control systems.
6. Can the VE4003S5B1 be used in outdoor applications?
The VE4003S5B1 is designed for indoor use, but it can be used in outdoor environments as long as the temperature remains within the specified operating range of -20°C to +60°C.
7. How is the VE4003S5B1 mounted?
The VE4003S5B1 is mounted on a DIN rail, making installation easy and secure in control panels or cabinets.
8. What is the typical power consumption of the VE4003S5B1?
The VE4003S5B1 consumes approximately 2 W of power, which makes it an energy-efficient choice for temperature monitoring.
9. Can the VE4003S5B1 be used with third-party control systems?
Yes, the VE4003S5B1 can be used with any system that supports Modbus RTU communication over RS485, allowing for compatibility with third-party control systems.
10. What is the operating temperature range of the VE4003S5B1?
The operating temperature range of the VE4003S5B1 is -20°C to +60°C, making it suitable for a variety of industrial environments.
Recommended Similar Models
| Model | Description |
|---|---|
| VE4003S5B2 | 3-channel thermocouple input module with enhanced accuracy |
| VE4006S1B1 | 6-channel thermocouple input module, ideal for large systems |
| VE4012S2C0 | 12-channel thermocouple input module with extended temperature range |
| VE4001S2T2 | Compact 2-channel thermocouple input module for small systems |
| VE4020S5B2 | 20-channel input module with thermocouple and RTD support |
| VE4035S2B1 | High-density 35-channel input module with thermocouple inputs |
