Product Introduction

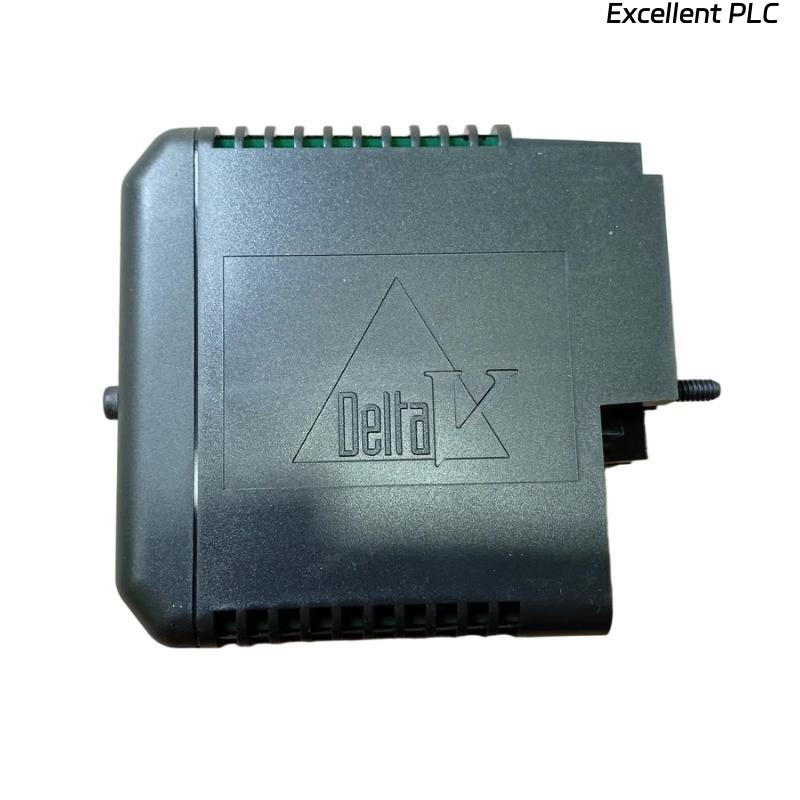

The Emerson VE4005S2B4 Analog Input Card is a high-performance input module designed for DeltaV and Ovation control systems. It is responsible for converting analog signals from field instruments into digital values that can be processed by the control system. This module ensures accurate and reliable data acquisition, which is crucial for industrial process automation in sectors such as power generation, petrochemical, oil & gas, and manufacturing. Its robust design and integration capabilities make it a key element in building efficient and stable control architectures.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | VE4005S2B4 |
| Type | Analog Input Card |
| Input Channels | 8 channels (differential/SE) |
| Input Signal Range | 0–10 VDC / 4–20 mA |
| Resolution | 16-bit A/D conversion |
| Isolation | Channel-to-channel and system |
| Sampling Rate | Configurable, system dependent |
| Communication Interface | DeltaV / Ovation compatible |
| Operating Voltage | 24 VDC (internal powered) |
| Power Consumption | < 4 W |
| Operating Temperature | -20 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.231 kg |
| Mounting Type | Card / module rack installation |
| Certifications | CE, UL, CSA, ATEX compliance |
Product Applications
-
Monitoring pressure, temperature, and flow signals in industrial plants
-
Collecting current and voltage signals from sensors and transmitters
-
Supporting closed-loop control systems in distributed control system (DCS) architectures
-
Integration into safety and reliability-critical automation environments
-
Power generation monitoring systems for turbines, boilers, and auxiliaries
-
Oil & gas instrumentation for wellhead and refining operations
Product Advantages
-
High Accuracy – Ensures precise signal acquisition with low noise and high-resolution A/D conversion.
-
System Compatibility – Fully integrates with Emerson DeltaV and Ovation DCS systems.
-
Robust Isolation – Prevents interference and ensures stable operation in electrically noisy environments.
-
Scalability – Can be combined with other I/O modules for flexible system expansion.
-
Reliability – Industrial-grade design ensures long-term stability and consistent performance.
-
Ease of Maintenance – Hot-swappable card design minimizes downtime during replacement.
FAQ
Q1: What is the channel resolution of the VE4005S2B4 Analog Input Card?
A1: It supports 16-bit resolution, providing precise measurement of analog signals.
Q2: Does the module support both voltage and current inputs?
A2: Yes, it supports 0–10 VDC and 4–20 mA input ranges, configurable per channel.
Q3: How is channel isolation achieved in this module?
A3: The card provides channel-to-channel and channel-to-system isolation to reduce crosstalk and improve safety.
Q4: Can the card be hot-swapped during system operation?
A4: Yes, it is designed for hot-swappable installation, reducing downtime during maintenance.
Q5: What is the maximum power consumption of the VE4005S2B4?
A5: The maximum consumption is less than 4 watts.
Q6: Is the card compatible with legacy Emerson systems?
A6: It is primarily designed for DeltaV and Ovation systems, but backward compatibility depends on system configuration.
Q7: How does the card handle signal filtering?
A7: It incorporates configurable digital filtering to suppress noise from analog signals.
Q8: Can the input channels be configured as single-ended or differential?
A8: Yes, each channel can be configured for either single-ended or differential input.
Q9: What type of diagnostics does the module provide?
A9: It provides self-diagnostics, input fault detection, and communication status monitoring.
Q10: Is redundancy supported with this module?
A10: Yes, it can be deployed in redundant configurations for increased reliability.
Related Models
| Model | Description | Channels | Input Type |
|---|---|---|---|
| VE4005S2B3 | Analog Input Card, standard version | 8 | Voltage/Current |
| VE4006S2B1 | Analog Output Card | 8 | Voltage/Current |
| VE4007S2B2 | Digital Input Card | 16 | Discrete signals |
| VE4008S2B1 | Digital Output Card | 16 | Relay/Transistor |
| VE4010S2B2 | Mixed I/O Card | 8 AI / 8 DI | Mixed signals |
| VE4009S2B1 | Thermocouple Input Card | 8 | TC signals |
