Product Introduction

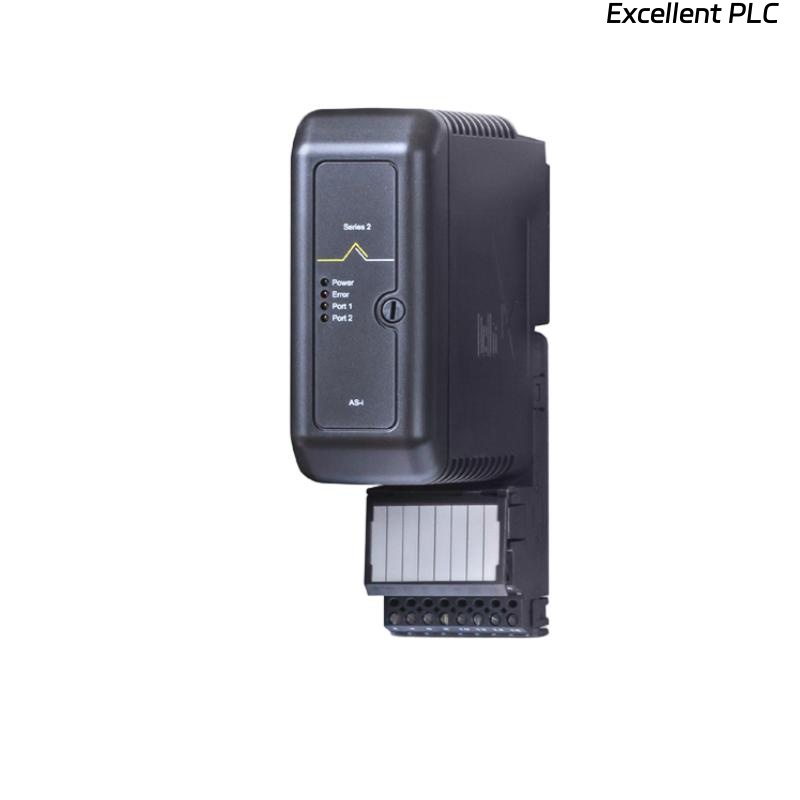

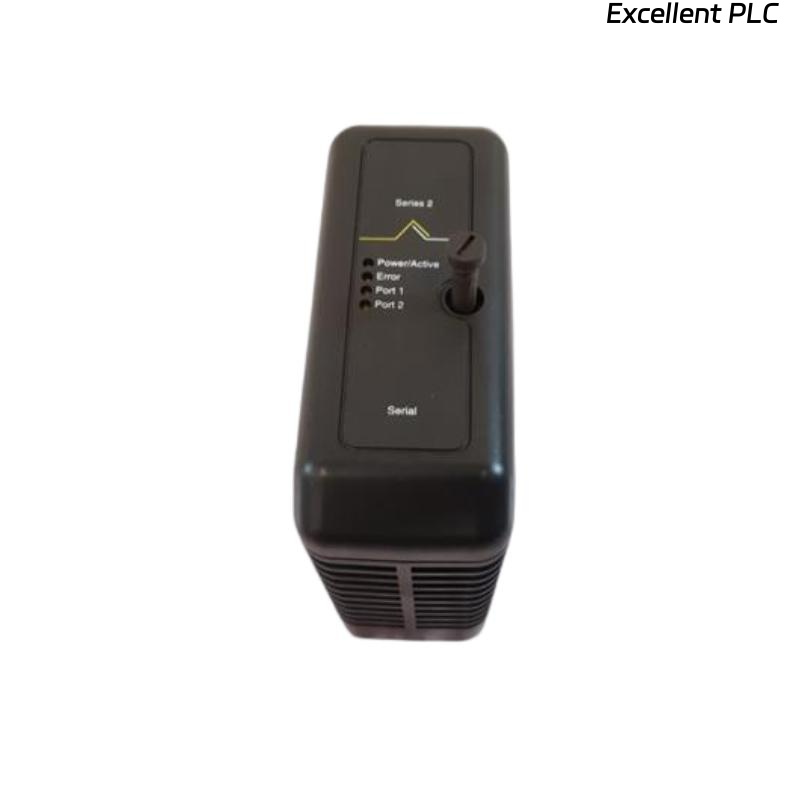

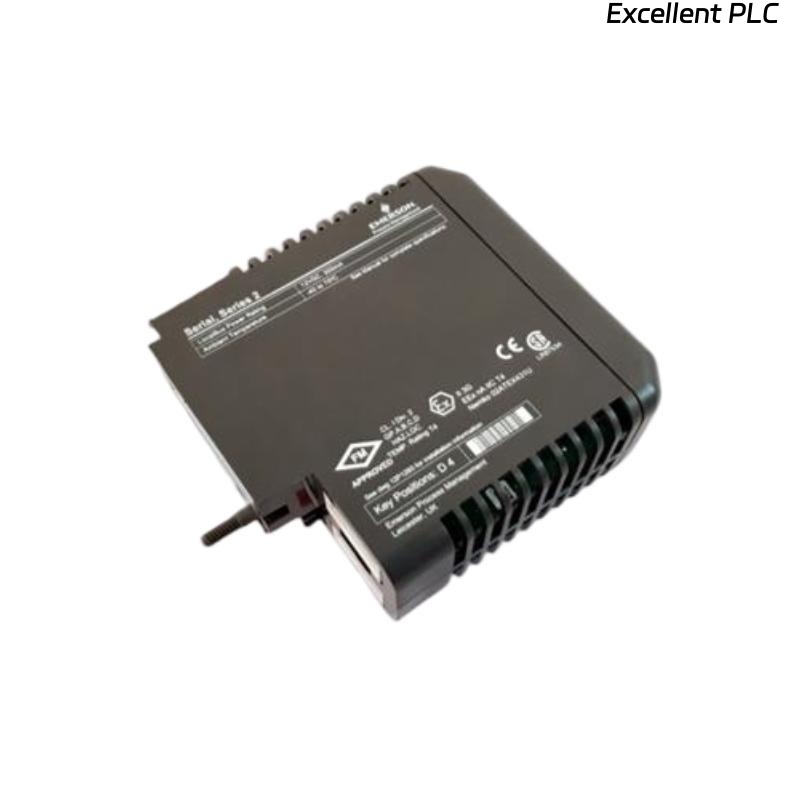

The Emerson VE4006P2 is a high-performance redundant serial interface card from the M Series. This card is designed to provide redundant communication in industrial automation systems, ensuring continuous data transmission in critical applications. It features advanced serial interface technology and is equipped with redundant channels for enhanced reliability.
The VE4006P2 is suitable for applications requiring high-speed serial communication, with built-in fault tolerance to ensure minimal downtime in case of a failure. The card is ideal for industries such as oil and gas, chemical processing, energy management, and manufacturing automation, where reliability and uptime are paramount.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | VE4006P2 |
| Packaging Dimensions | 200 x 120 x 60 mm |
| Packaging Weight | 0.2 kg |
| Interface Type | Serial (RS-232/RS-485) |
| Redundancy Type | Fully redundant |
| Data Rate | Up to 1 Mbps |
| Number of Channels | 2 Serial Channels |
| Power Supply | 24 VDC |
| Mounting Type | PCI Express Interface |
| Operating Temperature Range | -20°C to +60°C |
| Protocol Supported | Modbus RTU, ASCII, Profibus, DeviceNet |
| Protection Rating | IP20 |
Product Applications
The Emerson VE4006P2 Redundant M Series Serial Interface Card is designed for industrial applications requiring high-availability communication. Its primary applications include:
-
Industrial Automation Systems: Used to enable serial communication between PLCs, sensors, and field devices, ensuring continuous data flow.
-
Energy Management: Ideal for real-time monitoring and control of electrical grids, ensuring uninterrupted data communication for critical operations.
-
Manufacturing and Process Control: Provides reliable serial data transmission for control systems, actuators, and motors.
-
Oil & Gas: Supports mission-critical applications in oil and gas platforms, providing reliable data exchange between remote sensors and central control systems.
-
Chemical Processing: Enables data transfer between instruments and controllers for precise process management in chemical plants.
-
Building Automation: Used in building management systems for communication with HVAC systems, lighting control, and other environmental controls.
Product Advantages
-
Redundant Communication: The VE4006P2 features dual channels for redundancy, ensuring continuous data flow even in the event of a failure.
-
High-Speed Data Transfer: Supports data rates of up to 1 Mbps, ensuring fast and efficient data exchange.
-
Flexible Communication Protocols: Compatible with various industrial communication protocols such as Modbus RTU, ASCII, Profibus, and DeviceNet, allowing easy integration into diverse systems.
-
Compact and Easy Installation: The card’s PCI Express interface and compact design make it easy to install in a variety of systems, saving space and simplifying integration.
-
Reliable Performance: With its redundant channels, the VE4006P2 ensures maximum reliability and fault tolerance in critical industrial environments.
-
Wide Operating Temperature Range: The module operates efficiently in a temperature range of -20°C to +60°C, making it suitable for harsh industrial environments.
-
Reduced Downtime: By enabling redundant communication, it reduces the risk of downtime, ensuring business continuity.
-
Efficient Data Transfer: Optimized for high-speed serial data transfer, the card offers reliable and timely transmission in automated control systems.
-
Scalability: The module’s redundant nature allows for scalable configurations, ideal for both small and large systems.
-
Cost-Effective: Increases operational efficiency by providing reliable communication without the need for multiple independent cards or interfaces.
FAQ
1. What is the maximum data rate supported by the VE4006P2?
The VE4006P2 supports a maximum data rate of up to 1 Mbps.
2. How many serial channels does this card provide?
This card features 2 serial channels for enhanced reliability and redundancy.
3. What types of communication protocols are supported?
The card supports Modbus RTU, ASCII, Profibus, and DeviceNet protocols.
4. Does this module provide redundancy?
Yes, the VE4006P2 features full redundancy with two channels, ensuring continuous communication even in case of failure.
5. What is the power supply requirement for the VE4006P2?
The VE4006P2 requires a 24 VDC power supply.
6. What type of interface does this module use?
The module uses a PCI Express interface for easy installation and communication.
7. What is the operating temperature range for this module?
The card operates within a temperature range of -20°C to +60°C, making it suitable for harsh environments.
8. Is this module suitable for high-speed data transfer?
Yes, the VE4006P2 supports high-speed serial data transfer at up to 1 Mbps.
9. Can this module be used in manufacturing automation?
Yes, the VE4006P2 is ideal for use in manufacturing automation systems, providing reliable serial communication between devices.
10. What is the protection rating of the module?
The card has an IP20 protection rating, designed for indoor use in controlled environments.
