Product Overview

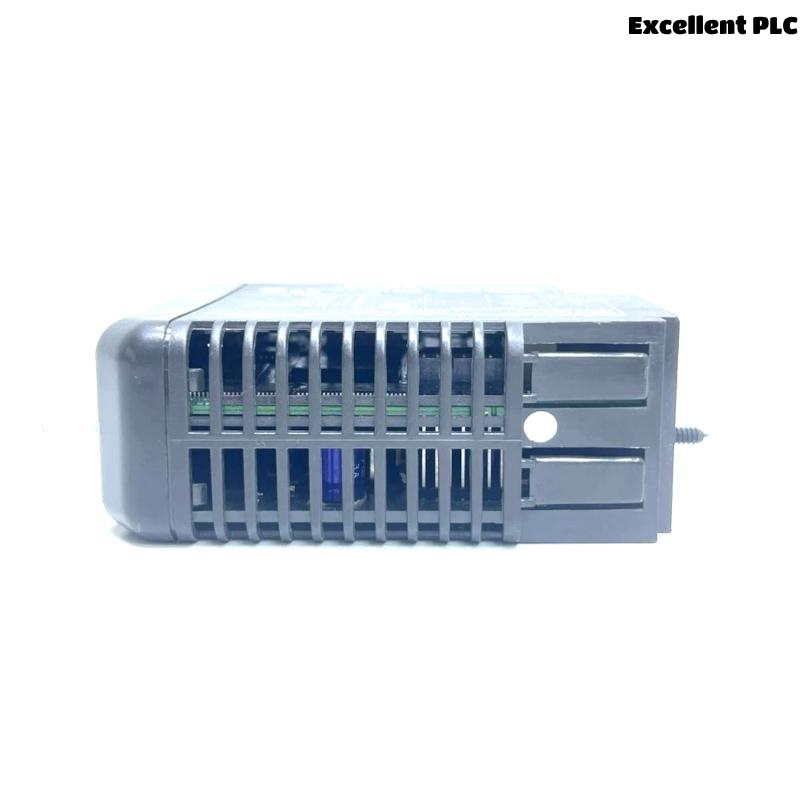

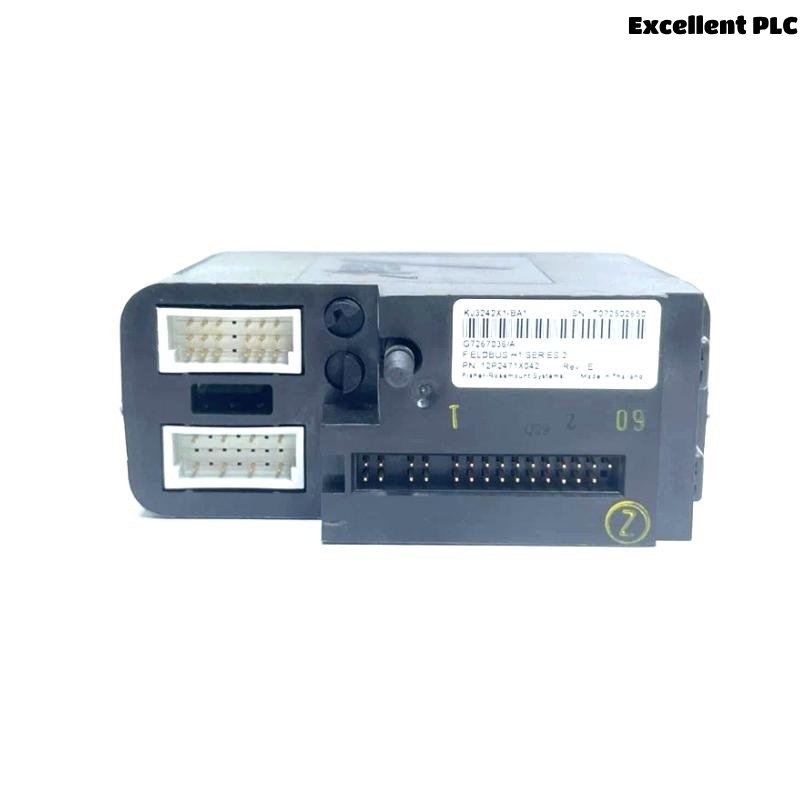

The Emerson VE4017 is a DeltaV™ M-series H1 I/O Interface Card and Terminal Block designed for FOUNDATION™ Fieldbus communication. This modular solution expands I/O capacity, enables smart device integration, and supports digital multi-drop installations, improving process control reliability and reducing wiring costs.
Key Features
-
Supports up to 16 devices per port (2 ports per card)
-
Enables 1:1 redundancy with autosensing and automatic switchover
-
Provides continuous device diagnostics and enhanced control
-
Designed for field installation with robust protection and conformal coating
-
Integrated with AMS Device Manager for monitoring and troubleshooting
-
Compatible with DeltaV v10.3.1 and later
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE4017P0 |
| Channels (Ports) | 2 |
| Max Field Devices per Port | 16 (device power dependent) |
| Function Blocks | 96 per card (64 fieldbus, 32 DeltaV) |
| Power Supply per Channel | 9–32 VDC, 12 mA per channel |
| Isolation | 1500 VDC, channel-to-system and channel-to-channel |
| Communication Standard | IEC 61158-2 FOUNDATION Fieldbus |
| Protection Rating | IP20 |
| Operating Temperature | -40 to 70°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5–95%, non-condensing |
| Vibration | 1 mm (5–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Shock | 10 g, 11 ms |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.3 kg |
| Certifications | CE, FM, CSA, ATEX, IEC-Ex, Marine |
Applications
-
Distributed Control Systems (DCS)
-
Smart process automation systems
-
FOUNDATION Fieldbus-based process environments
-
Redundant I/O solutions in critical infrastructure
-
Refining, chemical, oil & gas, and power sectors
Product Advantages
-
Cost-Efficient Wiring: Multi-drop capabilities reduce cabling and installation expenses.
-
Secure Operation: Uninterrupted control via automatic switchover and backup LAS support.
-
Smart Diagnostics: Enhanced diagnostics using AMS Device Manager for quick fault detection.
-
Redundant Architecture: Simple deployment of redundancy with autosensing features.
-
High Reliability: G3-class corrosion resistance and field-replaceable under power (non-hazardous zones).
-
Full Device Support: Interoperability with third-party fieldbus devices tested by Emerson.
Frequently Asked Questions (FAQ)
Q1: What type of communication does the VE4017 support?
A1: It supports FOUNDATION Fieldbus H1 digital communication per IEC 61158-2 standard.
Q2: How many field devices can be connected per card?
A2: Up to 16 devices per port, totaling 32 devices per card depending on power usage.
Q3: Is the VE4017 compatible with DeltaV v10 systems?
A3: It is compatible with DeltaV v10.3.1 and above.
Q4: Can I upgrade to redundancy later?
A4: Yes, redundancy can be added without reconfiguration using VE4037P0.
Q5: Does it support non-Emerson devices?
A5: Yes, third-party fieldbus devices tested by Emerson are supported.
Q6: How is card failure handled?
A6: The system automatically switches to the standby card with operator notification.
Q7: Is the card hot-swappable?
A7: Yes, in safe areas. In hazardous areas, follow approved installation procedures.
Q8: What diagnostic features are available?

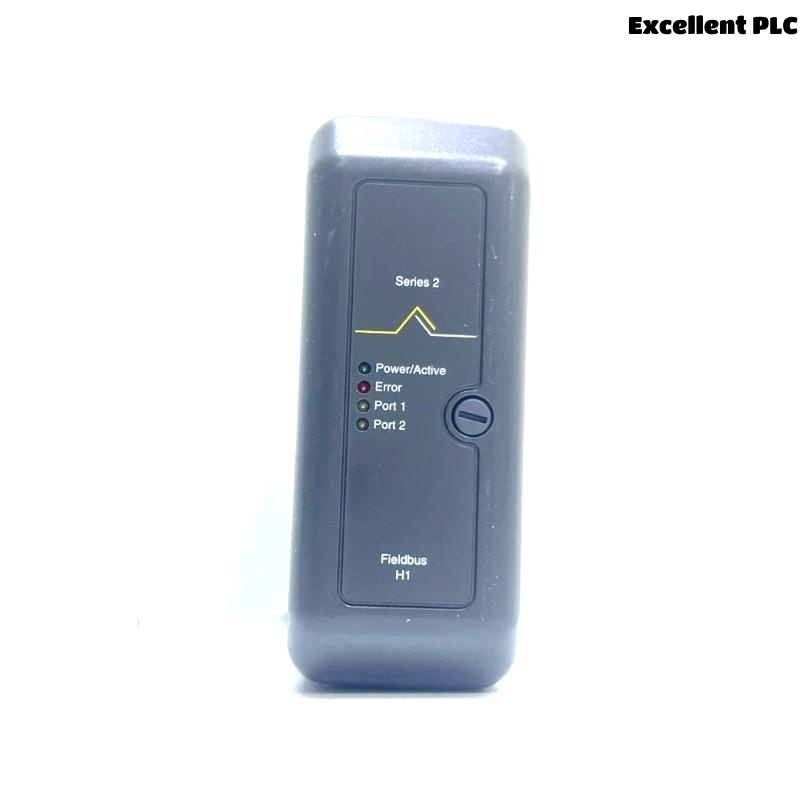

A8: Power, error, and channel status LEDs, plus full diagnostics via DeltaV Explorer.
Q9: Does it support field installation?
A9: Yes, it’s designed for remote field installation near devices.
Q10: What protective standards does it meet?
A10: It complies with IP20, G3 corrosion resistance, and shock/vibration specs.
