Product Overview

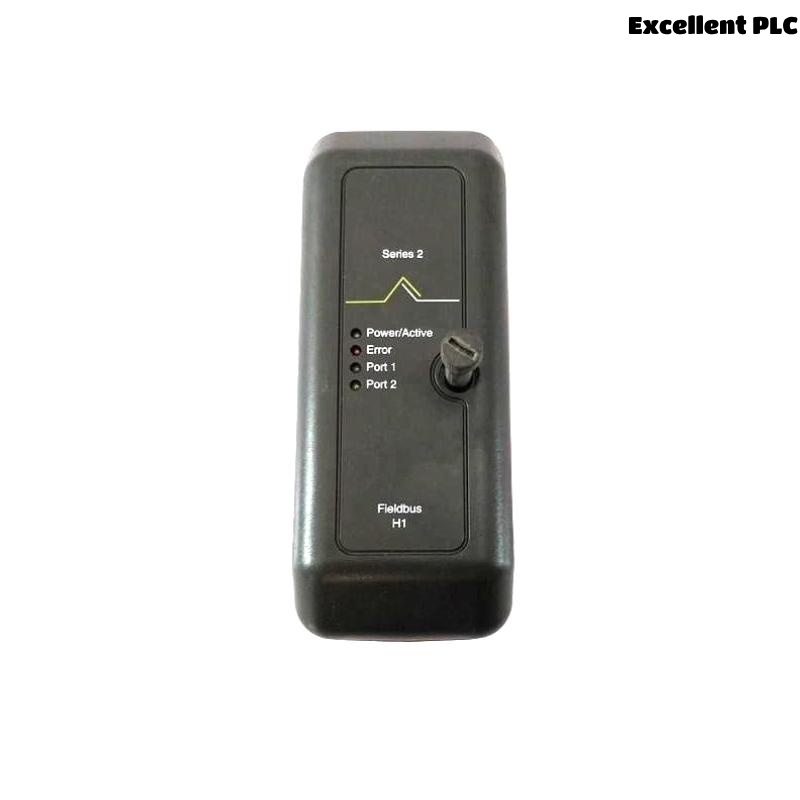

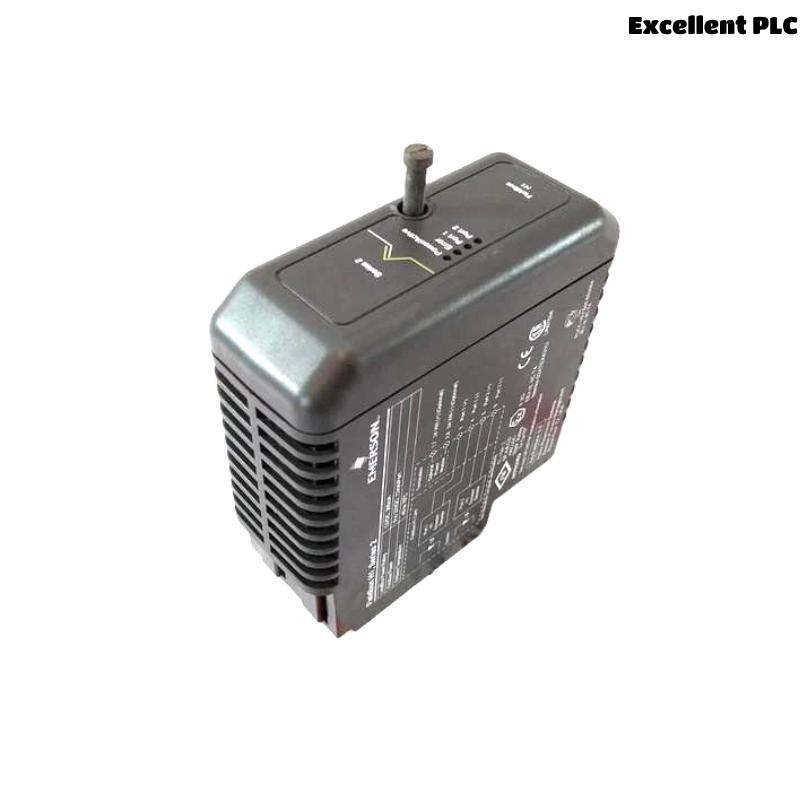

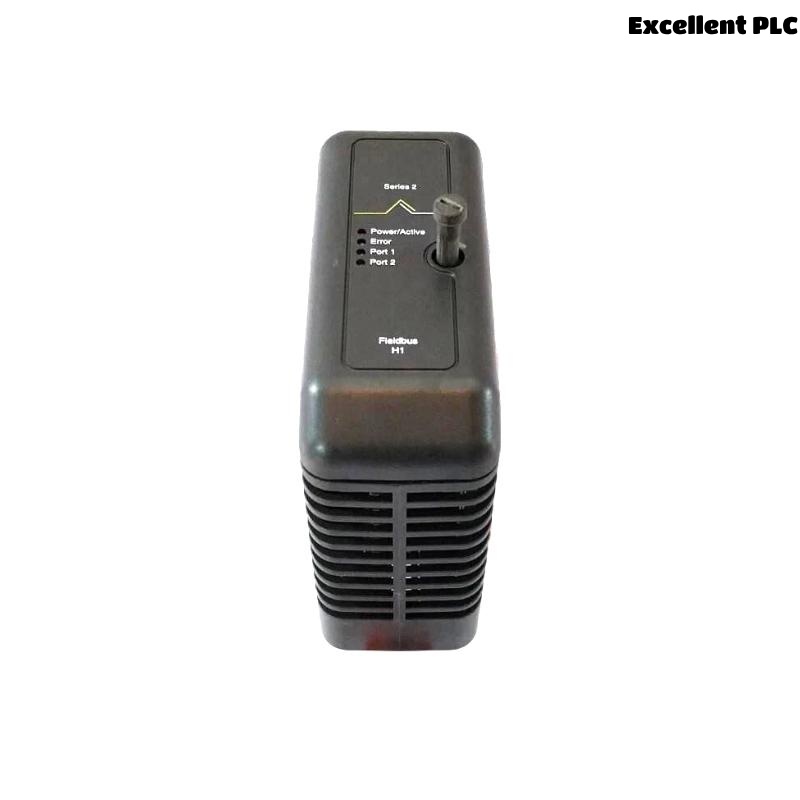

The Emerson VE4017P0 is a DeltaV™ M-series FOUNDATION™ Fieldbus I/O module that includes one H1 interface card and a simplex terminal block. This module allows digital communication with smart field devices and significantly improves input/output efficiency, reliability, and diagnostics. It supports connection to up to 16 field devices per port.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | VE4017P0 |
| Number of Channels | 2 (H1 FOUNDATION Fieldbus ports) |
| Connected Devices per Port | Up to 16 (based on power requirements) |
| Function Blocks per Card | 96 (64 fieldbus + 32 DeltaV standard) |
| Isolation | 1500V DC (channel-to-channel & system) |
| Signal Standard | FOUNDATION Fieldbus IEC 61158-2 |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative Humidity | 5–95%, non-condensing |
| Power Supply (Field Circuit) | 9–32V DC, 12 mA per channel |
| Localbus Power | 200 mA max at 12V DC |
| Dimensions (W x H x D) | 107 x 41 x 105 mm |
| Weight | 0.3 kg |
| Protection Rating | IP20 |
| Shock/Vibration Resistance | 10 g / 1 mm–0.7 g (5–150 Hz) |
| Certification | CE, FM, CSA, ATEX, IECEx, DNV (pending) |
| Marine Certification | IACS E10, ABS, DNV |
Applications
-
Distributed Control Systems (DCS)
-
Smart field device integration
-
Process industries requiring digital multi-drop I/O
-
Environments where wiring cost and footprint must be minimized
-
Safety and redundancy-critical operations in hazardous areas
Product Advantages
-
High I/O Density: Up to 16 devices per channel, reducing hardware and wiring needs
-
Redundancy Support: 1:1 card redundancy with automatic switchover
-
Improved Diagnostics: Continuous monitoring via AMS Device Manager
-
Reduced Wiring Costs: Field installation and multi-drop support
-
Third-Party Device Integration: Open protocol compatibility
-
Modular Design: Easy replacement and expansion
-
No Manual Configuration: Automatic detection and assignment of redundancy
FAQ
Q1: What is the maximum number of devices supported per VE4017P0 module?
A1: Each module supports up to 32 devices—16 per H1 port.
Q2: Does the VE4017P0 support redundancy?
A2: The VE4017P0 itself is simplex. For redundancy, use model VE4037P0.
Q3: What DeltaV version is required to use this module?
A3: DeltaV v10.3.1 or later is required.
Q4: Is this module hot-swappable?
A4: Yes, it supports online replacement in safe areas.
Q5: Does it support devices from other manufacturers?
A5: Yes, third-party devices are supported if they meet FOUNDATION Fieldbus standards and Emerson testing.
Q6: What is the switchover time in redundancy mode?
A6: Switchover is immediate and does not disturb the process.
Q7: Are there any special installation requirements?
A7: Use a fieldbus power supply and terminate each segment at both ends.
Q8: Can it be installed in hazardous areas?
A8: Yes, it is certified for Class I Div 2 and Zone 2 applications.
Q9: What diagnostics are available?
A9: Integrity alarms, channel health, and module status are monitored and displayed.
Q10: What configuration steps are needed for redundancy?
A10: None. The system auto-detects and assigns redundant pairs.
Related or Similar M-series Models
| Model | Description | Channels | Redundancy | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| VE4037P0 | Redundant H1 Interface Card + Terminal Block | 2 | Yes | 107x41x105 | 0.3 kg |
| KJ3242X1-BA1 | H1 Fieldbus Interface Card (Legacy) | 2 | Optional | 107x41x105 | 0.3 kg |
| KJ3225X1-BA1 | Analog Input 8-channel Module | 8 AI | No | 107x41x105 | 0.3 kg |
| KJ3222X1-BA1 | Analog Output 4-channel Module | 4 AO | No | 107x41x105 | 0.3 kg |
| KJ3204X1-BA1 | Digital Input 32-channel Module | 32 DI | No | 107x41x105 | 0.3 kg |
| KJ3202X1-BA1 | Digital Output 32-channel Module | 32 DO | No | 107x41x105 | 0.3 kg |
