Product Description

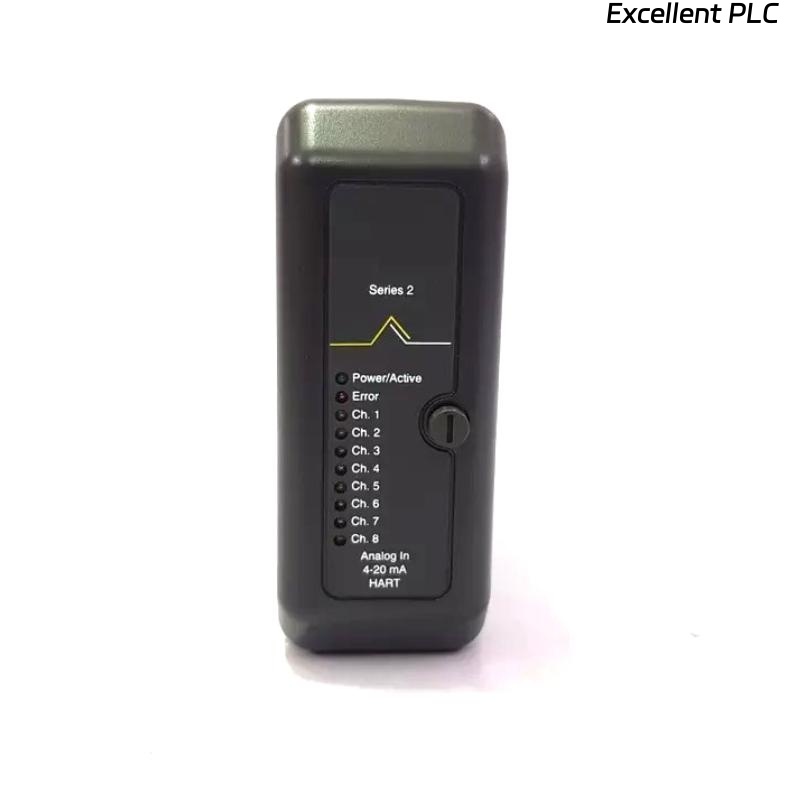

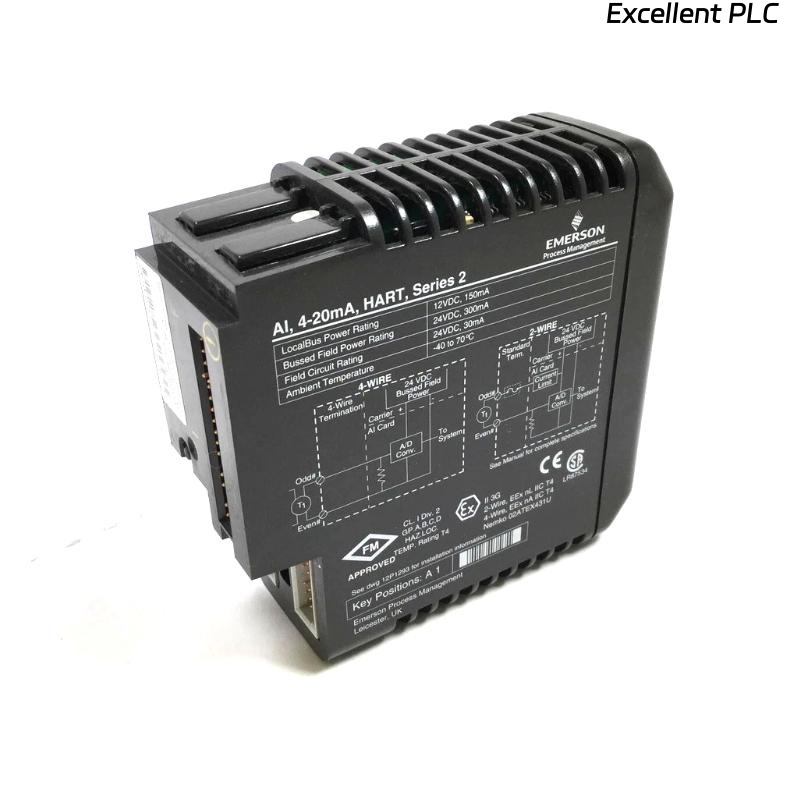

The Emerson VE4035S2B1 is an analog input card designed for the DeltaV distributed control system. It provides high-accuracy analog signal acquisition with integrated HART communication and is ideal for process control applications. This model includes a terminal block for streamlined field wiring.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | VE4035S2B1 |
| Type | Analog Input Card + Terminal Block |
| Channels | 8 Analog Input Channels |
| Signal Type | 4–20 mA, HART Enabled |
| Resolution | 16-bit |
| Isolation | Channel-to-bus and Channel-to-channel |
| Update Rate | 250 ms (per channel) |
| Terminal Block | Included |
| Power Consumption | < 3.5 W |
| Operating Temperature | -40 to 70°C |
| Storage Temperature | -40 to 85°C |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.45 kg |
Applications
-
Process control in oil & gas plants
-
Chemical and petrochemical systems
-
Power generation and utilities
-
Pharmaceutical manufacturing
-
Water and wastewater automation
Product Advantages
-
Supports HART for advanced diagnostics
-
High channel density with 8 analog inputs
-
Rugged, industrial-grade construction
-
Channel-to-channel isolation for safety
-
Integrated terminal block simplifies installation
-
Seamless DeltaV system integration
FAQ
Q1: How many analog input channels does the VE4035S2B1 support?
A1: It supports 8 isolated analog input channels.
Q2: Is HART communication supported?
A2: Yes, it fully supports HART protocol for field device communication.
Q3: What type of signals can it read?
A3: It reads 4–20 mA analog signals, commonly used in industrial sensors.
Q4: Is this module hot-swappable?
A4: Yes, it can be replaced without shutting down the system.
Q5: Can this card be used in hazardous environments?
A5: Yes, when installed in approved enclosures within certified DeltaV systems.
Q6: Does it come with a terminal block?
A6: Yes, the terminal block is included for easy wiring.
Q7: What diagnostic features are available?
A7: The card provides HART-based diagnostics and DeltaV system health checks.
Q8: What is the resolution of the analog input?
A8: It features a 16-bit resolution for accurate signal conversion.
Q9: What is the isolation specification?
A9: Each channel is isolated from others and from the system bus.
Q10: What DeltaV system version is it compatible with?
A10: It is compatible with DeltaV versions supporting Series 2 hardware.
Related or Similar DeltaV Models
| Model | Description | Channels | Signal Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| VE4035S2B2 | Analog Input, 8 ch, HART | 8 | 4–20 mA HART | 107 x 41 x 105 | 0.45 kg |
| VE4034S1B1 | Analog Input, 4 ch | 4 | 4–20 mA | 107 x 41 x 105 | 0.43 kg |
| VE4002S1T2B4 | HART AI, Redundant Ready | 8 | 4–20 mA HART | 107 x 41 x 105 | 0.46 kg |
| VE4003S2T2B2 | Analog Output Card | 4 | 4–20 mA | 107 x 41 x 105 | 0.44 kg |
| VE4001S1T2B5 | Thermocouple Input Card | 8 | TC/mV | 107 x 41 x 105 | 0.47 kg |
| VE4012S2B2 | RTD Input Card | 8 | RTD | 107 x 41 x 105 | 0.48 kg |
Popular Emerson Models
| Model | Description | Type | Dimensions (mm) | Weight |
|---|---|---|---|---|
| VE4001S1T2B1 | Thermocouple Input Card | Input Module | 107 x 41 x 105 | 0.47 kg |
| VE4002S2T2B1 | Analog Input Card | Input Module | 107 x 41 x 105 | 0.45 kg |
| VE4003S1T2B1 | Analog Output Card | Output Module | 107 x 41 x 105 | 0.44 kg |
| VE4005S1T2B1 | Digital Output Card | Output Module | 107 x 41 x 105 | 0.43 kg |
| VE4013S2B2 | RTD Input Redundant Ready | Input Module | 107 x 41 x 105 | 0.48 kg |
| VE4022S1B1 | HART Digital Input Card | Input Module | 107 x 41 x 105 | 0.45 kg |
