Product Overview

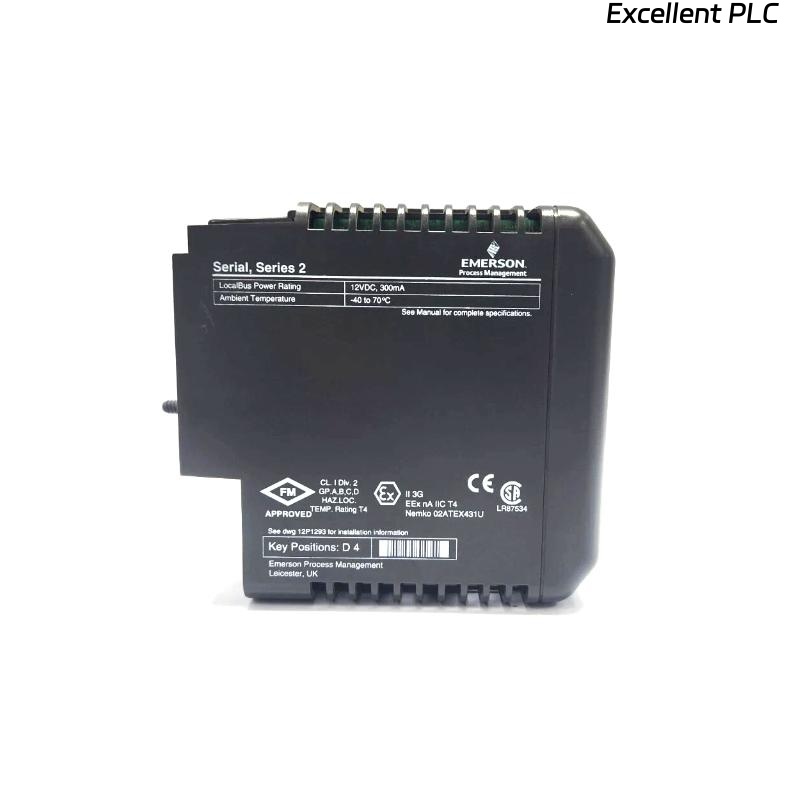

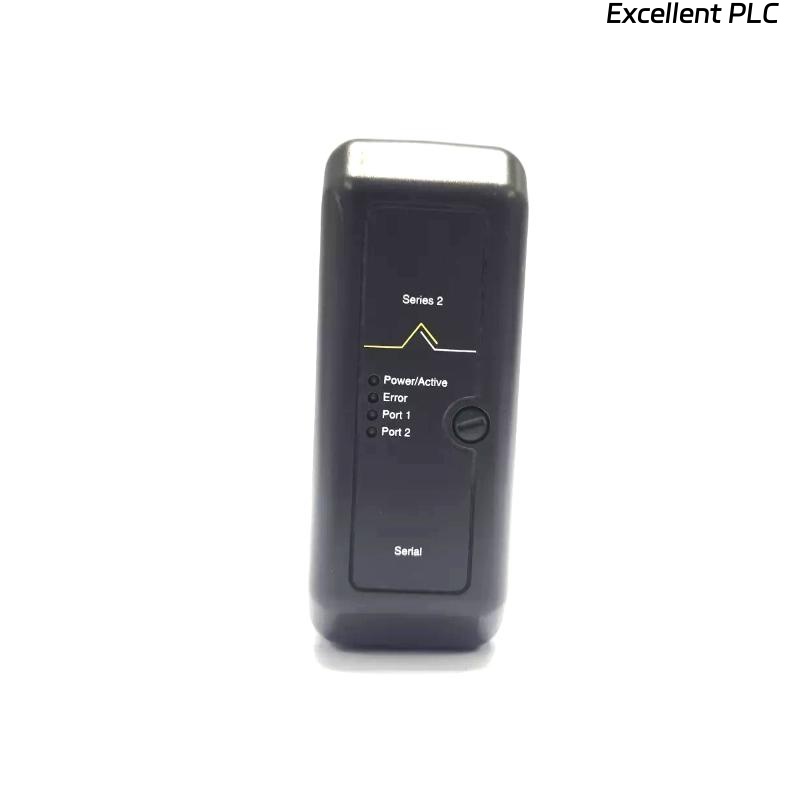

The Emerson VE4036P2 is a Redundant M-series Serial Interface Card designed for DeltaV™ distributed control systems. It enables reliable communication between DeltaV systems and third-party devices using serial protocols such as Modbus (RTU/ASCII), RS232, and RS422/485. The model includes two serial interface cards (KJ3241X1-BA1 and KJ3241X1-EA1) and a redundant terminal block for high-availability applications. This redundant setup ensures automatic switchover during hardware failure, maintaining uninterrupted data transmission.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | VE4036P2 |
| Card Type | Redundant Serial Interface Card (2 cards + redundant terminal block) |
| Serial Ports | 2 per card |
| Protocol Support | Modbus RTU, Modbus ASCII, RS232, RS422/485 Half/Full Duplex |
| Data Sets | 32 per card (16 per port) |
| Baud Rates | 300 to 115200 bps |
| Data Bits | 7 or 8 |
| Stop Bits | 1 or 2 |
| Parity | Even, Odd, None |
| Retry Count | 0 – 255 |
| Transmit Delay | 0 – 25,500 ms |
| Message Timeout | 100 – 25,500 ms |
| Isolation | Port-to-port and system isolation |
| Operating Temperature | -40 to +70°C |
| Storage Temperature | -40 to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Certifications | CE, FM, CSA, ATEX, IEC-Ex, Marine (ABS, DNV‑GL) |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.45 kg |
Applications
-
Integration of DeltaV systems with PLCs, analyzers, weight scales, and other serial communication devices
-
High-availability control applications requiring redundancy
-
Seamless Modbus communication in supervisory control systems
-
Expansion of legacy systems to modern control environments
-
Maritime and hazardous industrial installations
Advantages
-
Redundancy: Ensures automatic switchover upon failure of the active card without process interruption
-
Plug-and-Play: Easy installation with automatic detection and configuration by DeltaV controller
-
High Compatibility: Supports RS232, RS422, and RS485; flexible protocol configurations
-
Reliability: Isolated ports with robust fault detection and minimal switchover time
-
Longevity: Extends the operational life of legacy equipment through modern system integration
-
Comprehensive Diagnostic Tools: Supports manual or logic-driven switchover and detailed status monitoring
FAQs
Q1: What is included in the VE4036P2 package?
A1: Two serial interface cards (KJ3241X1-BA1 and KJ3241X1-EA1) and one redundant terminal block.
Q2: Does the card support both Modbus RTU and ASCII?
A2: Yes, both Modbus RTU and ASCII are supported by the built-in drivers.
Q3: Can the VE4036P2 operate in hazardous environments?
A3: Yes, it meets ATEX, FM, CSA, and IEC-Ex standards for hazardous locations.
Q4: What happens if the active serial card fails?
A4: The system automatically switches to the standby card without affecting operations.
Q5: Can it be configured without shutting down the system?
A5: Yes, it supports hot-plugging and online configuration in powered systems.

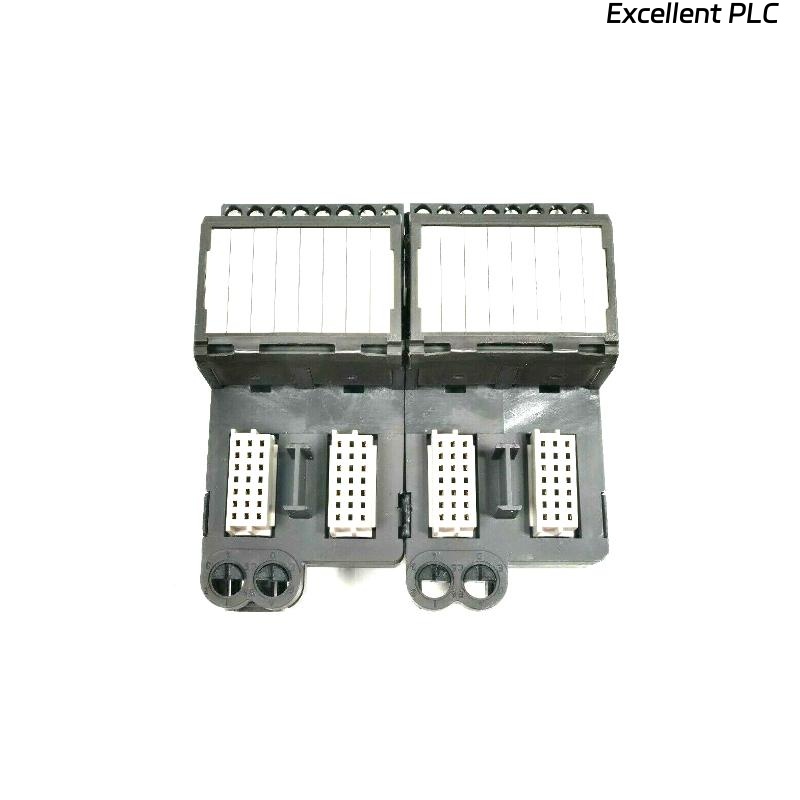

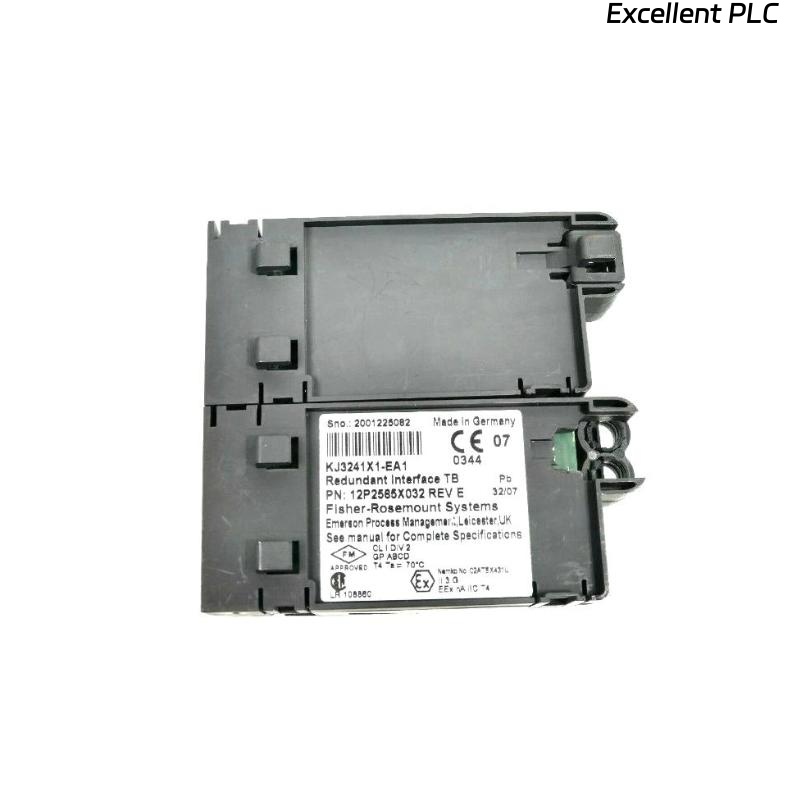

Q6: Is the terminal block also redundant?
A6: Yes, the redundant terminal block ensures uninterrupted communication between both cards and field devices.
Q7: How many serial ports does each card support?
A7: Each card supports 2 independently configurable serial ports.
Q8: What controller types are compatible with this module?
A8: It is compatible with MQ, MX, and PK DeltaV controllers, but not with S-series.
Q9: Can this interface card be used for weight scale integration?
A9: Yes, supported drivers include Sartorius and Mettler weight scale protocols.
Q10: Is switchover manual or automatic?
A10: Switchover is automatic upon fault detection but can also be initiated manually or via logic.
Related Models (Same Series)
| Model Number | Description | Ports | Protocol Support | Redundancy | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| VE4006P2 | M-series Serial Interface (Simplex) | 2 | Modbus RTU/ASCII | No | 107 x 41 x 105 | 0.40 |
| KJ3241X1-BA1 | Serial Interface Card (Primary) | 2 | RS232/RS485 | Yes | 107 x 41 x 105 | 0.22 |
| KJ3241X1-EA1 | Serial Interface Card (Standby) | 2 | RS232/RS485 | Yes | 107 x 41 x 105 | 0.22 |
| VE4012P2 | Profibus DP Interface Card | 2 | Profibus DP | Optional | 107 x 41 x 105 | 0.45 |
| VE4035P2 | Redundant Profibus DP Card Set | 2 | Profibus DP | Yes | 107 x 41 x 105 | 0.50 |
| VE4010P2 | Foundation Fieldbus Interface Card | 2 | FF H1 | Optional | 107 x 41 x 105 | 0.45 |
