Product Overview

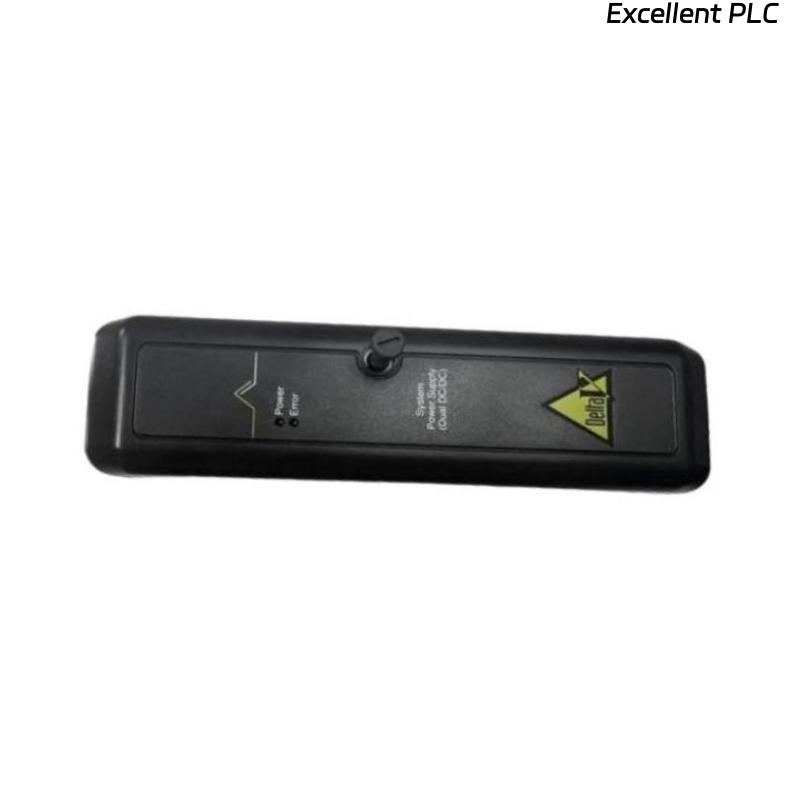

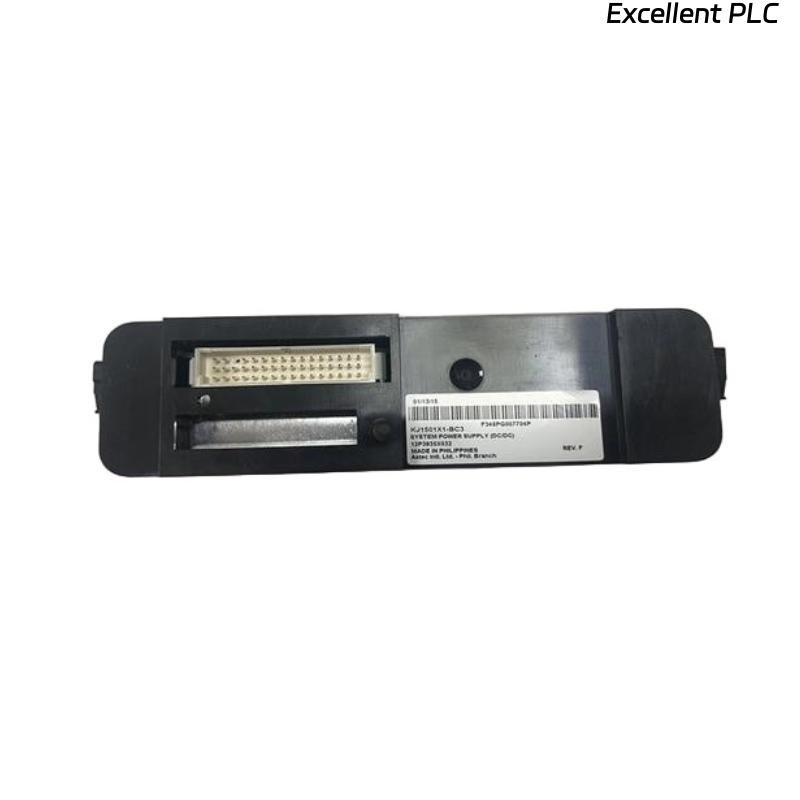

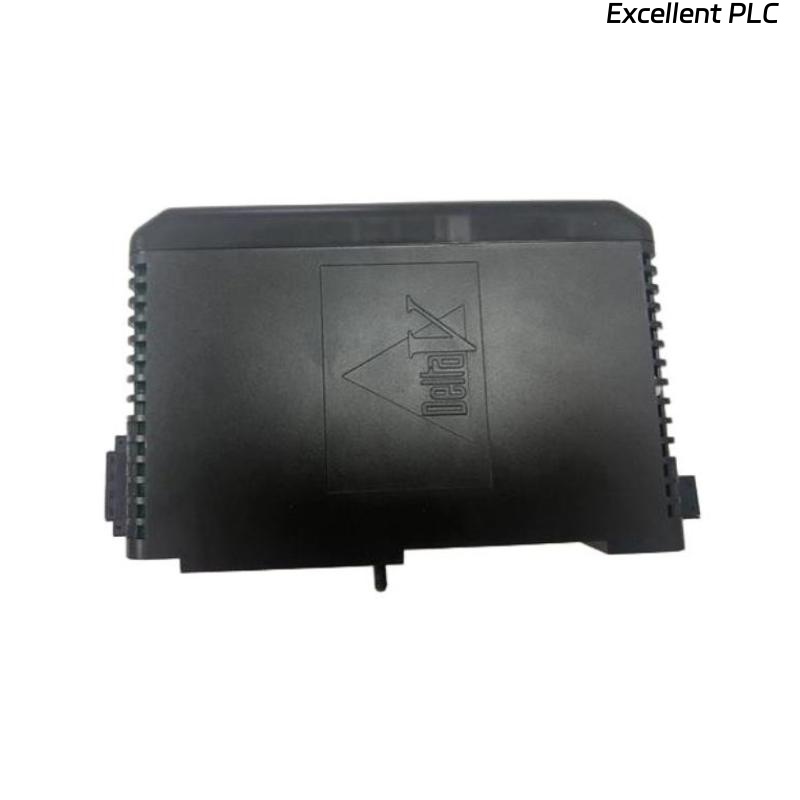

The Emerson VE5009 KJ1501X1-BC3 System Power Supply is a high-reliability module designed to provide stable and efficient power to Emerson’s DeltaV™ control systems. It ensures consistent power delivery for controllers, I/O cards, and communication modules, supporting uninterrupted plant operations. With advanced protection features and robust construction, the VE5009 KJ1501X1-BC3 is engineered to meet the demanding needs of process industries where system uptime is critical.
Key Features
-
Provides regulated power for Emerson DeltaV™ systems
-
High reliability with overvoltage and overload protection
-
Hot-swappable design for uninterrupted operations
-
Compact and robust form factor
-
LED indicators for power and status monitoring
-
Designed for continuous industrial operation in harsh environments
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Emerson |
| Part Number | VE5009 KJ1501X1-BC3 |
| Product Type | System Power Supply |
| System Compatibility | Emerson DeltaV™ |
| Input Voltage | 24 VDC nominal |
| Output Voltage | 24 VDC regulated |
| Power Capacity | 85 W nominal |
| Protection Features | Overvoltage, overload, and short-circuit protection |
| Hot-Swappable | Yes |
| Mounting | DeltaV system carrier |
| Dimensions | 89 × 140 × 38 mm |
| Weight | 0.5 kg |
| Operating Temperature | -20 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5–95% RH (non-condensing) |
Industry Applications
-
Oil & Gas automation systems
-
Power generation and energy management
-
Chemical and petrochemical industries
-
Pharmaceutical manufacturing
-
Water and wastewater treatment plants
-
Pulp and paper process control
Frequently Asked Questions (FAQ)
Q1: What is the main function of the VE5009 KJ1501X1-BC3?
It provides stable and regulated power to DeltaV™ controllers and I/O modules.
Q2: Is the module hot-swappable?
Yes, it can be replaced without shutting down the system.
Q3: What protection features are included?
It includes overvoltage, overload, and short-circuit protection.
Q4: What type of input voltage does it accept?
It is designed for 24 VDC nominal input.
Q5: Can this power supply be used in harsh industrial environments?
Yes, it is designed for continuous operation under demanding conditions.
Q6: How much power does it provide?
It delivers up to 85 W nominal power output.
Q7: How is system health monitored?
It has LED indicators to show power and operational status.
Q8: Which DeltaV systems are compatible with this model?
It integrates seamlessly with Emerson DeltaV™ control systems.
