Product Introduction

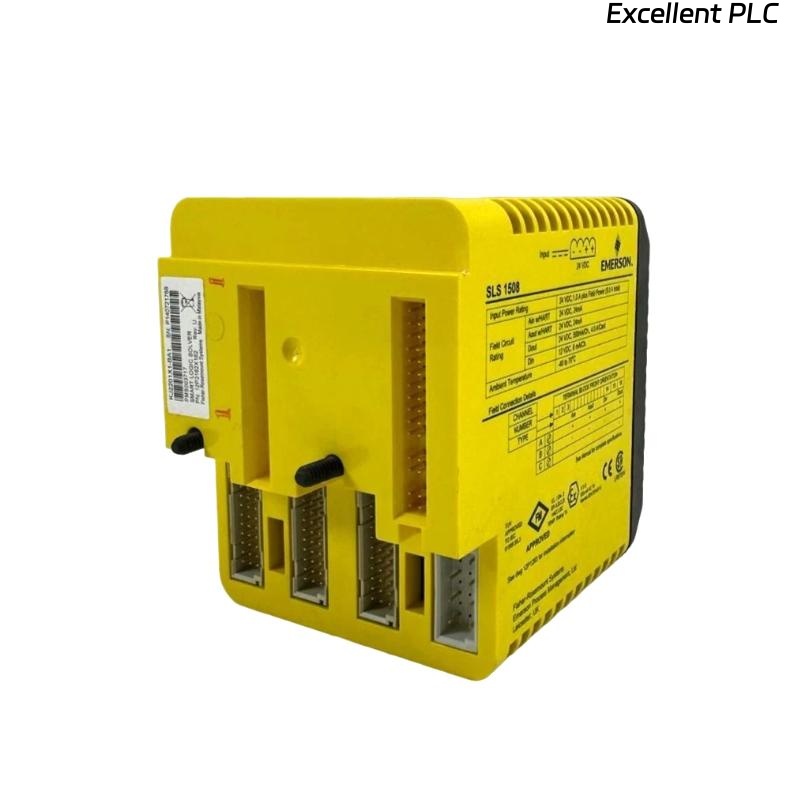

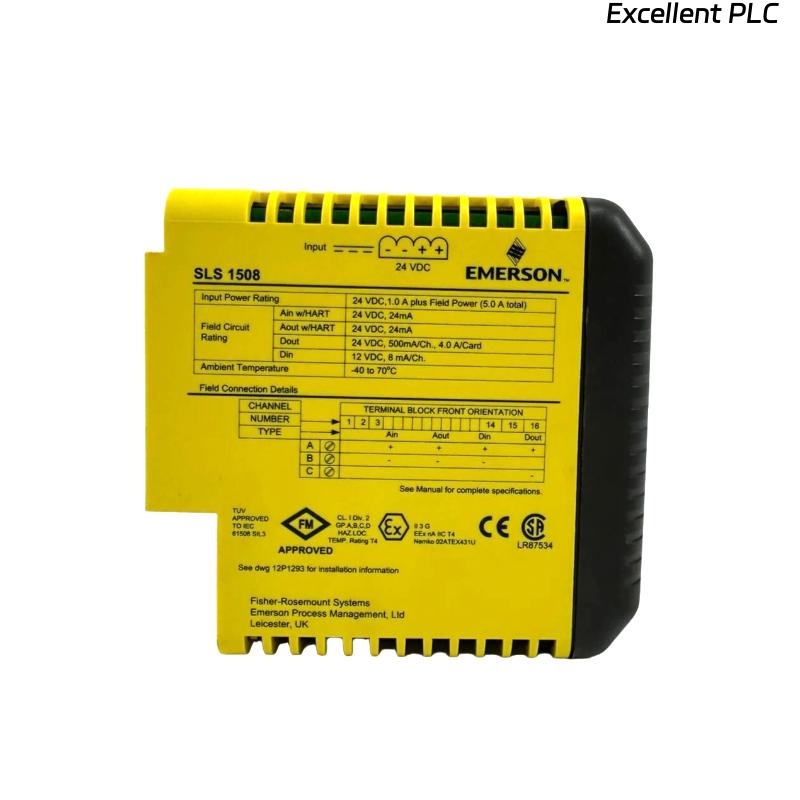

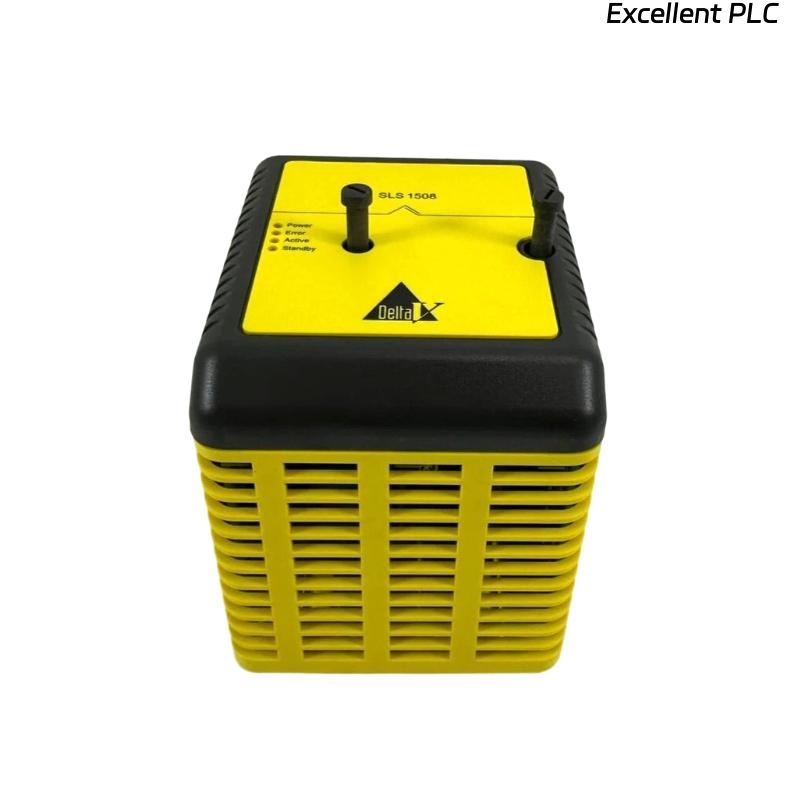

The Emerson VS3202 KJ2201X1-BA1 Smart Logic Solver is an advanced safety instrumented system (SIS) module designed to deliver reliable logic execution, diagnostics, and safety control in critical industrial environments. As part of Emerson’s DeltaV and SIS ecosystem, this smart logic solver integrates seamlessly into safety applications requiring SIL-rated protection, precise logic handling, and robust communication. Its modular design provides scalability, enabling operators to implement small to large safety systems with high flexibility.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | VS3202 KJ2201X1-BA1 |
| Product Type | Smart Logic Solver (SLS) |
| Rated Application | Safety Instrumented Systems (SIS) for process industries |
| Logic Processing Speed | High-speed deterministic execution <10 ms |
| Input/Output Capacity | Supports up to 16 logic functions per module |
| Power Supply | 24 VDC nominal (redundant power supported) |
| Communication Protocol | DeltaV SIS network, OPC, Modbus TCP/IP |
| Safety Integrity Level | SIL 3 certified according to IEC 61508 |
| Diagnostics | Continuous self-test, fault detection, and redundancy support |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Cooling Method | Natural convection, no external fan required |
| Protection Class | IP20 (module), suitable for cabinet installation |
| Dimensions (H x W x D) | 83.8 × 105.5 × 110 mm |
| Weight | 1.2 kg |
Product Applications
The Emerson VS3202 Smart Logic Solver is specifically engineered for safety-critical applications in process industries. Its primary uses include:
-
Emergency Shutdown Systems (ESD) for oil & gas platforms, refineries, and petrochemical plants
-
Burner Management Systems (BMS) for power generation and large-scale heating operations
-
Fire & Gas Detection Systems ensuring rapid response to hazardous conditions
-
Pressure, temperature, and flow monitoring within safety instrumented loops
-
Process plant safety interlocking to mitigate risks of equipment damage or personnel hazards
-
Chemical processing units requiring SIL 3 logic solvers for high-risk operations
Product Advantages
-
High Safety Compliance – Fully SIL 3 certified, ensuring compliance with global safety standards.
-
Seamless Integration – Natively integrates with Emerson’s DeltaV SIS architecture, reducing engineering effort.
-
Fast Logic Execution – High-speed deterministic logic execution ensures reliable safety responses.
-
Scalable Design – Modular system allows flexible expansion, suitable for both small and large installations.
-
Advanced Diagnostics – Built-in self-testing and fault detection minimize downtime and simplify maintenance.
-
Redundancy Options – Supports power and communication redundancy, ensuring high availability.
-
Robust Industrial Performance – Operates in wide temperature ranges, suitable for harsh environments.
FAQ
-
What communication protocols are supported by the VS3202 Smart Logic Solver?
It supports DeltaV SIS protocol, OPC integration, and Modbus TCP/IP for third-party connectivity. -
Can this module be used in a SIL 3 certified loop?
Yes, it is fully SIL 3 certified and designed for integration into safety-critical loops. -
What is the maximum logic execution speed of the module?
The execution time is less than 10 milliseconds, ensuring rapid response for critical applications. -
Does the VS3202 support redundancy configurations?
Yes, it supports redundant power supplies and communication redundancy for high availability. -
What kind of diagnostics are available in this logic solver?
It provides continuous self-diagnostics, error detection, and predictive maintenance alerts. -
Can the VS3202 be integrated with DeltaV DCS for unified operation?
Yes, it integrates seamlessly with Emerson’s DeltaV SIS and DCS systems. -
How many logic functions can the module handle?
It can support up to 16 logic functions per module, depending on application requirements. -
What environmental protections are provided?
It is rated IP20 for module protection and is suitable for enclosed cabinet installation. -
Is the power supply configuration redundant?
Yes, the module supports redundant 24 VDC power inputs. -
What is the insulation and safety compliance standard followed by this device?
It complies with IEC 61508 standards for SIL 3 applications and ensures safe isolation.
