Product Introduction

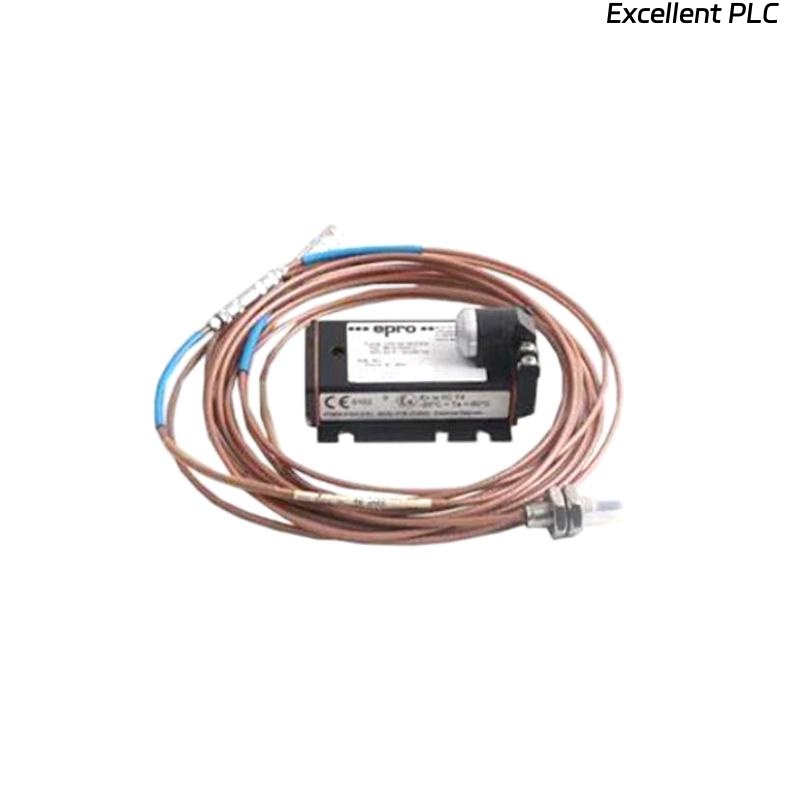

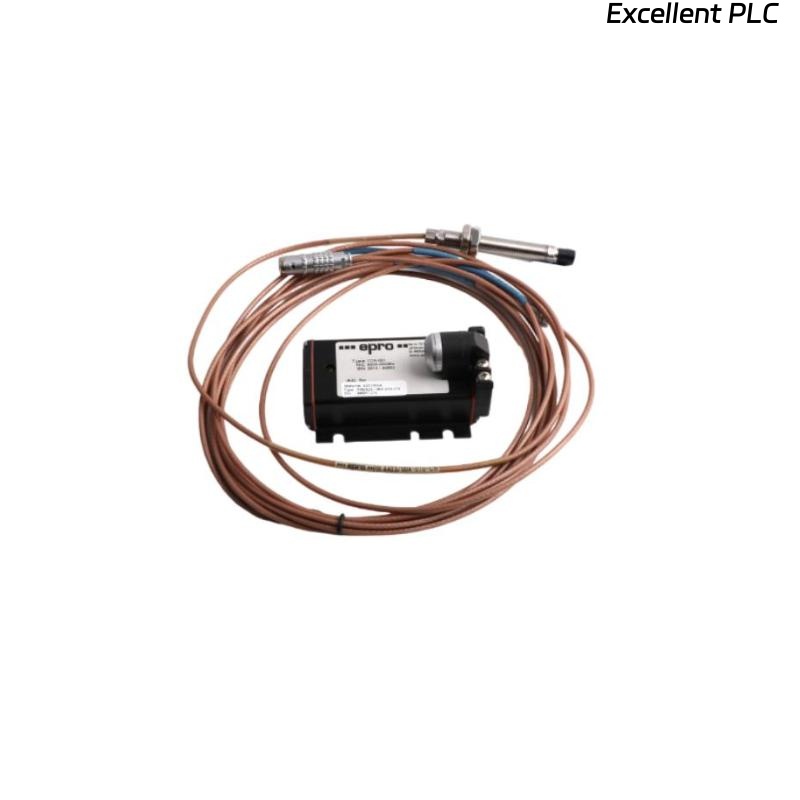

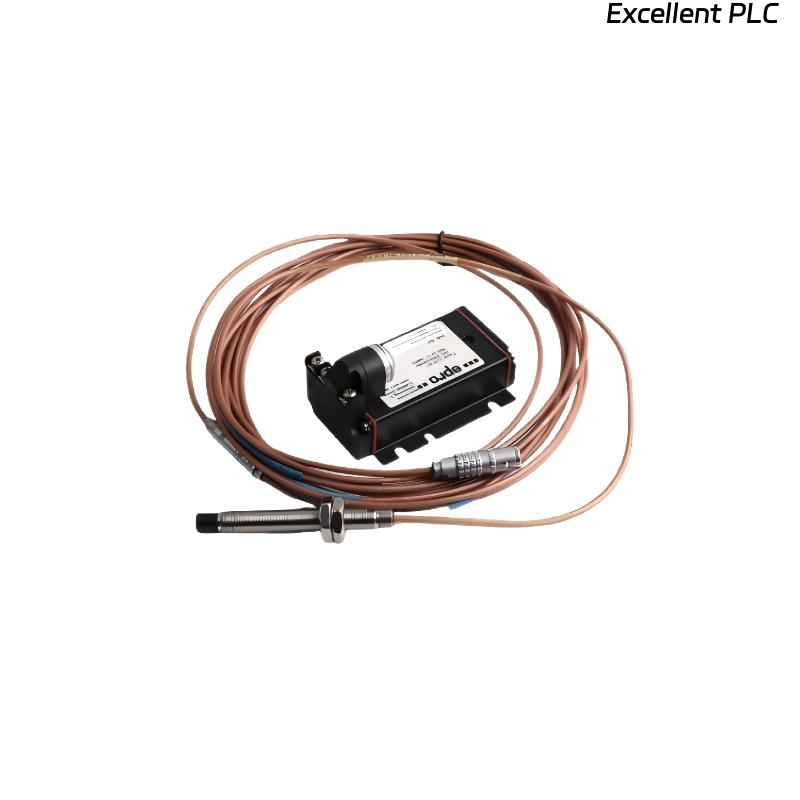

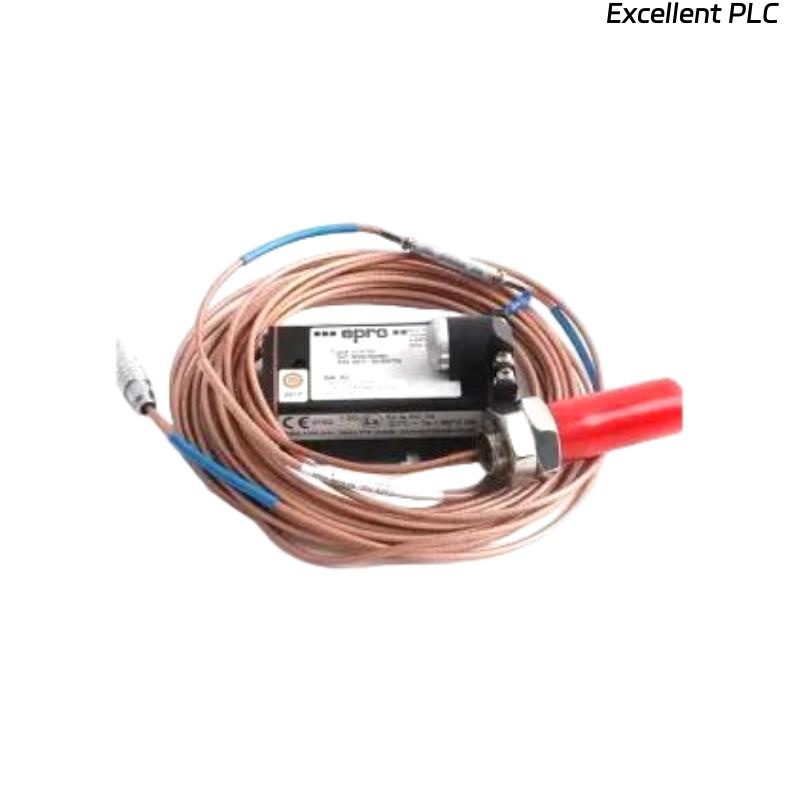

The Epro CON010+PR6423/010-120 is a high-precision 8mm eddy current sensor designed to provide accurate displacement and position measurements in a variety of industrial applications. Combining advanced technology and robust design, this sensor ensures reliable and consistent performance in challenging environments. The sensor’s 8mm diameter probe makes it ideal for applications requiring compact and precise measurement solutions, where traditional measurement methods may not be feasible.
Eddy current sensors like the CON010 are widely used for detecting displacement, vibration, and position of non-ferrous materials. The PR6423/010-120 signal processing unit provides powerful analytics, enabling real-time measurement data for high-speed applications, ensuring operational safety and precision.
Product Parameters
| Parameter | Value |
|---|---|
| Model | Epro CON010+PR6423/010-120 |
| Sensor Type | Eddy Current Sensor |
| Probe Diameter | 8 mm |
| Sensor Weight | 0.22 kg |
| Output Type | Analog/ Digital Output |
| Measuring Range | 0 to 50 mm |
| Operating Frequency | 10 kHz – 5 MHz |
| Supply Voltage | 10 – 30 V DC |
| Temperature Range | -40°C to +80°C |
| Protection Rating | IP67 |
Product Applications
The Epro CON010+PR6423/010-120 is used in a variety of industrial applications where high precision is critical. Some key applications include:
-
Machine Tool Monitoring: For measuring vibrations and displacements of tool heads, spindles, or other moving parts.
-
Automotive Industry: Monitoring assembly line robots, conveyor systems, and component alignments.
-
Aerospace: In aerospace manufacturing, for measuring displacement in critical machinery and structural components.
-
Compressor and Pump Monitoring: For detecting shaft displacement in pumps and compressors to prevent failure.
-
Test Equipment: Ideal for use in testing devices and environments requiring precise displacement measurement.
Product Advantages
-
High Precision: With a small probe diameter of just 8mm, the sensor ensures precise displacement and position measurements with high accuracy.
-
Robust Design: The IP67 protection rating makes the sensor resistant to dust and water, suitable for industrial environments with high exposure to harsh conditions.
-
Wide Measurement Range: Capable of measuring displacement up to 50mm, which is ideal for a wide range of industrial applications.
-
Compact Size: The small 8mm probe allows for installation in tight spaces where other sensors may not fit.
-
High-Speed Operation: With a wide operating frequency range from 10 kHz to 5 MHz, the sensor can be used in high-speed applications, such as rotating machinery or precision manufacturing.
-
Easy Integration: The CON010 is compatible with standard signal processing units, such as the PR6423/010-120, and easily integrates into existing systems without significant modification.
FAQ
1. What is the measuring range of the Epro CON010+PR6423/010-120 sensor?
The measuring range of the Epro CON010+PR6423/010-120 sensor is from 0 to 50mm.
2. What is the supply voltage for the Epro CON010+PR6423/010-120 sensor?
The supply voltage for the Epro CON010+PR6423/010-120 sensor is between 10 and 30 V DC.
3. What output types are supported by the Epro CON010+PR6423/010-120 sensor?
The Epro CON010+PR6423/010-120 sensor supports both analog and digital output signals for flexibility in integration with various control systems.
4. What is the operating frequency range of the Epro CON010+PR6423/010-120?
The sensor operates within a frequency range of 10 kHz to 5 MHz, allowing it to be used in high-speed applications.
5. What is the protection rating of the Epro CON010+PR6423/010-120 sensor?
The Epro CON010+PR6423/010-120 sensor has an IP67 protection rating, making it resistant to dust and water, ideal for use in harsh environments.
6. Can the Epro CON010+PR6423/010-120 sensor be used in high-temperature environments?
Yes, the sensor can operate within a temperature range of -40°C to +80°C, making it suitable for a wide variety of industrial environments.
7. What is the diameter of the sensor probe?
The sensor probe has a diameter of 8mm, making it compact and suitable for tight spaces.
8. How much does the Epro CON010+PR6423/010-120 sensor weigh?
The sensor weighs 0.22 kg, which makes it lightweight and easy to integrate into various systems.
9. What materials can the Epro CON010+PR6423/010-120 sensor detect?
The sensor is designed for use with non-ferrous materials, making it ideal for applications involving aluminum, copper, and other non-ferrous metals.
10. Can the Epro CON010+PR6423/010-120 sensor be used for vibration monitoring?
Yes, the Epro CON010+PR6423/010-120 sensor is ideal for vibration monitoring applications, providing precise displacement data even at high frequencies.
