Product Overview

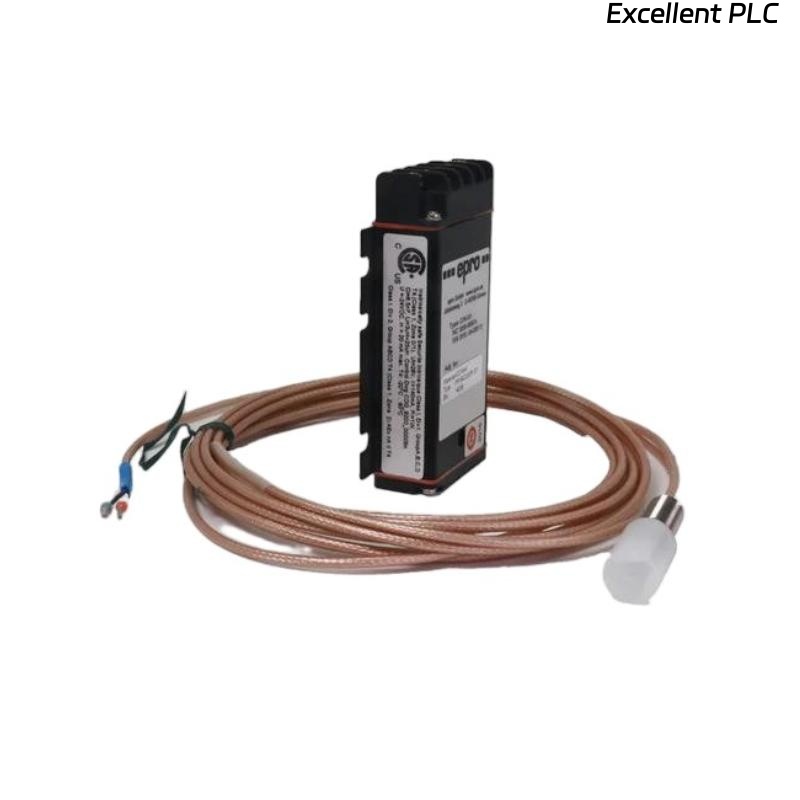

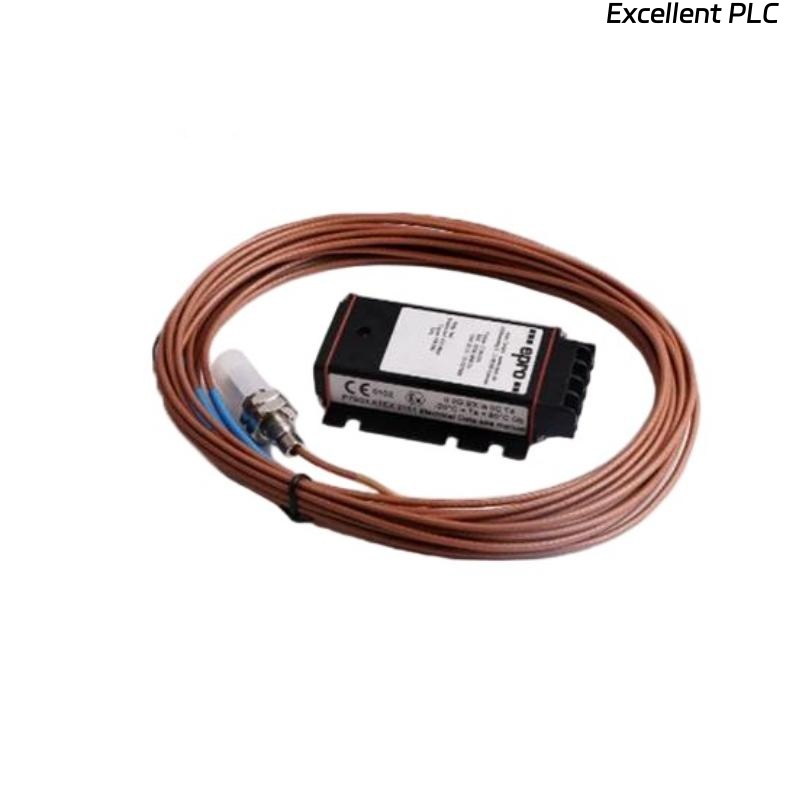

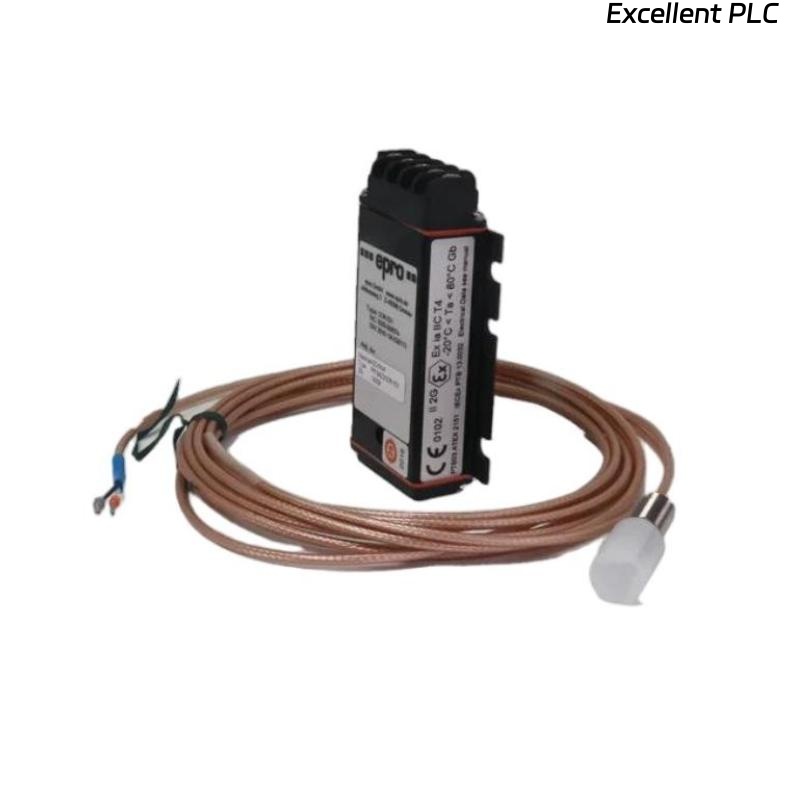

The Epro CON021/913-040+PR6424/000-000 16 mm Eddy-Current Sensor is a high-precision sensor designed for non-contact measurement of displacement, position, and vibration in rotating machinery and other industrial applications. Utilizing eddy-current technology, it provides reliable and accurate measurements, even in harsh environments with high temperatures, moisture, or contamination.
Key Features
-
16 mm probe diameter for precise measurements
-
Non-contact eddy-current sensing technology
-
High accuracy and repeatability
-
Rugged design for industrial and harsh environments
-
Compatible with standard Epro signal conditioning units
-
Supports predictive maintenance and machinery protection
-
Easy installation and integration into monitoring systems
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | CON021/913-040+PR6424/000-000 |
| Type | Eddy-Current Sensor |
| Probe Diameter | 16 mm |
| Measurement Range | ±1 mm (typical, depending on application) |
| Output | Differential voltage (to PR6424 signal conditioner) |
| Frequency Response | DC – 10 kHz |
| Linearity | ≤1% of full scale |
| Operating Temperature | -40 °C to +125 °C |
| Storage Temperature | -50 °C to +150 °C |
| Humidity | Up to 100% condensing |
| Case Material | Stainless steel probe and robust housing |
| Mounting | Threaded or flange mount (depending on application) |
| Dimensions | Sensor head diameter 16 mm |
| Weight | 0.32 kg |
| Compliance | CE, RoHS |
Industry Applications
-
Power Generation – turbine and generator vibration monitoring
-
Oil & Gas – pumps, compressors, and critical rotating machinery
-
Petrochemical & Chemical – displacement and vibration measurement
-
Manufacturing – precision machinery monitoring
-
Water & Wastewater – pump and motor protection
Advantages
-
Provides accurate, non-contact displacement and vibration measurements
-
Rugged construction suitable for harsh industrial conditions
-
High linearity and repeatability for reliable monitoring
-
Supports predictive maintenance and early fault detection
-
Seamless integration with Epro signal conditioners and monitoring systems
-
Compact 16 mm probe for versatile installation in tight spaces
Frequently Asked Questions (FAQ)
Q1: What is the main function of this sensor?
It measures displacement, position, and vibration using eddy-current technology for non-contact monitoring.
Q2: What is the probe diameter?
16 mm.
Q3: What is the measurement range?
Typically ±1 mm, depending on application.
Q4: What type of output does it provide?
Differential voltage output to a compatible PR6424 signal conditioner.
Q5: What is the operating temperature range?
-40 °C to +125 °C.
Q6: Can it be used in harsh environments?
Yes, it is designed for high temperature, humidity, and industrial conditions.
Q7: What is the material of the sensor case?
Stainless steel probe with a robust housing.
Q8: How is it mounted?
Threaded or flange mount depending on application.
Q9: Is it compatible with signal conditioners?
Yes, it is compatible with the PR6424 series and other standard Epro signal conditioners.
Q10: Which industries commonly use this sensor?
Power Generation, Oil & Gas, Petrochemical, Manufacturing, and Water & Wastewater.
