Product Introduction

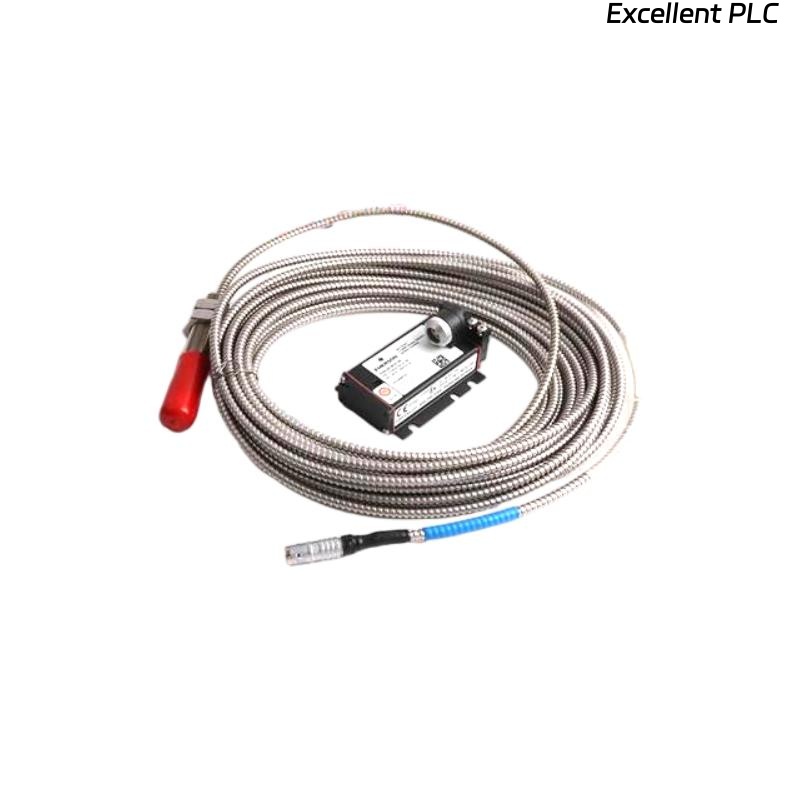

The Epro CON021/914-100+PR6423/010-010-CN is a precision 8mm eddy current sensor used for non-contact displacement and position measurement in a wide range of industrial applications. This sensor utilizes the principle of eddy current sensing to detect the position of metallic objects without requiring physical contact, offering high accuracy and reliability in harsh environments.

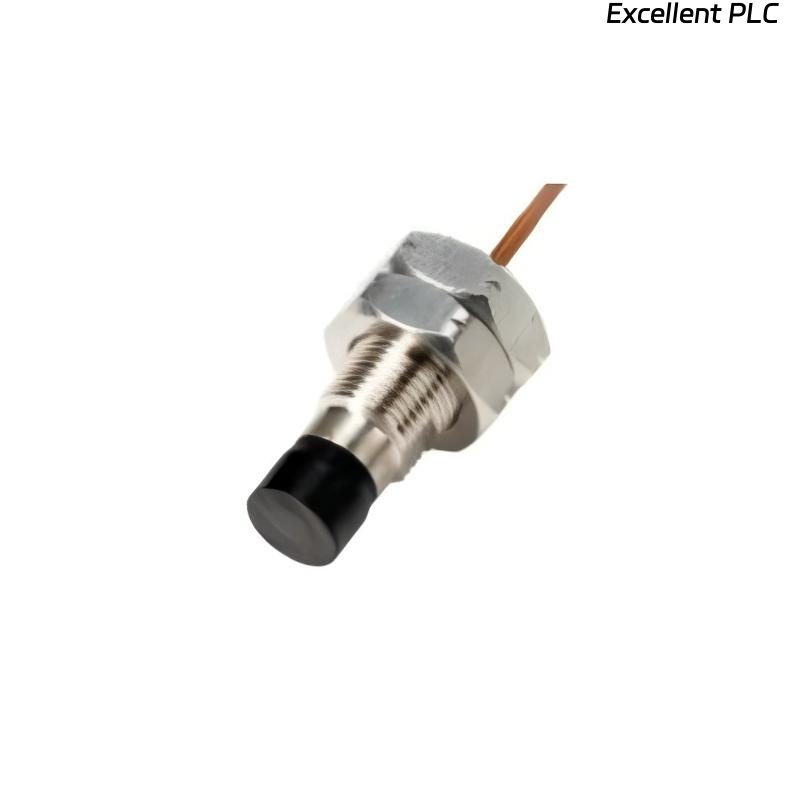

Designed with an 8mm diameter sensing head, the CON021/914-100 provides a high-resolution output, making it ideal for measuring small displacements and detecting minute changes in position. It is commonly used in applications such as rotor position monitoring, vibration analysis, and measuring gaps in industrial machinery. This sensor is especially useful in applications requiring high-speed, non-contact measurements for safety-critical systems where physical contact might lead to wear or inaccuracies.
The PR6423/010-010-CN signal conditioner is used in conjunction with the sensor to convert the eddy current signals into a usable output for further processing and control. Together, the sensor and signal conditioner offer a highly integrated, reliable solution for precision measurement in industrial automation systems.
Product Parameters
| Parameter | Value |
|---|---|
| Sensing Head Diameter | 8 mm |
| Weight | 0.22 kg |
| Measurement Range | 0 to 10 mm |
| Operating Frequency | Up to 2 MHz |
| Output Type | Analog (Voltage or Current) |
| Signal Conditioning | PR6423/010-010-CN |
| Resolution | High resolution, sub-micron |
| Mounting | Integrated with PR6423 module |
| Temperature Range | -40°C to +85°C |
| Environmental Protection | IP67 |
| Power Supply | 24 V DC |
Product Applications
The Epro CON021/914-100+PR6423/010-010-CN eddy current sensor system is designed for use in various industries where precise non-contact position measurement is critical. Some of the most common applications include:
-
Rotor Position Monitoring: Used in motors and turbines to monitor rotor positions in real-time, ensuring optimal operation and preventing mechanical damage.
-
Vibration Measurement: Measures vibrations in rotating machinery, helping to detect early signs of wear and tear, preventing costly downtime and equipment failure.
-
Gap Measurement: Measures gaps in equipment where traditional contact sensors might be ineffective, such as in precision machinery and automotive manufacturing.
-
Thickness Measurement: Used in industries such as metals and coatings to measure the thickness of materials without touching the surface, ensuring high accuracy and consistency.
-
Automated Inspection Systems: Employed in automated quality control systems for measuring small displacements in manufacturing processes.
-
Condition Monitoring: Measures displacement in bearings, shafts, and other rotating elements in condition monitoring systems for industrial machinery.
Product Advantages
-
Non-contact Measurement: Eliminates mechanical wear and tear, providing a long service life and reliable performance without physical contact.
-
High Accuracy and Resolution: Provides sub-micron resolution for precise displacement measurements, making it ideal for applications requiring fine resolution.
-
Versatile Output Options: The sensor supports both voltage and current output, allowing it to interface with a variety of industrial controllers and systems.
-
Robust Design: The IP67-rated housing provides excellent protection against dust and water, allowing the sensor to function reliably in harsh industrial environments.
-
Wide Temperature Range: The sensor operates in extreme temperatures ranging from -40°C to +85°C, making it suitable for both high and low-temperature environments.
-
High-Speed Performance: Capable of operating at frequencies up to 2 MHz, making it suitable for high-speed applications.
-
Easy Integration: With the PR6423 signal conditioner, the system is easy to integrate into existing automation systems, offering simple calibration and signal processing.
-
Compact Size: The 8mm diameter sensing head is compact and can be installed in confined spaces, making it suitable for applications with limited space.
-
Long Service Life: The non-contact nature of the sensor reduces wear and tear, leading to a longer operational lifespan and reduced maintenance costs.
-
Flexible Measurement Range: The system is capable of measuring from 0 to 10 mm, providing flexibility for a wide range of measurement applications.
FAQ
-
What is the measurement range of the Epro CON021/914-100 sensor?
The sensor can measure displacements within the range of 0 to 10 mm. -
What is the output type of the sensor?
The sensor provides either an analog voltage or current output depending on the configuration. -
What is the maximum operating frequency of the sensor?
The sensor operates at frequencies up to 2 MHz, suitable for high-speed applications. -
What is the environmental protection rating of the sensor?
The sensor has an IP67 rating, providing protection against dust and water. -
What is the weight of the sensing head?
The sensing head weighs 0.22 kg. -
What is the temperature range in which the sensor operates?
The sensor operates within a temperature range of -40°C to +85°C. -
How does the sensor interface with the system?
The sensor uses the PR6423/010-010-CN signal conditioner to convert its output into a usable signal for further processing and control. -
What industries can benefit from the Epro CON021/914-100 sensor?
This sensor is ideal for industries like automotive manufacturing, process automation, power generation, and condition monitoring. -
How is the sensor mounted in industrial systems?
The sensor is typically integrated with the PR6423 signal conditioner module, which allows for easy installation and signal processing. -
What is the primary advantage of using a non-contact sensor like the Epro CON021?
The primary advantage is the elimination of mechanical wear, ensuring long-term reliability and consistent performance.
