Product Introduction

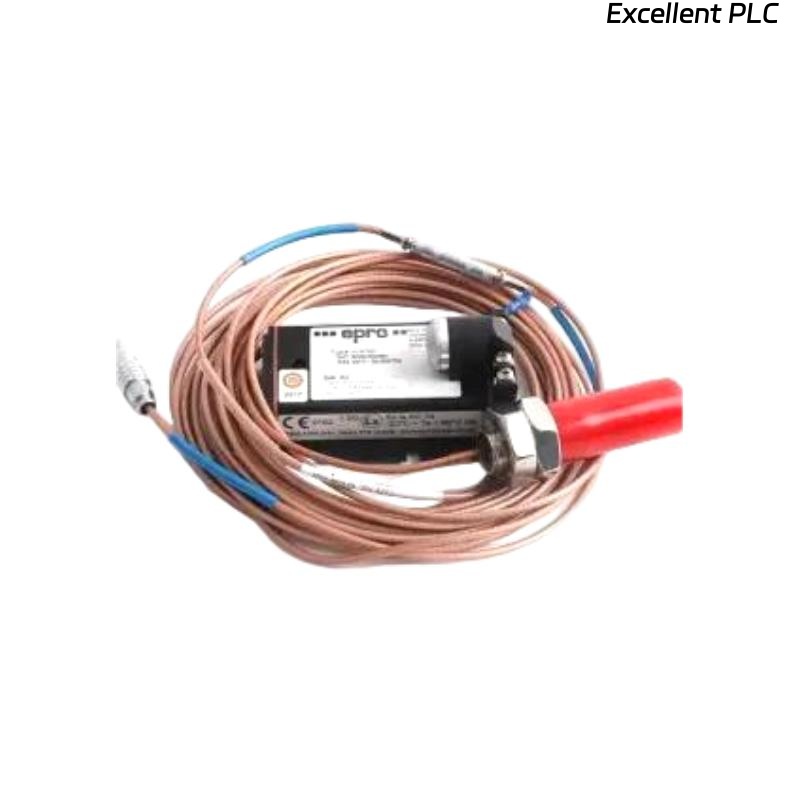

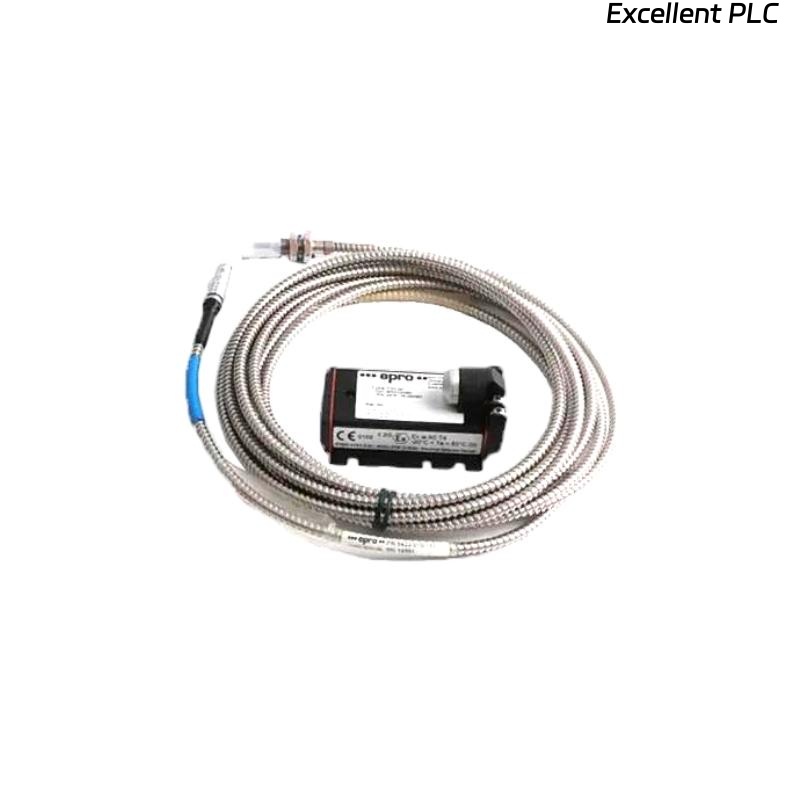

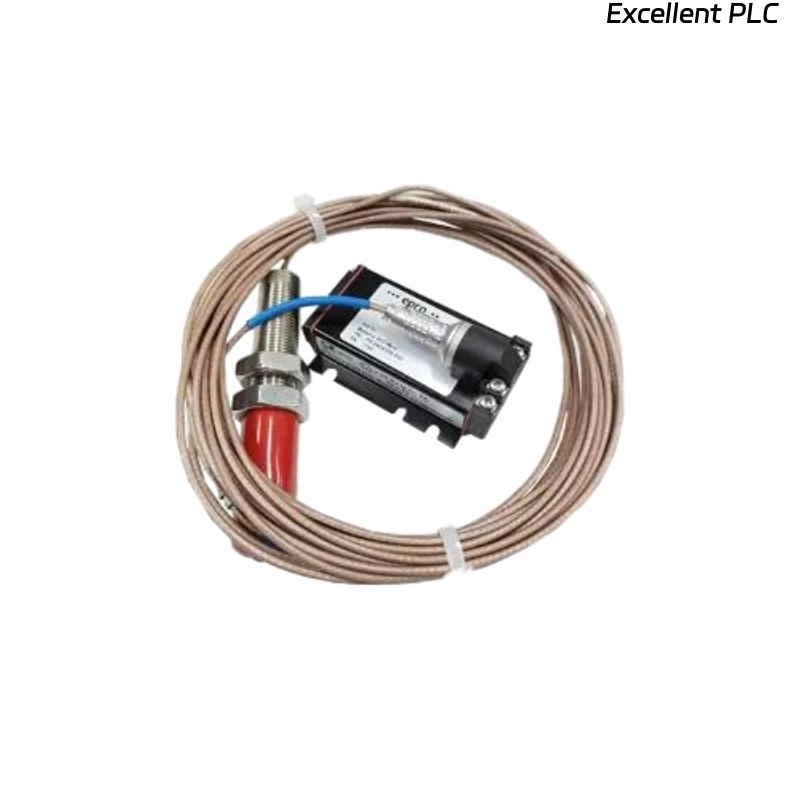

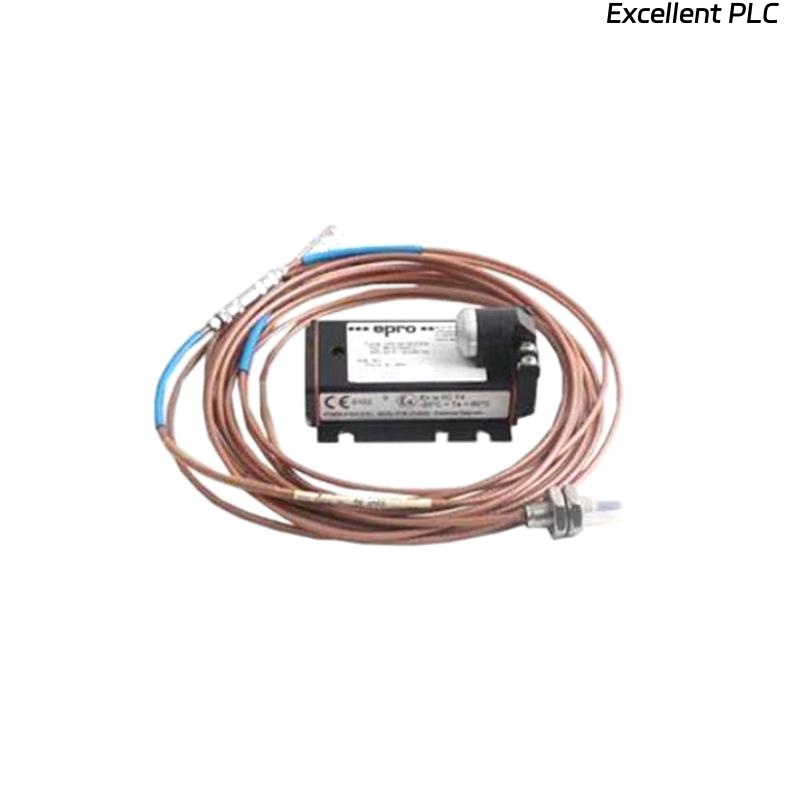

The Epro CON021 PR6424/001-030 is a high-performance 16mm Eddy Current Sensor, engineered for non-contact measurement of displacement, position, and vibration. Using eddy current technology, this sensor offers high precision in various industrial applications, particularly where exact measurements in harsh environments are critical.
It is widely used in monitoring rotating machinery, turbines, and high-speed machinery, where high accuracy and reliability are crucial. The sensor’s compact 16mm diameter makes it ideal for applications with limited space.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CON021 PR6424/001-030 |
| Sensor Type | Eddy Current Sensor |
| Sensor Diameter | 16 mm |
| Weight | 0.32 kg |
| Measurement Range | Up to 10 mm |
| Output Type | Analog (0-10V, 4-20mA) |
| Resolution | High resolution |
| Operating Temperature | –20°C to +70°C |
| Electrical Connection | M12 Connector |
| Power Supply | 24 V DC |
| Protection Class | IP67 (dust and water-resistant) |
| Material Compatibility | Steel, aluminum, and other metallic surfaces |
Applications
-
Vibration Monitoring: Commonly used for rotating machinery such as motors, turbines, and pumps.
-
Positioning: Suitable for position measurement in automated processes.
-
Gap Measurement: Measures gaps in rotating parts to ensure optimal operation.
-
Non-Contact Displacement: Ideal for non-contact displacement measurements in critical machinery.
-
Condition Monitoring: Essential for condition-based monitoring of machinery in industrial environments.
Advantages
-
Non-contact Measurement: Prevents wear and tear, ensuring reliable long-term performance.
-
High Precision: Offers high-resolution measurements for accurate monitoring.
-
Versatile: Compatible with various metallic surfaces such as steel and aluminum.
-
Compact Design: Its 16mm diameter allows for installation in tight spaces.
-
Reliable: With IP67 protection, it ensures durability in harsh environments.
-
Ease of Integration: Features an M12 connector for simple installation.
-
Long-Lasting: Provides excellent stability even in extreme conditions.
FAQ
Q1: What is the main function of the Epro PR6424/001-030 sensor?
A1: It is used for non-contact measurement of displacement, position, and vibration in machinery.
Q2: What is the output signal type of the sensor?
A2: The sensor provides an analog output (0-10V or 4-20mA), ideal for integration with control systems.
Q3: How accurate is the measurement of the PR6424/001-030?
A3: It offers high-resolution measurements, ensuring precise monitoring of small displacements.
Q4: Is this sensor suitable for high-speed machinery monitoring?
A4: Yes, the Epro PR6424/001-030 is designed for use in high-speed rotating machinery applications.
Q5: What is the temperature range for this sensor?
A5: The sensor operates within a temperature range of –20°C to +70°C.
Q6: What is the protection class of the sensor?
A6: It is rated IP67, offering dust and water resistance, making it suitable for harsh industrial environments.
Q7: Can the sensor be used with non-metallic surfaces?
A7: No, it is designed for use with metallic surfaces such as steel and aluminum.
Q8: How does the Epro PR6424/001-030 sensor work?
A8: The sensor uses eddy current technology, detecting changes in the electromagnetic field caused by the displacement of conductive materials.
Q9: Can the sensor measure very small gaps?
A9: Yes, it can accurately measure gaps and small displacements, making it ideal for gap monitoring in rotating machinery.
Q10: Is the PR6424/001-030 sensor easy to integrate into existing systems?
A10: Yes, it comes with an M12 connector, making integration into control systems and machinery straightforward.
Related Models (Same Series)
| Model | Description |
|---|---|
| PR6424/002-110-CN | 10mm diameter model for compact applications. |
| PR6424/001-140-CN | Larger diameter model for precise displacement measurement. |
| PR6424/001-120-CN | Medium-range model suitable for high-accuracy monitoring. |
| PR6424/001-150-CN | Designed for heavy-duty industrial use. |
| PR6424/002-130-CN | Ideal for vibration and position monitoring in motors. |
| PR6424/003-110-CN | Advanced model for rotational speed measurement. |
