Product Introduction

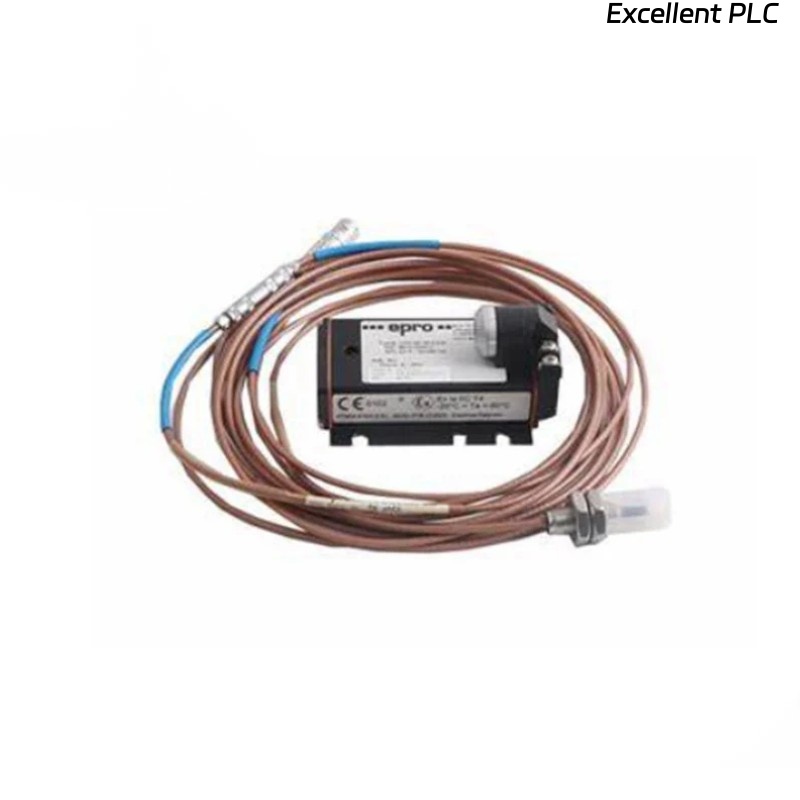

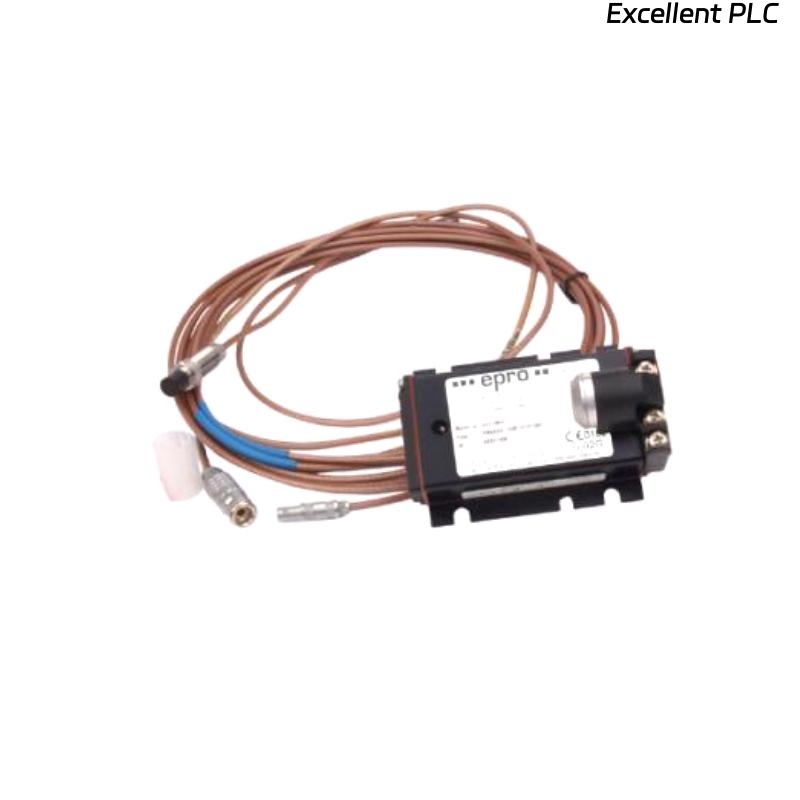

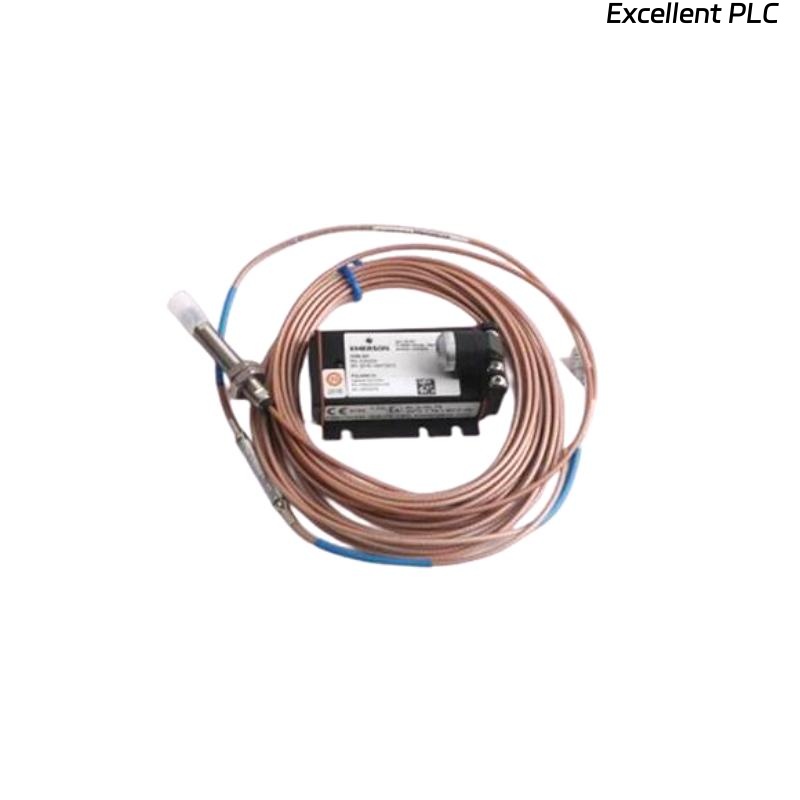

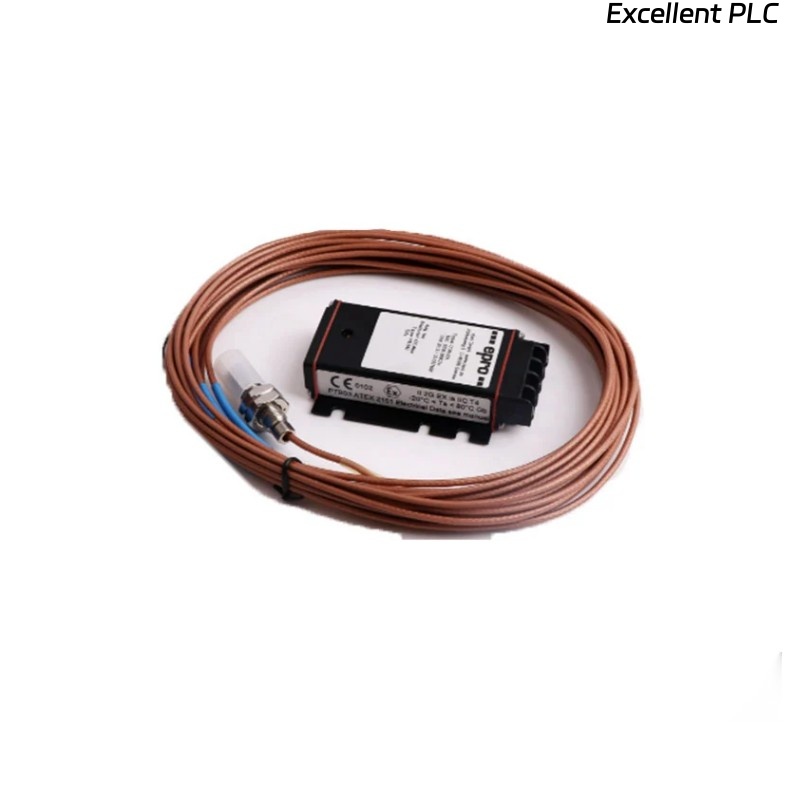

The Epro CON021+PR6424/010-100 is a high-precision vibration monitoring system designed for industrial applications. It combines the CON021 converter with the PR6424/010-100 proximity probe to provide reliable and accurate measurement of shaft vibration, displacement, and position in rotating machinery. This system is widely used in power generation, oil & gas, and heavy industries to ensure equipment safety and performance.
Product Parameters
| Parameter | Value |
|---|---|
| Model | CON021 + PR6424/010-100 |
| Measurement Range | 0-1000 µm (peak-to-peak) |
| Sensitivity | 10 mV/µm |
| Frequency Response | 0.5 Hz to 10 kHz |
| Operating Temperature | -30°C to +120°C (Probe) |
| Power Supply | 18-30 VDC (CON021) |
| Output Signal | 4-20 mA (linear) |
| Probe Diameter | 8 mm |
| Sensor head diameter | 16 mm |
| Weight | 0.32 kg |
| Protection Rating | IP67 (CON021) |
| Compliance | ISO 10816, API 670 |
Applications
-
Turbine Monitoring: Measures shaft vibration in steam and gas turbines.
-
Compressors: Detects misalignment and bearing wear in centrifugal compressors.
-
Pumps & Motors: Monitors vibration levels to prevent catastrophic failures.
-
Paper & Steel Mills: Ensures smooth operation of heavy rotating equipment.
-
Power Plants: Critical for condition monitoring in generators and turbines.
Product Advantages
-
High Accuracy: Provides precise vibration data with ±1% linearity.
-
Robust Design: IP67-rated housing for harsh industrial environments.
-
Easy Integration: Compatible with most PLCs and DCS systems via 4-20 mA output.
-
Long Lifespan: Manufactured with industrial-grade materials for durability.
-
Certified Compliance: Meets ISO 10816 and API 670 standards for reliability.
Frequently Asked Questions (FAQ)
-
Q: What is the operating voltage range for CON021?
A: 18-30 VDC. -
Q: Can the PR6424 probe measure non-ferrous materials?
A: No, it is designed for ferromagnetic targets only. -
Q: What is the maximum cable length supported?
A: Up to 50 meters with shielded cable. -
Q: Is calibration required after installation?
A: Yes, initial calibration is recommended for optimal accuracy. -
Q: How do I troubleshoot a noisy output signal?
A: Check cable shielding, grounding, and probe alignment. -
Q: What is the lifespan of the probe?
A: Typically 5+ years under normal operating conditions. -
Q: Can the system be used in explosive environments?
A: Yes, with optional ATEX-certified components. -
Q: What is the temperature limit for the probe?
A: -30°C to +120°C (higher with cooling accessories). -
Q: How often should maintenance be performed?
A: Annual inspection is recommended. -
Q: Is the output signal immune to EMI?
A: Yes, with proper shielded cabling.
Recommended Models
Same Series/Related Models
| Model | Description |
|---|---|
| CON021+PR6423/010-100 | 5 mm probe, 0-1000 µm range |
| CON022+PR6424/010-100 | Enhanced frequency response (0.1-15 kHz) |
| CON021+PR6424/020-200 | 20 mm probe, 0-2000 µm range |
| CON025+PR6426/010-100 | Explosion-proof version (ATEX) |
| PR6424/010-100 (Probe) | Standalone proximity probe |
| CON021 (Converter Only) | For use with existing probes |
