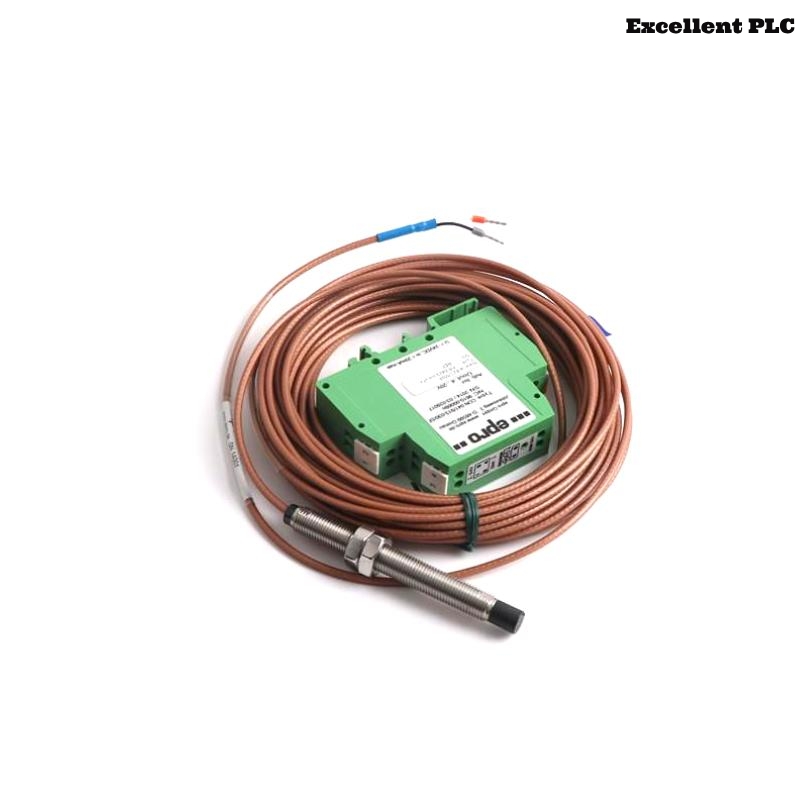

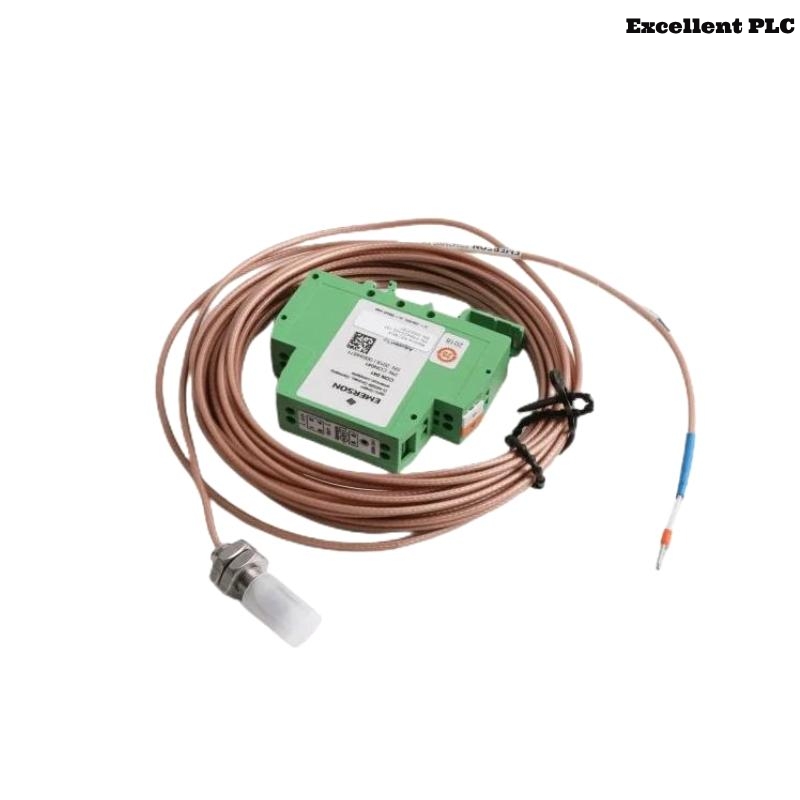

Epro CON041-CN+PR6423/000-031-CN 8mm Eddy Current Sensor

Product Introduction

The Epro CON041-CN + PR6423/000-031-CN is a complete eddy current displacement measurement system designed for high-precision, non-contact monitoring of shaft vibration and position in rotating machinery. This sensor assembly combines the PR6423/000-031-CN probe with the advanced CON041-CN signal converter, resulting in a versatile and highly stable condition monitoring solution, particularly suited for industrial environments where accuracy, reliability, and robustness are crucial.

The PR6423/000-031-CN probe features an 8mm diameter sensing tip, optimized for use in medium-to-large rotating machines. When paired with the CON041-CN converter, the system delivers linear analog output signals that reflect the distance between the sensor and the target surface, enabling real-time diagnostics of critical components such as turbines, compressors, motors, and pumps.

The CON041-CN is an enhanced signal converter module offering higher immunity to electromagnetic interference and better long-distance signal transmission capabilities compared to the legacy CON021.

---

Technical Specifications

---

Applications

• Steam and Gas Turbines
  Accurate measurement of shaft displacement and vibration for machine protection systems.

• Compressors and Expanders
  Continuous condition monitoring for early fault detection and prevention of catastrophic failure.

• Pumps and Blowers
  Detects misalignment, imbalance, and bearing wear in pump assemblies.

• Motors and Generators
  Monitoring shaft movement to ensure operational stability and maintenance scheduling.

• Industrial Gearboxes
  Measurement of gear shaft behavior, especially in high-speed or high-load conditions.

• Condition Monitoring Systems
  Perfectly integrated into systems such as Epro MMS and Emerson/Bently Nevada 3500 series.

---

Advantages

• High Accuracy
  Provides precise non-contact displacement measurement, ideal for high-speed rotating equipment.

• Rugged Construction
  Built to endure harsh industrial environments, resistant to oil, dirt, and high temperatures.

• Superior Signal Conditioning
  CON041 offers improved immunity to electrical noise, providing clean analog signals over long distances.

• Long Operational Life
  Designed for permanent installation with minimal maintenance, ensuring long-term monitoring performance.

• Flexibility
  Available in different cable lengths and custom configurations to meet specific installation requirements.

• Full System Compatibility
  Seamless integration with legacy and modern protection systems including Epro, DeltaV, and Bently Nevada.

• Time-Tested Reliability
  Proven technology trusted by power plants, petrochemical facilities, and manufacturing industries worldwide.

• DIN Rail Mount Converter
  CON041 is DIN rail mountable, making panel installation easy and secure.

• CE and RoHS Certified
  Ensures compliance with international safety and environmental regulations.

---

Frequently Asked Questions (FAQ)

1. What is the difference between CON021 and CON041?
   The CON041 offers better EMI resistance and improved signal quality over longer distances.

2. Is the PR6423/000-031-CN probe suitable for hazardous environments?
   The standard version is not explosion-proof, but intrinsically safe variants are available on request.

3. Can this sensor detect both vibration and axial movement?
   Yes, it can measure dynamic vibration as well as static shaft position.

4. What monitoring systems can this sensor be used with?
   It is fully compatible with Epro MMS systems and also with Bently Nevada 3500 systems.

5. Does it require recalibration over time?
   Typically no; the sensor is factory-calibrated and stable for long-term operation.

6. What is the output signal type from the converter?
   Analog voltage, linear with respect to displacement.

7. What cable types are supported?
   Shielded coaxial cables are standard, with MIL-C-5015 or similar industrial connectors.

8. Can this system operate in submerged conditions?
   The sensor is IP67 rated and can handle temporary immersion, but the converter should be kept dry.

9. How is the converter mounted?
   The CON041 is designed for DIN rail mounting inside electrical cabinets.

10. What is the total weight of the system including cable?
    Approx. 250–300 grams depending on cable length.

---
