Product Introduction

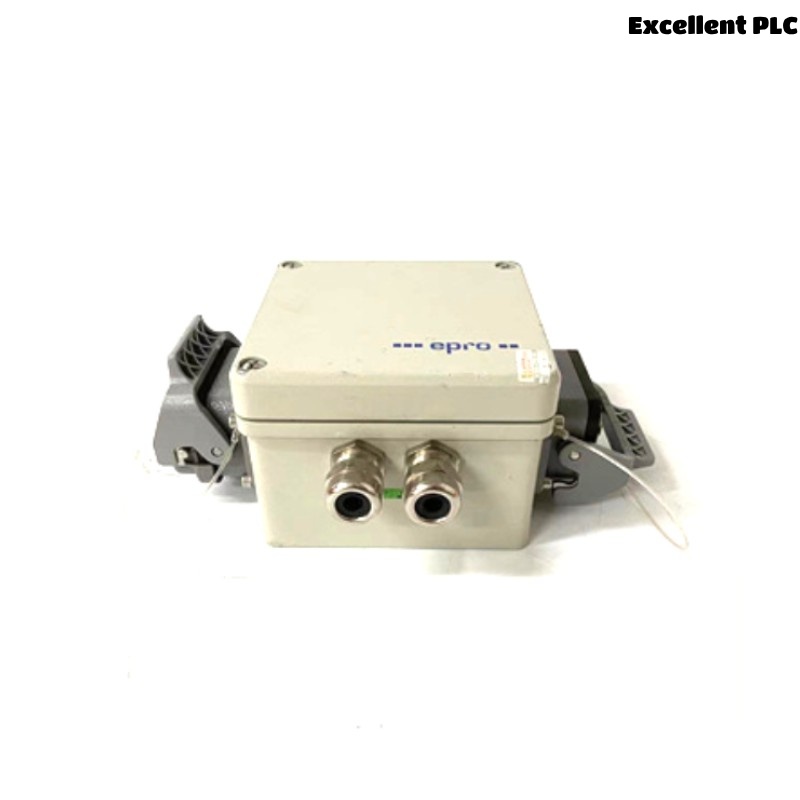

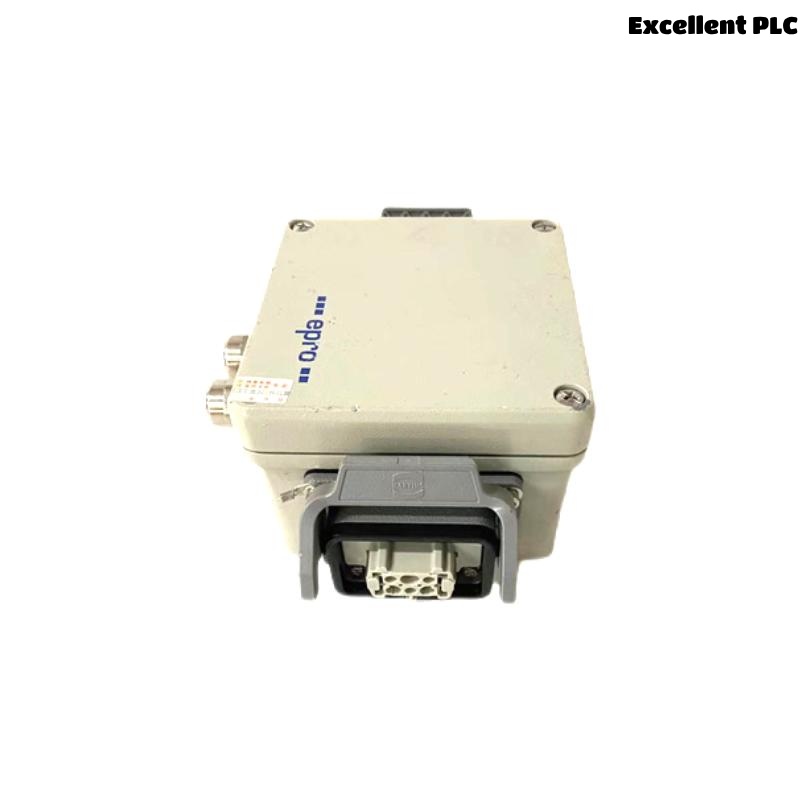

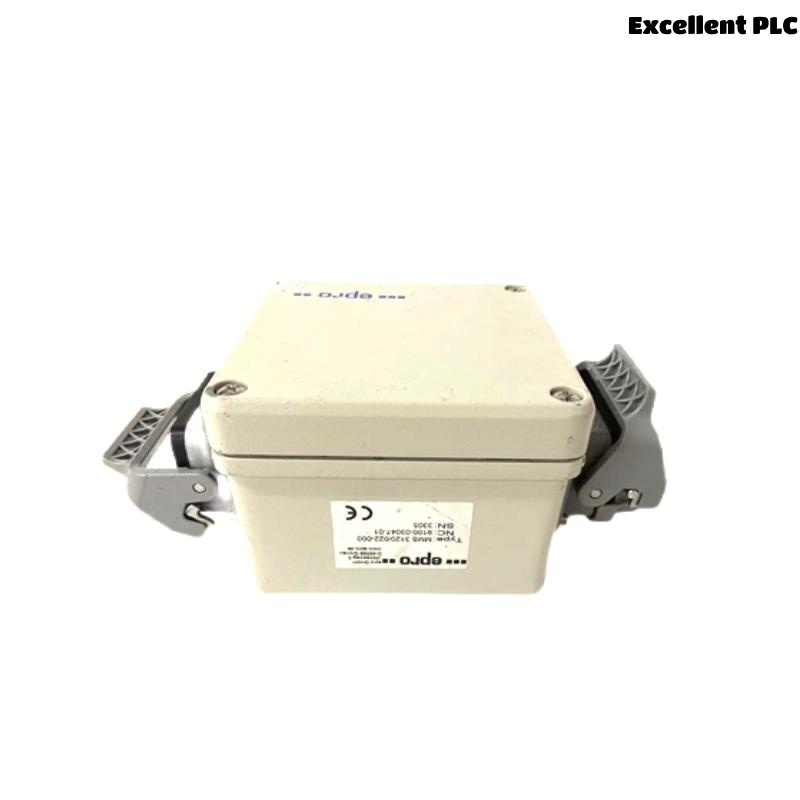

The Epro MMS3110/011-000 Dual-Channel Shaft-Vibration Transmitter is a sophisticated industrial device designed to monitor shaft vibrations in rotating machinery. This transmitter is ideal for applications where precise and reliable vibration data is crucial for predictive maintenance, equipment health monitoring, and optimizing the performance of machinery. The device is engineered for high reliability in demanding industrial environments, offering real-time monitoring and diagnostics for rotating equipment such as motors, pumps, turbines, and compressors.
The MMS3110 features dual-channel capabilities, which allows it to measure vibrations on two separate shafts simultaneously, enhancing its application range and versatility. This functionality provides operators with an integrated solution to monitor multiple parts of their equipment without needing separate transmitters, reducing costs and simplifying installation. Additionally, the unit can transmit data in real-time to a central control system, enabling quick and informed decision-making.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | MMS3110/011-000 |
| Manufacturer | Epro |
| Type | Dual-Channel Shaft-Vibration Transmitter |
| Measurement Channels | 2 Channels (for two shafts) |
| Input Signal Type | Vibration signal (from shaft-mounted sensors) |
| Output Signal Type | 4-20 mA Analog Output |
| Operating Voltage | 24 V DC |
| Frequency Range | 0.1 Hz to 10 kHz |
| Accuracy | ±0.5% of full scale |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L x W x H) | 127.5 x 125.75 x 80 mm |
| Weight | 1.3 kg |
| Mounting Type | DIN Rail Mountable |
| Housing Material | Industrial-grade Polycarbonate |
| Certification | CE, UL, ATEX (optional) |
| Vibration Range | ±50 g |
Applications
The Epro MMS3110/011-000 Dual-Channel Shaft-Vibration Transmitter is designed for use in industries where monitoring the health and performance of rotating equipment is essential. Some of its most common applications include:
-
Motor Monitoring: Ideal for detecting mechanical faults like unbalance, misalignment, and bearing issues in electric motors.
-
Pump Systems: Used in monitoring vibration levels in pumps, helping to identify wear and tear before it leads to failure.
-
Turbine Systems: Can be employed in steam, gas, or water turbines for continuous health monitoring to prevent unscheduled downtime.
-
Compressors and Fans: Suitable for detecting vibrations in compressors and fans, ensuring efficient operation and early fault detection.
-
Power Generation: Used in power plants to monitor critical equipment, ensuring that turbines and generators are operating within safe vibration thresholds.
-
Mining and Heavy Machinery: Helps maintain mining equipment and other heavy machinery by providing continuous vibration data for predictive maintenance.
Advantages
-
Dual-Channel Measurement: The MMS3110 allows for the simultaneous measurement of vibrations on two shafts, reducing the need for additional equipment and simplifying system setup.
-
Cost Efficiency: By providing a solution for two shafts, it lowers the overall cost compared to using separate transmitters for each shaft.
-
Real-Time Data Transmission: The device continuously sends vibration data to a central monitoring system, helping operators respond to issues promptly and reduce downtime.
-
High Accuracy and Sensitivity: With an accuracy of ±0.5% of the full scale, the device ensures precise vibration measurements critical for machinery health monitoring.
-
Wide Operating Range: Capable of handling a frequency range from 0.1 Hz to 10 kHz, the MMS3110 covers a broad spectrum of vibration frequencies, making it versatile for various machinery types.
-
Robust Design: Built to withstand harsh industrial conditions with an operational temperature range of -40°C to +85°C, ensuring reliability in demanding environments.
-
Simple Installation: The device is DIN rail mountable, offering easy and quick installation in existing control panels or enclosures.
-
Low Maintenance: The durable, industrial-grade housing and precision engineering ensure long-term reliability with minimal maintenance requirements.
-
ATEX Certification (Optional): Provides options for use in explosive atmospheres, making it suitable for hazardous environments.
-
Energy Efficient: Powered by a 24 V DC input, the device is energy-efficient and can operate continuously with low power consumption.
Frequently Asked Questions (FAQ)
-
What is the main function of the Epro MMS3110/011-000?
The MMS3110 is a dual-channel shaft-vibration transmitter designed to monitor the vibrations of rotating equipment such as motors, pumps, and turbines. -
How does the dual-channel feature benefit the user?
It allows for simultaneous vibration measurement on two separate shafts, reducing the need for additional transmitters and streamlining the setup. -
What kind of output signal does the MMS3110 provide?
The MMS3110 provides a 4-20 mA analog output, which can be easily integrated with control systems for real-time monitoring. -
What is the operating temperature range of the MMS3110?
The device operates in temperatures ranging from -40°C to +85°C, making it suitable for a wide range of industrial environments. -
Can the MMS3110 be used in hazardous environments?
Yes, the MMS3110 is available with optional ATEX certification, allowing it to be used in explosive atmospheres. -
How accurate is the MMS3110 in measuring vibrations?
The device offers an accuracy of ±0.5% of the full scale, ensuring reliable and precise vibration measurements. -
What is the frequency range of the MMS3110?
The MMS3110 can measure frequencies ranging from 0.1 Hz to 10 kHz, covering a broad spectrum of vibration frequencies for various equipment types. -
How is the device mounted?
The MMS3110 is DIN rail mountable, making installation straightforward in control panels or enclosures. -
What is the weight of the MMS3110 transmitter?
The device weighs 1.3 kg, making it easy to handle and install without requiring additional support. -
How does the device transmit data?
The MMS3110 continuously transmits real-time vibration data via its 4-20 mA output, which can be integrated into a central monitoring system for analysis.
Recommended Models from the Same Series or Related Models
| Model Number | Channels | Frequency Range | Output Type | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| MMS3110/011-001 | 2 Channels | 0.1 Hz to 10 kHz | 4-20 mA | 150 mm x 120 mm x 65 mm | 0.8 kg |
| MMS3120/012-000 | 2 Channels | 0.1 Hz to 5 kHz | 4-20 mA | 155 mm x 125 mm x 70 mm | 0.85 kg |
| MMS3115/011-000 | 2 Channels | 0.1 Hz to 10 kHz | 4-20 mA | 160 mm x 130 mm x 70 mm | 1.0 kg |
| MMS3100/010-000 | 1 Channel | 0.1 Hz to 10 kHz | 4-20 mA | 145 mm x 110 mm x 60 mm | 0.7 kg |
| MMS3130/013-000 | 2 Channels | 0.1 Hz to 5 kHz | 4-20 mA | 150 mm x 120 mm x 65 mm | 0.8 kg |
| MMS3140/014-000 | 2 Channels | 0.1 Hz to 10 kHz | 4-20 mA | 160 mm x 130 mm x 70 mm | 1.0 kg |
