Product Introduction

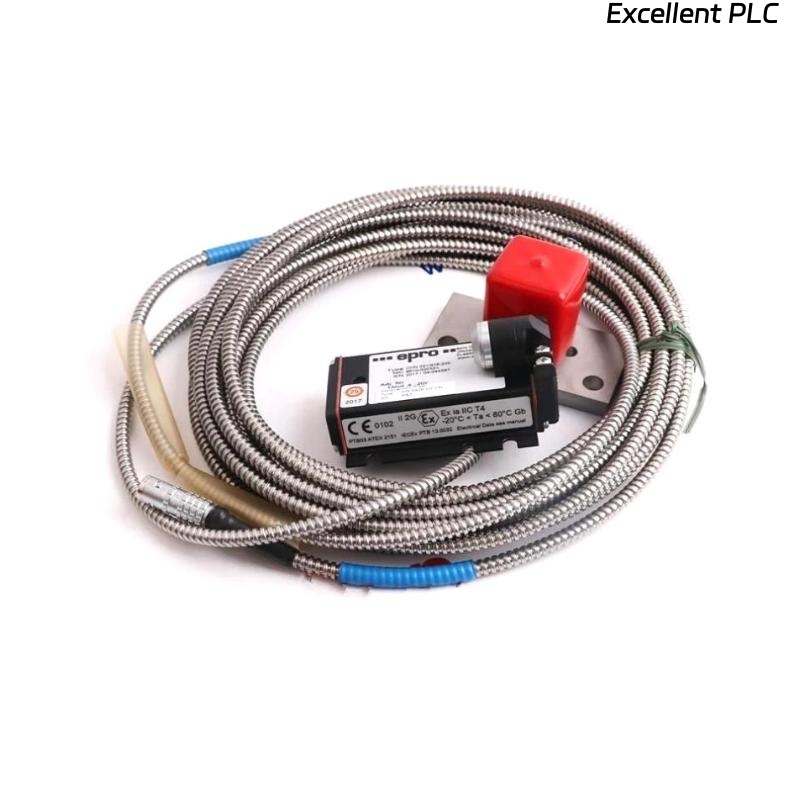

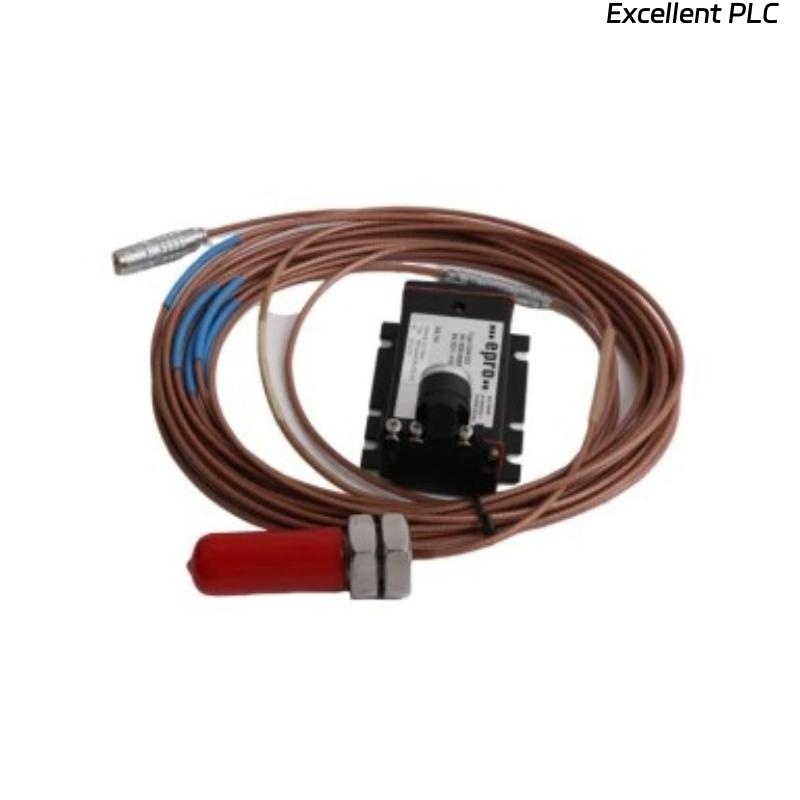

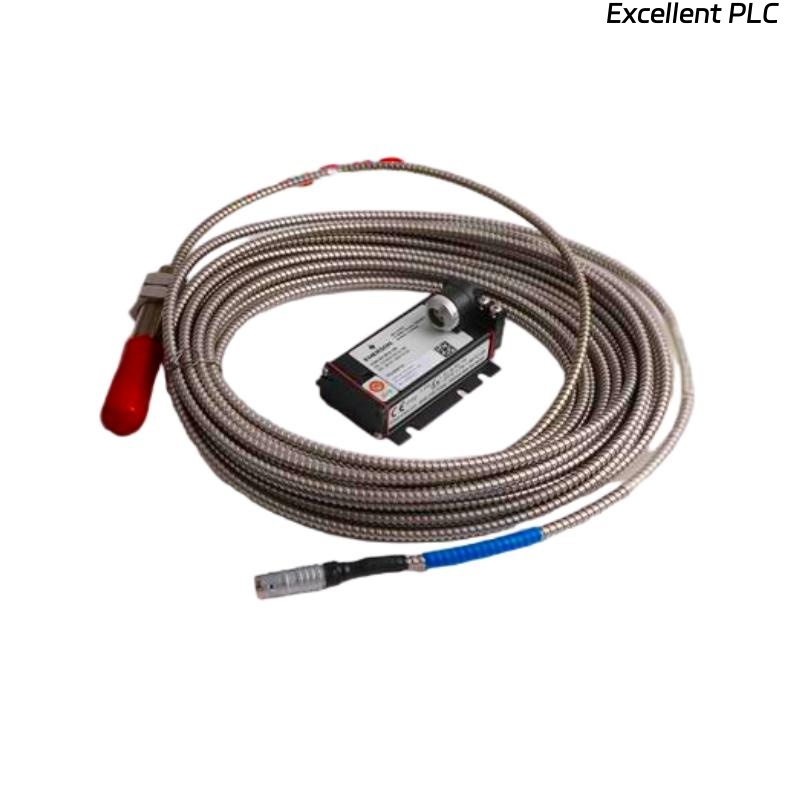

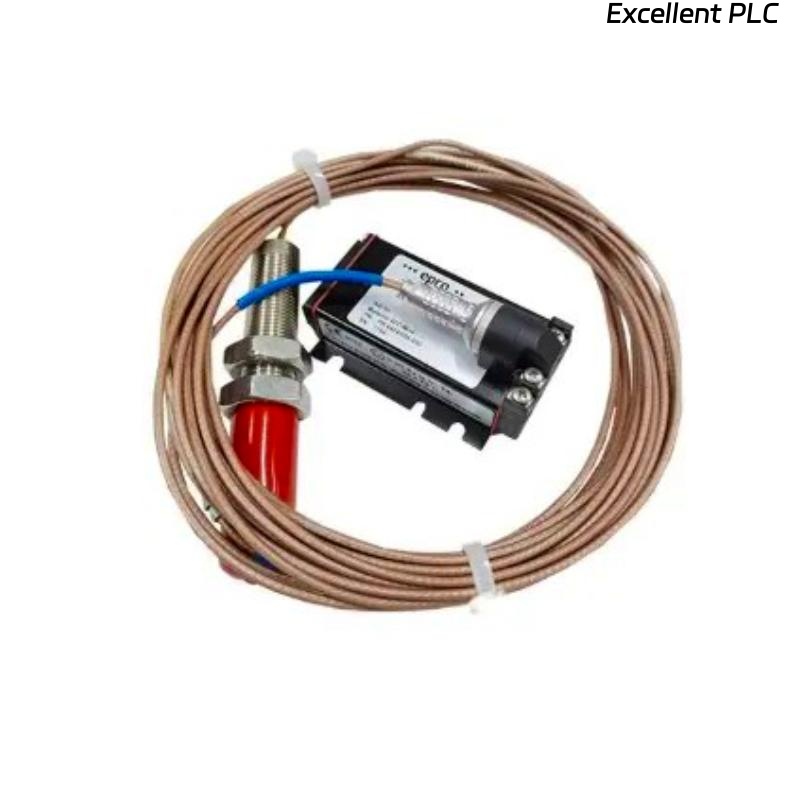

The Epro PR6423/000-011 8mm Eddy-Current Sensor is a precision vibration and displacement measurement device specifically designed for use in industrial condition monitoring systems. It is part of the PR6423 series of non-contact eddy-current sensors, offering accurate measurement of shaft vibration, radial displacement, and relative motion in rotating machinery. With high sensitivity and stable performance, this model ensures reliability in critical environments such as turbines, compressors, pumps, and gearboxes.
Product Parameters
| Parameter | Value |
|---|---|
| Model | PR6423/000-011 |
| Sensor Type | Eddy-Current Proximity Sensor |
| Sensor Head Diameter | 8 mm |
| Measuring Range | 0.25 mm to 2.0 mm (typical) |
| Frequency Response | DC to 10 kHz (depending on setup) |
| Linearity | ±1% of full-scale range |
| Operating Temperature Range | -35 °C to +180 °C |
| Storage Temperature Range | -40 °C to +200 °C |
| Insulation Resistance | >100 MΩ |
| Weight | 0.1 kg |
| Cable Type | Integrated, shielded |
| Typical Application Partner | CON011 / CON021 Signal Converters |
Product Applications
-
Steam and gas turbines for vibration monitoring and safety shutdown protection.
-
Centrifugal compressors to detect shaft displacement and prevent mechanical failures.
-
Large pumps and fans for predictive maintenance monitoring.
-
Gearboxes for tracking misalignment and wear in rotating shafts.
-
Power plants, petrochemical facilities, and heavy industrial machinery requiring reliable non-contact sensing.
Product Advantages
-
High Accuracy – Delivers reliable and precise displacement measurements even under challenging conditions.
-
Compact 8 mm Probe Design – Suitable for installations with limited space without compromising performance.
-
Wide Temperature Range – Operates stably under extreme industrial environments.
-
Long-Term Stability – Low drift characteristics ensure consistent monitoring over extended operation.
-
Electromagnetic Immunity – Shielded design minimizes interference from electrical noise.
-
Compatibility – Fully compatible with Epro CON series converters and standard machine protection systems.
FAQ
Q1: What is the primary measurement principle of the PR6423/000-011 sensor?
A1: It uses the eddy-current principle, where induced currents in the conductive shaft material create a measurable impedance change proportional to displacement.
Q2: Which signal converters are compatible with this sensor?
A2: The sensor is typically used with CON011 and CON021 signal converters, providing signal conditioning for protection and monitoring systems.
Q3: Can the sensor be applied for both radial and axial displacement measurements?
A3: Yes, it can measure both radial shaft vibration and axial displacement, depending on installation orientation.
Q4: How does the sensor handle electromagnetic interference (EMI)?
A4: The integrated shielding and cable design minimize susceptibility to EMI, ensuring stable signal transmission.
Q5: What type of output signal does the sensor generate?
A5: The sensor itself generates an analog voltage variation, which is processed by a converter to deliver a conditioned output suitable for monitoring systems.
Q6: Is the sensor suitable for use in hazardous industrial environments?
A6: Yes, when paired with appropriate intrinsically safe barriers or certified converters, it can be used in hazardous zones.
Q7: What is the typical frequency response of this sensor?
A7: It offers a frequency response from DC up to around 10 kHz, depending on the setup and converter used.
Q8: How is the calibration performed for this model?
A8: Calibration is typically performed using reference displacement targets and adjusting the converter settings according to factory calibration curves.
Q9: Does the sensor support continuous monitoring in high-speed rotating equipment?
A9: Yes, it is specifically designed for continuous monitoring of high-speed rotating machinery such as turbines and compressors.
Q10: What is the effect of target material on measurement performance?
A10: The sensor is calibrated for metallic conductive surfaces (typically steel). Variations in material conductivity can influence sensitivity and must be accounted for.
