Product Introduction

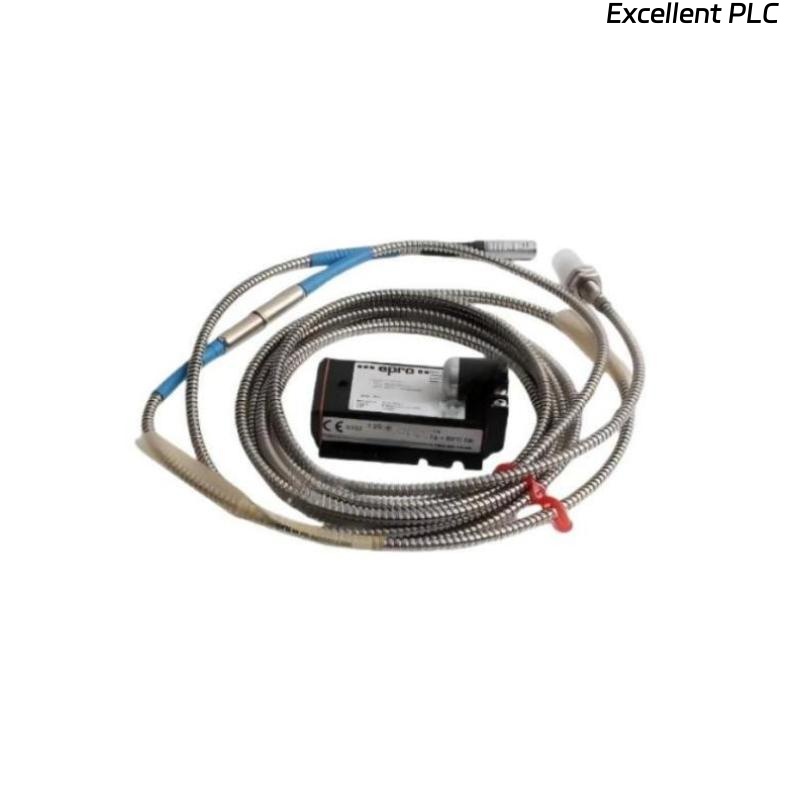

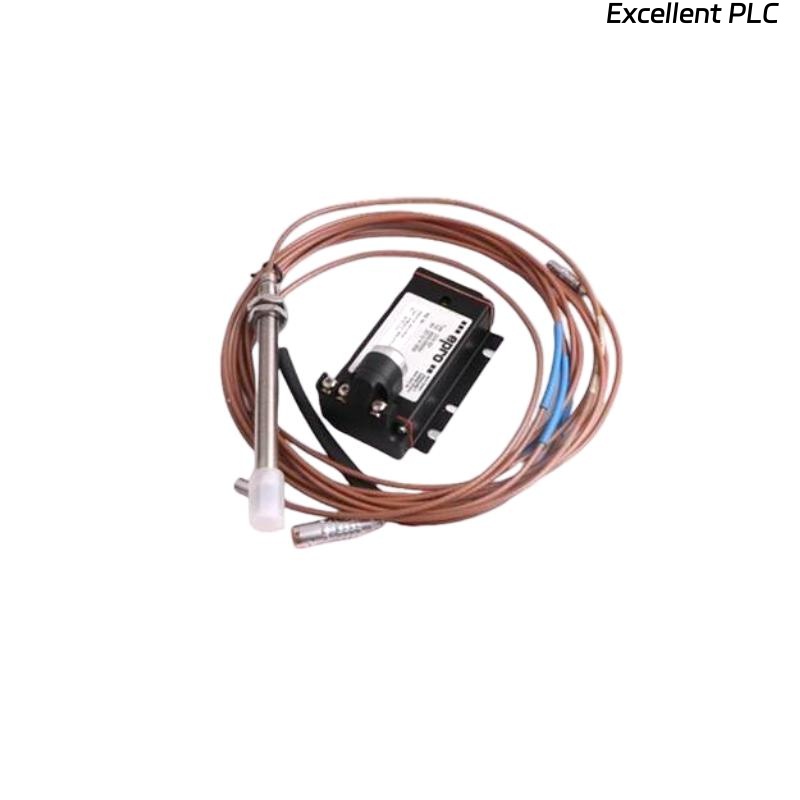

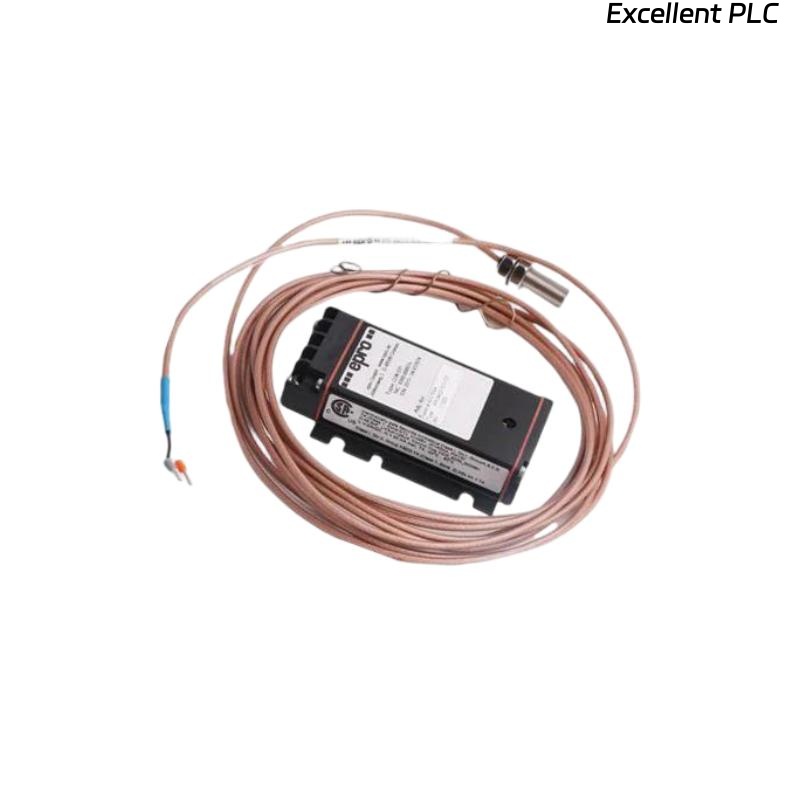

The Epro PR6423/000-141 is a high-precision 8mm eddy current sensor designed for displacement, vibration, and position measurement in industrial applications. This sensor features high dynamic response and accuracy, making it suitable for monitoring high-speed processes and machinery in various industries.
The PR6423/000-141 offers excellent performance in applications such as automated manufacturing, machinery diagnostics, and precision instrumentation. Paired with advanced signal processing technology, this sensor delivers real-time feedback with minimal error. Its compact design with an 8mm probe diameter allows for installation in confined spaces, ensuring flexibility for numerous industrial setups.
This sensor is ideal for use in critical machinery monitoring, where continuous, accurate measurements are crucial for maintaining operational efficiency, reducing downtime, and preventing costly repairs. Whether used in aerospace, automotive, or general manufacturing, the PR6423/000-141 ensures that accurate displacement data is provided for optimized system performance.
Product Parameters
| Parameter | Value |
|---|---|
| Model | Epro PR6423/000-141 |
| Sensor Type | Eddy Current Sensor |
| Probe Diameter | 8 mm |
| Sensor Weight | 0.1 kg |
| Output Type | Analog / Digital Output |
| Measuring Range | 0 to 50 mm |
| Operating Frequency | 10 kHz – 5 MHz |
| Supply Voltage | 10 – 30 V DC |
| Temperature Range | -40°C to +80°C |
| Protection Rating | IP67 |
Product Applications
The Epro PR6423/000-141 sensor is commonly used in various industrial applications requiring precise displacement and vibration measurements:
-
Precision Machine Tool Monitoring: Ideal for monitoring spindles, tool heads, and other critical components in CNC machines and precision manufacturing environments.
-
Rotating Machinery Monitoring: Used for monitoring motors, turbines, compressors, and pumps, the sensor provides real-time data to detect vibrations, prevent failures, and ensure the smooth operation of rotating components.
-
Automated Production Lines: In industries such as automotive and electronics, the sensor is used to monitor the alignment and position of parts on assembly lines, ensuring high-quality production processes.
-
Aerospace: Used in aerospace manufacturing for monitoring the precision of high-speed components, such as turbine blades and engine parts, ensuring their accuracy and reliability.
-
Test and Calibration Equipment: The sensor is also widely used in laboratory settings for calibrating precision measurement equipment, providing highly accurate displacement data for validation purposes.
-
Vibration Monitoring: Essential in maintaining the condition of rotating machinery, the sensor helps detect early signs of wear and tear, allowing for predictive maintenance.
Product Advantages
-
Compact Design: The 8mm probe diameter enables the sensor to fit into tight spaces, making it ideal for applications where space is limited, without sacrificing measurement accuracy.
-
High Dynamic Range: The sensor operates in the frequency range of 10 kHz to 5 MHz, enabling high-speed measurements for dynamic processes and rapid movements.
-
Versatile Output Options: The sensor supports both analog and digital outputs, offering flexibility in data integration with various control systems and machinery monitoring setups.
-
Robust Protection: With an IP67 protection rating, the sensor is resistant to dust and water, making it durable and reliable even in harsh industrial environments.
-
Wide Temperature Range: The sensor operates in a temperature range from -40°C to +80°C, which allows it to function effectively in both cold and hot environments.
-
High-Precision Measurements: The Epro PR6423/000-141 offers highly accurate displacement and vibration data, ensuring optimal machine performance and preventing unexpected downtime or equipment failure.
FAQ
1. What is the measuring range of the Epro PR6423/000-141 sensor?
The measuring range of the Epro PR6423/000-141 sensor is from 0 to 50mm, making it suitable for a wide range of industrial displacement and position monitoring applications.
2. What output types are available from the Epro PR6423/000-141 sensor?
The sensor supports both analog and digital outputs, providing flexibility for integration with various data acquisition and control systems.
3. What is the operating frequency range of the Epro PR6423/000-141 sensor?
The operating frequency range of the Epro PR6423/000-141 sensor is from 10 kHz to 5 MHz, which allows for the measurement of high-speed movements and dynamic processes.
4. What is the protection rating of the Epro PR6423/000-141 sensor?
The Epro PR6423/000-141 sensor has an IP67 protection rating, meaning it is dustproof and water-resistant, ideal for use in harsh industrial environments.
5. What is the supply voltage required for the Epro PR6423/000-141 sensor?
The sensor operates on a supply voltage between 10 V DC and 30 V DC, which is standard for most industrial control and monitoring systems.
6. What is the temperature range for the Epro PR6423/000-141 sensor?
The sensor operates in temperatures ranging from -40°C to +80°C, making it suitable for use in both extreme cold and hot environments.
7. What is the diameter of the Epro PR6423/000-141 sensor probe?
The sensor probe has a diameter of 8mm, which is compact and ideal for applications with limited space.
8. What is the weight of the Epro PR6423/000-141 sensor?
The Epro PR6423/000-141 sensor weighs only 0.1 kg, making it lightweight and easy to install and handle during maintenance.
9. Can the Epro PR6423/000-141 sensor be used for vibration monitoring?
Yes, the sensor is well-suited for vibration monitoring, providing high-precision data that can help detect early signs of wear or failure in machinery.
10. Can the Epro PR6423/000-141 sensor be integrated into existing monitoring systems?
Yes, the sensor offers both analog and digital outputs, ensuring easy integration with existing monitoring, control, and data acquisition systems.
