Product Introduction

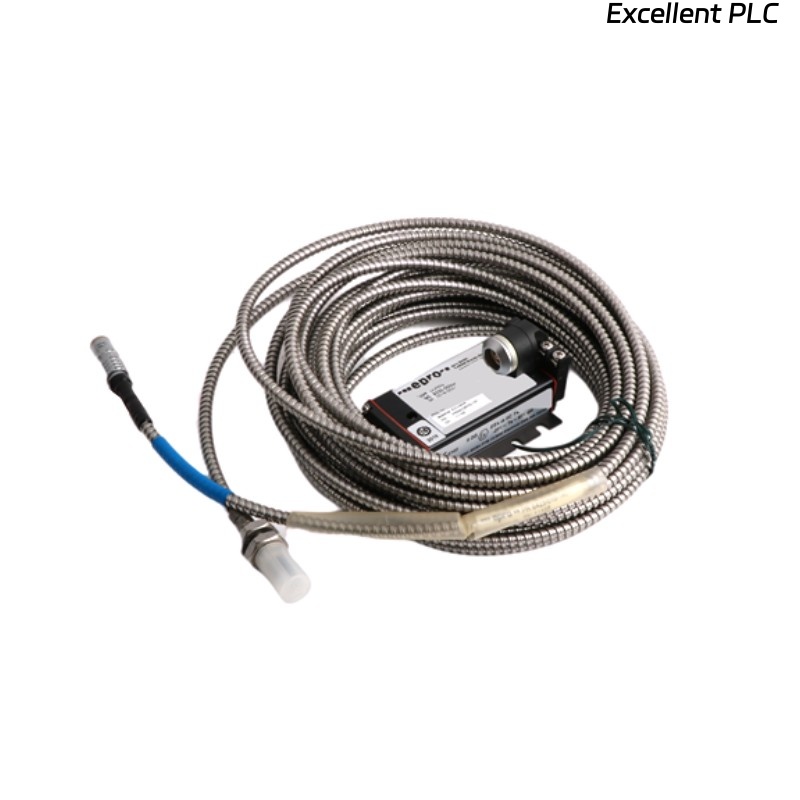

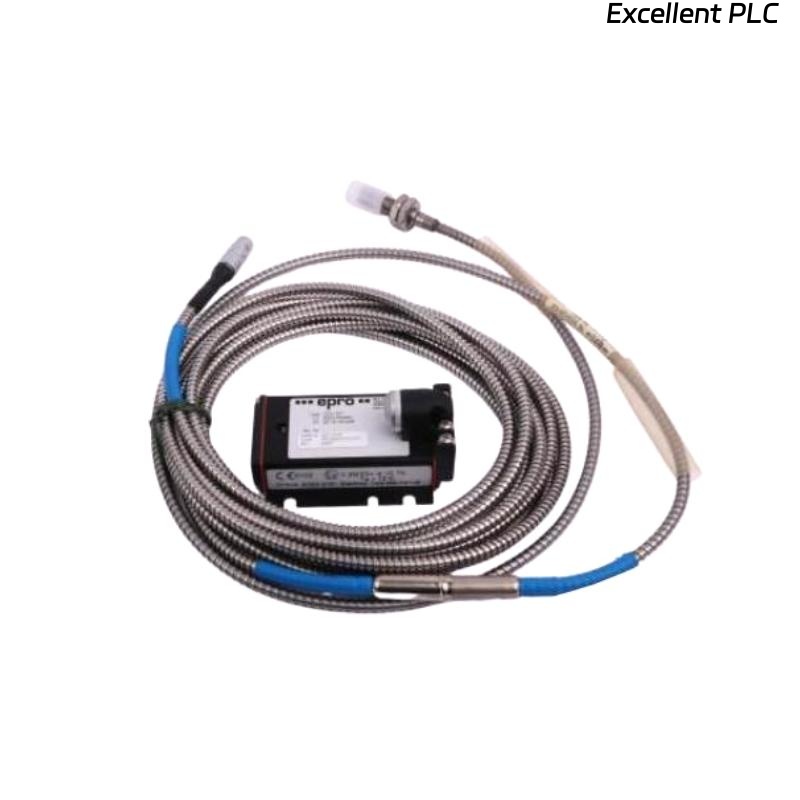

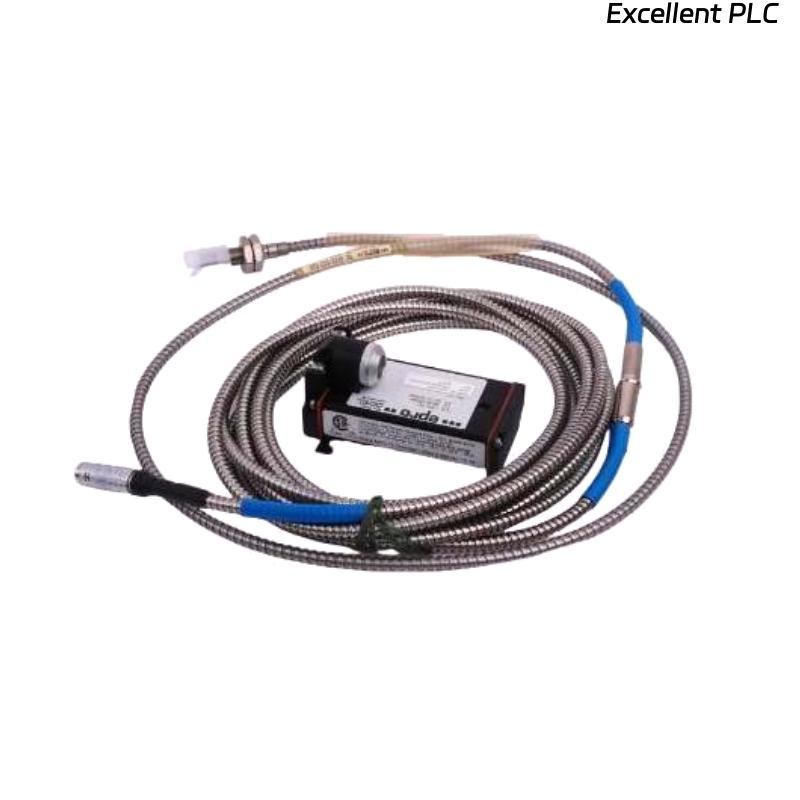

The Epro PR6423/000-141+CON031 is an 8 mm Eddy Current Sensor engineered for precise measurement of displacement, vibration, and position in high-demand industrial environments. As part of the PR6423 series, this sensor combines robust construction with high accuracy, making it ideal for machinery monitoring, predictive maintenance, and research applications.
Its non-contact eddy current technology allows for reliable measurement without wear and tear, ensuring stable performance over extended periods. The sensor is suitable for integration into rotating machinery, turbines, pumps, motors, and other critical industrial equipment where precise monitoring is essential.
The PR6423/000-141+CON031 also benefits from advanced signal conditioning, delivering stable analog outputs that can be directly interfaced with industrial controllers, data acquisition systems, or vibration monitoring platforms. Its compact design and durable stainless steel housing enable installation in tight or harsh environments without compromising performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Sensor Head Diameter | 8 mm |
| Weight | 0.22 kg |
| Measurement Range | 0–14 mm |
| Linearity | ±0.5% F.S. |
| Operating Temperature | -40°C to +125°C |
| Output Signal | Analog voltage / current |
| Housing Material | Stainless Steel |
| Connector Type | CON031 |
| Frequency Response | Up to 10 kHz |
| Power Supply | 24 VDC nominal |
Applications
The PR6423/000-141+CON031 sensor is widely employed in industrial monitoring, research, and predictive maintenance due to its high accuracy and robust performance. Typical applications include:
-
Rotating Machinery Monitoring: Detecting shaft vibration, rotor displacement, and misalignment.
-
Turbines and Generators: Measuring rotor movements and clearances to prevent mechanical failure.
-
Pumps and Compressors: Monitoring axial and radial displacement to ensure optimal performance.
-
Motors and Gearboxes: Identifying imbalance, bearing wear, and misalignment.
-
Research & Development: Laboratory testing of mechanical systems, component verification, and vibration analysis.
-
Condition-Based Maintenance Systems: Integration into predictive maintenance frameworks to monitor equipment health in real time.
Advantages
The Epro PR6423/000-141+CON031 provides multiple advantages for industrial and laboratory applications:
-
High Precision and Reliability: Ensures stable, repeatable measurements with minimal deviation.
-
Compact Design: 8 mm sensor head allows installation in limited spaces.
-
Non-Contact Operation: Prevents mechanical wear, reducing maintenance and downtime.
-
Robust Construction: Stainless steel housing resists corrosion and mechanical stress.
-
Wide Operating Temperature Range: Operates effectively from -40°C to +125°C.
-
High-Frequency Response: Captures rapid vibration and transient events accurately.
-
Versatile Output: Compatible with both analog voltage and current systems for seamless integration.
-
Long-Term Stability: Minimal signal drift ensures accurate measurements over extended periods.
FAQ
-
What is the maximum measurement range of the PR6423/000-141+CON031?
The sensor can measure displacements up to 14 mm with consistent linearity. -
Can this sensor operate under high temperatures?
Yes, it functions reliably within -40°C to +125°C. -
What type of output signals are available?
The sensor provides analog voltage or current outputs compatible with industrial controllers. -
How precise is the PR6423/000-141+CON031?
It maintains linearity within ±0.5% of the full-scale measurement range. -
Is it suitable for vibration monitoring?
Yes, its frequency response up to 10 kHz allows it to capture fast vibration signals effectively. -
What materials are used in the sensor housing?
The housing is constructed of stainless steel, providing mechanical strength and corrosion resistance. -
Does the sensor support axial and radial displacement detection?
Yes, the eddy current principle allows measurement in both axial and radial directions. -
Can the sensor be integrated into automated monitoring systems?
Yes, its analog outputs can be easily interfaced with industrial control and monitoring systems. -
Is calibration required before installation?
Factory calibration ensures accuracy, but field calibration is recommended for critical applications. -
What connector type is used for this sensor?
It uses the CON031 connector for secure and reliable electrical connection.
Recommended Related Models (Same Series or Similar)
| Model | Sensor Head Diameter | Measurement Range | Weight |
|---|---|---|---|
| PR6423/005-010-CN | 5 mm | 10 mm | 0.08 kg |
| PR6423/010-020-CN | 10 mm | 20 mm | 0.12 kg |
| PR6423/012-025-CN | 12 mm | 25 mm | 0.13 kg |
| PR6423/015-030-CN | 15 mm | 30 mm | 0.15 kg |
| PR6423/017-030-CN | 8 mm | 30 mm | 0.10 kg |
| PR6423/01M-010 | 8 mm | 10 mm | 0.10 kg |
Popular Models from Epro (Same Brand)
| Model | Sensor Head Diameter | Measurement Range | Weight |
|---|---|---|---|
| PR6424/014-040 | 14 mm | 40 mm | 0.17 kg |
| PR6424/022-050 | 22 mm | 50 mm | 0.22 kg |
| PR6425/010-030 | 10 mm | 30 mm | 0.14 kg |
| PR6425/018-035 | 18 mm | 35 mm | 0.19 kg |
| PR6426/012-025 | 12 mm | 25 mm | 0.13 kg |
| PR6426/020-040 | 20 mm | 40 mm | 0.21 kg |
