Product Overview

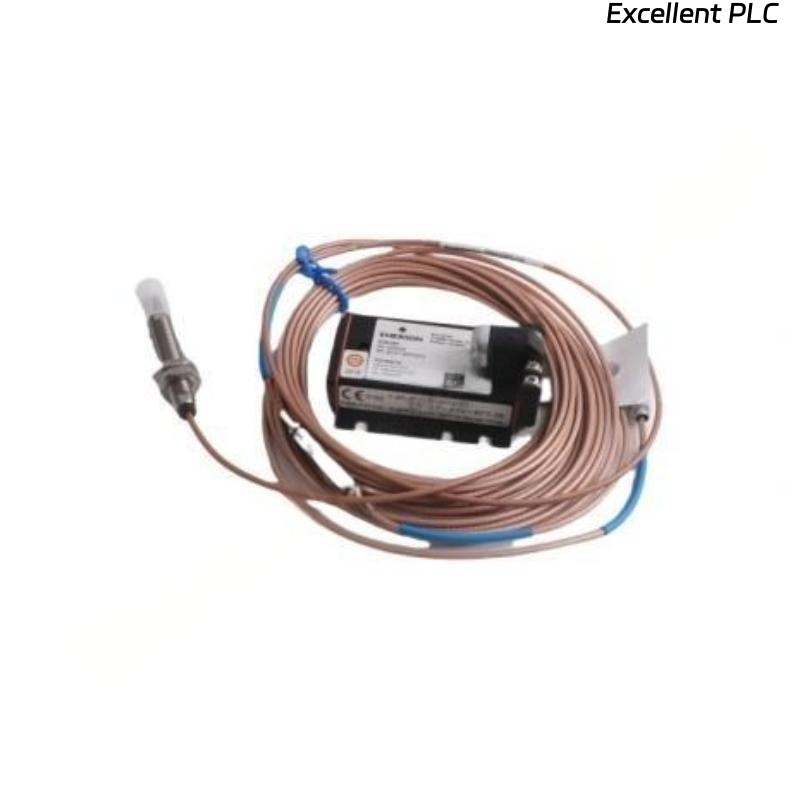

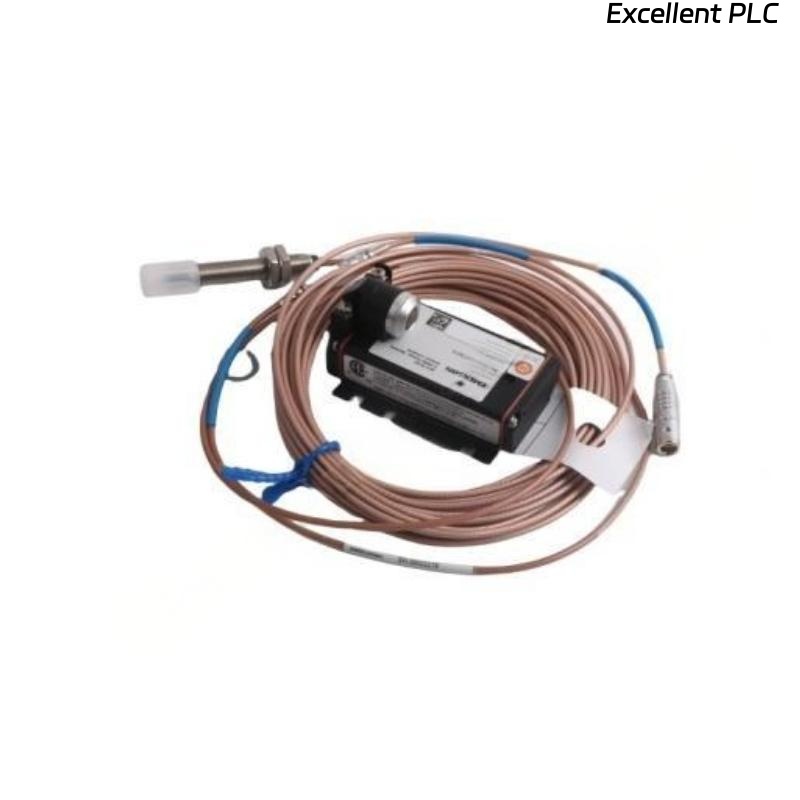

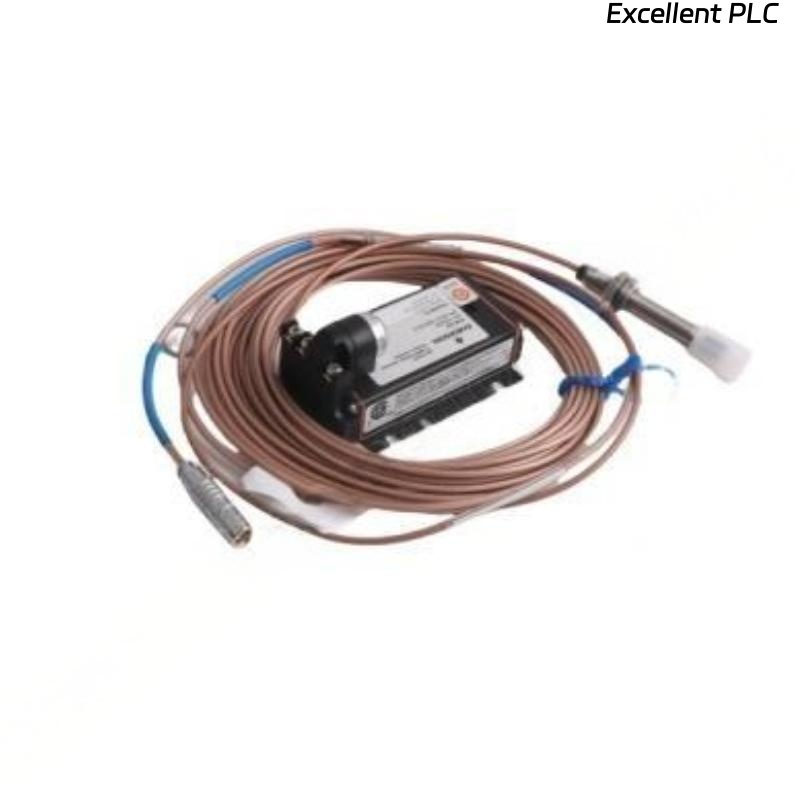

The Epro PR6423/003-030-CN+CON021 8mm Eddy-Current Sensor is a high-performance vibration monitoring sensor designed for use in rotating machinery protection systems. It provides accurate, non-contact measurement of shaft displacement and vibration, ensuring early fault detection and reliable machine protection. With its robust design, wide operating range, and seamless integration with Epro CON021 drivers, this sensor is widely used in critical industrial applications where reliability and precision are essential.
Key Features
-
Non-contact eddy-current measurement technology
-
High accuracy for shaft displacement and vibration monitoring
-
8 mm probe tip for versatile installation
-
Compatible with Epro CON021 driver modules
-
Wide linear measurement range for critical machinery applications
-
Rugged construction for harsh industrial environments
-
Reliable operation under continuous use
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/003-030-CN+CON021 |
| Product Type | Eddy-Current Proximity Sensor |
| Probe Tip Diameter | 8 mm |
| Measurement Range | Up to ±2 mm (with CON021 driver) |
| Linearity | ≤ ±1% of full scale |
| Power Supply | Via CON021 driver module |
| Output Signal | Proportional to shaft displacement |
| Cable Length | 3 m (integrated with probe) |
| Connector | Compatible with CON021 driver |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | Sensor head diameter 8 mm |
| Weight | 0.22 kg |
| Applications | Shaft vibration and displacement monitoring in rotating machinery |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Pumps and motors
-
Generators and alternators
-
Petrochemical and chemical processing equipment
-
Power generation plants
-
Heavy-duty industrial rotating machinery
Frequently Asked Questions (FAQ)
Q1: What is the function of the Epro PR6423/003-030-CN+CON021 sensor?
It measures shaft vibration and displacement in rotating machinery using eddy-current technology.
Q2: What is the probe tip size?
The probe has an 8 mm tip, suitable for versatile industrial installations.
Q3: Which driver module is compatible with this sensor?
It is designed for use with the Epro CON021 driver.
Q4: What is the typical measurement range?
It supports a linear measurement range of up to ±2 mm with the CON021 driver.
Q5: Is the sensor non-contact?
Yes, it uses non-contact eddy-current technology.
Q6: Can it withstand harsh environments?
Yes, it is built with rugged construction to operate in demanding industrial environments.
Q7: What is the operating temperature range?
It operates between -35 °C and +180 °C.
Q8: What industries typically use this sensor?
It is commonly used in power generation, petrochemical, and heavy industrial machinery monitoring.
