Product Overview

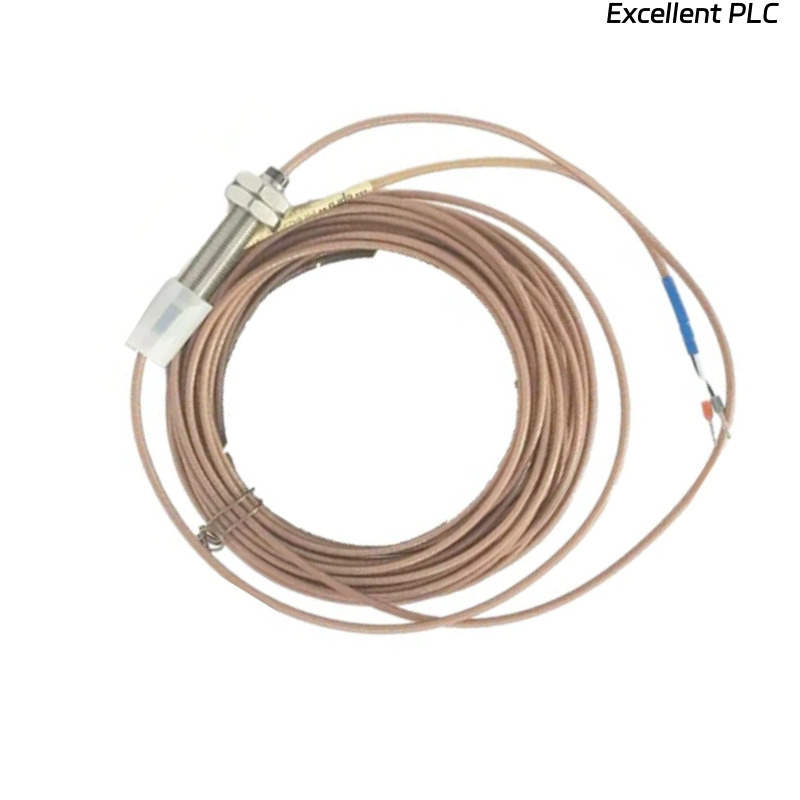

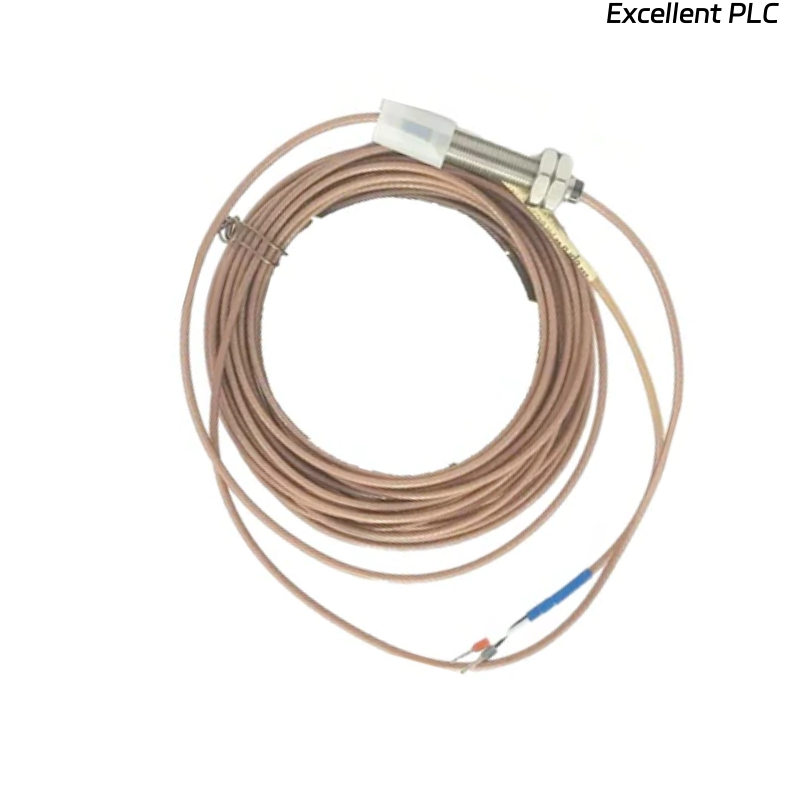

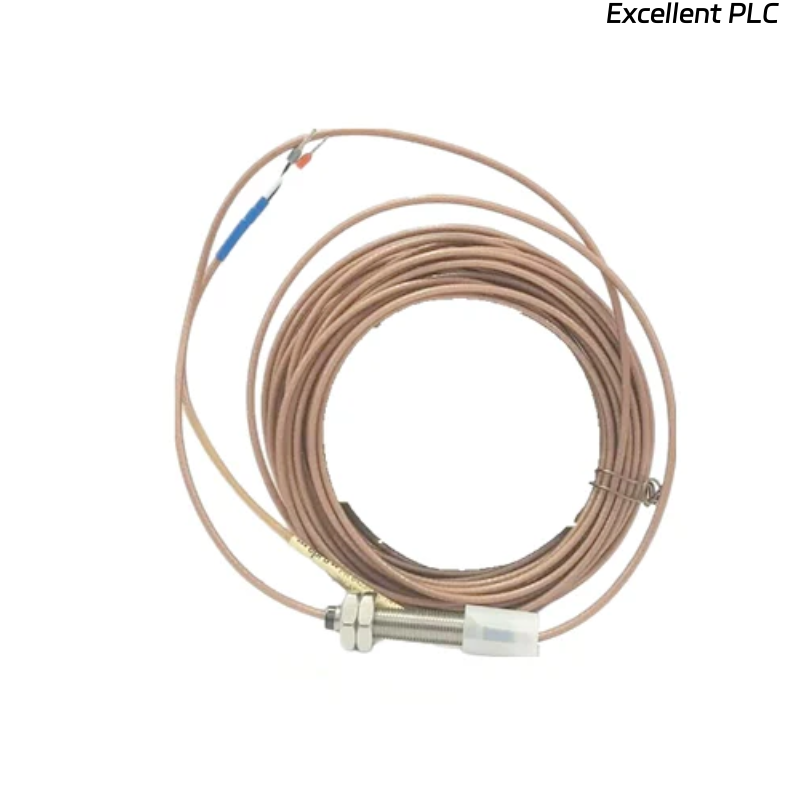

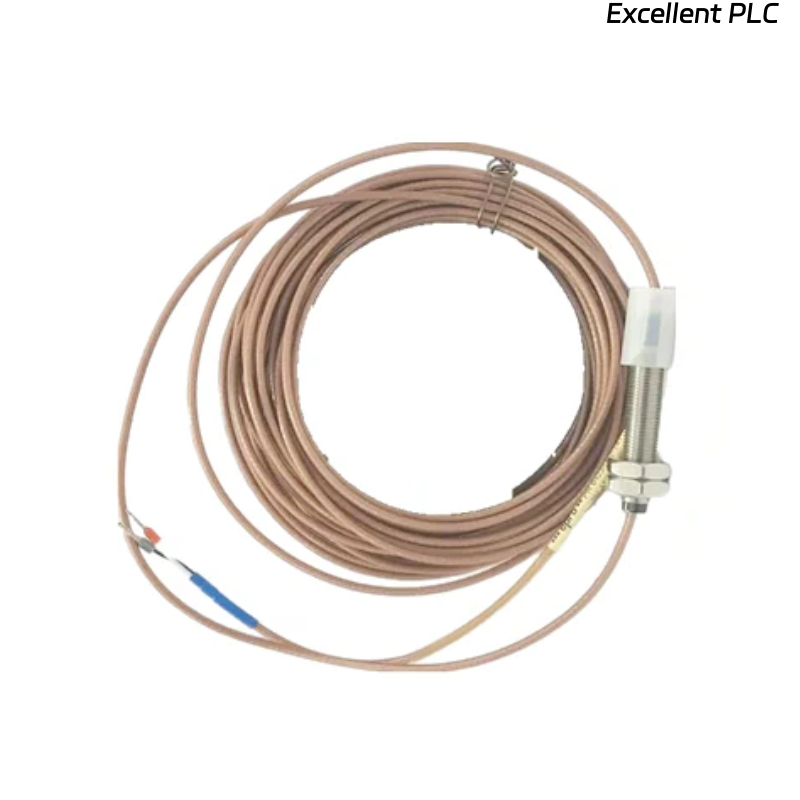

The Epro PR6423/004-010-CN is a high-accuracy 8 mm Eddy-Current Sensor designed for non-contact displacement and vibration measurements in rotating machinery. With a compact probe size and durable stainless-steel housing, this sensor is engineered for reliability in turbines, compressors, pumps, and other critical assets.
Key Features
-
8 mm probe diameter for versatile applications
-
10 mm probe length for compact installations
-
Non-contact measurement of shaft displacement and vibration
-
Rugged stainless-steel housing ensures long service life
-
Wide temperature operating range for demanding environments
-
Compatible with CON041 and CON021 signal conditioners
-
Ideal for API 670-compliant monitoring systems
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | PR6423/004-010-CN |
| Series | PR6423 |
| Sensor Type | Eddy-Current Probe |
| Probe Diameter | 8 mm |
| Probe Length | 10 mm |
| Measurement Range | ±1 mm (typical, system-dependent) |
| Frequency Response | DC – 10 kHz |
| Linearity | ≤1% of full scale |
| Output Signal | Voltage (via CON041/CON021) |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -50 °C to +200 °C |
| Humidity | Up to 100% condensing |
| Housing Material | Stainless steel |
| Mounting Type | Threaded installation |
| Dimensions | Sensor head diameter 8 mm |
| Weight | 0.1 kg |
| Compliance | CE, RoHS, API 670 |
Industry Applications
-
Power Generation – Shaft displacement and vibration monitoring in turbines and generators
-
Oil & Gas – Condition monitoring of pumps, compressors, and critical rotating assets
-
Petrochemical – Continuous machinery health tracking in harsh environments
-
Manufacturing – Precision monitoring for rotating equipment and spindles
-
Marine & Utilities – Reliability assurance in propulsion and pumping systems
Advantages
-
Compact probe design for installations with limited space
-
Delivers precise and stable non-contact displacement readings
-
Rugged stainless-steel construction for harsh industrial conditions
-
Easy integration with Epro CON041 or CON021 conditioning systems
-
Suitable for predictive maintenance and machine protection strategies
Frequently Asked Questions (FAQ)
Q1: What is the diameter of the PR6423/004-010-CN probe?
8 mm.
Q2: What is the length of this probe?
10 mm.
Q3: Which signal conditioners are compatible?
It is compatible with Epro CON041 and CON021.
Q4: What is the typical measurement range?
±1 mm, depending on the system configuration.
Q5: Is this sensor compliant with API 670?
Yes, it is designed for API 670-compliant monitoring systems.
Q6: What is the operating temperature range?
-35 °C to +180 °C.
Q7: What does the “CN” designation mean?
It denotes a version configured for the Chinese market.
Q8: What industries commonly use this sensor?
Power generation, oil & gas, petrochemical, manufacturing, and marine.
Q9: What is the housing material?
Stainless steel for durability and corrosion resistance.
Q10: Is the sensor suitable for compact installation spaces?
Yes, its short 10 mm length makes it ideal for tight installations.
