Product Introduction

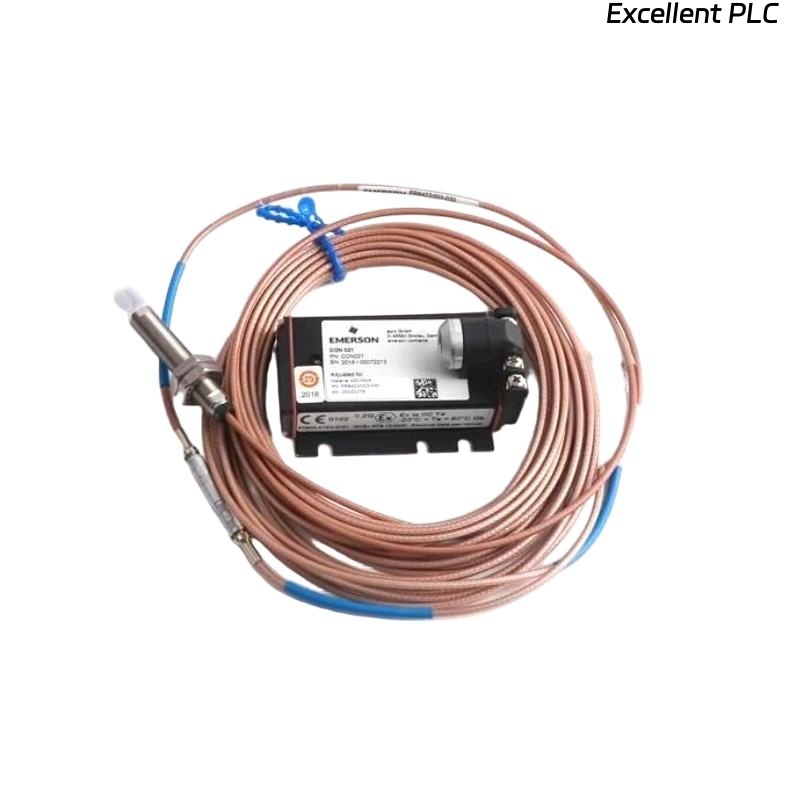

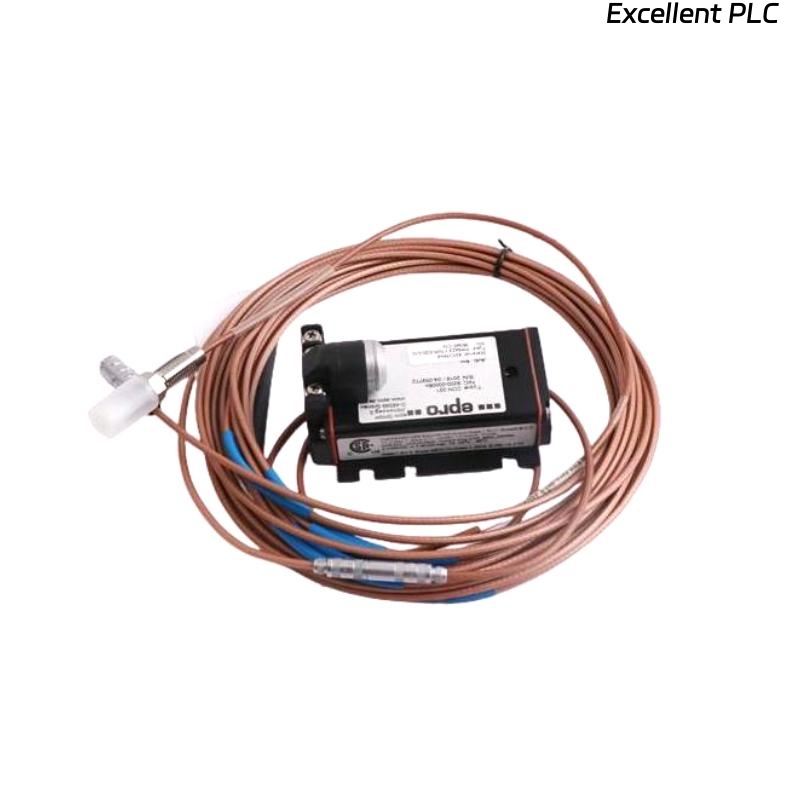

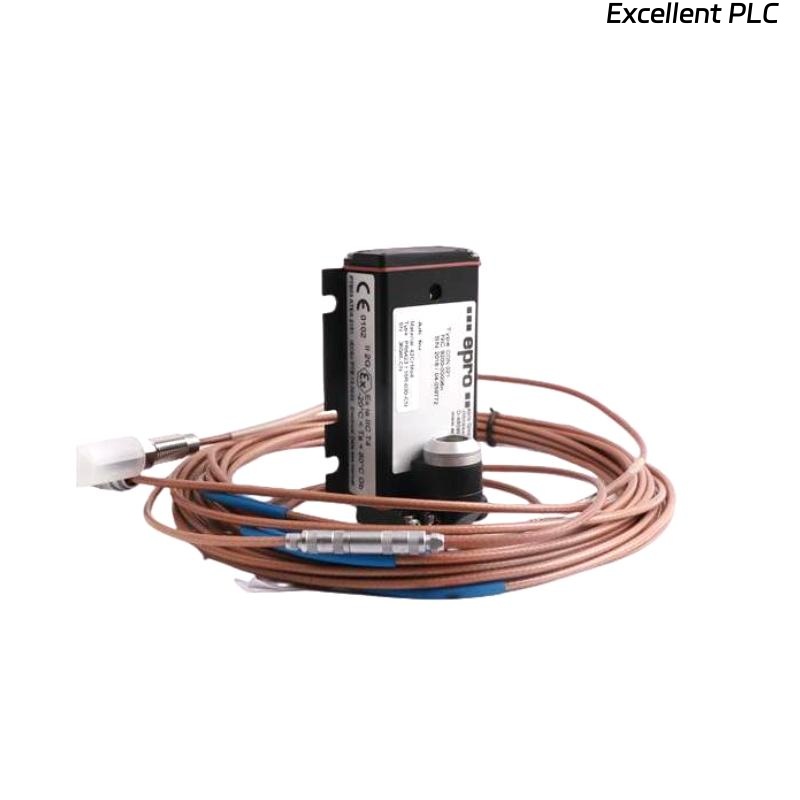

The Epro PR6423/005-030-CN+CON021 is a high-precision 8mm Eddy Current Sensor designed for industrial applications requiring accurate measurement of displacement, vibration, and position. The sensor combines the PR6423/005-030-CN measurement head with the CON021 signal conditioning unit, providing a complete system for reliable monitoring of critical machinery.
The sensor operates on the eddy current principle, detecting changes in electrical impedance caused by variations in distance between the sensor tip and conductive targets. These changes are converted into stable, proportional electrical signals by the CON021 unit, allowing for real-time feedback and precise control. The compact 8mm sensor head allows installation in confined spaces without compromising measurement integrity.
This sensor is widely used in applications where non-contact measurement is essential, minimizing wear and maintenance requirements while providing consistent performance under harsh industrial conditions, including high vibration, electromagnetic interference, and wide temperature variations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current |
| Sensor Head Diameter | 8 mm |
| Weight | 0.22 kg |
| Measurement Range | 0–5 mm standard, customizable |
| Linearity | ±1% full scale |
| Frequency Response | DC to 20 kHz |
| Output Signal | Analog 0–10 V or 4–20 mA (via CON021) |
| Operating Temperature | -40°C to +125°C |
| Supply Voltage | 18–30 V DC |
| Signal Interface | Connector type CON021 |
| Protection | IP65 (sensor head) |
| Material | Stainless steel body with non-magnetic tip |
| Mounting Options | Threaded or flange mount |
| Environmental Resistance | Vibration up to 20 g, EMI resistant |
Applications
The PR6423/005-030-CN+CON021 sensor is ideal for:
-
Shaft displacement and position monitoring in motors, turbines, and compressors
-
Detecting vibration amplitudes for predictive maintenance and fault detection
-
Monitoring misalignment or eccentricity in high-speed rotating machinery
-
Integration into industrial automation systems requiring high-precision feedback
-
Condition monitoring in power generation, aerospace, and heavy industry environments
-
Applications requiring compact, non-contact sensors for tight installation spaces
Its small size and robust design make it suitable for industrial environments where accuracy and reliability are critical.
Advantages
-
High Accuracy – ±1% full scale linearity ensures precise measurement.
-
Compact Design – 8mm sensor head allows installation in confined spaces.
-
Non-Contact Measurement – Prevents wear and reduces maintenance requirements.
-
Robust Construction – Stainless steel body ensures durability in harsh conditions.
-
Fast Response – Capable of detecting rapid changes in displacement or vibration.
-
EMI and Vibration Resistant – Reliable operation in electrically noisy and mechanically active environments.
-
Versatile Integration – Compatible with a wide range of signal conditioners and monitoring systems.
FAQ
-
What is the maximum measurement frequency of this sensor?
The sensor can accurately measure signals up to 20 kHz, suitable for high-speed machinery monitoring. -
What type of output signal does the sensor provide?
It provides 0–10 V analog or 4–20 mA through the CON021 signal conditioner. -
Can the sensor operate in extreme temperatures?
Yes, it is functional between -40°C and +125°C without significant drift. -
Is the sensor resistant to electromagnetic interference?
Yes, it is designed with EMI shielding to maintain measurement stability. -
What is the linearity of this sensor?
Linearity is ±1% full scale, allowing highly accurate readings throughout the range. -
Can it detect small vibrations in shafts?
Yes, it can detect sub-micron vibration amplitudes, ideal for condition monitoring. -
How is the sensor mounted?
It supports threaded or flange mounting for installation flexibility. -
What protection does the sensor offer against dust and water?
The sensor head is rated IP65, protecting it from dust and low-pressure water jets. -
Is this sensor suitable for high-speed rotating machinery?
Yes, it is specifically designed for turbines, compressors, and motors operating at high speeds. -
What materials are used in the sensor construction?
The sensor body is stainless steel with a non-magnetic tip, providing durability and corrosion resistance.
Related or Series Models
| Model | Sensor Head Diameter | Measurement Range | Output | Weight |
|---|---|---|---|---|
| PR6423/004-030+CON021 | 8 mm | 0–4 mm | 0–10 V / 4–20 mA | 0.22 kg |
| PR6423/004-040 | 8 mm | 0–4 mm | 0–10 V / 4–20 mA | 0.23 kg |
| PR6423/006-030 | 8 mm | 0–6 mm | 0–10 V / 4–20 mA | 0.22 kg |
| PR6423/010-030 | 8 mm | 0–10 mm | 0–10 V / 4–20 mA | 0.25 kg |
| PR6423/008-030 | 8 mm | 0–8 mm | 0–10 V / 4–20 mA | 0.24 kg |
| PR6423/005-050 | 8 mm | 0–5 mm | 0–5 V / 0–20 mA | 0.23 kg |
Popular Epro Models
| Model | Sensor Head Diameter | Measurement Range | Output | Weight |
|---|---|---|---|---|
| PR6424/014-040 | 14 mm | 0–4 mm | 0–10 V | 0.8 kg |
| PR6424/022-100 | 22 mm | 0–10 mm | 0–10 V / 4–20 mA | 1.2 kg |
| PR6426/010-100 | 32 mm | 0–10 mm | 0–10 V | 1.3 kg |
| PR6426/020-120 | 32 mm | 0–15 mm | 0–10 V / 4–20 mA | 1.5 kg |
| PR6430/010-110 | 30 mm | 0–10 mm | 0–10 V | 1.4 kg |
| PR6430/015-120 | 30 mm | 0–15 mm | 0–10 V / 4–20 mA | 1.6 kg |
