Product Introduction

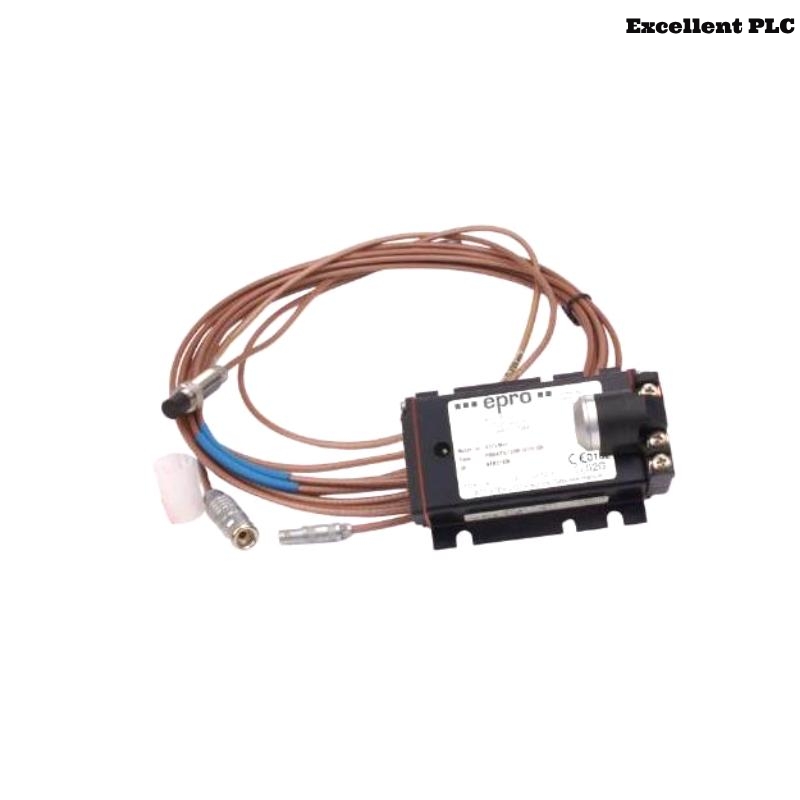

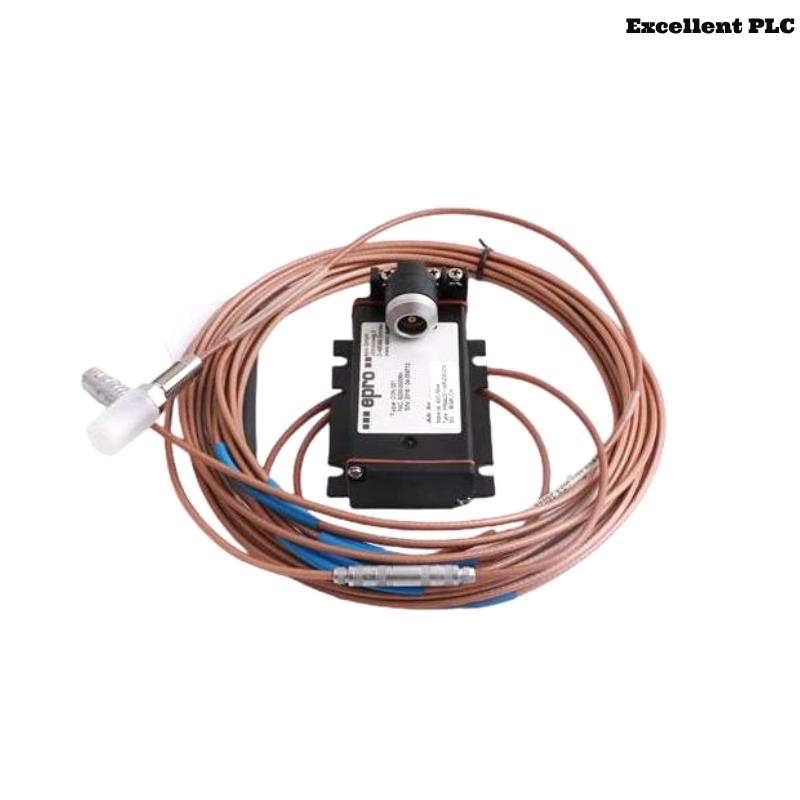

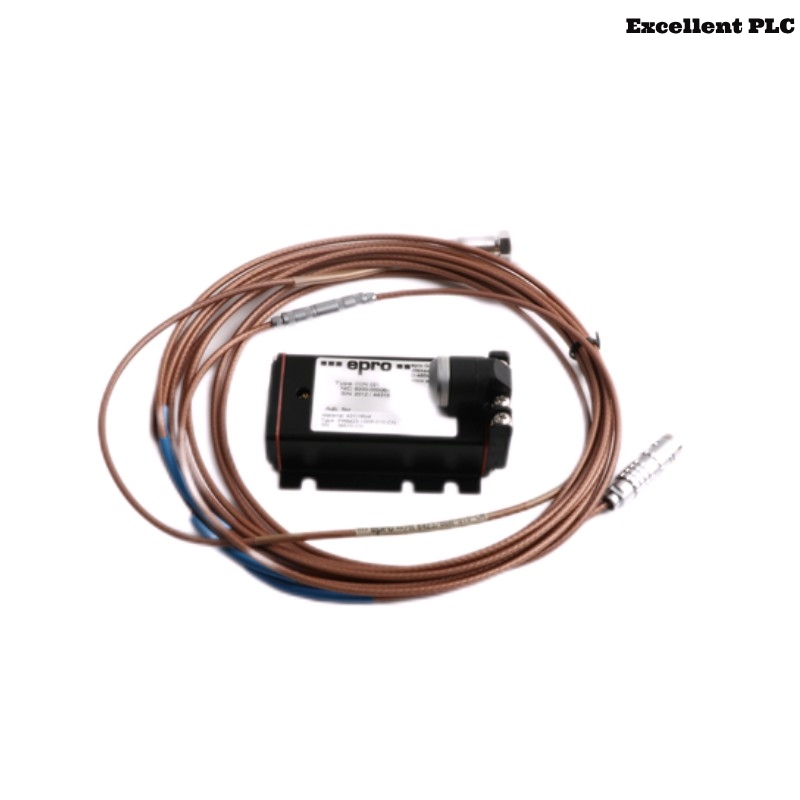

The Epro PR6423/005-030+CON021 8mm Eddy Current Sensor is a high-precision sensor designed for non-contact measurement of displacement, position, and vibration in various industrial applications. The sensor operates using the principle of eddy current technology, providing high-resolution and reliable measurements without physical contact with the target surface. With an 8mm measuring range, the PR6423/005-030 sensor is particularly useful in applications where traditional mechanical displacement sensors would be prone to wear or failure.

This sensor is typically used in monitoring rotating machinery, such as motors, turbines, and compressors, as well as in applications requiring precise measurement of gaps and positions in sensitive equipment. The Epro PR6423/005-030+CON021 configuration includes the sensor along with the CON021 signal converter, ensuring optimal compatibility and signal conversion for integration into larger control and monitoring systems.

---

Technical Specifications

Parameter	Details
Model Number	PR6423/005-030+CON021
Technology	Eddy Current
Measuring Range	8mm
Target Type	Conductive materials
Output Type	Linear (Analog Output: 0–10 V, 4–20 mA)
Supply Voltage	12–30 VDC
Accuracy	±0.5% of full scale
Resolution	High resolution at 0.1 micrometers
Temperature Range	-40°C to +85°C
Mounting Type	Screw or flange mounting
Protection Class	IP67 (Dust-tight, protected from immersion in water)
Weight	0.22 kg



---

Product Applications

The Epro PR6423/005-030+CON021 8mm Eddy Current Sensor is ideal for a wide range of industrial applications that require high precision and non-contact measurement. Some of the common applications include:

• Rotating Equipment Monitoring: Used to monitor vibration, displacement, and position in rotating machinery such as motors, turbines, and compressors.

• Precision Position Measurement: Effective in measuring the position of movable components or parts in industrial machines.

• Gap Measurement: Ideal for measuring the gap between parts in systems where contact-based sensors would cause wear.

• Automated Production Systems: Suitable for automation systems where precise movement control is required.

• Condition Monitoring: Used in monitoring the condition of machinery and equipment in industries such as manufacturing, power generation, and automotive.

---

Product Advantages

• Non-Contact Measurement: The sensor operates without direct contact with the target, which eliminates wear and tear and extends the lifespan of both the sensor and the machinery being monitored.

• High Accuracy: With an accuracy of ±0.5% of the full scale and high resolution, the sensor provides reliable and precise measurements for critical applications.

• Wide Temperature Range: The sensor is designed to operate effectively in extreme environmental conditions, with a temperature range from -40°C to +85°C.

• Durable and Robust: The sensor and signal converter have an IP67 protection class, ensuring their suitability for harsh industrial environments, including exposure to dust and moisture.

• Easy Integration: The sensor is compatible with a wide range of signal converters and controllers, allowing easy integration into existing control systems.

• Compact and Lightweight: With a compact design and light weight, the sensor is easy to install and can be used in space-constrained areas.

---

Frequently Asked Questions (FAQ)

1. What is the operating principle of the PR6423/005-030+CON021 sensor?
   The sensor uses eddy current technology to measure the displacement or position of conductive materials without direct contact, offering precise readings.

2. What is the measuring range of the sensor?
   The sensor has an 8mm measuring range, suitable for many applications in process and machinery monitoring.

3. Can this sensor be used for monitoring rotating machinery?
   Yes, it is ideal for monitoring vibration, displacement, and position in rotating equipment such as motors, turbines, and compressors.

4. What is the output type of the sensor?
   The sensor provides linear analog output, available as 0–10 V or 4–20 mA, making it suitable for a wide range of control systems.

5. What environmental conditions can the sensor handle?
   The sensor can operate in temperatures ranging from -40°C to +85°C and has an IP67 protection rating, ensuring it is resistant to dust and water.

6. How accurate is the sensor?
   The sensor provides a high accuracy of ±0.5% of the full scale, ensuring precise measurements for critical applications.

7. What types of materials can be measured with this sensor?
   The sensor works with conductive materials, making it suitable for a variety of applications in industrial settings.

8. Is the sensor easy to install?
   Yes, the sensor can be mounted using screws or flanges, and it has a compact design that is suitable for installations in tight spaces.

9. What is the weight of the sensor and the signal converter?
   The weighs 0.22 kg.

10. Can the sensor be used in hazardous environments?
    Yes, the sensor is built for industrial applications and can be used in harsh environments, protected by the IP67 rating.

---
