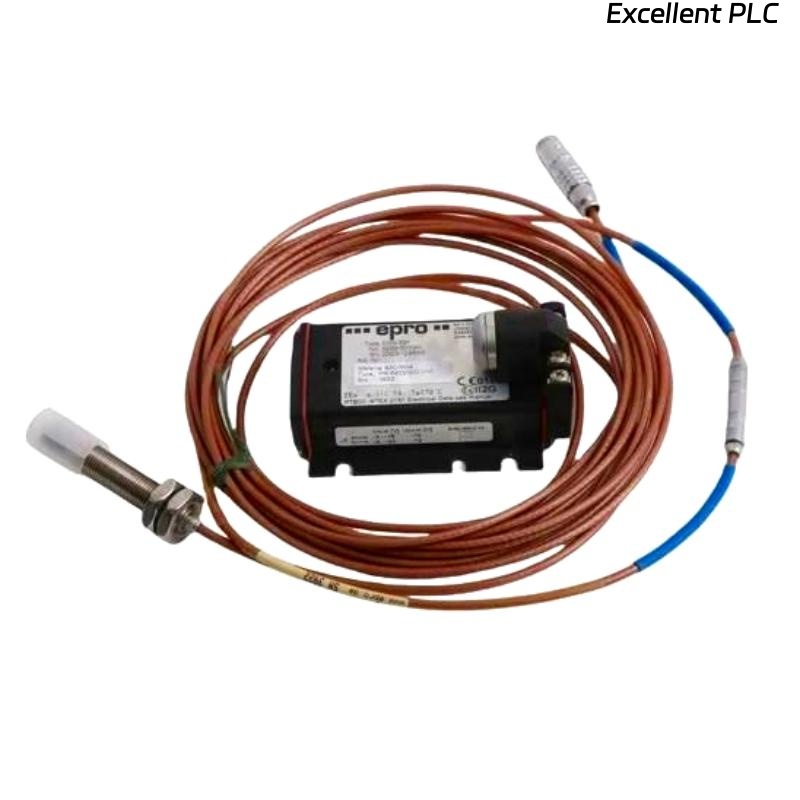

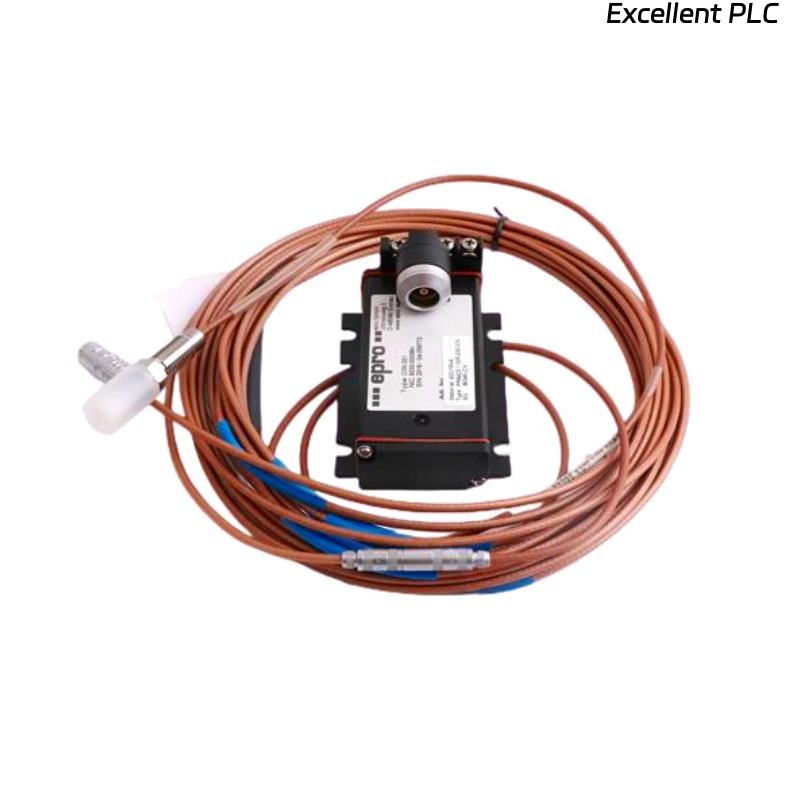

Epro PR6423/005-0F2 8mm Eddy-Current Sensor

Product Introduction

The Epro PR6423/005-0F2 is a precision 8mm eddy-current displacement sensor designed for high-accuracy measurement in industrial applications. It operates by detecting variations in the electromagnetic field as a conductive target moves relative to the sensor tip. The sensor is suitable for monitoring machinery vibration, shaft displacement, and other dynamic measurements where non-contact sensing is critical. Its robust construction ensures reliable performance in harsh industrial environments.

---

Technical Specifications

---

Product Applications

• Vibration Monitoring: Used to measure rotor vibration and shaft displacement in turbines, motors, and generators.

• Industrial Automation: Provides precise displacement feedback for process control systems.

• Turbomachinery: Measures the position and clearance of rotating machinery components.

• Quality Control: Non-contact inspection of moving parts to detect misalignment or mechanical wear.

• Research and Development: High-precision measurements in mechanical testing labs.

---

Product Advantages

• High Precision: Ensures accurate detection of micro-displacements in dynamic systems.

• Non-Contact Measurement: Reduces wear and maintenance needs while providing reliable long-term performance.

• Wide Operating Range: Capable of functioning in extreme temperatures and industrial environments.

• Fast Response: Suitable for high-frequency monitoring applications.

• Robust Construction: Stainless steel housing protects against mechanical stress and environmental factors.

• Flexible Integration: Standard connectors and output types allow easy connection to control systems or data acquisition units.

---

FAQ

• Q1: What is the maximum frequency the sensor can reliably measure?
  A1: The sensor can measure frequencies up to 10 kHz without significant signal distortion.

• Q2: Can this sensor operate in a high-temperature environment?
  A2: Yes, it supports operating temperatures from -40°C to +125°C.

• Q3: What output types are available for this model?
  A3: It provides analog outputs: ±5 V or 4–20 mA, compatible with most data acquisition systems.

• Q4: Is the sensor sensitive to non-metallic targets?
  A4: No, eddy-current sensors only detect conductive targets, typically metals.

• Q5: What type of mounting is required for accurate measurement?
  A5: The sensor should be mounted with a stable, rigid bracket to prevent vibration interference.

• Q6: How is linearity maintained across the measurement range?
  A6: The sensor uses a precision coil and signal conditioning circuitry to maintain ±1% full-scale linearity.

• Q7: Can this sensor be used in vacuum or low-pressure environments?
  A7: Yes, as long as the temperature remains within its operating range and the sensor is protected from mechanical impact.

• Q8: How long can the cable be extended without signal loss?
  A8: The standard 2 m cable can be extended up to 10 m with proper shielding to prevent electromagnetic interference.

• Q9: Does the sensor require calibration?
  A9: Yes, periodic calibration is recommended to maintain measurement accuracy, particularly in critical industrial applications.

• Q10: Can this sensor measure both static and dynamic displacement?
  A10: Yes, it is capable of detecting both stationary and high-frequency dynamic displacements.

---
