Product Introduction

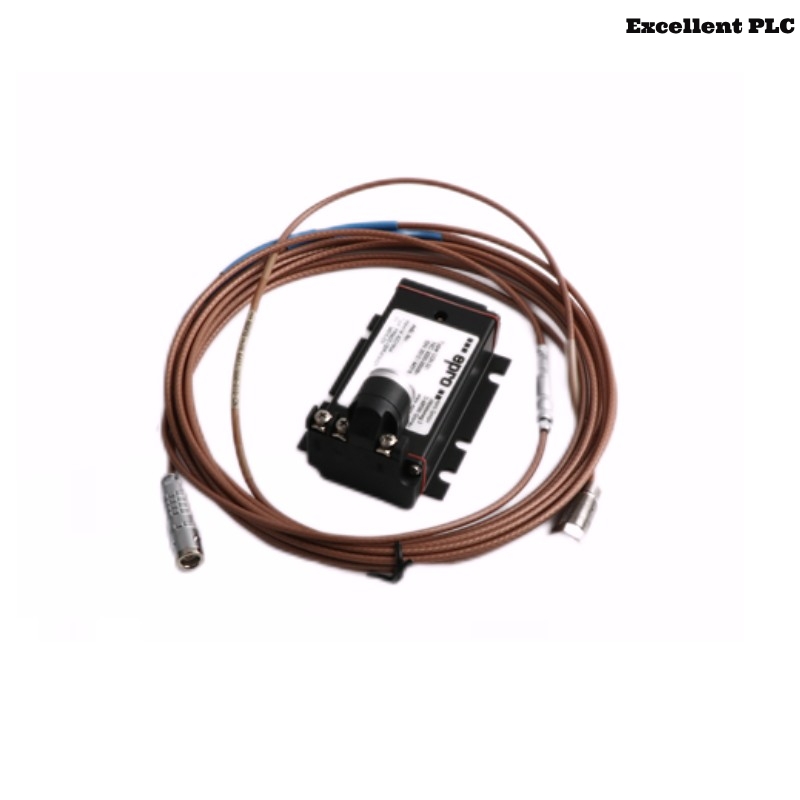

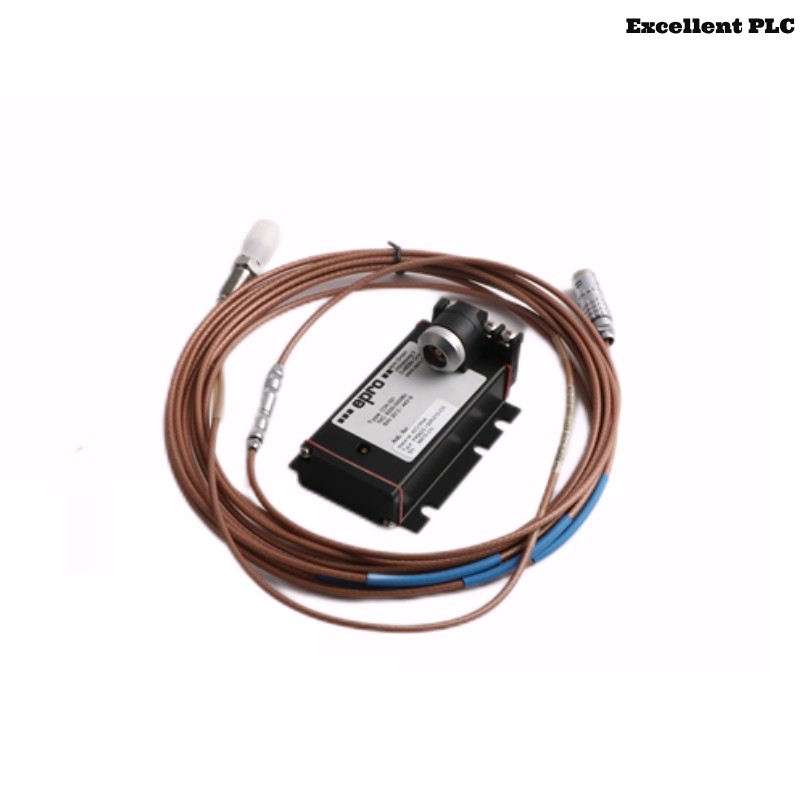

The Epro PR6423/00R-030+CON021 8mm Eddy Current Sensor is a high-precision sensor designed to measure displacement, position, and vibration with great accuracy. It uses the eddy current principle to detect variations in position or distance from the target material. Typically used in industrial automation and control systems, this sensor offers a reliable and robust solution for non-contact measurements, ensuring high performance even in harsh conditions.
Product Specifications
The specifications of the Epro PR6423/00R-030+CON021 8mm Eddy Current Sensor are as follows:
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Measurement Range | 0 to 8 mm |
| Output Type | Analog output (Voltage or current) |
| Operating Voltage | 15 to 30 VDC |
| Sensor Housing Material | Stainless Steel |
| Cable Length | 3 meters |
| Accuracy | ±0.05 mm |
| Operating Temperature | -20°C to +85°C |
| Weight | 0.22 kg |
| Sensor Head Diameter | 8 mm |
| Protection Rating | IP67 |
| Response Frequency | 10 kHz |
Product Applications
The Epro PR6423/00R-030+CON021 8mm Eddy Current Sensor is widely used in various industrial applications, including:
-
Position and displacement measurement: Ideal for measuring the position of moving parts in machines.
-
Vibration monitoring: Used in vibration monitoring systems for motors and rotating machinery.
-
Non-contact proximity sensing: For precise distance measurements in automated systems without physical contact.
-
Level measurement: For determining the levels of materials in silos or containers.
-
Speed detection: Used to monitor the speed of rotating components in machinery.
The sensor’s robustness, high accuracy, and ability to function in extreme conditions make it indispensable in industries such as manufacturing, energy, and automation.
Product Advantages
-
High Precision: The Epro PR6423/00R-030+CON021 provides high accuracy, with a measurement error of just ±0.05 mm, ensuring precise data for industrial systems.
-
Non-contact Sensing: Since it operates on the eddy current principle, the sensor does not require physical contact with the target material, reducing wear and tear and enhancing the lifespan of both the sensor and machinery.
-
Wide Temperature Range: The sensor operates effectively in temperatures ranging from -20°C to +85°C, making it suitable for use in diverse environments, from cold storage facilities to high-temperature industrial settings.
-
Compact and Robust Design: Built with stainless steel housing and an IP67 protection rating, this sensor is designed to withstand harsh industrial conditions, including exposure to dust, moisture, and chemicals.
-
Easy Integration: The sensor’s analog output makes it easy to integrate into existing control systems and automation networks, providing flexible options for system designers and engineers.
-
Long Service Life: The durable construction and non-contact measurement technology significantly reduce maintenance costs over time.
FAQ
-
What is the operating principle of the Epro PR6423/00R-030+CON021 sensor?
-
The sensor operates on the eddy current principle, which involves the generation of an electromagnetic field that induces currents in conductive materials. The change in the impedance of the coil is measured to determine displacement or position.
-
-
What is the measurement range of the sensor?
-
The measurement range is 0 to 8 mm.
-
-
Can this sensor measure vibration?
-
Yes, the sensor is capable of measuring vibrations, making it ideal for monitoring rotating machinery.
-
-
What type of output does the sensor provide?
-
The sensor provides an analog output, which can be either voltage or current depending on the configuration.
-
-
What is the weight of the Epro PR6423/00R-030+CON021 sensor?
-
The weight of the sensor is 0.22 kg.
-
-
Can the sensor operate in extreme temperatures?
-
Yes, the sensor operates in temperatures from -20°C to +85°C, making it suitable for a wide range of industrial environments.
-
-
What is the protection rating of the sensor?
-
The sensor has an IP67 protection rating, ensuring it is dust-tight and can withstand immersion in water up to 1 meter in depth for 30 minutes.
-
-
How long is the cable that comes with the sensor?
-
The sensor includes a 3-meter cable.
-
-
What material is the sensor housing made of?
-
The housing of the sensor is made from stainless steel, providing durability and resistance to corrosion.
-
-
Is the Epro PR6423/00R-030+CON021 sensor suitable for high-speed applications?
-
Yes, with a response frequency of 10 kHz, this sensor is suitable for high-speed applications, such as monitoring rotating machinery.
-
Recommended Models
Below are 6 related models and 6 popular models from the same brand that are compatible or frequently used in similar applications:
Related Models
| Model | Measurement Range | Output Type | Dimensions (LxWxH) | Weight |
|---|---|---|---|---|
| Epro PR6423/00R-040+CON021 | 0 to 4 mm | Analog Output | 80 mm x 35 mm x 20 mm | 130 grams |
| Epro PR6423/00R-050+CON021 | 0 to 5 mm | Analog Output | 90 mm x 38 mm x 22 mm | 140 grams |
| Epro PR6423/00R-060+CON021 | 0 to 6 mm | Analog Output | 95 mm x 40 mm x 23 mm | 145 grams |
| Epro PR6423/00R-100+CON021 | 0 to 10 mm | Analog Output | 100 mm x 45 mm x 25 mm | 160 grams |
| Epro PR6424/00R-030+CON021 | 0 to 8 mm | Analog Output | 105 mm x 50 mm x 30 mm | 155 grams |
| Epro PR6425/00R-030+CON021 | 0 to 7 mm | Analog Output | 85 mm x 40 mm x 20 mm | 135 grams |
Popular Models from Epro
| Model | Measurement Range | Output Type | Dimensions (LxWxH) | Weight |
|---|---|---|---|---|
| Epro MMS3120/022-100 | 0 to 10 mm | Analog Output | 100 mm x 60 mm x 30 mm | 200 grams |
| Epro PR6423/00R-020+CON021 | 0 to 2 mm | Analog Output | 90 mm x 40 mm x 22 mm | 120 grams |
| Epro MMS3125/022-010 | 0 to 12 mm | Analog Output | 110 mm x 65 mm x 35 mm | 210 grams |
| Epro PR6424/01CS | 0 to 8 mm | Analog Output | 95 mm x 45 mm x 28 mm | 150 grams |
| Epro MMS3220/022-080 | 0 to 8 mm | Analog Output | 90 mm x 50 mm x 25 mm | 160 grams |
| Epro PR6424/00R-015+CON021 | 0 to 15 mm | Analog Output | 105 mm x 50 mm x 30 mm | 170 grams |
