Product Introduction

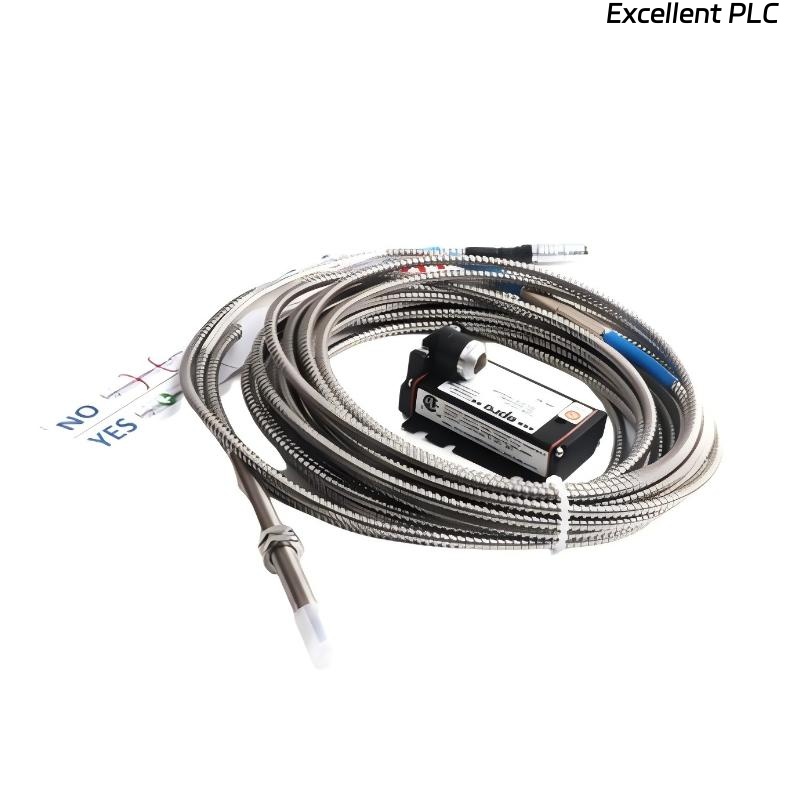

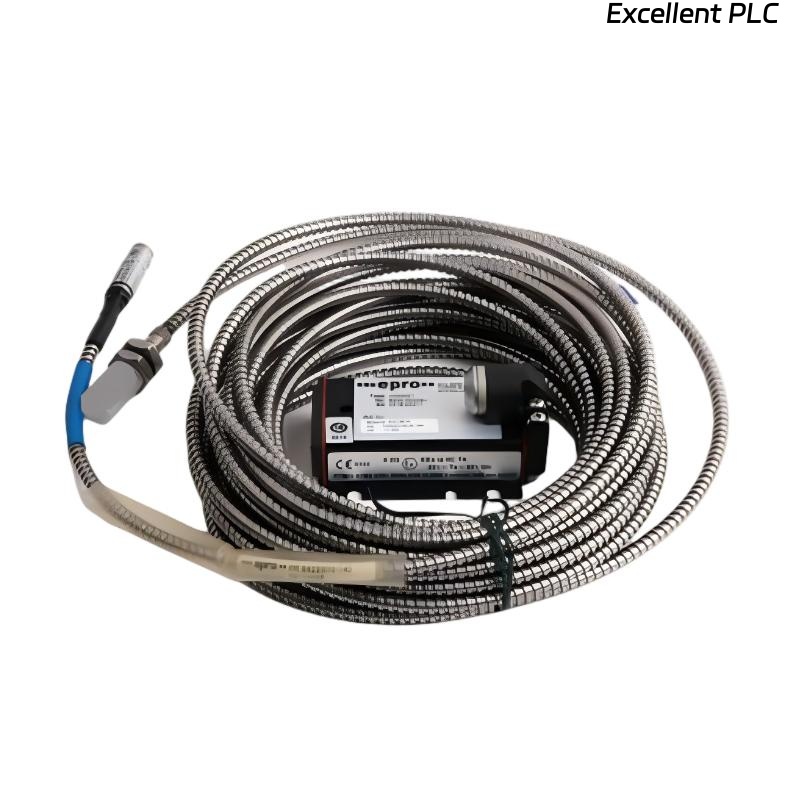

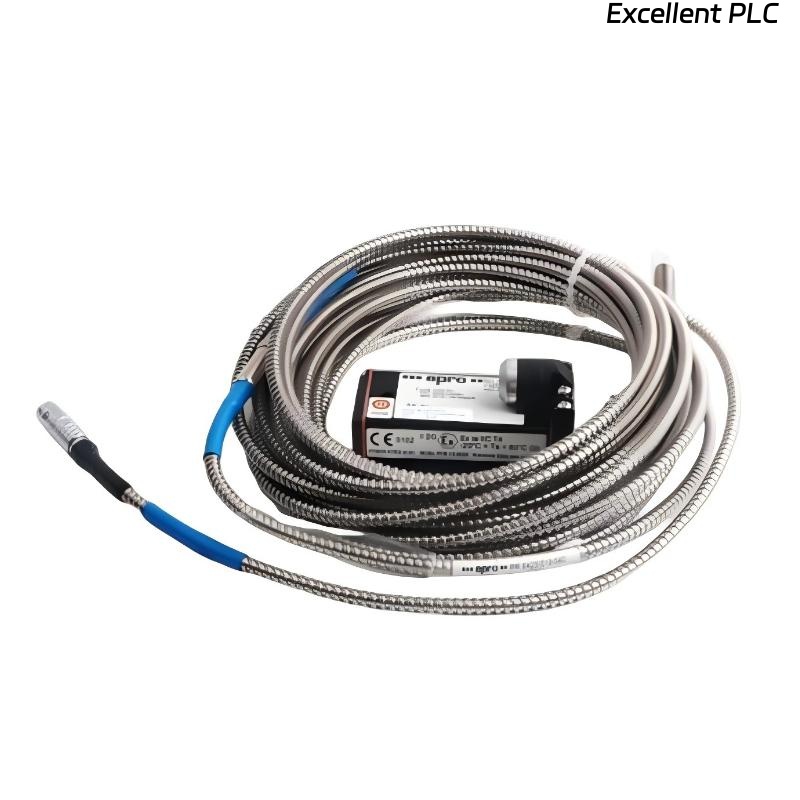

The Epro PR6423/00R-101 is a high-precision 8 mm eddy current displacement sensor, designed for non-contact measurement of displacement, position, or vibration in industrial machinery. This sensor is particularly suitable for rotating machinery monitoring, such as turbines, compressors, motors, and generators, where high reliability and accuracy are required.
The sensor operates based on eddy current technology, providing excellent linearity and fast response without physical contact with the target surface. The 8 mm sensor head allows integration into compact measurement applications while maintaining robust performance in harsh industrial environments. Its design ensures long-term stability and immunity to mechanical wear, electrical noise, and temperature variations.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PR6423/00R-101 |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 8 mm |
| Measurement Range | Customizable depending on application (typically up to 1 mm standard) |
| Linearity | ±1% FS (typical) |
| Frequency Response | DC to 10 kHz (typical) |
| Output Type | Voltage or current (depending on electronics interface) |
| Excitation Voltage | AC or DC excitation depending on module used |
| Temperature Range | −40°C to +120°C |
| Insulation | Electrical isolation per industrial standards |
| Weight | 0.1 kg |
| Target Material | Conductive metals |
| Environmental Protection | IP65 or higher (sensor head) |
| Response Time | Fast, suitable for vibration and dynamic measurements |
| Reliability | High industrial-grade robustness |
Product Applications
-
Shaft displacement monitoring in rotating machinery
-
Vibration measurement and condition monitoring for turbines, generators, and compressors
-
Alignment verification of shafts, couplings, and rotors
-
Non-contact position detection in industrial automation
-
Feedback sensors for high-speed machinery control
-
Predictive maintenance systems to detect early wear or imbalance
-
Harsh industrial environments where mechanical wear or contamination may be an issue
Product Advantages
-
Non-Contact Measurement: No physical contact ensures zero mechanical wear and long lifespan.
-
High Accuracy: Precise displacement measurement with excellent linearity and repeatability.
-
Fast Response: High-frequency response suitable for dynamic and vibration measurements.
-
Compact Sensor Head: 8 mm diameter allows integration in tight spaces.
-
Environmental Robustness: Resistant to dust, oils, vibration, and electrical noise.
-
Material Compatibility: Works with a wide range of conductive metal targets.
-
Industrial Reliability: Designed for continuous operation in challenging industrial conditions.
-
Flexible Integration: Compatible with various signal processing and monitoring electronics.
