Product Introduction

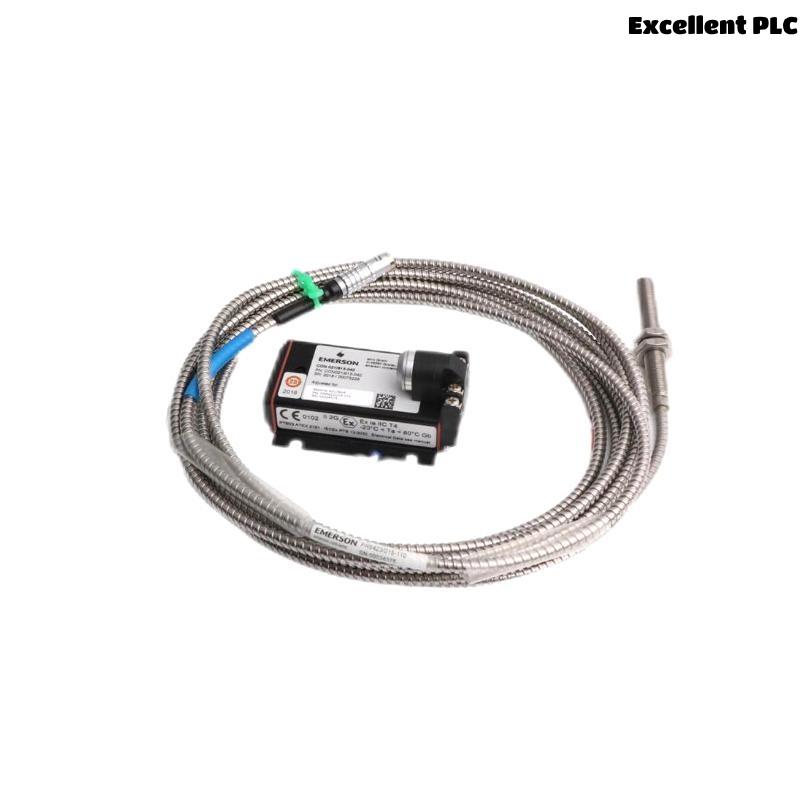

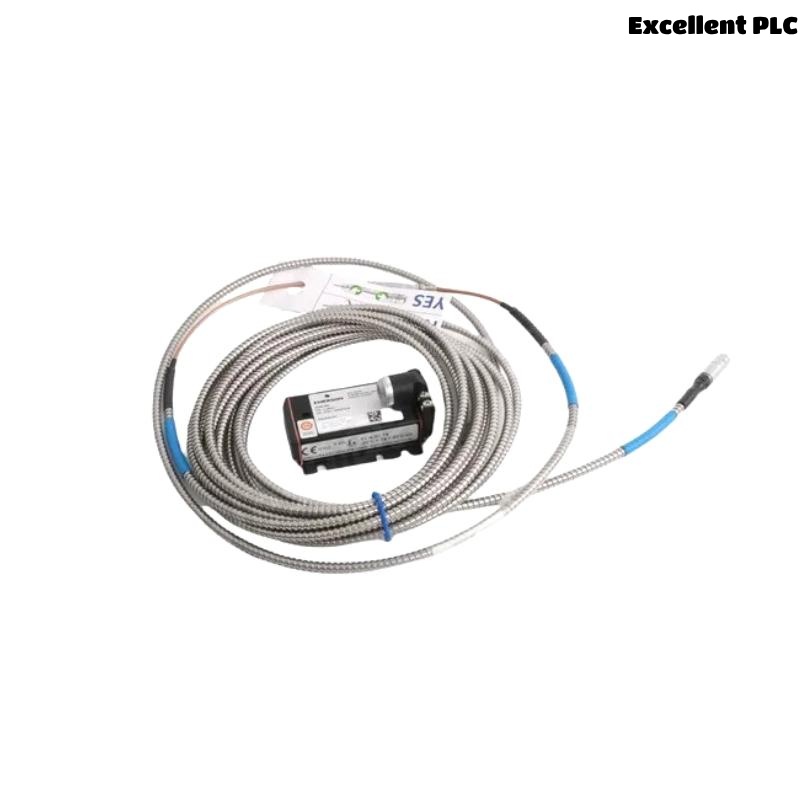

The Epro PR6423/010-030+CON021 is a high-performance, non-contact eddy current sensor system, designed specifically for measuring shaft displacement, vibration, and axial position in rotating machinery. It is part of Epro’s PR6423 series, known for precision, ruggedness, and reliability in harsh industrial environments.
This 8mm sensor works on the eddy current principle, enabling real-time detection of dynamic or static proximity changes in metallic surfaces. The included CON021 connector module provides a secure and durable interface for wiring and signal processing.
Ideal for predictive maintenance and machine health monitoring applications, this sensor delivers consistent accuracy even under extreme operating temperatures and mechanical stress. Its compact form factor, integrated shielding, and corrosion-resistant stainless-steel body make it a go-to solution for demanding industries such as oil and gas, power generation, petrochemicals, and heavy manufacturing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | PR6423/010-030+CON021 |
| Sensor Type | Eddy Current Proximity / Displacement Sensor |
| Sensor Head Diameter | 8 mm |
| Target Material | Typically 4140 Steel (or similar conductive metal) |
| Frequency Response | Up to 10 kHz |
| Output Signal | Analog voltage (via CON021 module) |
| Sensitivity | Factory calibrated, dependent on system configuration |
| Supply Voltage (via CON021) | 24 V DC typical (±10%) |
| Temperature Range (Sensor) | -35°C to +180°C |
| Temperature Range (CON021) | -35°C to +100°C |
| Protection Rating | IP67 (Sensor and Connector) |
| Housing Material | Stainless Steel, corrosion resistant |
| Weight | 0.22 kg |
| Mounting Thread | M10 x 1 |
| Cable Connection | CON021 – Integrated cable interface |
Applications
The Epro PR6423/010-030+CON021 sensor is engineered for precision measurement in a wide range of industrial applications. Key uses include:
-
Rotating Equipment Monitoring: Measurement of radial and axial shaft displacement, vibration, and eccentricity in motors, pumps, compressors, turbines, and gearboxes.
-
Turbomachinery Protection: Integrated with monitoring systems for condition-based maintenance and fault detection in critical rotating assets.
-
Vibration Analysis: Essential for early detection of issues such as misalignment, unbalance, or bearing wear.
-
Machine Diagnostics: Used in R&D and production settings for performance validation and system diagnostics.
-
OEM System Integration: Custom-designed to integrate into embedded machinery monitoring systems.
-
Hazardous Environments: Designed for use in oil & gas platforms, chemical processing plants, and power stations where robust performance is crucial.
Advantages
-
Non-Contact Sensing: Ensures no wear or mechanical degradation over time, enabling long-term stability and accuracy.
-
High Temperature Resistance: Capable of operating at temperatures up to 180°C, ideal for high-heat industrial environments.
-
Compact and Rugged: Small form factor and corrosion-resistant stainless steel construction allow installation in tight and hostile locations.
-
IP67 Rated: Fully sealed against dust, oil, and water ingress, providing protection in harsh operating conditions.
-
Modular Design: The CON021 connector module simplifies field wiring and maintenance, and supports compatibility with Epro and third-party monitoring systems.
-
Factory Calibrated: Ensures accurate readings out of the box, minimizing field calibration time.
-
High Linearity and Accuracy: Reliable analog output across the full measurement range, enabling precise vibration and displacement analysis.
-
EMI Shielded: Designed to function reliably even in electrically noisy environments.
-
Proven Reliability: Backed by years of field performance in mission-critical applications worldwide.
-
Flexible Mounting Options: Supports axial or radial installation based on machinery layout requirements.
Frequently Asked Questions (FAQ)
-
Q: What is the primary use of the PR6423/010-030+CON021 sensor?
A: It is mainly used for non-contact measurement of shaft displacement, vibration, and axial position in rotating machinery. -
Q: What is the sensor’s measuring range?
A: The sensor has a measuring range of 8 mm. -
Q: Can it operate at high temperatures?
A: Yes, the sensor operates up to +180°C, and the CON021 connector operates up to +100°C. -
Q: Is this sensor suitable for hazardous or outdoor environments?
A: Yes, it is IP67 rated and built with corrosion-resistant materials. -
Q: Does it work with third-party monitoring systems?
A: Yes, as long as the output signal and connector interface are supported. -
Q: What output does the sensor provide?
A: It provides an analog voltage output via the CON021 module. -
Q: Can the sensor be mounted in any orientation?
A: Yes, it supports both axial and radial mounting configurations. -
Q: How durable is the sensor in a high-vibration environment?
A: The sensor is vibration-resistant and designed for heavy-duty industrial use. -
Q: What is the construction material?
A: The housing is made from stainless steel for durability and corrosion resistance. -
Q: Is field calibration required?
A: No, the sensor is factory calibrated, although system calibration may be needed for exact applications.
Recommended Models (Same Series / Similar Functionality)
| Model Number | Description | Measuring Range |
|---|---|---|
| PR6423/003-010+CON021 | Eddy Current Sensor with 8mm range | 8 mm |
| PR6423/001-010-CN | 10mm Eddy Current Sensor + Connector | 10 mm |
| PR6423/002-030+CON021 | 5mm Eddy Current Sensor + Shield | 5 mm |
| PR6423/005-010+CON021 | 10mm Sensor with Extended Temp Range | 10 mm |
| PR6423/004-015 | 15mm Eddy Current Probe | 15 mm |
| PR6423/010-030 | Base Sensor Version (without connector) | 8 mm |
