Product Introduction

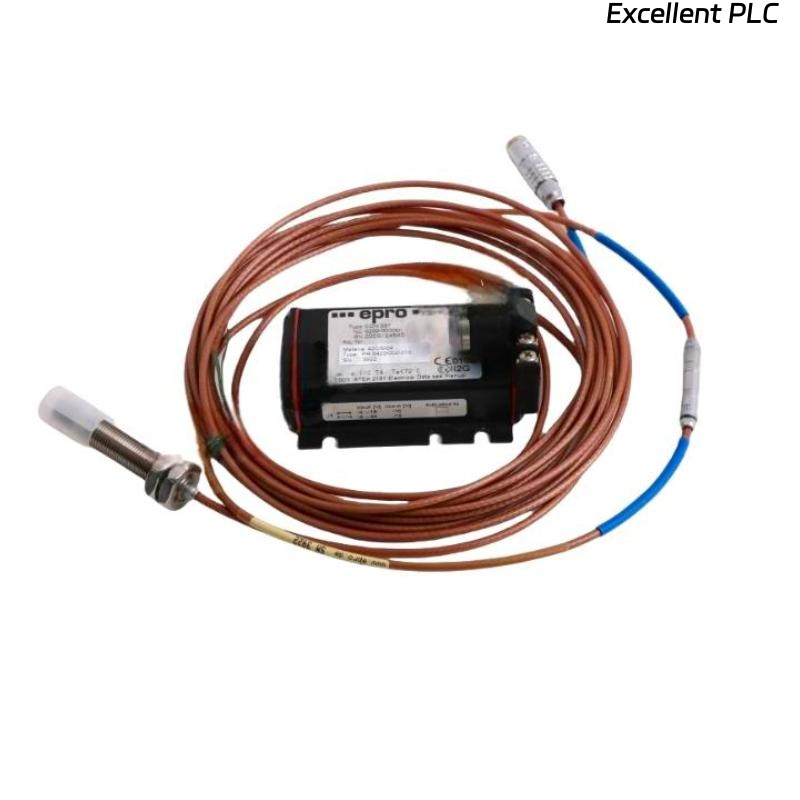

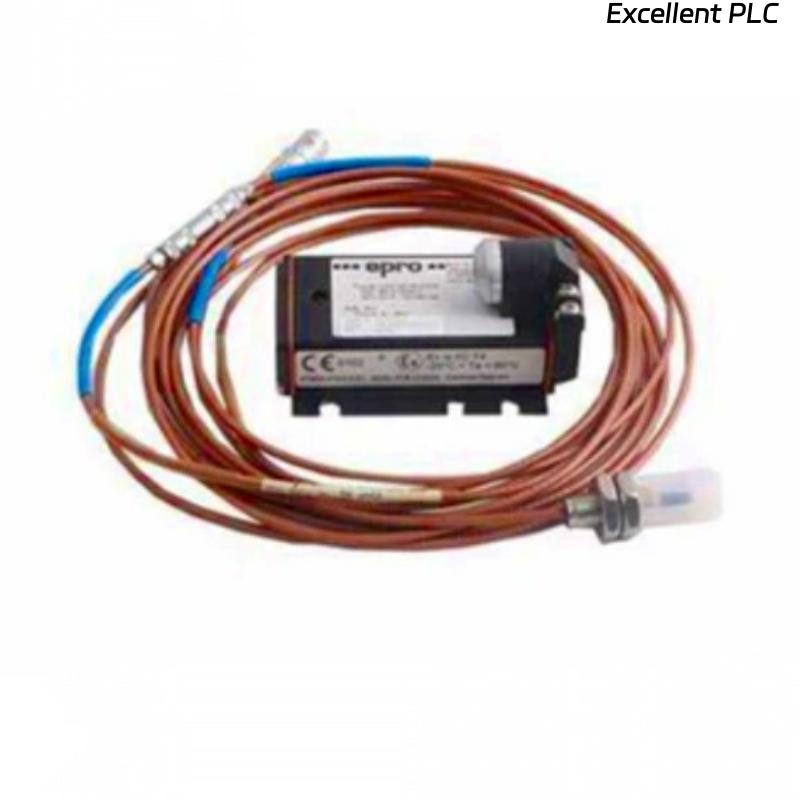

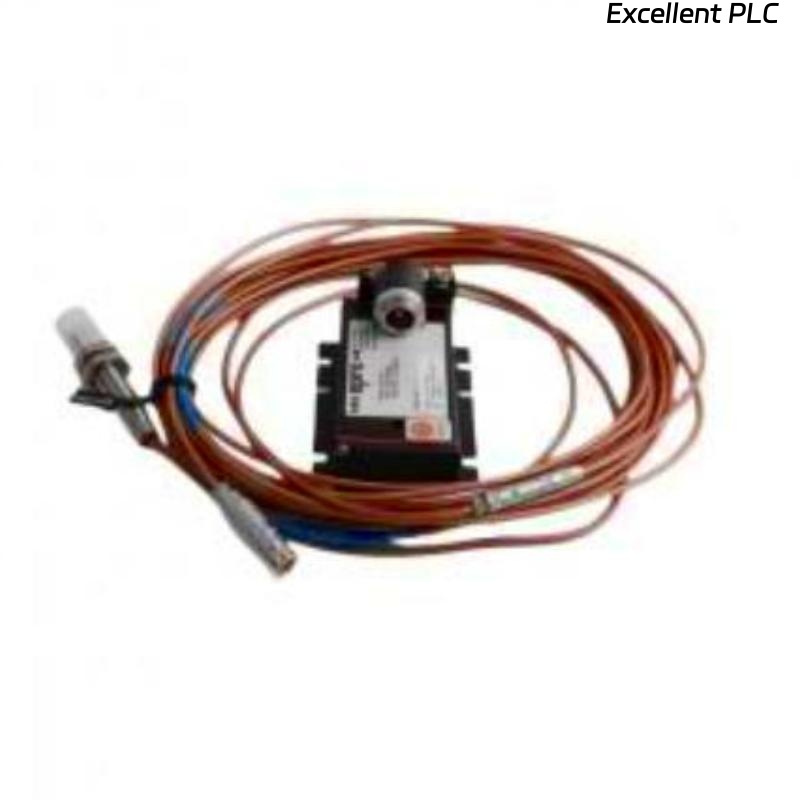

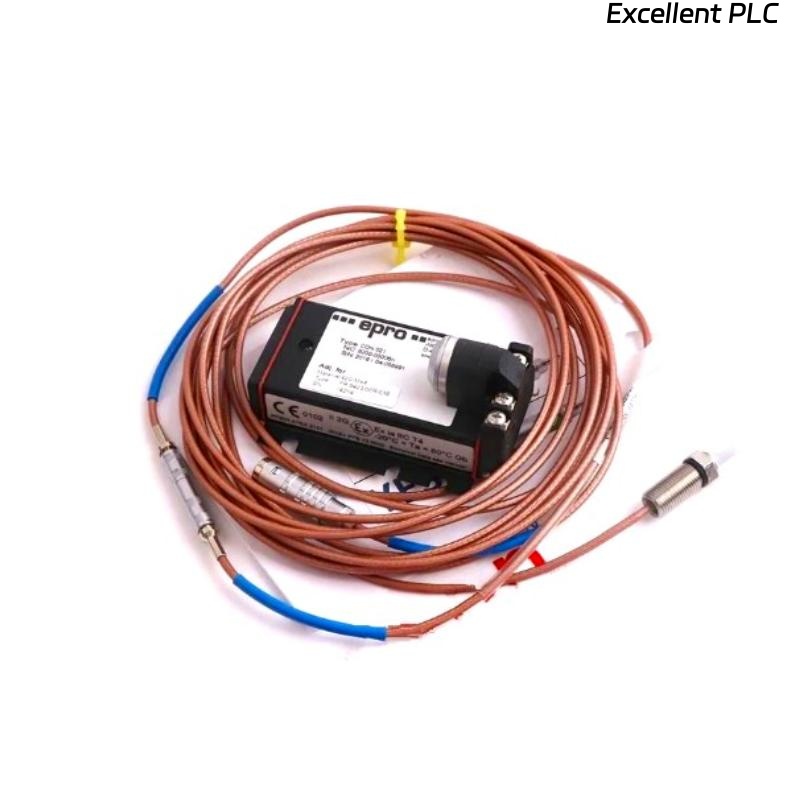

The Epro PR6423/010-110 is a high-precision eddy-current sensor designed for continuous monitoring of shaft displacement, vibration, and position in rotating machinery. With its robust design and proven eddy-current technology, it is widely used in industrial environments where reliability and accuracy are critical. The 8mm sensor head allows for compact installation while maintaining excellent sensitivity and stability. It integrates seamlessly with Epro monitoring systems and other condition monitoring solutions, making it suitable for a variety of applications such as turbines, compressors, and large motors.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PR6423/010-110 |
| Sensor Type | Eddy-Current Displacement Sensor |
| Sensor Head Diameter | 8 mm |
| Measurement Range | ±2 mm (typical) |
| Sensitivity | 8 mV/µm |
| Frequency Range | DC to 10 kHz |
| Linearity | ≤ ±1% FS |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Weight | 0.1 kg |
| Cable Length | Standard 5 m (custom available) |
| Protection Class | IP65 or higher (depending on installation) |
Product Applications
-
Shaft vibration monitoring in turbines, compressors, and pumps.
-
Displacement measurement of rotating machinery shafts.
-
Condition monitoring for motors, gearboxes, and generators.
-
Integration with Epro and Bently Nevada monitoring systems.
-
Preventive maintenance applications to detect imbalance, misalignment, or bearing wear.
Product Advantages
-
High measurement accuracy with stable linearity across the full range.
-
Compact 8mm sensor head for installation in space-limited environments.
-
Robust design suitable for harsh industrial conditions.
-
Wide operating temperature range ensures reliability in demanding applications.
-
Easy integration with monitoring systems and controllers.
-
High protection class guarantees long-term performance against dust and moisture.
FAQ
Q1: What type of output signal does the PR6423/010-110 provide?
A1: The sensor provides a voltage output proportional to the displacement, typically 8 mV/µm.
Q2: Can this sensor be directly connected to monitoring systems?
A2: Yes, it is designed for direct compatibility with Epro systems and can also be adapted to work with other vibration monitoring platforms.
Q3: What is the maximum frequency response of this sensor?
A3: The sensor supports measurements up to approximately 10 kHz.
Q4: How does the sensor ensure measurement accuracy?
A4: It uses calibrated eddy-current technology with strict linearity control (≤ ±1% FS).
Q5: Is the sensor suitable for high-temperature applications?
A5: Yes, the operating temperature range extends up to +180 °C, making it suitable for hot industrial environments.
Q6: Does the sensor require calibration after installation?
A6: Factory calibration is standard, but on-site system calibration may be recommended for maximum accuracy in critical applications.
Q7: What is the typical measurement range for this sensor?
A7: It typically measures shaft displacement within ±2 mm.
Q8: Can the sensor detect both static and dynamic displacements?
A8: Yes, it can measure both static shaft position and dynamic vibration.
Q9: Is electromagnetic interference (EMI) an issue for this sensor?
A9: The sensor is designed with shielding and robust construction to minimize EMI effects.
Q10: How does cable length affect sensor performance?
A10: Standard cable lengths are factory-matched to ensure signal accuracy. Custom lengths can be provided with recalibration if needed.
