Product Introduction

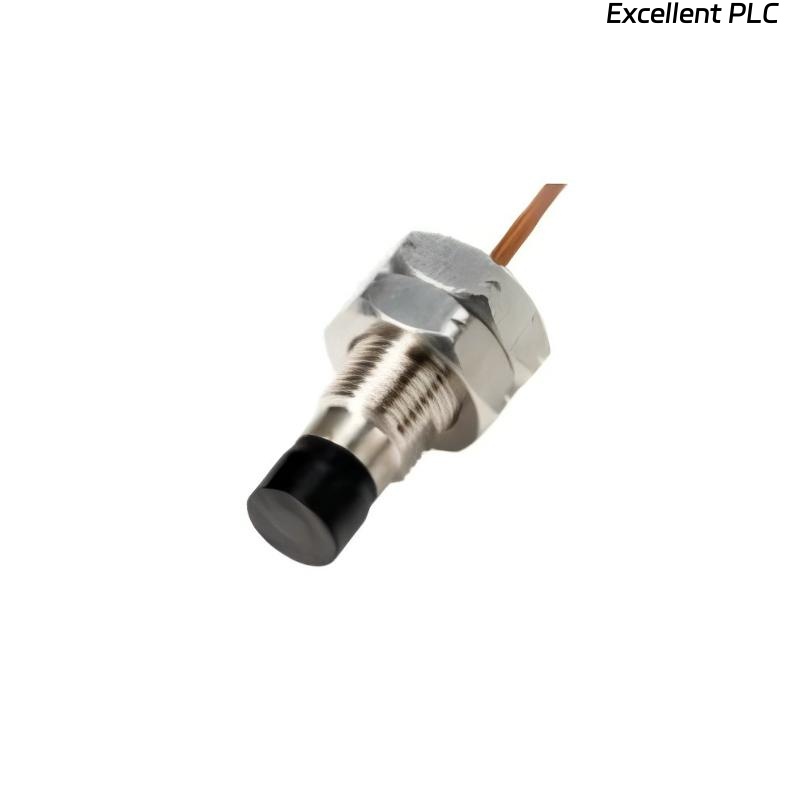

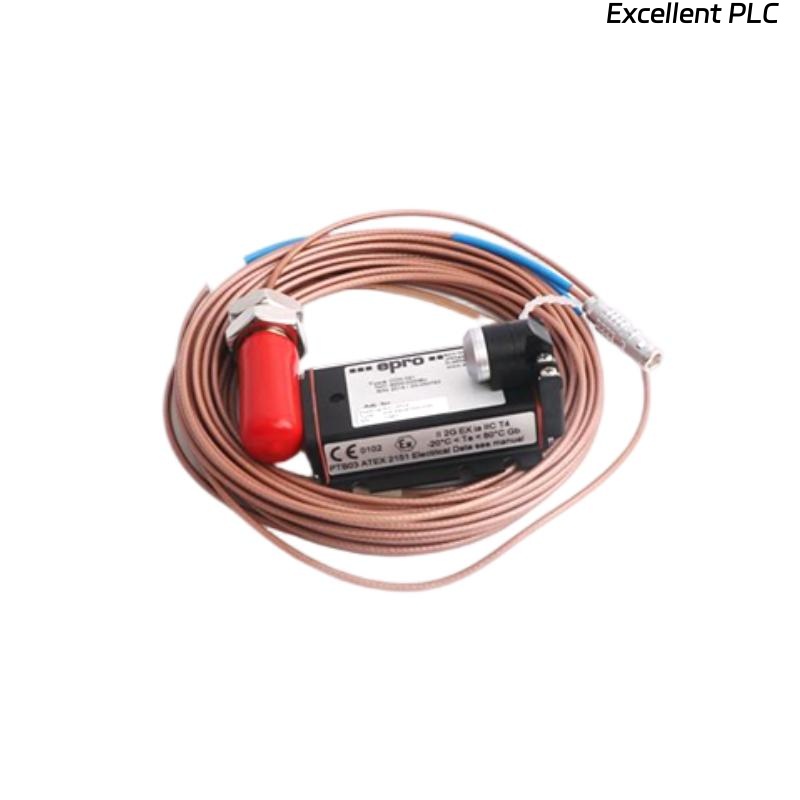

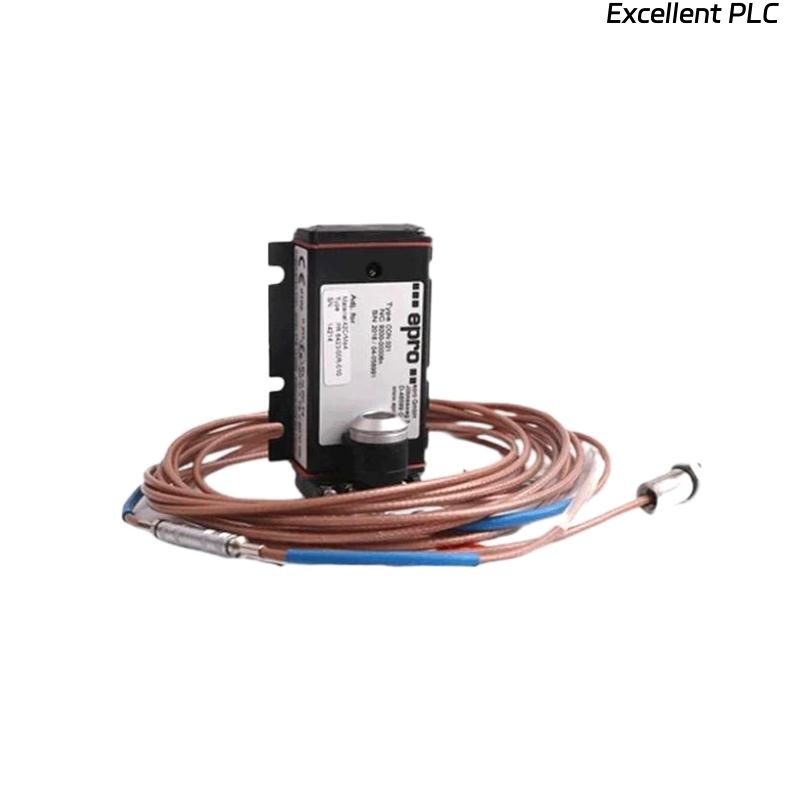

The Epro PR6423/011-000+CON011 is a sophisticated 8mm eddy current sensor designed for precision displacement, vibration, and position measurements in a wide variety of industrial applications. Combining the high-performance characteristics of eddy current technology with the capabilities of the CON011 signal processing unit, this sensor ensures highly accurate, real-time measurements in environments where reliability and precision are paramount. It is especially effective in monitoring high-speed machinery, rotating components, and automated processes.
The PR6423/011-000+CON011 system is engineered to handle high-frequency signals, offering excellent dynamic response and minimal interference, making it ideal for applications requiring rapid measurement and feedback. With its robust build and versatile design, this sensor provides reliable performance in challenging industrial environments, such as automotive manufacturing, aerospace, and power generation.
Product Parameters
| Parameter | Value |
|---|---|
| Model | Epro PR6423/011-000 + CON011 |
| Sensor Type | Eddy Current Sensor |
| Probe Diameter | 8 mm |
| Sensor Weight | 0.7 kg |
| Output Type | Analog / Digital Output |
| Measuring Range | 0 to 50 mm |
| Operating Frequency | 10 kHz – 5 MHz |
| Supply Voltage | 10 – 30 V DC |
| Temperature Range | -40°C to +80°C |
| Protection Rating | IP67 |
Product Applications
The Epro PR6423/011-000+CON011 sensor is ideally suited for high-precision measurement in various demanding industrial applications. Some of its key uses include:
-
Vibration Monitoring: Used to measure vibration and displacement in machinery such as motors, compressors, and turbines, helping to prevent breakdowns and optimize maintenance schedules.
-
Automated Manufacturing: Ideal for use in robotic arms, CNC machines, and assembly lines where precise position control is necessary.
-
Aerospace: In aerospace manufacturing and turbine monitoring, where precision displacement measurements ensure the safety and functionality of critical components.
-
Automotive Industry: In automated testing systems for monitoring part alignment, quality control, and precision measurement in the production of automotive components.
-
Precision Instrumentation: For testing equipment and R&D environments requiring accurate displacement and position data for calibration purposes.
Product Advantages
-
Precision and Accuracy: The 8mm sensor provides highly accurate displacement and position measurements, even in high-speed or dynamic applications.
-
Wide Measurement Range: Capable of measuring from 0 to 50mm, this sensor offers flexibility for a wide range of applications, from small-scale to large industrial processes.
-
Robust Design: The IP67 protection rating ensures the sensor is resistant to dust, water, and harsh industrial conditions, making it durable and reliable for long-term use.
-
High-Speed Measurement: With an operating frequency range from 10 kHz to 5 MHz, the sensor can capture rapid changes in displacement, making it suitable for high-speed applications such as rotating machinery.
-
Easy Integration: The sensor comes with both analog and digital outputs, making it easy to integrate with a wide variety of control systems and data acquisition equipment.
-
Versatility in Temperature Range: The sensor is designed to operate in a wide temperature range from -40°C to +80°C, allowing it to be used in both indoor and outdoor environments, or in extreme industrial settings.
FAQ
1. What is the measuring range of the Epro PR6423/011-000+CON011 sensor?
The measuring range of the Epro PR6423/011-000+CON011 sensor is 0 to 50mm, making it suitable for various displacement and position monitoring applications.
2. What is the operating frequency range of the Epro PR6423/011-000+CON011 sensor?
The sensor operates within a frequency range of 10 kHz to 5 MHz, which allows it to capture high-speed data in real-time.
3. What output types are supported by the Epro PR6423/011-000+CON011 sensor?
The sensor supports both analog and digital outputs, providing flexibility for integration with different systems.
4. What is the protection rating of the Epro PR6423/011-000+CON011 sensor?
The sensor has an IP67 protection rating, making it dustproof and water-resistant, ensuring reliable performance even in challenging industrial environments.
5. What is the supply voltage for the Epro PR6423/011-000+CON011 sensor?
The supply voltage for this sensor is between 10 V DC and 30 V DC, making it compatible with a wide range of industrial power supplies.
6. What is the weight of the Epro PR6423/011-000+CON011 sensor?
The sensor weighs 0.7 kg, making it lightweight and easy to handle during installation and maintenance.
7. Can the Epro PR6423/011-000+CON011 sensor be used in high-temperature environments?
Yes, the sensor operates effectively in environments with temperatures ranging from -40°C to +80°C, making it versatile for various industrial applications.
8. What is the diameter of the sensor probe?
The sensor probe has a diameter of 8mm, which allows it to be used in confined spaces or on smaller components that require precise measurements.
9. What materials can the Epro PR6423/011-000+CON011 sensor measure?
The sensor is designed to measure displacement and position on non-ferrous materials, such as aluminum, copper, and titanium.
10. Can the Epro PR6423/011-000+CON011 sensor be used for vibration monitoring?
Yes, the Epro PR6423/011-000+CON011 sensor is ideal for vibration monitoring, providing high-precision data for predictive maintenance and equipment monitoring.
