Product Introduction

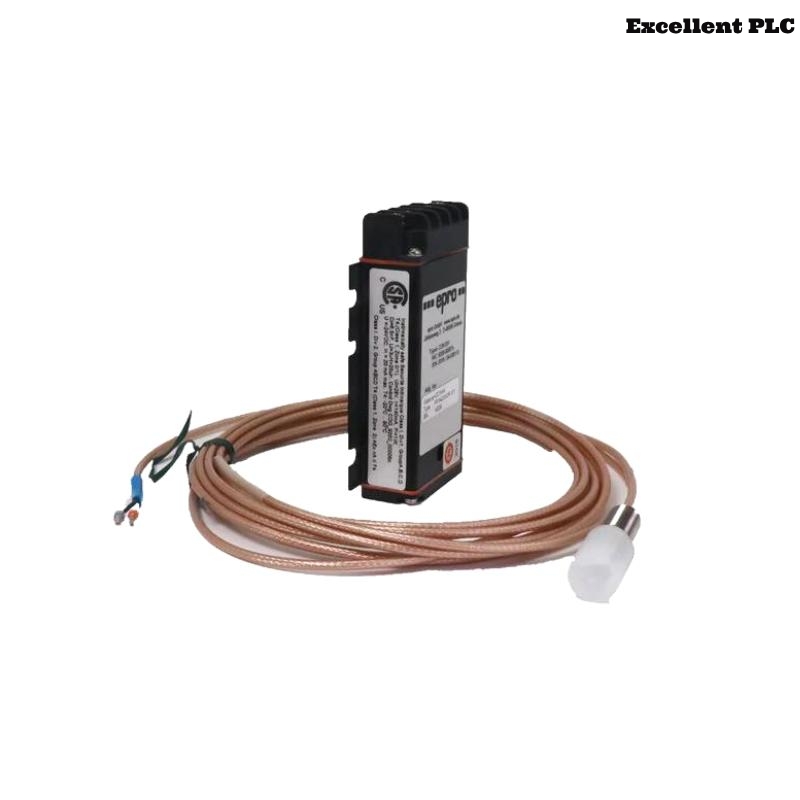

The Epro PR6423/011-110 + CON021 is a high-precision eddy current proximity sensor system developed for use in industrial environments demanding reliable, continuous monitoring of shaft displacement, vibration, or axial thrust in rotating machinery. Known for its superior performance, rugged construction, and reliable operation in harsh conditions, this sensor system forms a critical part of many condition monitoring and protection systems.
Engineered with a measuring tip diameter of 8mm, the PR6423/011-110 probe pairs with the CON021 converter to deliver a linear, contactless displacement signal based on eddy current principles. The sensor’s ability to operate in extreme temperature zones and resist electromagnetic interference makes it a trusted solution in petrochemical, power generation, and heavy mechanical industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | PR6423/011-110 |
| Converter Module | CON021 |
| Sensing Principle | Eddy Current (non-contact displacement sensor) |
| Probe Tip Diameter | 8 mm |
| Measuring Range | ±2.0 mm (typical), depends on target material |
| Linearity Error | ≤ ±1% of full scale |
| Frequency Response | Up to 10 kHz |
| Operating Temperature | -35°C to +180°C (sensor), -35°C to +125°C (CON021) |
| Storage Temperature | -40°C to +200°C |
| Probe Body Material | Stainless Steel |
| Output Signal | Voltage (through CON021), typically 0-10 V |
| Connector Type | MIL-style or industrial bayonet connector |
| Cable Length | 5 m, 7 m, 9 m, or custom lengths |
| Sensor Dimensions | Ø8 mm × 65 mm (sensor length may vary slightly) |
| Weight | 0.22 kg |
| Protection Rating | IP65 (with proper installation) |
| Compliance | CE, RoHS, ATEX (depending on configuration) |
Applications
The PR6423/011-110 + CON021 sensor is commonly used in:
-
Turbomachinery monitoring: Axial thrust, shaft vibration, and radial displacement detection
-
Condition-based maintenance systems for compressors, turbines, pumps, and motors
-
Protection systems in power plants and refineries
-
OEM integrations into diagnostic and vibration monitoring panels
-
Hazardous area monitoring, with appropriate safety configurations
Product Advantages
-
High accuracy and linearity over the full measuring range
-
Non-contact measurement, reducing wear and tear and increasing service life
-
Rugged and reliable, suitable for extreme industrial environments
-
Broad temperature resistance: Capable of operating under high thermal stress
-
Easy integration with Epro and third-party monitoring systems (such as Bently Nevada)
-
Flexible configuration: Available with various cable lengths and connector types
-
Low maintenance, reducing total cost of ownership
Frequently Asked Questions (FAQ)
-
What is the typical application of the PR6423/011-110 + CON021 sensor?
It is used for shaft vibration, displacement, and axial thrust monitoring in rotating machinery. -
What is the maximum operating temperature of this sensor?
The probe can handle up to +180°C; the CON021 converter is rated to +125°C. -
What is the sensing principle of this sensor?
It operates on the principle of eddy current for non-contact displacement sensing. -
Is the PR6423/011-110 compatible with other Epro monitoring systems?
Yes, it is fully compatible with Epro MMS systems and other eddy current signal conditioners. -
Can this sensor be used in hazardous areas?
Yes, when configured with the proper certified enclosures and barriers. -
What is the linearity error of this sensor system?
The linearity is typically within ±1% of the full-scale range. -
What is the sensor’s tip diameter?
The probe has a tip diameter of 8 mm. -
How is the output signal transmitted?
The signal is converted by the CON021 module and typically outputs a 0–10 V analog signal. -
Is the cable length customizable?
Yes, standard lengths include 5, 7, and 9 meters, with custom lengths available on request. -
Is this product suitable for OEM integration?
Yes, its compact size and signal compatibility make it ideal for OEM system design.
Related Models (Same Series or Functional Family)
| Model Number | Description |
|---|---|
| PR6423/000-000 | Standard 5 mm probe with CON011 interface |
| PR6423/002-030 | High-temp version with 5 mm tip, 300°C rating |
| PR6423/003-010 | 5 mm probe with specific length and range setting |
| PR6423/005-010+CON021 | 8 mm probe, standard range with CON021 converter |
| PR6423/014-040+CON021 | High-temperature, long-range 8 mm eddy current probe |
| PR6423/015-100 | Special extended-range version for larger shafts |
Popular Models from Epro (Same Brand)
| Model Number | Description |
|---|---|
| MMS3120/022-100 | Dual-channel vibration monitoring module |
| MMS6110 | Compact machinery protection system |
| CON021 | Eddy current signal converter used with PR6423 series |
| PR9268/201-000 | Vibration velocity sensor for low-frequency machines |
| MMS6822 | Multi-channel monitoring rack with modular expandability |
| CON041 | Interface converter for PR6423 series, legacy support |
