Product Introduction

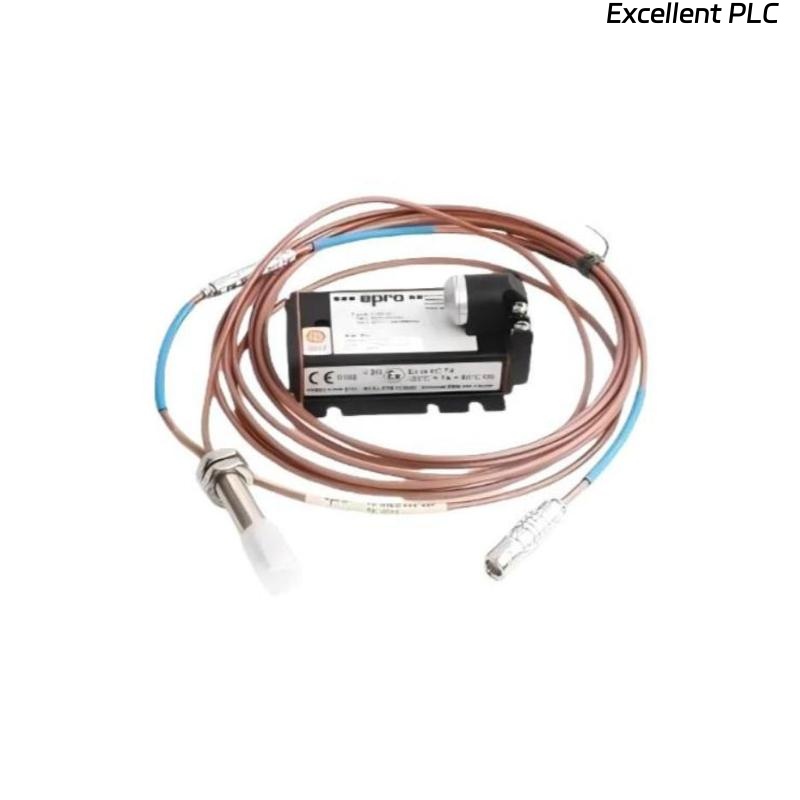

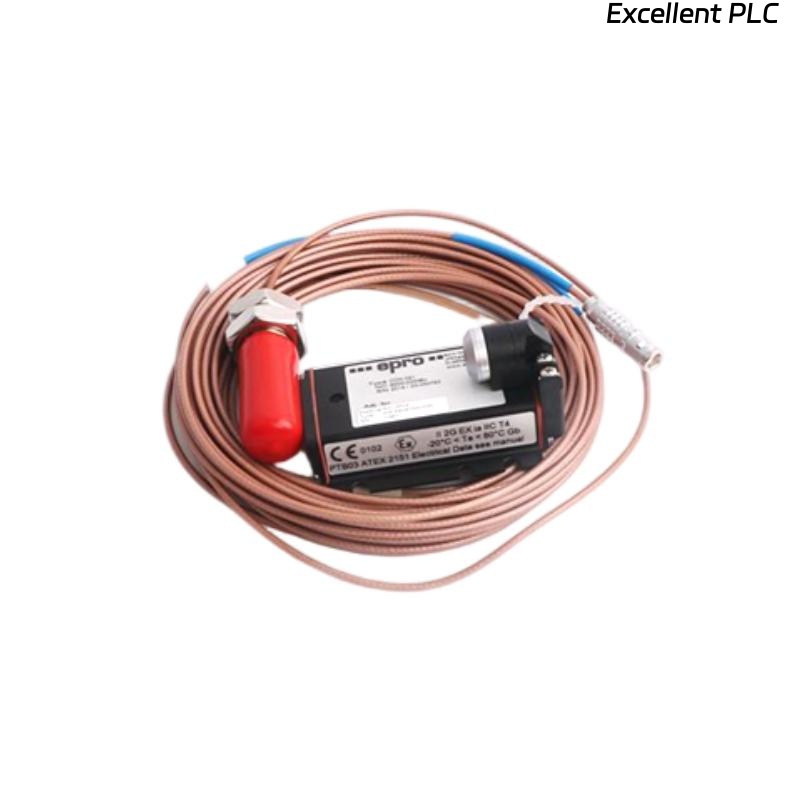

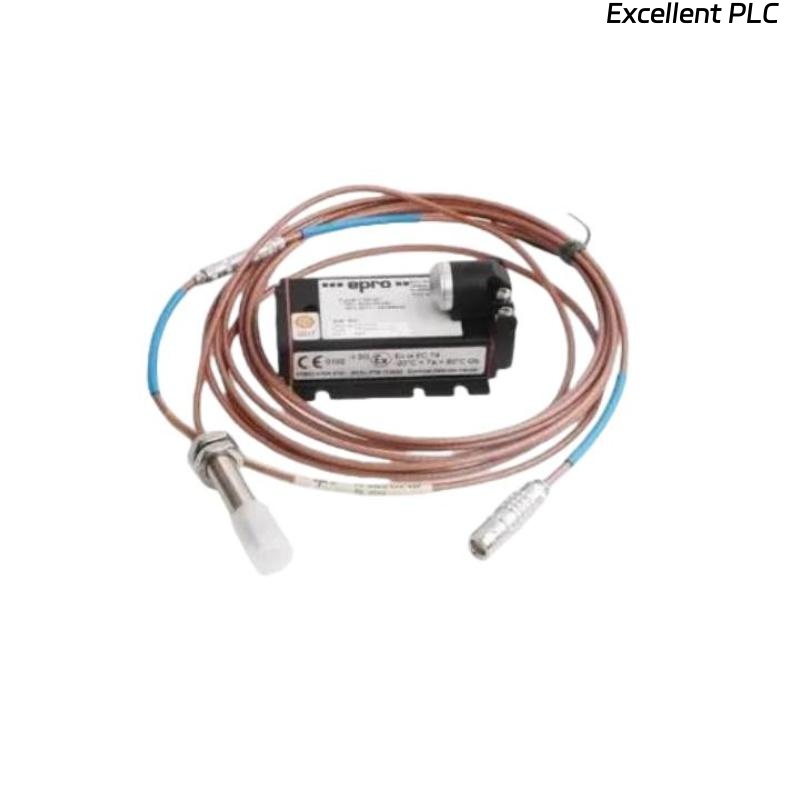

The Epro PR6423/012-030-CN is an 8mm eddy current sensor designed for precise, non-contact measurement of displacement, vibration, and position in dynamic environments. This sensor is ideal for high-precision applications where traditional contact-based sensors are unsuitable due to wear or environmental factors. By utilizing eddy current technology, it detects the displacement of conductive targets without physical contact, offering the advantage of zero friction and minimal maintenance.
With its compact 8mm sensor head, it is perfect for applications requiring a small form factor without compromising on measurement accuracy. The PR6423/012-030-CN provides accurate and reliable readings in various industrial applications, including rotating machinery, vibration monitoring, positioning systems, and robotics. Its rugged construction ensures durability and functionality even in challenging environments, such as high temperatures, vibrations, or electromagnetic interference.
This sensor is widely used in industries like automotive, aerospace, and industrial automation, where precision and reliability are paramount. The PR6423/012-030-CN excels at offering real-time measurement capabilities with a high-frequency response and can be integrated with various control and monitoring systems to optimize performance and reduce downtime.
Product Parameters
The key specifications for the Epro PR6423/012-030-CN 8mm eddy current sensor are as follows:
| Parameter | Specification |
|---|---|
| Model Number | PR6423/012-030-CN |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
| Measurement Range | ±2 mm |
| Output Type | Analog (Voltage / Current) |
| Supply Voltage | 10 V to 30 V DC |
| Signal Output | 0-10 V, 4-20 mA |
| Frequency Response | 1 kHz (max) |
| Operating Temperature Range | -20°C to +80°C |
| Mounting Type | Threaded, Adjustable Mounting Bracket |
| Compliance | CE, RoHS |
Product Applications
The Epro PR6423/012-030-CN sensor is designed for high-precision, non-contact measurements in various industrial settings. Some of the key applications include:
-
Rotating Machinery Monitoring: This sensor is ideal for measuring vibration, misalignment, and displacement in motors, turbines, and other rotating machinery. It ensures that components are operating within tolerances to prevent mechanical failures.
-
Aerospace: The PR6423/012-030-CN is widely used in the aerospace industry for monitoring vibration and displacement of critical components like engine parts and turbines.
-
Automotive Industry: The sensor is essential in automated assembly lines and robotic systems, providing precise measurements for positioning and alignment of components in automotive manufacturing.
-
Industrial Automation: The sensor is used in robotics and precision machining applications, enabling high-precision displacement measurements to improve process control and efficiency.
-
Vibration and Condition Monitoring: With its high-frequency response (up to 1 kHz), the sensor is suitable for vibration monitoring in industries that require dynamic condition monitoring of machines and systems.
-
Material Testing and Research: It is also utilized in material testing labs for accurate displacement measurements during stress testing, contributing to research and development in materials science.
Product Advantages
-
Non-Contact Measurement: The PR6423/012-030-CN offers a significant advantage over traditional contact sensors by eliminating the need for physical contact, which reduces wear, friction, and maintenance costs.
-
High Precision: With a measurement range of ±2 mm, this sensor provides high-accuracy displacement measurements, which are crucial for precision applications such as robotics and aerospace.
-
Compact Design: The 8mm sensor head allows for easy integration into tight spaces, offering versatility without compromising performance or accuracy.
-
High Frequency Response: The 1 kHz frequency response ensures accurate tracking of fast-moving or vibrating targets, making the sensor ideal for high-speed monitoring applications.
-
Wide Temperature Range: The sensor operates within a broad temperature range of -20°C to +80°C, ensuring reliable performance in varying environmental conditions.
-
Flexible Output Options: With 0-10 V and 4-20 mA output signals, it is compatible with most industrial control and measurement systems, allowing easy integration.
-
Durability and Robustness: Designed for harsh industrial environments, the sensor is capable of withstanding physical stress, extreme temperatures, and electromagnetic interference.
-
Reduced Maintenance Needs: The non-contact nature of the sensor reduces mechanical wear, leading to fewer maintenance requirements and longer operational life.
-
Cost-Effective Solution: With its durable construction and reliable performance, the PR6423/012-030-CN is a cost-effective option for industries requiring high-precision displacement measurement.
-
Easy Installation: The sensor comes with threaded mounting and an adjustable bracket, making it easy to install and integrate into existing systems.
FAQ
1. How does the Epro PR6423/012-030-CN sensor work?
The PR6423/012-030-CN uses eddy current technology to measure the displacement of conductive targets by detecting changes in the electromagnetic field, without making physical contact.
2. What type of output does the PR6423/012-030-CN provide?
The sensor provides an analog output, with 0-10 V or 4-20 mA signals that can be integrated into most industrial measurement systems.
3. What is the measurement range of the PR6423/012-030-CN?
The sensor has a measurement range of ±2 mm, enabling it to measure small displacements with high precision.
4. How accurate is the PR6423/012-030-CN sensor?
The sensor offers high-precision measurements with an accuracy of ±2 mm, ideal for precision applications that require tight tolerances.
5. Can the PR6423/012-030-CN sensor measure non-metallic targets?
No, the sensor is designed for measuring conductive targets like metals and alloys. It does not work with non-metallic materials.
6. What is the frequency response of the PR6423/012-030-CN sensor?
The sensor has a maximum frequency response of 1 kHz, making it suitable for monitoring fast-moving or vibrating targets.
7. What is the operating temperature range for the PR6423/012-030-CN?
The sensor can operate in a temperature range of -20°C to +80°C, making it adaptable to a wide range of environmental conditions.
8. Can the PR6423/012-030-CN sensor be used for vibration monitoring?
Yes, the sensor is designed to monitor vibrations and displacements in applications such as rotating machinery, providing accurate real-time data.
9. Is the PR6423/012-030-CN sensor suitable for high-speed applications?
Yes, the sensor’s 1 kHz frequency response makes it well-suited for applications involving high-speed motion, such as rotating machinery and robotics.
10. How is the PR6423/012-030-CN sensor mounted?
The sensor features threaded mounting and an adjustable bracket, providing flexibility for easy installation in different industrial setups.
