Product Introduction

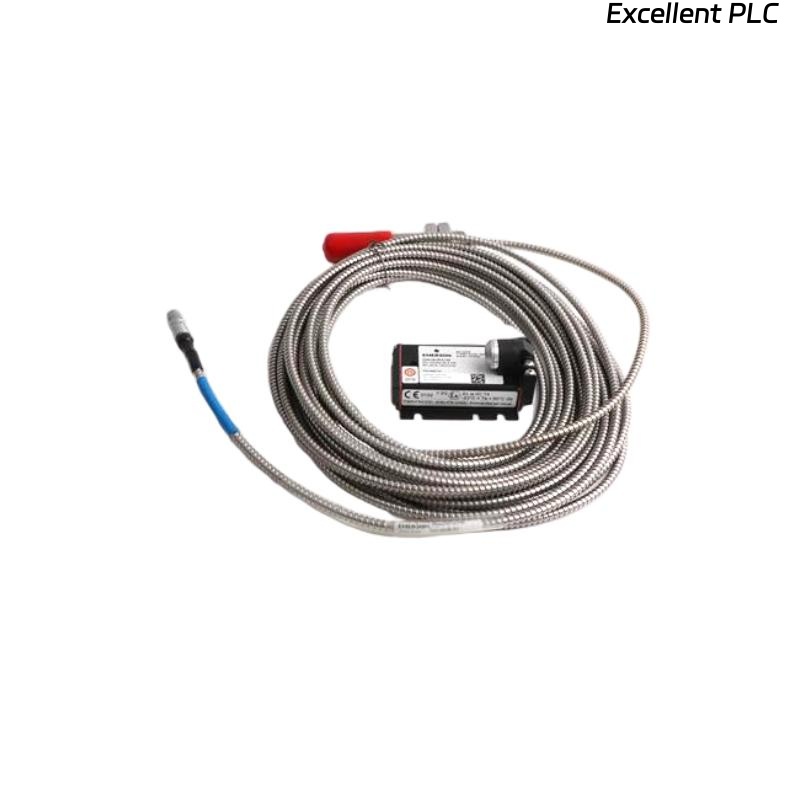

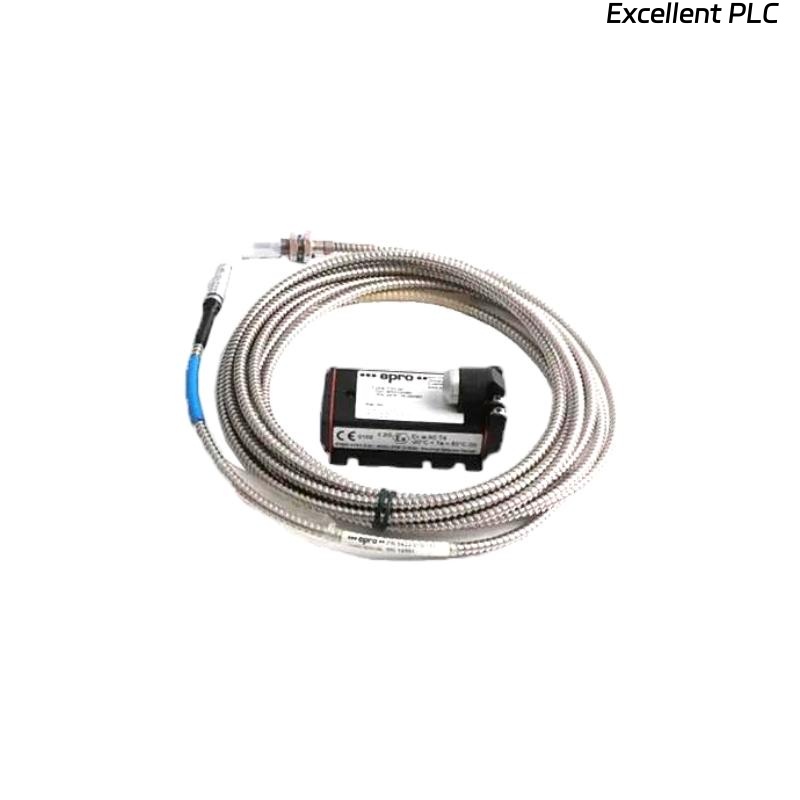

The Epro PR6423/013-000 is an 8mm eddy current sensor that utilizes eddy current technology for high-precision, non-contact measurement of displacement, position, and vibration. This sensor is engineered to operate efficiently in high-speed, dynamic environments and is capable of measuring the smallest displacements with remarkable accuracy. The PR6423/013-000 is ideal for applications requiring precise measurements where traditional contact-based sensors would wear out or become unreliable.
Due to its compact design, with a sensor head diameter of just 8 mm, it can easily fit into spaces with limited clearance while still providing the same level of accuracy as larger sensors. The PR6423/013-000 excels in various industrial applications such as rotating machinery, vibration monitoring, positioning systems, and precision robotics. It operates based on the principle of eddy currents, using an electromagnetic field to measure the displacement of conductive targets without physical contact.
With its rugged construction and the ability to withstand harsh environments, the PR6423/013-000 ensures reliable operation in industries like automotive manufacturing, aerospace, and industrial automation.
Product Parameters
The key specifications for the Epro PR6423/013-000 8mm eddy current sensor are listed below:
| Parameter | Specification |
|---|---|
| Model Number | PR6423/013-000 |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
| Measurement Range | ±2 mm |
| Output Type | Analog (Voltage / Current) |
| Supply Voltage | 10 V to 30 V DC |
| Signal Output | 0-10 V, 4-20 mA |
| Frequency Response | 1 kHz (max) |
| Operating Temperature Range | -20°C to +80°C |
| Mounting Type | Threaded, Adjustable Mounting Bracket |
| Compliance | CE, RoHS |
Product Applications
The Epro PR6423/013-000 sensor has a wide range of applications, particularly in industries requiring high-precision, non-contact measurements of displacement, position, or vibration. Here are some key applications:
-
Rotating Machinery Monitoring: The sensor is used in motors, gearboxes, fans, and other rotating machinery to monitor misalignment, vibration, and potential mechanical failures. Its non-contact nature makes it ideal for use in high-speed and high-precision rotating equipment.
-
Aerospace and Defense: The PR6423/013-000 is used for monitoring turbine blades, engine components, and aircraft structures, where precision and reliability are critical. It ensures that aerospace components are within safe operational limits.
-
Automotive Manufacturing: The sensor is applied to position monitoring and alignment during automotive production, ensuring that parts such as engines and transmission systems are correctly positioned during the assembly process.
-
Precision Robotics and Automation: The PR6423/013-000 is essential in robotics and automated assembly lines where high-precision measurement of displacement is necessary to maintain strict tolerances in manufacturing and product assembly.
-
Vibration Monitoring: With its 1 kHz frequency response, the sensor is well-suited for vibration analysis in rotating machinery, identifying issues like imbalance, misalignment, and wear before they lead to mechanical failure.
-
Material Testing and Research: It is used in material testing setups to measure the displacement of materials under varying stress, providing essential data for R&D and quality control processes.
Product Advantages
-
Non-Contact Measurement: The Epro PR6423/013-000 operates without physical contact, making it ideal for applications where wear and friction from contact-based sensors are unacceptable.
-
High-Precision Displacement Measurement: The sensor is capable of measuring small displacements with a range of ±2 mm, making it highly accurate and suitable for high-precision applications.
-
Compact Design: With an 8mm sensor head, it is compact and can be used in tight spaces, offering the benefits of a small form factor without compromising accuracy.
-
High Frequency Response: The sensor supports a 1 kHz frequency response, enabling it to track fast-moving or vibrating targets with high accuracy, essential for real-time monitoring in dynamic environments.
-
Wide Temperature Range: It operates reliably within a temperature range of -20°C to +80°C, making it versatile in various industrial environments, even under extreme temperature conditions.
-
Flexible Output Options: The 0-10 V and 4-20 mA output options make the sensor compatible with most industrial measurement and control systems, ensuring easy integration.
-
Rugged and Durable: The sensor’s design is built to endure harsh environments, ensuring that it continues to operate effectively even under challenging conditions.
-
Low Maintenance: Due to its non-contact design, the PR6423/013-000 has a lower maintenance requirement compared to contact-based sensors, reducing downtime and long-term costs.
-
Cost-Effective: Providing high accuracy and reliability, the PR6423/013-000 is a cost-effective solution for applications that require high-precision non-contact displacement measurement.
-
Easy Integration: The sensor is designed with a threaded mounting and adjustable bracket, allowing for easy installation and integration into existing systems.
FAQ
1. How does the Epro PR6423/013-000 sensor measure displacement?
The PR6423/013-000 sensor uses eddy current technology to measure displacement by detecting changes in the electromagnetic field between the sensor and a conductive target.
2. What type of output does the PR6423/013-000 provide?
The sensor provides analog output, with options for 0-10 V or 4-20 mA, making it suitable for integration with most industrial measurement systems.
3. What is the measurement range of the PR6423/013-000 sensor?
The sensor has a measurement range of ±2 mm, allowing it to measure small displacements with high precision.
4. What is the maximum frequency response of the PR6423/013-000?
The sensor has a maximum frequency response of 1 kHz, making it ideal for applications that require high-speed data acquisition, such as rotating machinery.
5. Can the PR6423/013-000 sensor measure non-metallic targets?
No, the sensor is designed to measure conductive targets only, such as metals and other conductive materials.
6. How do the output signals of the PR6423/013-000 sensor work?
The sensor provides either 0-10 V or 4-20 mA output signals, which can be used by various industrial control and monitoring systems.
7. What is the operating temperature range for the PR6423/013-000?
The sensor operates within a temperature range of -20°C to +80°C, ensuring reliable performance in a wide variety of industrial environments.
8. How accurate is the PR6423/013-000 sensor?
The PR6423/013-000 provides high-precision displacement measurements with an accuracy of ±2 mm, ideal for precision applications.
9. Is the PR6423/013-000 sensor suitable for high-speed applications?
Yes, the 1 kHz frequency response makes the sensor suitable for high-speed monitoring, such as tracking rotating machinery or fast-moving targets.
10. How is the PR6423/013-000 sensor mounted?
The sensor features threaded mounting and an adjustable bracket, making installation quick and easy for various industrial setups.
