Product Introduction

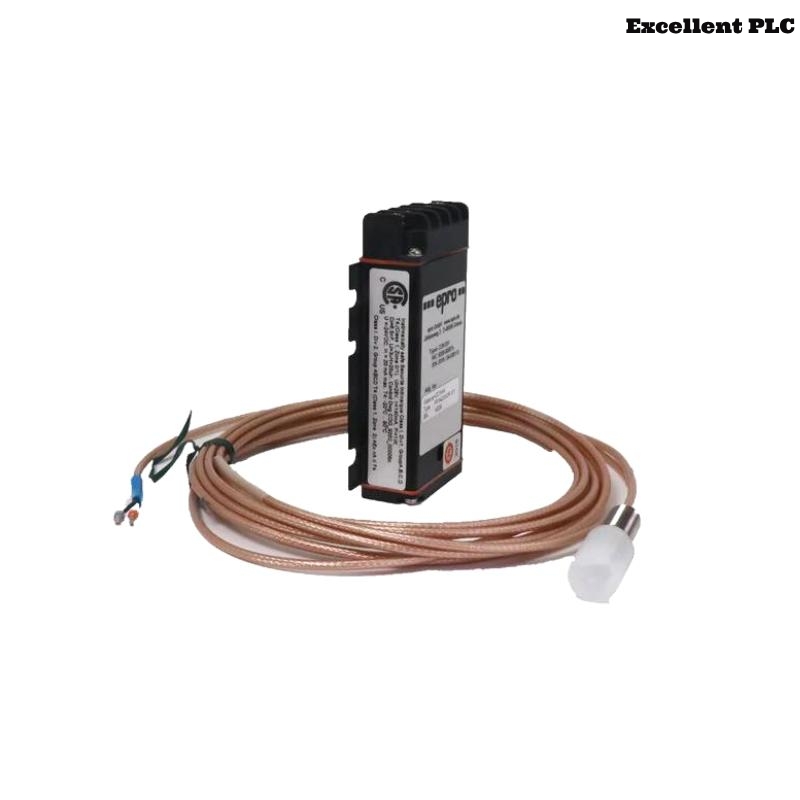

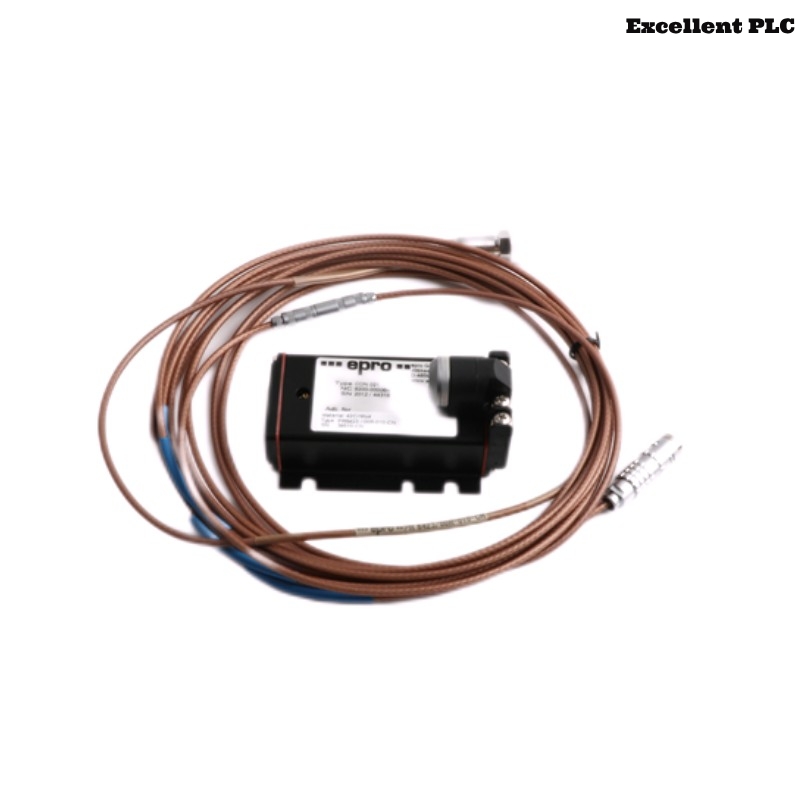

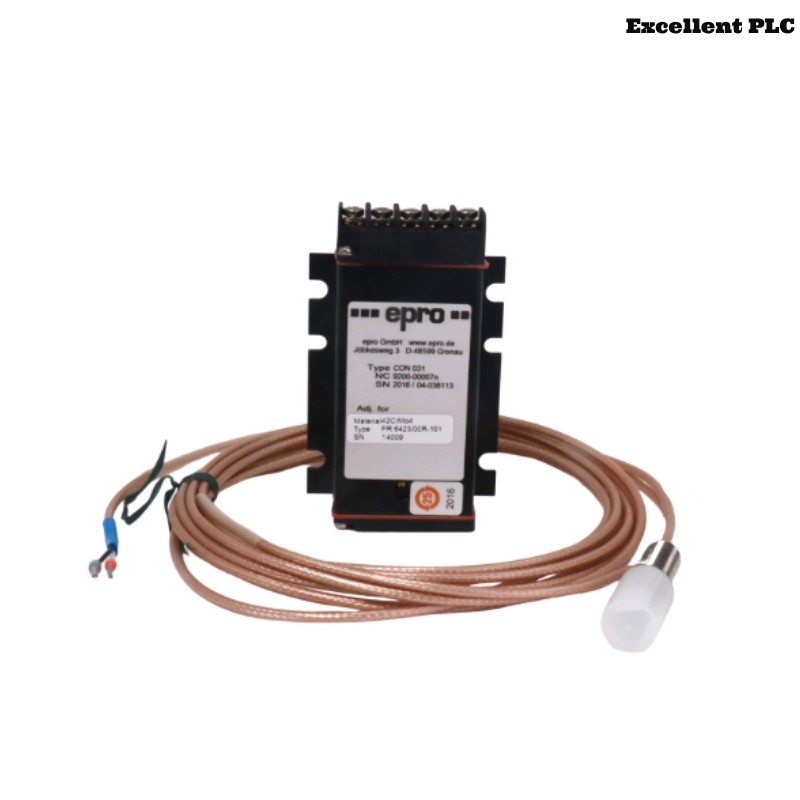

The Epro PR6423/013-110 8mm Eddy Current Sensor is a high-precision, non-contact sensor designed for precise measurement of displacement, position, and vibration. The sensor operates based on the principle of eddy current technology, making it ideal for monitoring rotating machinery and other applications that require high accuracy without direct contact with the target. This sensor is specifically designed for applications where high resolution and reliability are essential, offering an 8mm measuring range, which is perfect for tight spaces or delicate machinery.
The PR6423/013-110 version is particularly well-suited for use in industries that require continuous monitoring and high-precision control, including oil and gas, power generation, automotive, and manufacturing. The sensor can monitor the position and displacement of metallic objects, providing real-time data to optimize machine performance and prevent potential system failures.
Along with the Epro PR6423/013-110 sensor, the CON110 signal converter ensures seamless integration with industrial control systems. The sensor and converter package provides superior functionality and diagnostics, making it an indispensable tool for process control systems that require reliable and precise measurements.
Technical Specification
| Parameter | Details |
| Model Number | PR6423/013-110 |
| Technology | Eddy Current |
| Measuring Range | 8mm |
| Target Type | Conductive Materials |
| Output Type | Analog Output (0-10 V, 4-20 mA) |
| Supply Voltage | 12–30 VDC |
| Accuracy | ±0.5% of full scale |
| Resolution | 0.1 micrometers |
| Temperature Range | -40°C to +85°C |
| Protection Class | IP67 (Dust-tight, protected from immersion in water) |
| Mounting Type | Screw or flange mounting |
| Weight | 0.1 kg |
Product Applications
The Epro PR6423/013-110 8mm Eddy Current Sensor finds applications in various industries where precise, non-contact measurements are crucial for monitoring the performance of machinery and equipment. Some common applications include:
-
Rotating Machinery Monitoring: It is ideal for measuring displacement, vibration, and position in rotating machinery such as motors, turbines, and compressors.
-
Condition Monitoring: This sensor is used to monitor the condition of machinery and equipment, helping to detect issues before they lead to failures.
-
Gap Measurement: The sensor can measure the gap between parts in machines, ensuring proper functioning and alignment without physical contact.
-
Precision Positioning: It is used in automated systems that require precise position control in industries like robotics, automation, and assembly lines.
-
Non-Contact Vibration Measurement: The sensor is perfect for measuring the vibration of machinery without risking wear and tear of traditional contact-based sensors.
Product Advantages
-
Non-Contact Measurement: The sensor uses eddy current technology, meaning it does not require physical contact with the target, avoiding wear and tear and enhancing sensor longevity.
-
High Accuracy: The sensor offers ±0.5% accuracy of full scale, delivering precise and reliable measurements for critical applications.
-
Wide Temperature Range: It operates in a broad temperature range from -40°C to +85°C, making it suitable for use in both extreme cold and high-temperature environments.
-
Robust Construction: With an IP67 protection rating, the sensor is dust-tight and can withstand immersion in water, making it ideal for harsh industrial environments.
-
Easy Integration: The sensor is designed for seamless integration into existing industrial control systems, supported by the CON110 signal converter.
-
Compact Design: Its compact size allows for easy installation in space-constrained environments, without compromising on performance.
-
Durable and Long-lasting: The non-contact nature of the sensor minimizes wear and tear, ensuring a longer lifespan compared to traditional contact-based sensors.
Frequently Asked Questions (FAQ)
-
What is the technology behind the Epro PR6423/013-110 sensor?
The sensor operates using eddy current technology, which allows for non-contact measurement of displacement and position in conductive materials. -
What is the measuring range of this sensor?
The sensor provides an 8mm measuring range, making it suitable for precision applications in various industrial environments. -
Can the sensor be used in rotating machinery?
Yes, it is specifically designed for monitoring rotating machinery such as turbines, motors, and compressors. -
What is the accuracy of the sensor?
The Epro PR6423/013-110 sensor provides an accuracy of ±0.5% of full scale, offering high precision for critical applications. -
What output types does the sensor provide?
The sensor provides analog output options, including 0-10 V and 4-20 mA, which are widely supported by control systems. -
What is the temperature range for this sensor?
The sensor operates in a wide temperature range of -40°C to +85°C, ensuring functionality in both low and high-temperature environments. -
Is the sensor resistant to dust and water?
Yes, the sensor has an IP67 protection rating, meaning it is dust-tight and protected against immersion in water. -
How is the sensor mounted?
The sensor can be mounted using screws or flanges, making it versatile for different installation scenarios. -
What are the Weight of the sensor and signal converter?
The sensor weight 0.1 kg. -
Can the sensor be used for gap measurement?
Yes, the sensor is ideal for measuring gaps between machine components in both precision and non-contact applications.
Related Models (Same Series or Function)
| Model Number | Description |
|---|---|
| PR6423/013-120 | 12mm Eddy Current Sensor for wider displacement range |
| PR6423/013-100 | 10mm Eddy Current Sensor with enhanced accuracy |
| PR6423/013-110+CON110 | 8mm Eddy Current Sensor with extended signal processing capabilities |
| PR6423/013-150 | 15mm Eddy Current Sensor for large machinery applications |
| PR6423/013-090 | 9mm Eddy Current Sensor with high resolution |
| PR6423/013-110+CON120 | 8mm Eddy Current Sensor with additional diagnostic features |
