Product Introduction

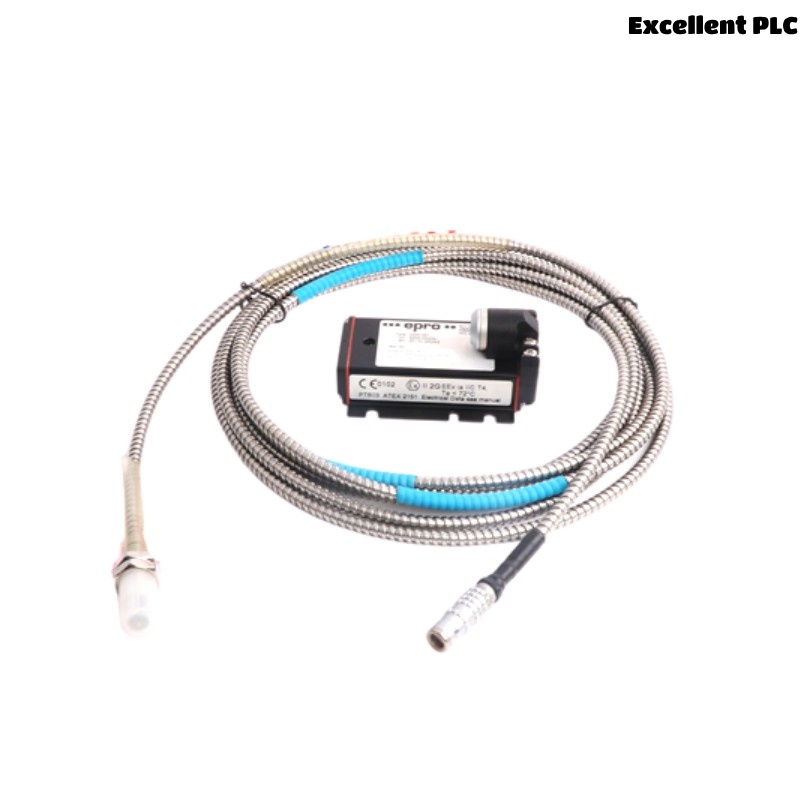

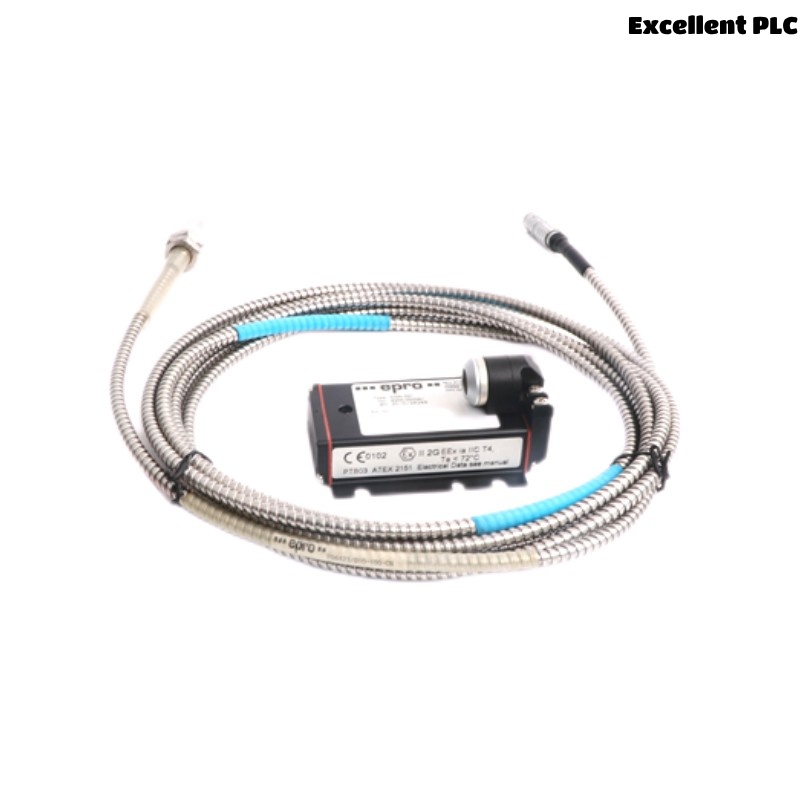

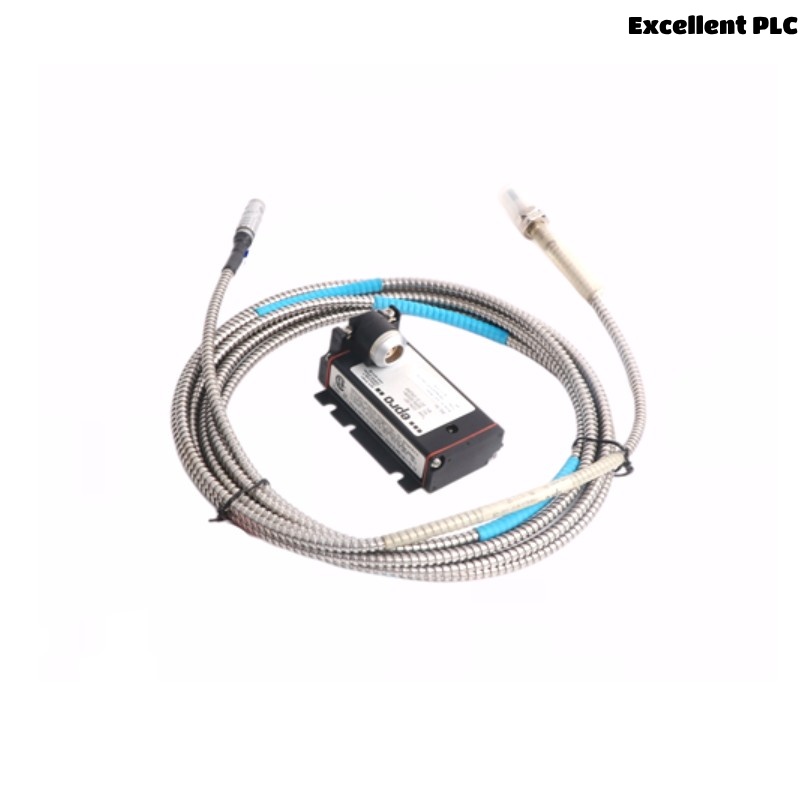

The Epro PR6423/013-110+CON021 is an 8mm Eddy Current Sensor designed for high-precision displacement measurement and condition monitoring in industrial environments. This sensor utilizes eddy current technology to measure the distance between the sensor face and a conductive metal target without physical contact, which ensures durability and reliable operation even in challenging conditions.
Featuring a robust housing with a CON021 connector, this sensor is engineered for easy integration and secure connections. The PR6423/013-110+CON021 is compact yet sturdy, capable of delivering consistent, accurate readings in environments subject to vibration, dust, and moisture. It is widely used in machinery monitoring, automation, and quality control applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PR6423/013-110+CON021 |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 8 mm |
| Output Signal | Analog Voltage or Current |
| Frequency Response | High frequency |
| Linearity | ±1% of full scale |
| Target Material | Conductive metals (ferrous and non-ferrous) |
| Operating Temperature Range | -25°C to +85°C |
| Protection Rating | IP67 (dust-tight, water-resistant) |
| Weight | 0.22 kg |
| Connector Type | CON021 |
| Power Supply | 10 to 30 V DC |
| Response Time | ≤ 1 ms |
| Mounting | Threaded mounting standard |
Product Applications
The PR6423/013-110+CON021 is suited for a broad range of industrial applications, such as:
-
Rotating machinery monitoring: Measuring shaft displacement and vibration in turbines, compressors, pumps, and motors to prevent failures.
-
Machine tool control: Offering precise position feedback in milling machines, lathes, and grinding equipment.
-
Automotive testing: Monitoring dynamic displacement and wear in engines and transmission systems during development and testing.
-
Industrial automation: Providing reliable feedback for robotic arms, conveyor belts, and automated assembly lines.
-
Structural health monitoring: Tracking displacement and vibrations in bridges, cranes, and heavy machinery to detect early signs of fatigue or failure.
-
Quality control: Measuring alignment and positioning of metal parts during manufacturing to ensure product consistency.
Product Advantages
-
Durable construction: The IP67-rated housing protects against dust and water ingress, suitable for harsh industrial conditions.
-
Non-contact sensing: Avoids mechanical wear, extending the service life and reducing maintenance.
-
High accuracy and repeatability: Eddy current technology ensures stable, noise-resistant displacement measurements.
-
Fast response time: Real-time monitoring with a response time of less than 1 millisecond.
-
Wide operating temperature range: Reliable operation from -25°C to +85°C ensures functionality across various environments.
-
Easy installation: Threaded mounting and CON021 connector simplify integration and maintenance.
-
Versatile target compatibility: Works effectively with a variety of conductive metals without need for frequent recalibration.
-
Compact size: Small diameter and moderate length allow installation in tight spaces.
Frequently Asked Questions (FAQ)
-
What is the sensing distance of this sensor?
It has a sensing distance of 8 mm. -
What types of materials can it detect?
It detects conductive metals, both ferrous and non-ferrous. -
What protection class does the sensor have?
It is rated IP67, meaning it is dust-tight and resistant to water immersion. -
What kind of output does it provide?
The sensor provides an analog voltage or current output depending on configuration. -
Is the sensor suitable for harsh environments?
Yes, it is designed to operate reliably under dust, moisture, and vibration. -
What is the power supply range for the sensor?
It requires a DC supply voltage between 10 and 30 volts. -
How is the sensor mounted?
It features a threaded mounting design for secure installation. -
What is the connector type used?
The sensor uses a CON021 connector for easy and secure electrical connections. -
What is the sensor’s response time?
The response time is less than or equal to 1 millisecond. -
Does the sensor need frequent recalibration?
No, the sensor’s eddy current technology and robust design reduce the need for frequent recalibration.
Recommended Related Models
| Model | Sensing Distance | Dimensions (mm) | Weight (g) | Notes |
|---|---|---|---|---|
| PR6423/010-010+CON021 | 8 mm | Ø20 x 100 | 250 | Similar sensing distance |
| PR6423/00R-101+CON031 | 8 mm | Ø20 x 95 | 240 | Alternate connector type |
| PR6423/015-110+CON021 | 15 mm | Ø20 x 110 | 270 | Extended sensing range |
| PR6423/013-140+CON021 | 8 mm | Ø20 x 140 | 290 | Longer sensor body |
| PR6426/010-140+CON021 | 32 mm | Ø32 x 140 | 350 | Larger sensing distance |
| PR6423/00R-080+CON031 | 8 mm | Ø20 x 80 | 230 | Compact size option |
Popular Epro Models from the Same Brand
| Model | Sensor Type | Sensing Distance | Dimensions (mm) | Weight (g) | Application Focus |
|---|---|---|---|---|---|
| PR6423/010-010+CON021 | Eddy Current | 8 mm | Ø20 x 100 | 250 | General displacement sensing |
| PR6424/010-140 | Eddy Current | 10 mm | Ø25 x 140 | 310 | Vibration and shaft sensing |
| MMS3120/022-100 | Magnetic Proximity | 10 mm | 20 x 50 x 30 | 120 | Position sensing |
| PR6426/010-140+CON021 | Eddy Current | 32 mm | Ø32 x 140 | 350 | Long range displacement |
| MMS3125/022-020 | Inductive Proximity | 20 mm | 25 x 60 x 40 | 150 | Automation and control |
| MMS3120/024-080 | Magnetic Proximity | 24 mm | 32 x 80 x 30 | 200 | Industrial automation |
