Product Overview

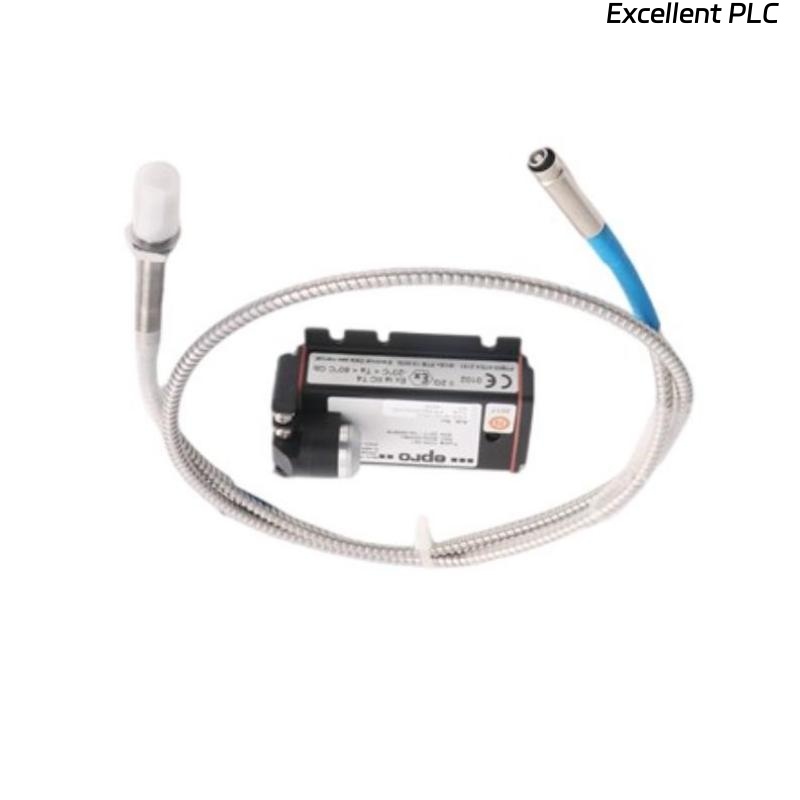

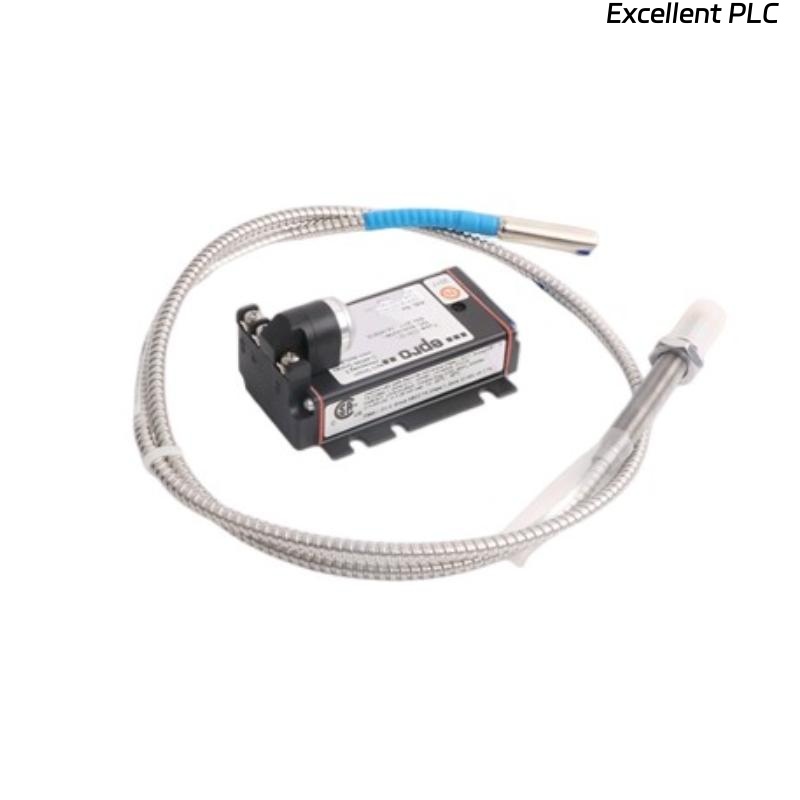

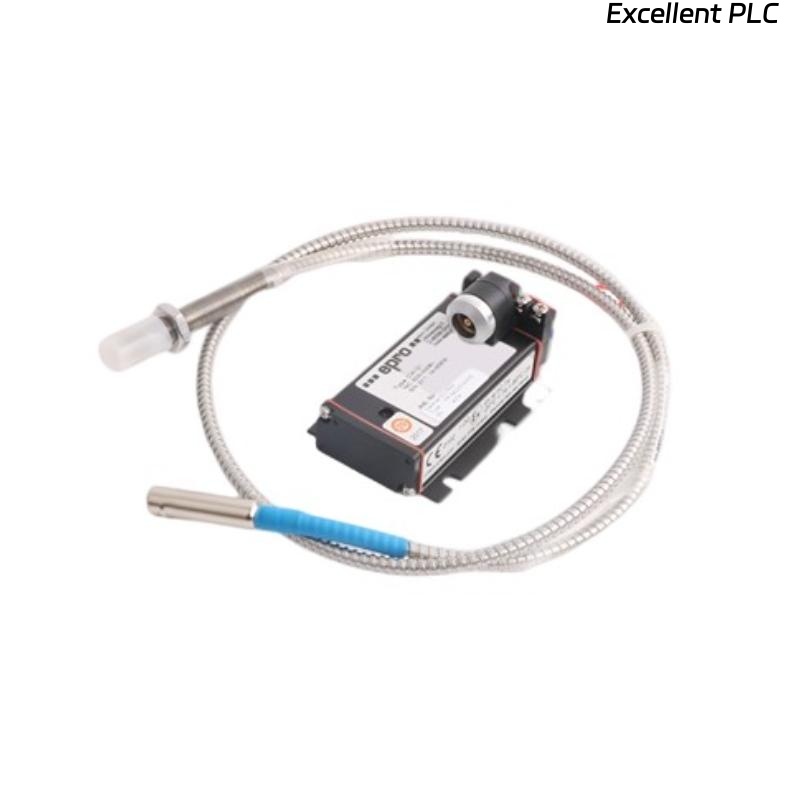

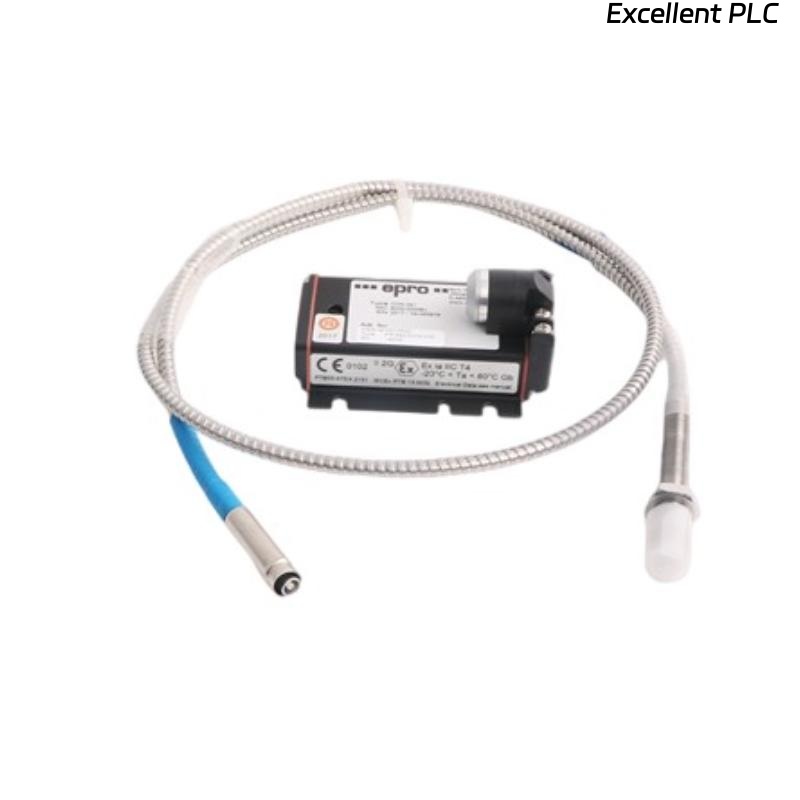

The Epro PR6423/014-010+CON021 8 mm Eddy-Current Sensor is a precision non-contact sensor designed for measuring shaft displacement, position, and vibration in rotating machinery. Utilizing advanced eddy-current technology, it provides highly accurate and stable measurements, making it ideal for machinery protection and condition monitoring applications.
Key Features
-
8 mm probe diameter for versatile installation
-
Non-contact eddy-current sensing for accurate displacement and vibration measurement
-
Supplied with Epro CON021 signal conditioner for complete functionality
-
High stability and repeatability under varying conditions
-
Wide operating temperature range for industrial environments
-
Rugged stainless steel design for durability
-
Supports predictive maintenance and machinery protection systems
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | PR6423/014-010+CON021 |
| Series | PR6423 |
| Type | Eddy-Current Sensor + Signal Conditioner |
| Probe Diameter | 8 mm |
| Measurement Range | ±1 mm (typical, depending on configuration) |
| Frequency Response | DC – 10 kHz |
| Linearity | ≤1% of full scale |
| Output | Differential voltage (via CON021) |
| Operating Temperature | -35 °C to +180 °C (probe), -20 °C to +70 °C (CON021) |
| Storage Temperature | -50 °C to +200 °C |
| Humidity | Up to 100% condensing |
| Case Material | Stainless steel probe body |
| Mounting | Threaded installation |
| Dimensions | Sensor head diameter 8 mm |
| Weight | 0.22 kg |
| Compliance | CE, RoHS |
Industry Applications
-
Power Generation – turbine shaft vibration and displacement monitoring
-
Oil & Gas – compressor and pump protection
-
Petrochemical & Chemical – monitoring of rotating machinery in process facilities
-
Manufacturing – precision machinery vibration monitoring
-
Water & Wastewater – pump and motor shaft monitoring
Advantages
-
Provides accurate, real-time, non-contact displacement and vibration measurements
-
Compact 8 mm probe for installations with limited space
-
Rugged design ensures long-term stability in harsh industrial conditions
-
Seamless integration with Epro CON021 signal conditioning unit
-
Supports predictive maintenance to reduce downtime and extend machinery life
-
High linearity and frequency response for dependable monitoring
Frequently Asked Questions (FAQ)
Q1: What does this sensor measure?
It measures shaft displacement, vibration, and position using eddy-current technology.
Q2: What is the probe diameter?
8 mm.
Q3: Does it include the signal conditioner?
Yes, this model includes the PR6423 probe and the CON021 signal conditioner.
Q4: What is the measurement range?
Typically ±1 mm, depending on configuration.
Q5: What is the output type?
Differential voltage via the CON021 signal conditioner.
Q6: What is the operating temperature range?
-35 °C to +180 °C for the probe, -20 °C to +70 °C for the CON021.
Q7: What is the case material?
The probe body is stainless steel for durability.
Q8: How is it mounted?
Threaded installation.
Q9: Is it suitable for harsh environments?
Yes, it is designed for high temperature, humidity, and industrial conditions.
Q10: Which industries commonly use this sensor?
Power Generation, Oil & Gas, Petrochemical, Manufacturing, and Water & Wastewater.
