Product Introduction

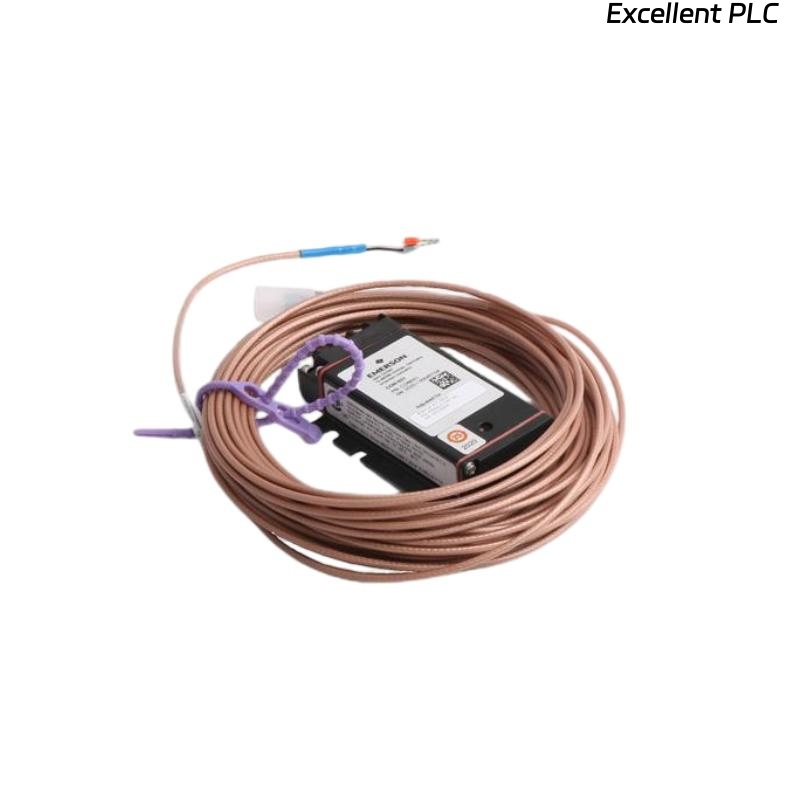

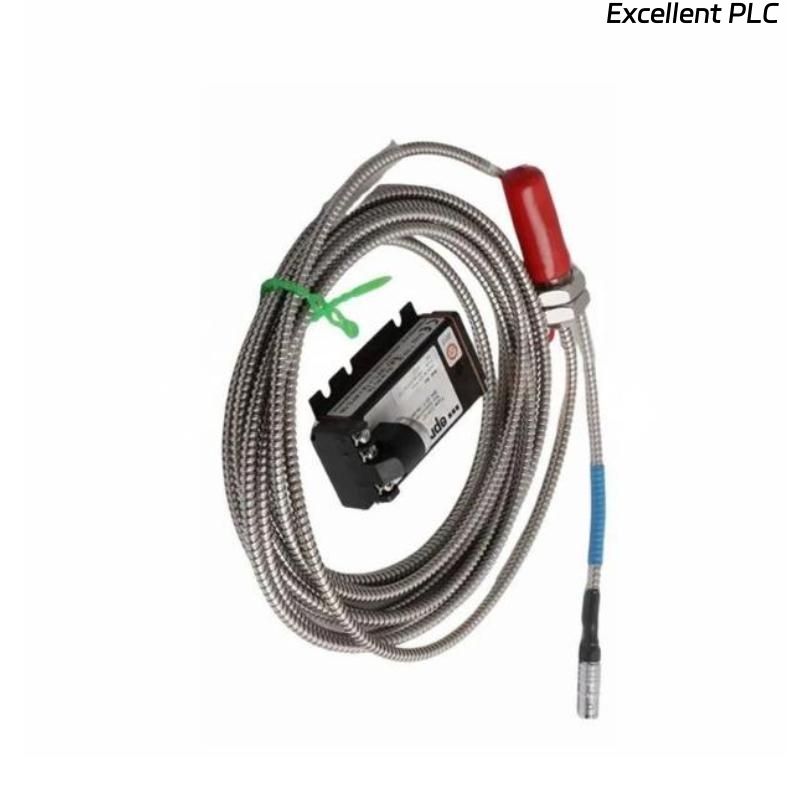

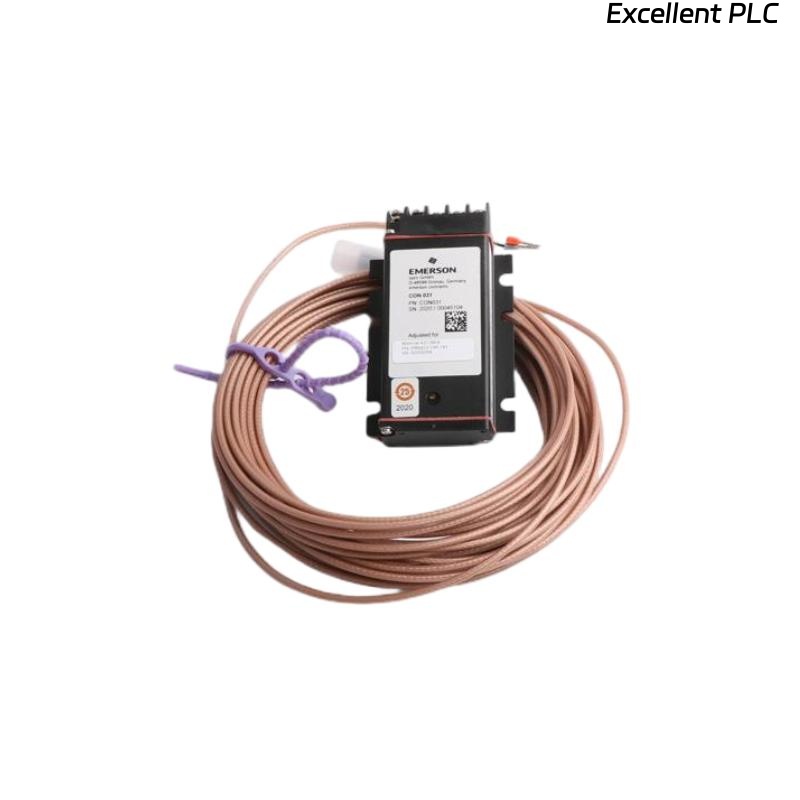

The Epro PR6423/015-000-CN is an advanced 8mm eddy current sensor designed to offer high precision and reliability in measuring displacement, vibration, and position. This sensor operates on the principle of electromagnetic induction, providing non-contact measurements that minimize mechanical wear, ensuring longer operational life and stability even in demanding industrial environments.
Ideal for high-speed applications and precise measurements, the PR6423/015-000-CN is frequently employed in machinery monitoring, process control, and quality assurance within industries like aerospace, automotive, power generation, and manufacturing. Its non-contact nature makes it particularly suitable for applications involving high-frequency measurements, offering superior accuracy without the risk of physical degradation.
With its easy integration into various control systems, the sensor provides real-time feedback via analog outputs, enabling proactive maintenance and operational efficiency.
Parameters
| Parameter | Description |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
| Measuring Range | 12 mm |
| Frequency Response | Up to 1 MHz |
| Supply Voltage | 10-30 V DC |
| Output Signal | 4-20 mA / 0-10 V |
| Operating Temperature | -40 to +100 °C |
| Housing Material | Stainless Steel |
| Cable Length | 3 meters |
Applications
The Epro PR6423/015-000-CN sensor is designed for a broad range of applications where high precision and non-contact measurements are essential. Notable areas of use include:
-
Rotating Machinery Monitoring: The sensor detects displacement and vibration in motors, turbines, and other rotating equipment, helping to prevent failures by providing early warnings.
-
Proximity Sensing: Used to measure the distance between the sensor and metal surfaces in automated systems, providing accurate position feedback in robotics, assembly lines, and parts handling.
-
Quality Control: It ensures the precise positioning and alignment of components during the manufacturing process, improving product quality and reducing defects.
-
Vibration Monitoring: Detects abnormal vibrations in machinery, helping to implement predictive maintenance strategies and reducing the likelihood of unplanned downtimes.
-
Displacement Measurement: Accurate displacement measurements are essential in applications such as automotive, aerospace, and precision machining to ensure the integrity and performance of components.
Advantages
-
Non-contact Measurement: The eddy current sensor operates without physical contact, eliminating wear and tear on both the sensor and the target material, resulting in reduced maintenance costs and longer lifespan.
-
High Sensitivity and Precision: Capable of detecting the smallest changes in position and vibration, the sensor ensures accurate and reliable readings in a variety of applications.
-
Wide Temperature Range: The sensor can function in extreme temperatures ranging from -40°C to +100°C, making it suitable for both cold and hot industrial environments.
-
Fast Response Time: The PR6423/015-000-CN provides a fast frequency response of up to 1 MHz, enabling it to accurately measure high-speed vibrations and dynamic processes.
-
Durable and Robust: The stainless steel housing protects the sensor from corrosion, dust, and vibration, ensuring stable performance even in harsh conditions.
-
Flexible Output Options: With both 4-20 mA and 0-10 V analog output signals, the sensor is easily integrated into industrial control systems, providing real-time data feedback.
FAQ
1. How does the Epro PR6423/015-000-CN sensor operate?
The sensor operates using the principle of electromagnetic induction. It generates an eddy current in the target material, and by measuring the changes in these eddy currents, it determines displacement, position, and vibration.
2. What is the frequency response of this sensor?
The PR6423/015-000-CN offers a frequency response of up to 1 MHz, making it suitable for high-speed applications such as rotating machinery and dynamic systems.
3. Can this sensor measure both displacement and vibration?
Yes, the PR6423/015-000-CN is designed to measure both displacement and vibration with high accuracy, providing critical feedback in real-time for machinery and process control.
4. What output options does the Epro PR6423/015-000-CN provide?
This sensor provides two output options: 4-20 mA and 0-10 V analog signals, allowing for easy integration into a wide range of control systems and monitoring applications.
5. What types of materials can the sensor measure?
The sensor can measure displacement in both ferrous and non-ferrous materials, as long as the target material is sufficiently conductive to induce eddy currents.
6. How does the Epro PR6423/015-000-CN handle temperature extremes?
With an operational temperature range from -40°C to +100°C, the sensor is designed to perform reliably in both very cold and hot environments, making it ideal for a wide range of industrial conditions.
7. Is the sensor resistant to electromagnetic interference (EMI)?
Yes, the Epro PR6423/015-000-CN is designed with EMI shielding to minimize the impact of electromagnetic interference, ensuring stable and accurate operation in environments with high EMI levels.
8. Can this sensor be used in automated manufacturing systems?
Absolutely. The Epro PR6423/015-000-CN is perfect for automated systems where precise position feedback is required, ensuring high-quality control and optimized production lines.
9. What type of mounting is required for this sensor?
The PR6423/015-000-CN sensor can be mounted using standard industrial mounting brackets or directly onto machinery using the threaded mounting hole for flexibility during installation.
10. How is the sensor calibrated?
The Epro PR6423/015-000-CN comes pre-calibrated for use in industrial applications, but it can be fine-tuned in the field to match specific needs or application conditions.
