Epro PR6423/016-030+CON021 8mm Eddy Current Sensor

Product Introduction

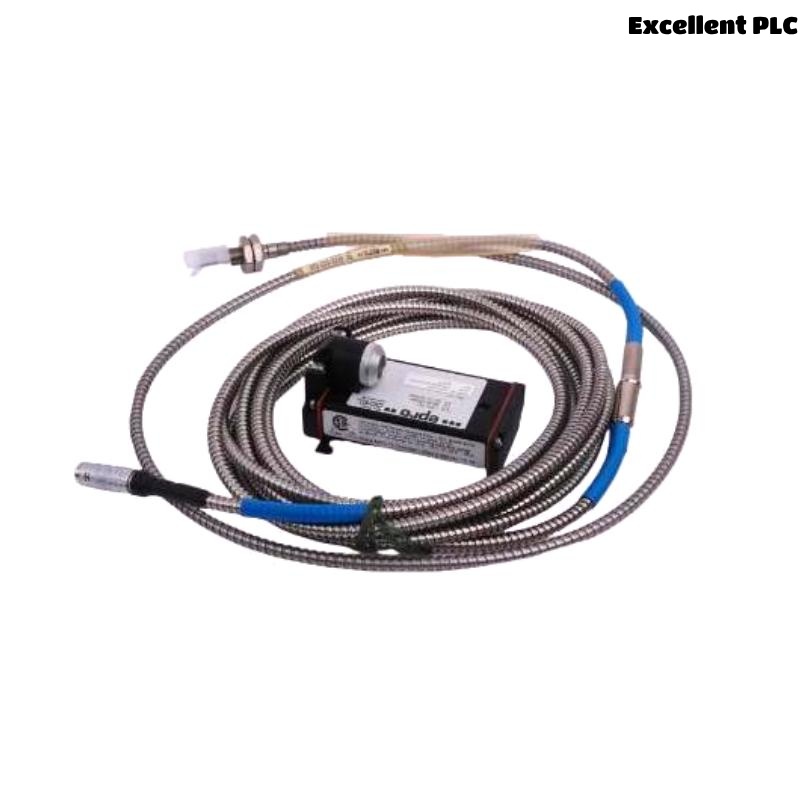

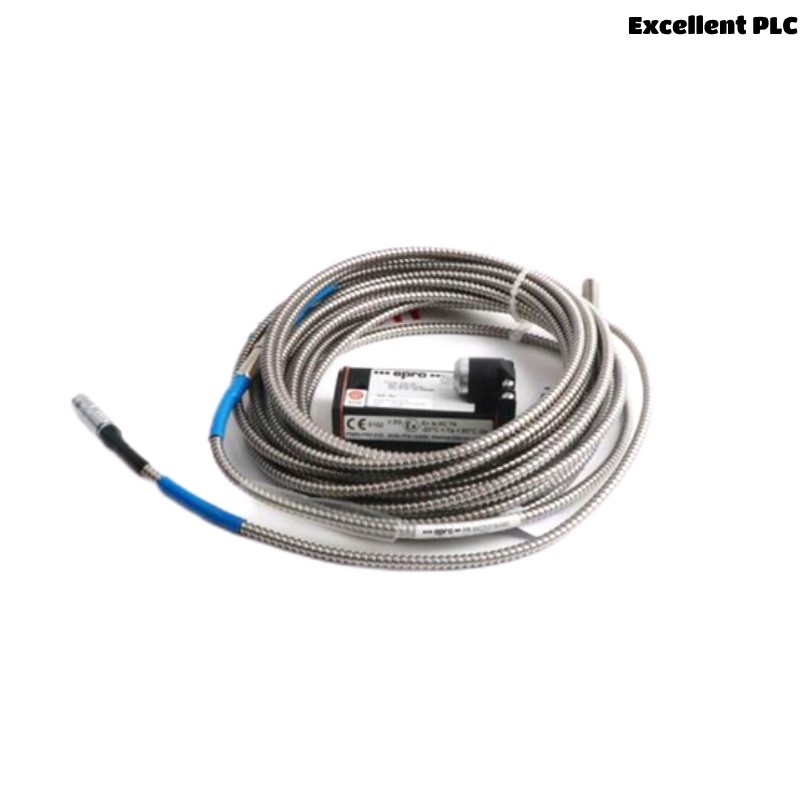

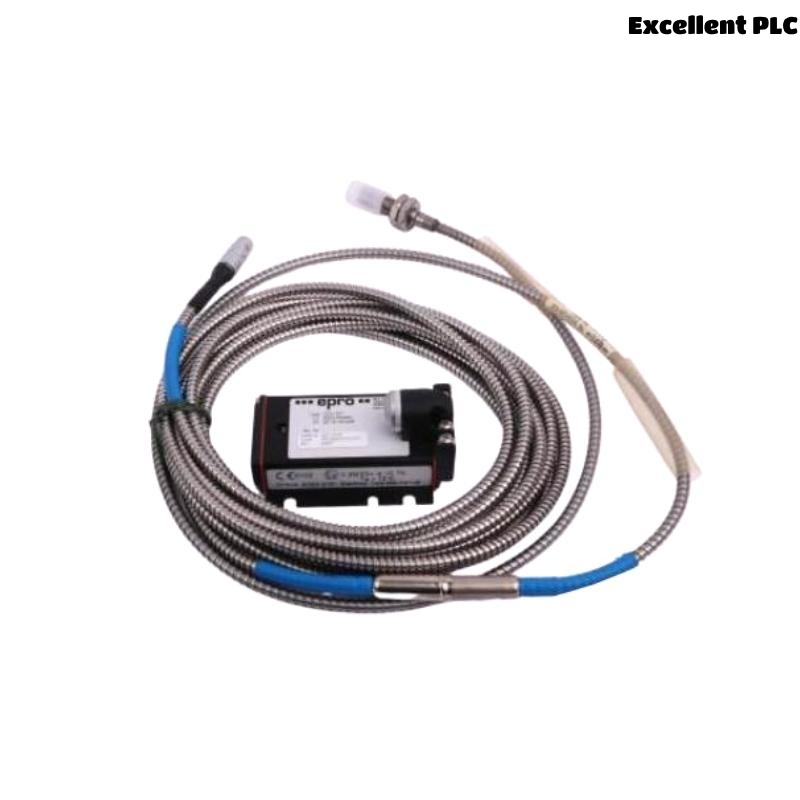

The Epro PR6423/016-030 + CON021 is a high-precision eddy current sensor system, engineered for reliable, non-contact measurement of shaft displacement, vibration, and position in rotating machinery. This specific model combines the PR6423/016-030 sensor (with a 3.0-meter cable) and the CON021 converter, forming a complete sensing solution suitable for critical machine protection and condition monitoring.

The PR6423 series is part of Epro’s renowned proximity sensor line, offering robustness, accuracy, and compatibility with the MMS6000 system. The 016 variant features optimized electrical characteristics for increased linearity and temperature performance, while the CON021 converter ensures precise signal conditioning and easy integration into data acquisition systems.

Product Specifications

Product Applications

The PR6423/016-030 + CON021 system is ideal for a wide variety of rotating equipment across several industries. Its key applications include:

• Turbomachinery (Steam/Gas Turbines)
  Continuous monitoring of shaft vibration, radial displacement, and thermal expansion.

• Compressors and Blowers
  Real-time detection of mechanical looseness, bearing wear, and shaft imbalance.

• Industrial Pumps
  Preventative monitoring of cavitation and shaft misalignment.

• Gearboxes and Electric Motors
  Monitoring of shaft behavior and gear health in dynamic conditions.

• Hydroelectric and Thermal Power Plants
  Integrated into SCADA and safety shutdown systems for high-value rotating assets.

• Refineries and Petrochemical Plants
  Suitable for hazardous areas and continuous condition-based maintenance programs.

Product Advantages

• High Precision Sensing
  Delivers exceptional accuracy in shaft displacement and vibration measurements.

• Factory-Calibrated with CON021
  Ensures reliable signal output and simplifies installation without manual tuning.

• Industrial Grade Design
  Built to endure harsh mechanical and thermal environments.

• Wide Compatibility
  Seamlessly integrates with Epro MMS6000, Bently Nevada systems, and others.

• Flexible Output Options
  The CON021 converter provides versatile signal formats for varied systems.

• Robust Cabling and Protection
  With IP65 protection and high-grade shielding, it resists electromagnetic interference.

• No Mechanical Contact
  Non-intrusive sensing means no wear, maintenance-free operation.

• High Reliability in Critical Machinery
  Designed for 24/7 continuous monitoring in mission-critical applications.

• Optimized Linearity and Stability
  The 016 sensor type offers improved performance over long-term cycles.

• Global Certifications
  Suitable for use in regulated industries including oil & gas and power generation.

Frequently Asked Questions (FAQ)

1. What is the purpose of pairing the PR6423/016-030 with a CON021 converter?
   The CON021 processes and conditions the analog signal from the sensor to a readable format for monitoring systems.

2. Can I use the PR6423/016-030 sensor with other converter models?
   It is recommended to use only with CON021 to ensure optimal calibration and linearity.

3. What does “016-030” mean in the model number?
   “016” indicates the sensor type; “030” signifies a 3.0-meter fixed cable length.

4. Is this sensor suitable for high-temperature applications?
   Yes, it supports up to +180°C at the sensor tip.

5. How is the sensor mounted?
   It uses an M10 x 1 threaded mount, commonly fixed into bearing housings or brackets.

6. Is this sensor system certified for use in hazardous areas?
   Certain configurations are ATEX certified; check the specific model certification before use.

7. What types of machines can this sensor monitor?
   It is widely used on turbines, compressors, motors, pumps, and gearboxes.

8. How accurate is the signal output from the CON021?
   The CON021 provides precise analog output with minimal noise, calibrated to the sensor.

9. What’s the frequency response of this system?
   The system can handle frequencies up to 10 kHz, suitable for most dynamic monitoring.

10. Does the cable need special routing or shielding?
    The cable is factory-shielded, but proper routing away from high-voltage sources is advised.
