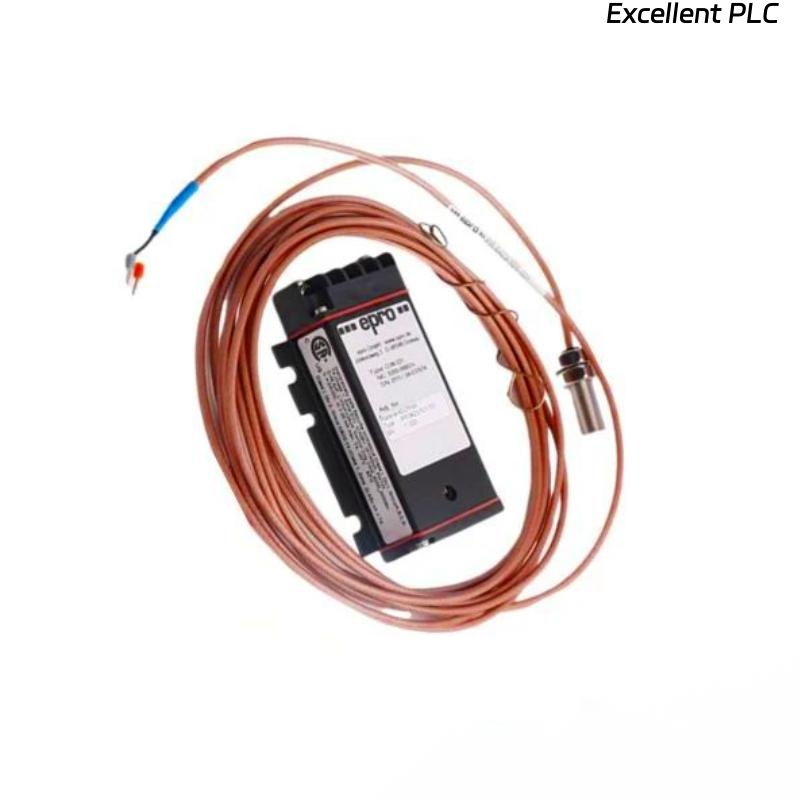

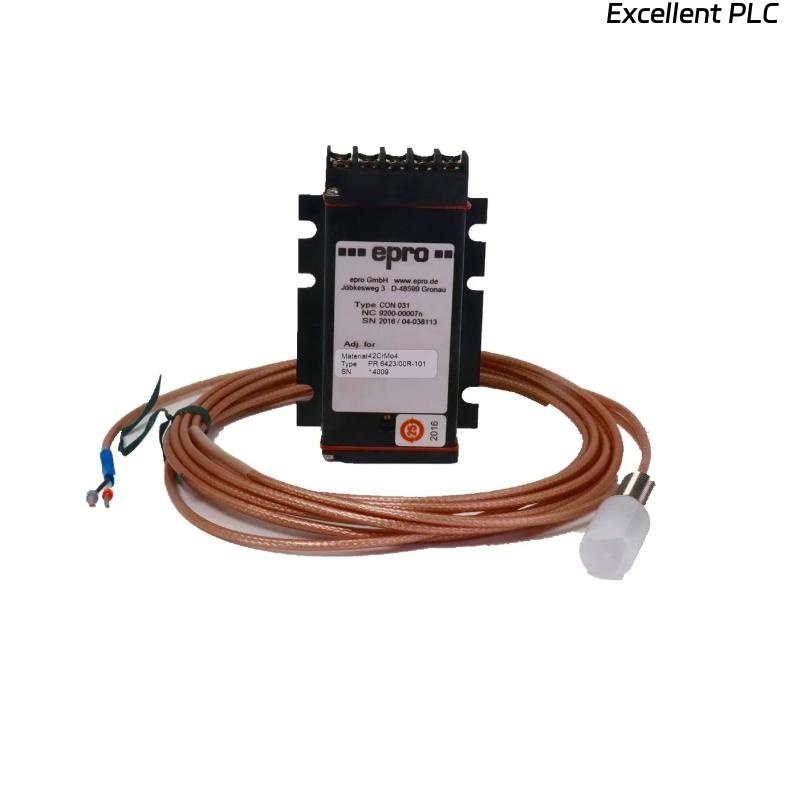

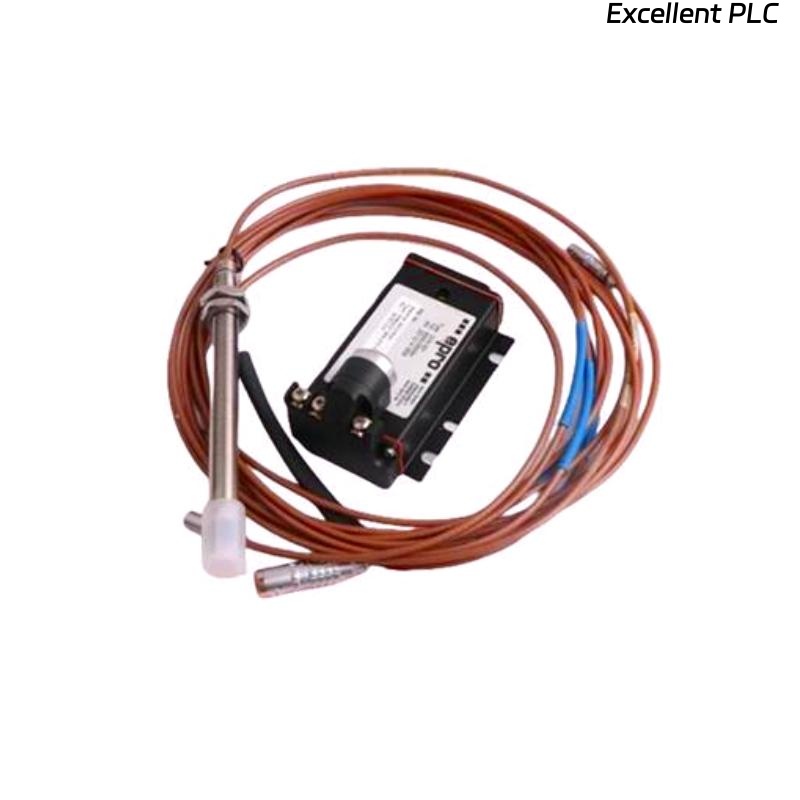

The Epro PR6423/01M-030 is an 8mm Eddy-Current Sensor designed for high-precision non-contact measurement of displacement, position, or vibration in industrial machinery. It operates on the principle of eddy-current technology, providing fast response times and stable output even in harsh environments. This sensor is suitable for applications requiring accurate monitoring of rotating and reciprocating components.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy-Current |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
| Measurement Range | 0–3 mm |
| Linearity | ±1% of full scale |
| Frequency Response | 0–10 kHz |
| Output Type | Voltage (Differential/Single-ended) |
| Excitation Voltage | 5–12 VDC |
| Operating Temperature | -40°C to +125°C |
| Cable Length | 1 m (customizable) |
| Housing Material | Stainless Steel |
| Connector Type | M12 / flying lead options |
Applications
-
Vibration monitoring for turbines, compressors, and generators
-
Shaft displacement measurement in rotating machinery
-
High-speed machinery position monitoring
-
Condition-based maintenance systems
-
Lab and industrial testing of mechanical components
Advantages
-
High accuracy and linearity for critical measurements
-
Compact and lightweight, ideal for tight installations
-
Fast response suitable for high-frequency monitoring
-
Robust construction for industrial and harsh environments
-
Flexible output options compatible with most data acquisition systems
-
Easy integration with existing machinery and instrumentation
FAQ
-
Q1: What is the maximum measurement frequency of the PR6423/01M-030?
A1: The sensor supports frequencies up to 10 kHz. -
Q2: Can this sensor operate in high-temperature environments?
A2: Yes, it operates reliably between -40°C and +125°C. -
Q3: What output signal does this sensor provide?
A3: It provides a voltage output, which can be differential or single-ended. -
Q4: Is the sensor suitable for measuring vibration on rotating shafts?
A4: Yes, it is specifically designed for high-speed rotating shaft monitoring. -
Q5: How stable is the sensor against electromagnetic interference?
A5: The sensor uses eddy-current technology, which is highly resistant to EMI. -
Q6: Can the sensor be used underwater or in humid environments?
A6: The stainless steel housing provides protection, but IP rating should be verified for immersion applications. -
Q7: What is the minimum detectable displacement?
A7: The sensor can detect displacements as small as a few microns, depending on the system setup. -
Q8: How does the sensor respond to axial vs radial displacement?
A8: The sensor is most sensitive to radial displacement of the target surface. -
Q9: Can the cable length be customized for long-distance installations?
A9: Yes, cable lengths can be customized to meet installation requirements. -
Q10: Is calibration required for accurate measurements?
A10: Yes, calibration against known standards is recommended for precision applications.
