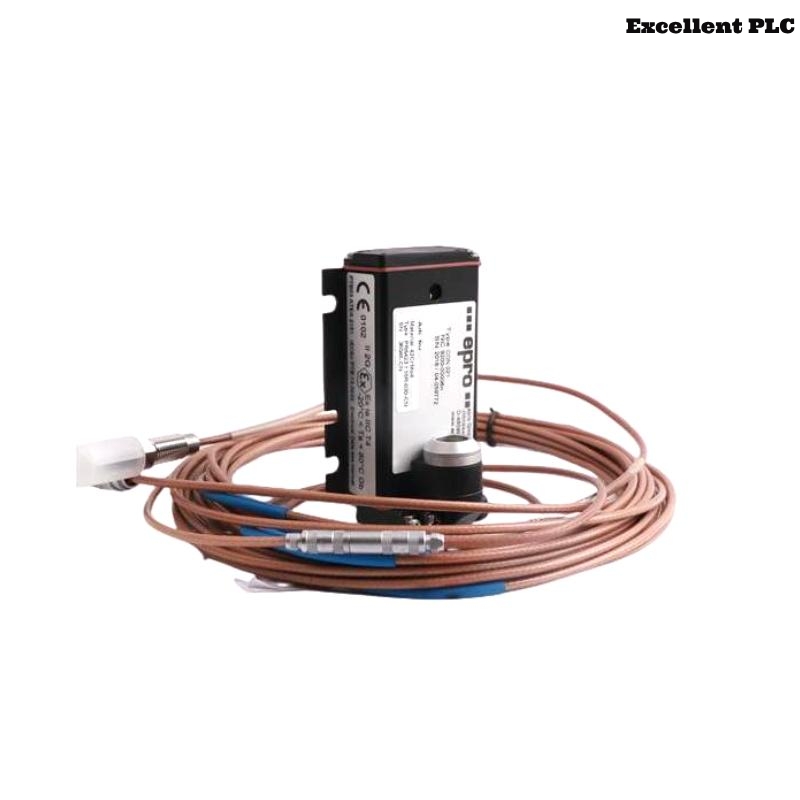

The Epro PR6423/10R-010-CN+CON021 8mm Eddy Current Sensor is a precision measurement device designed to detect displacement, vibration, and position with exceptional accuracy. It operates based on the eddy current principle, providing non-contact measurement, making it ideal for applications in high-speed and high-precision industries.

This sensor is part of Epro’s advanced range of Eddy Current Sensors, and the inclusion of the CON021 module enhances its versatility. The CON021 is a signal conditioning module that further refines the sensor’s output, offering improved noise reduction and signal stability for accurate readings. Combined, the PR6423/10R-010-CN sensor and the CON021 module deliver a reliable and highly efficient solution for monitoring critical machinery components, even in harsh industrial environments.

The PR6423/10R-010-CN+CON021 model is perfect for industries that demand real-time, accurate data for displacement and vibration monitoring, such as power generation, aerospace, automotive, and manufacturing. This sensor is designed to meet the needs of industries requiring non-contact measurements of moving parts, ensuring the longevity and performance of machinery.

Product Parameters

Below is a summary of the specifications for the Epro PR6423/10R-010-CN+CON021 8mm Eddy Current Sensor:

Parameter	Specification
Model Number	PR6423/10R-010-CN+CON021
Type	Eddy Current Sensor + Signal Conditioning Module
Sensing Distance	8mm (standard)
Measuring Range	0 – 8mm
Output Type	Analog output (current or voltage)
Frequency Range	Up to 100 kHz
Supply Voltage	24V DC ± 10%
Operating Temperature	-40°C to +85°C
Weight	0.22 kg
Material	Stainless steel
Connector Type	M12 connector
Response Time	< 1 ms
Protection Class	IP67
Mounting Type	Threaded for direct mounting
Target Material	Ferrous material (steel)
Temperature Compensation	Yes





---

Applications

The Epro PR6423/10R-010-CN+CON021 8mm Eddy Current Sensor is used across a wide range of industrial applications where precise, non-contact displacement and vibration measurements are crucial for the health and performance of machinery. Its combined capability with the CON021 module ensures highly accurate and stable readings even in challenging environments.

Key Applications:

• Rotating Machinery Monitoring: Ideal for measuring displacement and vibration in high-speed rotating machinery such as turbines, motors, and compressors.

• Condition Monitoring: Widely used in predictive maintenance systems to detect misalignments, bearing wear, or unbalance, thus preventing costly breakdowns and ensuring the operational efficiency of critical equipment.

• Vibration and Displacement Analysis: Utilized in vibration analysis systems for monitoring machinery health, particularly in industries such as aerospace, automotive, and manufacturing.

• Automated Industrial Systems: Employed in automated production lines where precise position measurements are essential for operational success.

• Machine Health Monitoring: Used to detect the early signs of mechanical failures in industrial machines like pumps and generators, improving reliability and safety.

• Power Generation: Used in power plants for real-time monitoring of critical turbines and generators, helping prevent failure and optimize maintenance schedules.

• Test and Measurement: Applied in test environments, including laboratory settings, to measure displacement or position in mechanical testing rigs.

---

Advantages

The Epro PR6423/10R-010-CN+CON021 8mm Eddy Current Sensor offers multiple benefits that make it an ideal solution for industries that require accurate, real-time monitoring of machinery components.

1. Non-Contact Measurement: The sensor’s eddy current principle allows for non-contact measurement, minimizing wear and tear on both the sensor and the target object.

2. High Accuracy: The sensor offers precise displacement measurements with high resolution, making it suitable for the most demanding industrial applications.

3. Fast Response Time: With a response time of less than 1 millisecond, the sensor provides real-time feedback, which is crucial for high-speed rotating machinery.

4. Wide Temperature Range: The sensor operates reliably in extreme temperatures, from -40°C to +85°C, ensuring functionality in various industrial environments.

5. Durable Construction: Constructed from stainless steel, the sensor is highly durable and can withstand harsh conditions, including exposure to chemicals, dust, and moisture.

6. Signal Conditioning Module (CON021): The inclusion of the CON021 signal conditioning module enhances the sensor’s output stability, reduces noise interference, and ensures high signal quality over long distances.

7. Compact and Robust: Both the sensor and the CON021 module are designed to be compact yet robust, making them easy to integrate into existing systems while ensuring longevity and reliability.

8. High Frequency Range: Capable of operating up to 100 kHz, the sensor is suitable for applications that require high-frequency measurements, such as turbine and motor monitoring.

9. Protection Class IP67: The sensor’s IP67 rating ensures it is protected against dust and can withstand being submerged in water, making it suitable for use in outdoor environments.

10. Flexible Integration: The M12 connector allows for easy integration into industrial systems, reducing installation time and effort.

---

FAQ

1. What is the sensing distance of the Epro PR6423/10R-010-CN+CON021?

   • The standard sensing distance is 8mm.

2. What is the maximum measuring range of this sensor?

   • The maximum measuring range is 0 to 8mm.

3. What output type does the sensor provide?

   • The sensor provides an analog output, which can be either current or voltage.

4. What is the frequency range of this sensor?

   • The sensor can handle frequencies up to 100 kHz.

5. What is the operating temperature range of the sensor?

   • The operating temperature range is -40°C to +85°C.

6. What is the weight of the Epro PR6423/10R-010-CN+CON021 sensor?

   • The weighs 0.22 kg.

7. What material is the sensor made from?

   • The sensor is made from stainless steel, which provides durability and resistance to harsh environments.

8. Can the sensor be used for high-speed machinery?

   • Yes, with a fast response time of less than 1 millisecond, the sensor is suitable for high-speed machinery.

9. How is the sensor mounted?

   • The sensor is mounted using a threaded connection, allowing for easy installation.

10. What is the protection class of the sensor?

    • The sensor has an IP67 protection class, ensuring it is dust-tight and can be submerged in water.

---
